PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp - AH12H09E3B

This product has been discontinued by the manufacture and is no longer available.

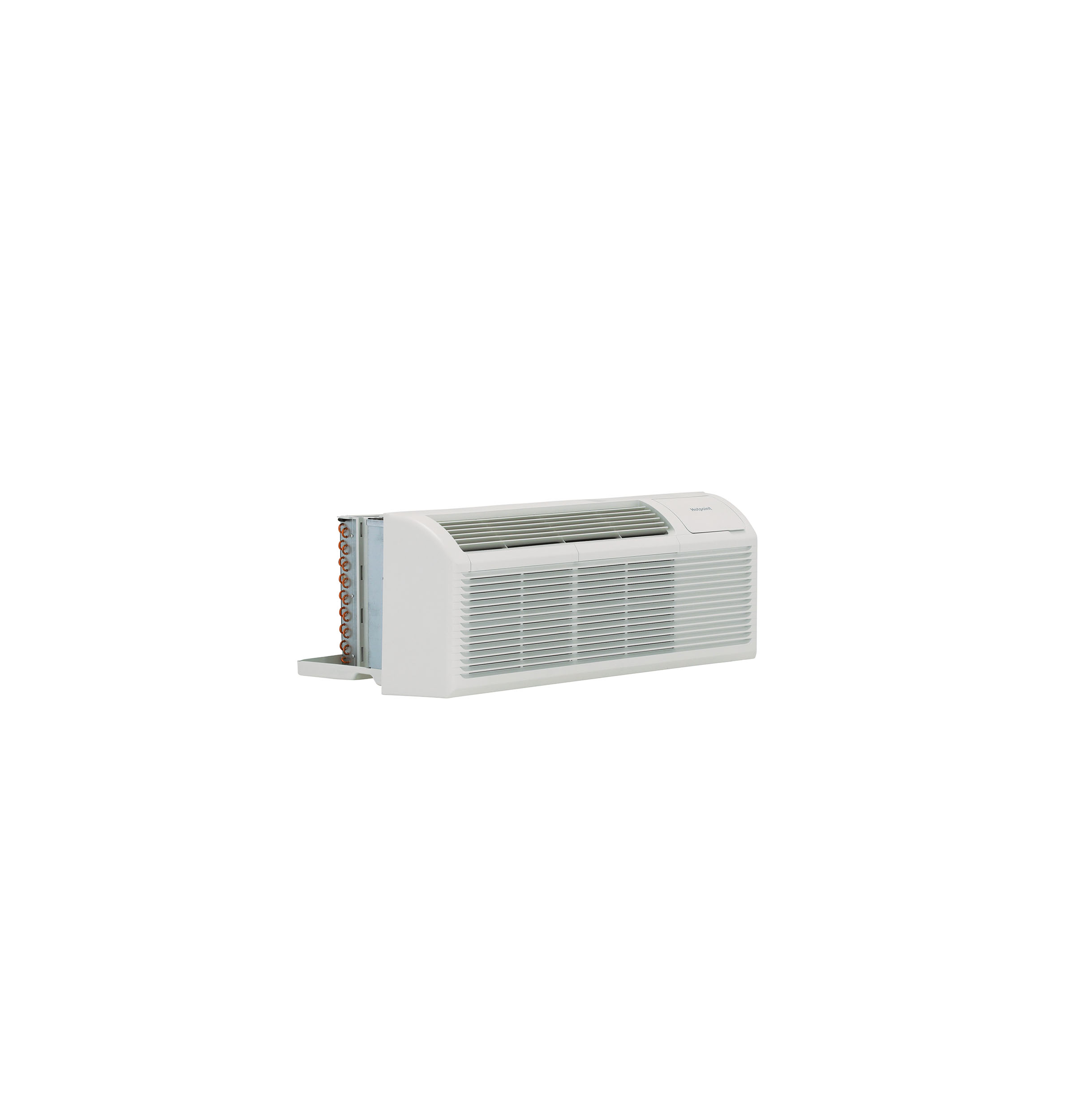

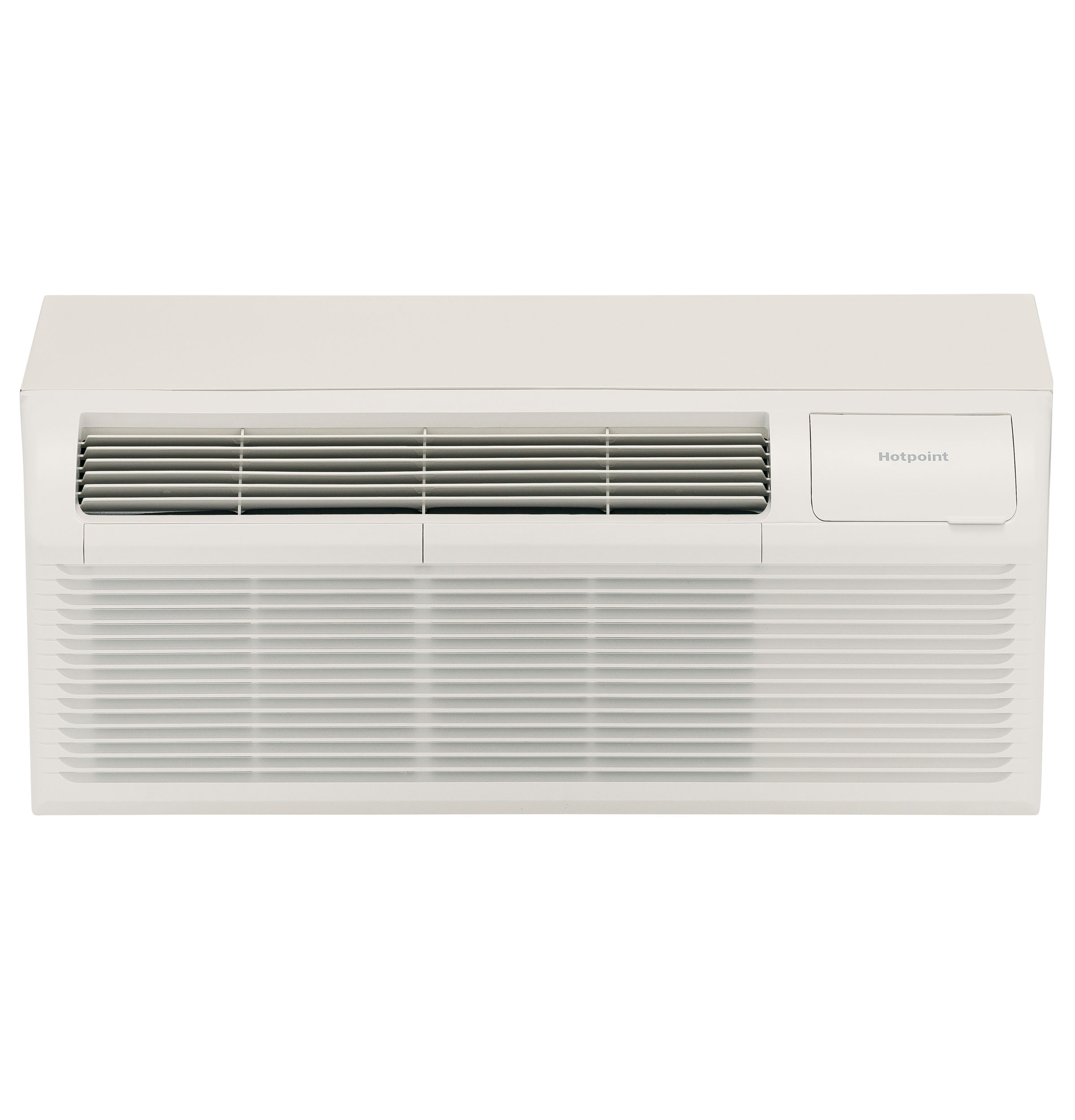

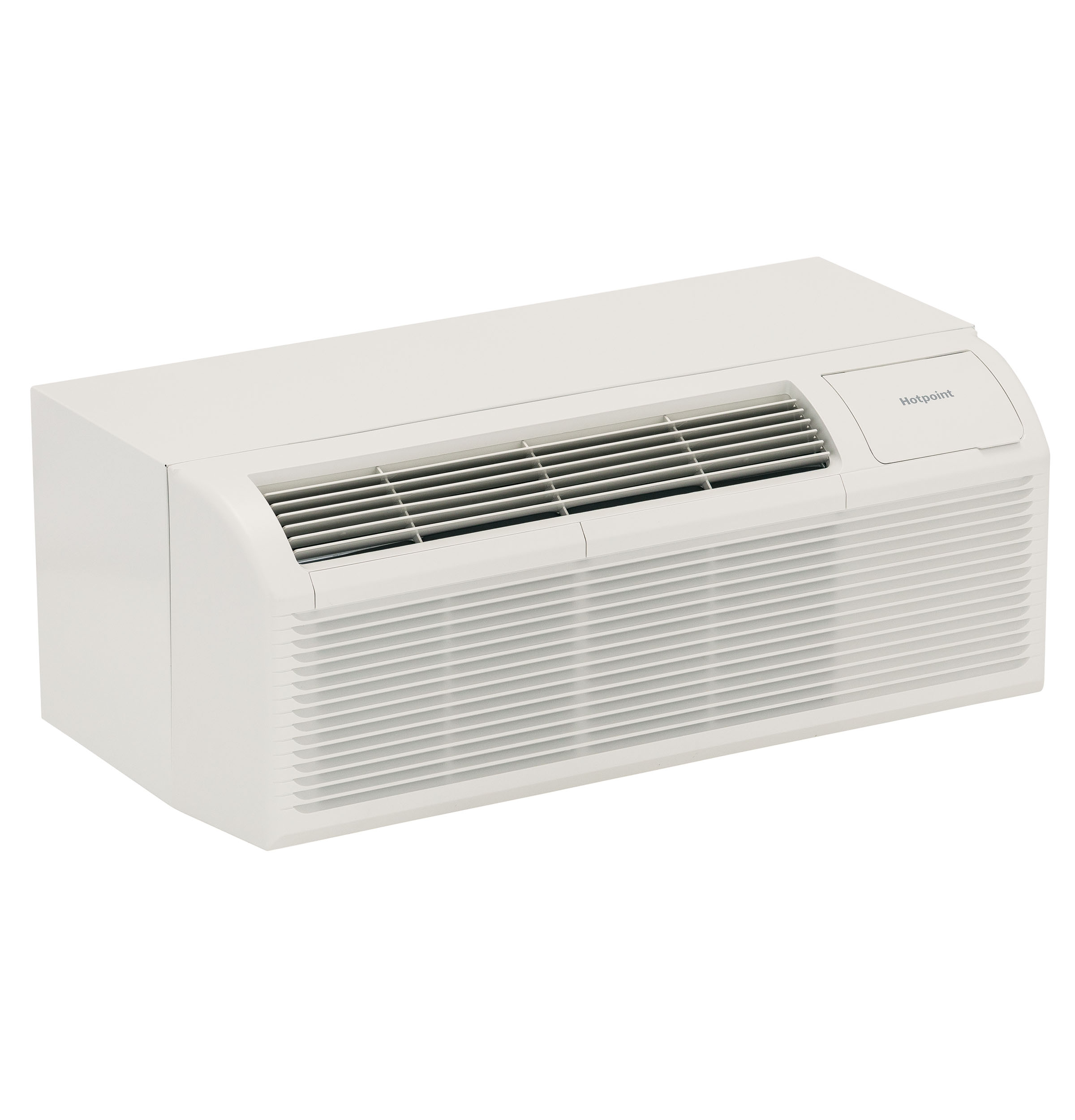

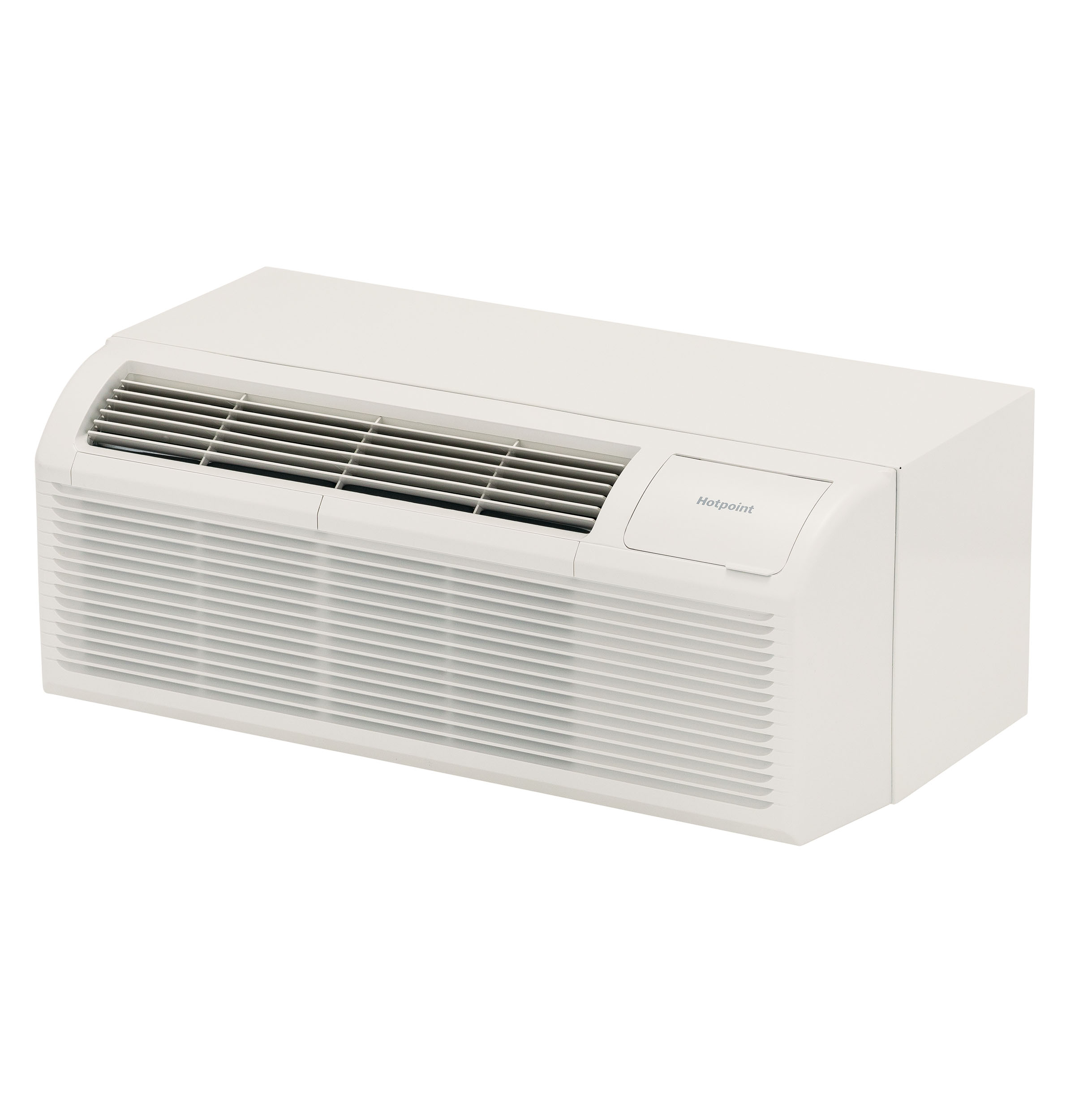

PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp

Model: AH12H09E3B

PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 1 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 2 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 3 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 4 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 5 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 6 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 7 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 8 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 9 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 10 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 11 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 12 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 13 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 14 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 15 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 16 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 17 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 18 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 19 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 20 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 21 of 22PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, product image 22 of 22
PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, thumbnail image 1 of 22
PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, thumbnail image 2 of 22
PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, thumbnail image 3 of 22
PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, thumbnail image 4 of 22
PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B, thumbnail image 5 of 22
+17more

Color : White

PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp AH12H09E3B
White

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Self diagnostics

  • Automatic emergency heat

  • Backed by an industry leader

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

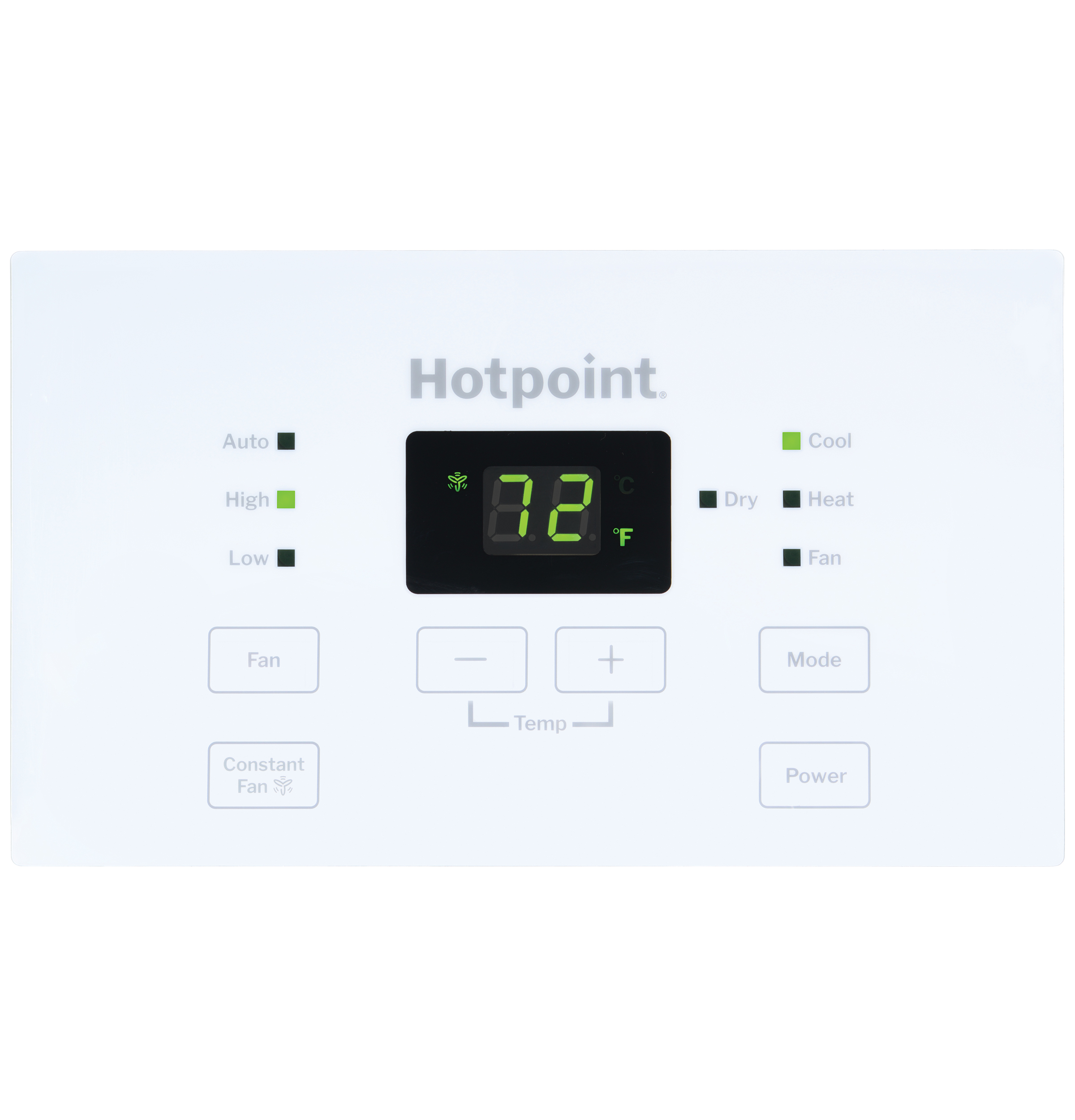

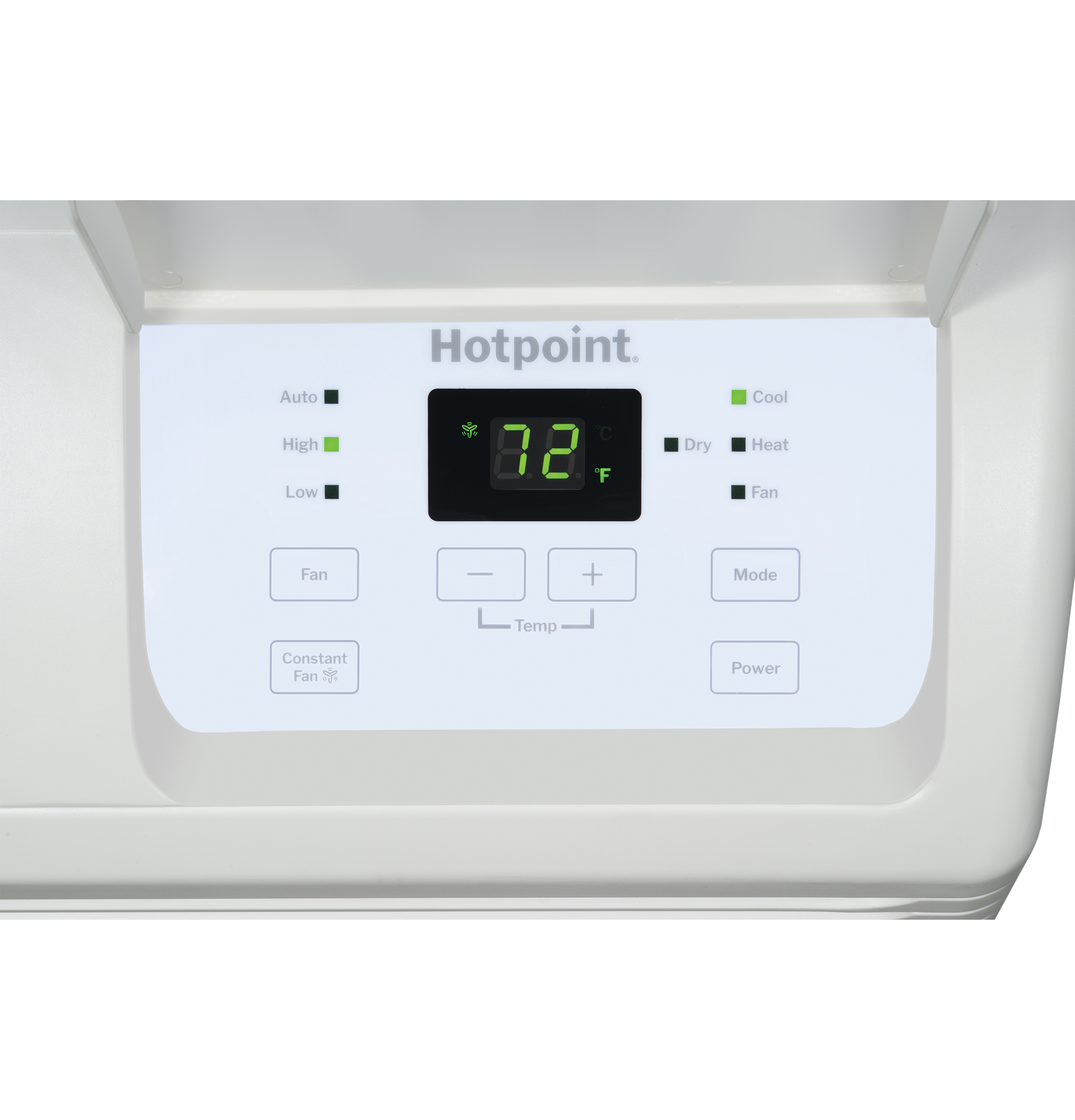

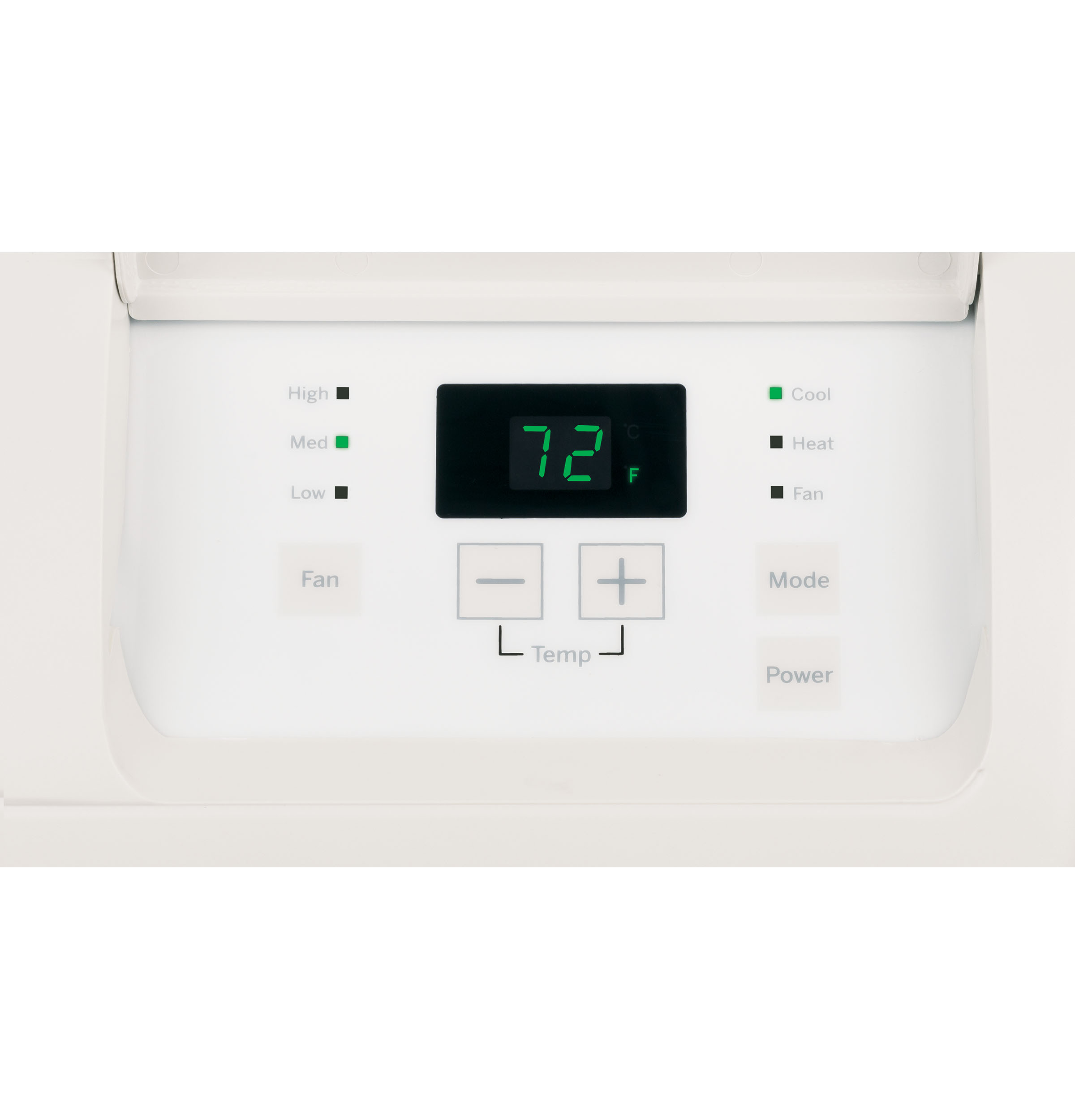

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available

Certifications

AHRI certification

AHRI

CSA certification

CSA

CUL certification

CUL

NRCAN certification

NRCAN

UL certification

UL

Specifications

CAPACITY

Cooling BTUH (MAX)9000 Btu
Cooling EER (BTUH / Watt)11.3
Heating - Reverse Cycle - BTUH8100
Cooling BTUH (MIN)8800 Btu

FEATURES

Control TypeElectronic
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Manual Vent ControlHidden
Refrigerant TypeR32
"SmartFan" Fan CycleYes

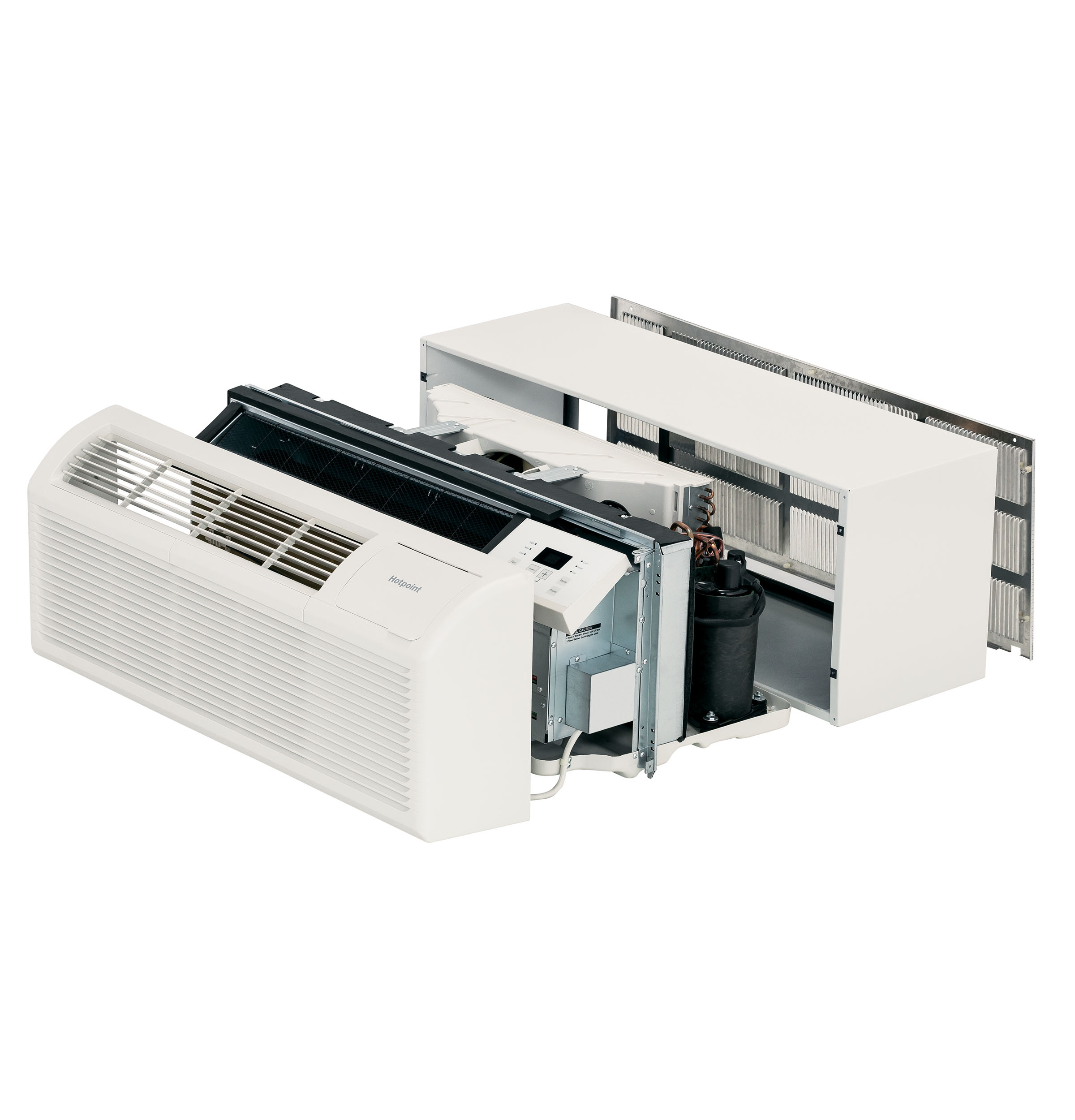

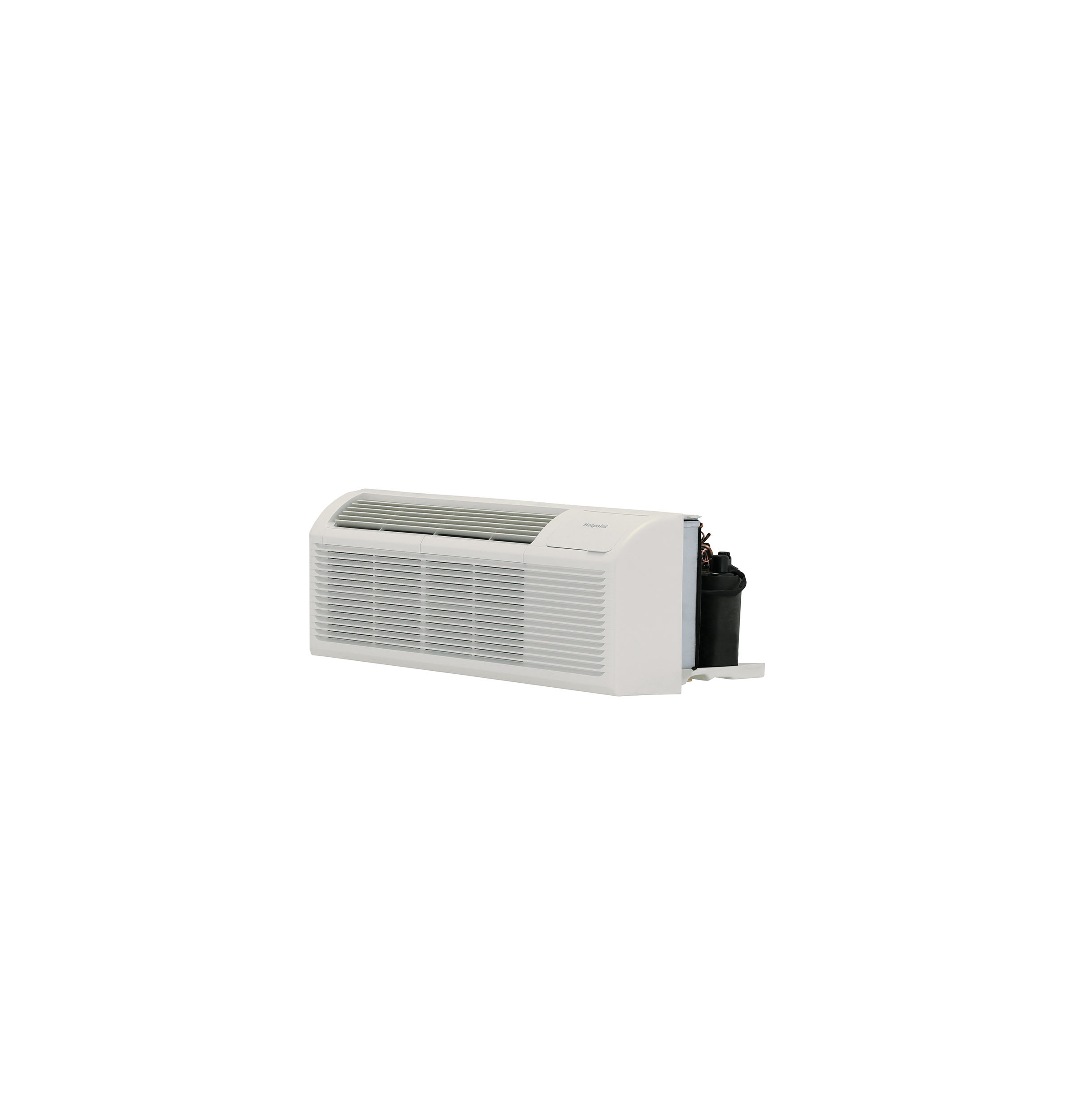

Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Temperature Range62 - 80 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - COP3.3
Outdoor Vent / ExhaustYes

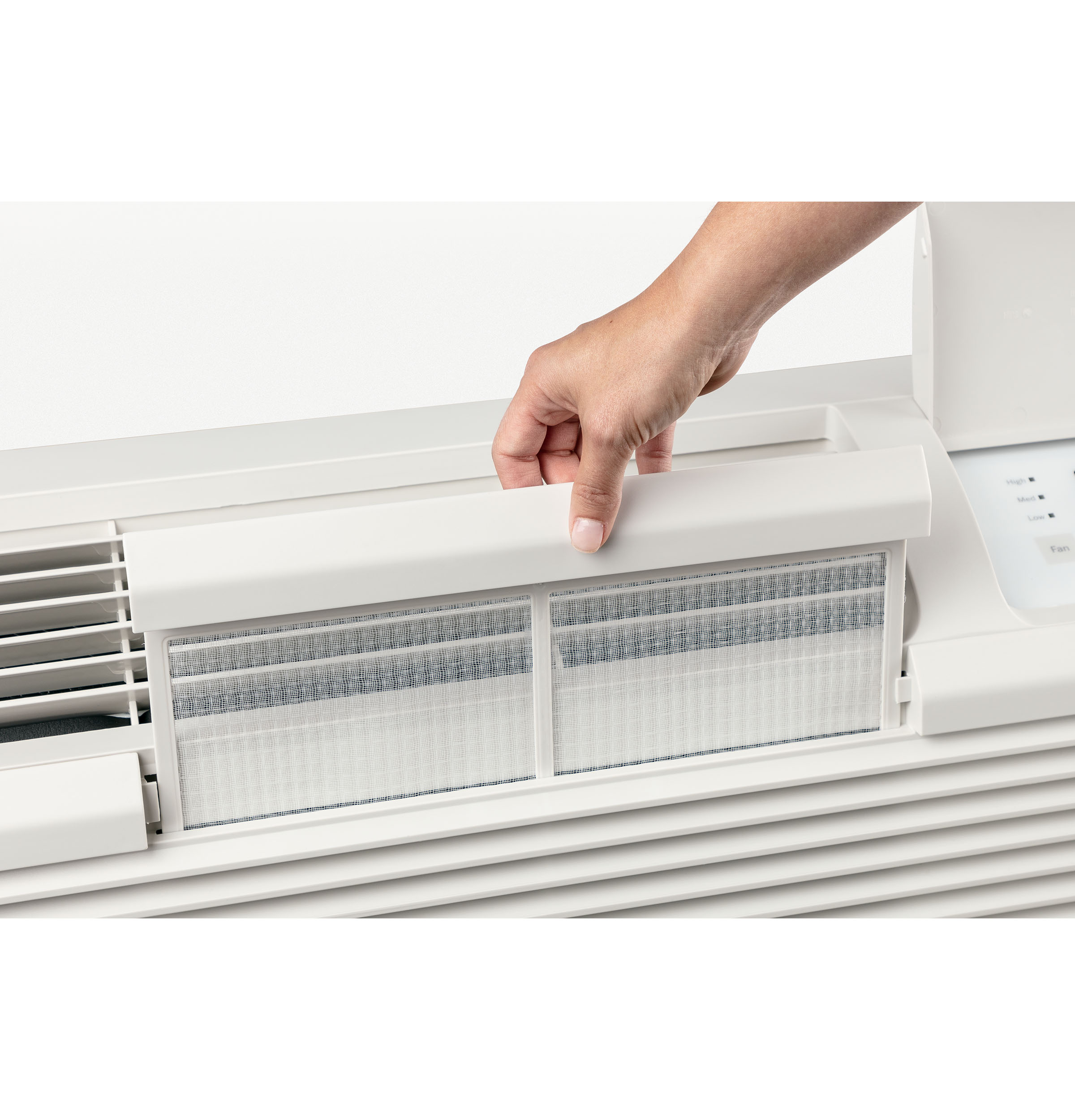

Venting FeaturesVent Air Filter
Heating SystemHeat Pump with Resistance Backup
Fan Speed Selections3 Fan Only
Unit FeaturesAutomatic Emergency Heat

WEIGHTS & DIMENSIONS

Overall Width42.4 in
Approximate Shipping Weight112.9 lb
Overall Height16 in
Overall Depth20.9 in
Net Weight102.5 lb

POWER / RATINGS

Heating - Reverse Cycle - Watts719
Cooling - Amperes3.01
Cooling - Watts796
Heating - Reverse Cycle - Amps3.1
Heating - Electric - Heater Watts3500
Voltage (MAX)265 V
Heating - Electric - Heater Amps13.46

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

Dimensions & Weight

Width42.4 in.
Height16 in.
Length20.9 in.
Weight102.5 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.4 in.
Shipping Height21 in.
Shipping Length25.9 in.
Shipping Weight142.5 lbs.
Total of Shipping Weight142.5 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.21 ft³
Dimensional Weight102 lbs.
Total of Cubes8.21 ft³
Total of Dimensional Weight102 lbs.

Warranty

Labor (Sealed Refrigerating System)5 Year
Parts (Sealed Refrigerating System)5 Year
Labor (Sealed System)5 Year
Parts (Entire Appliance)2 Year
