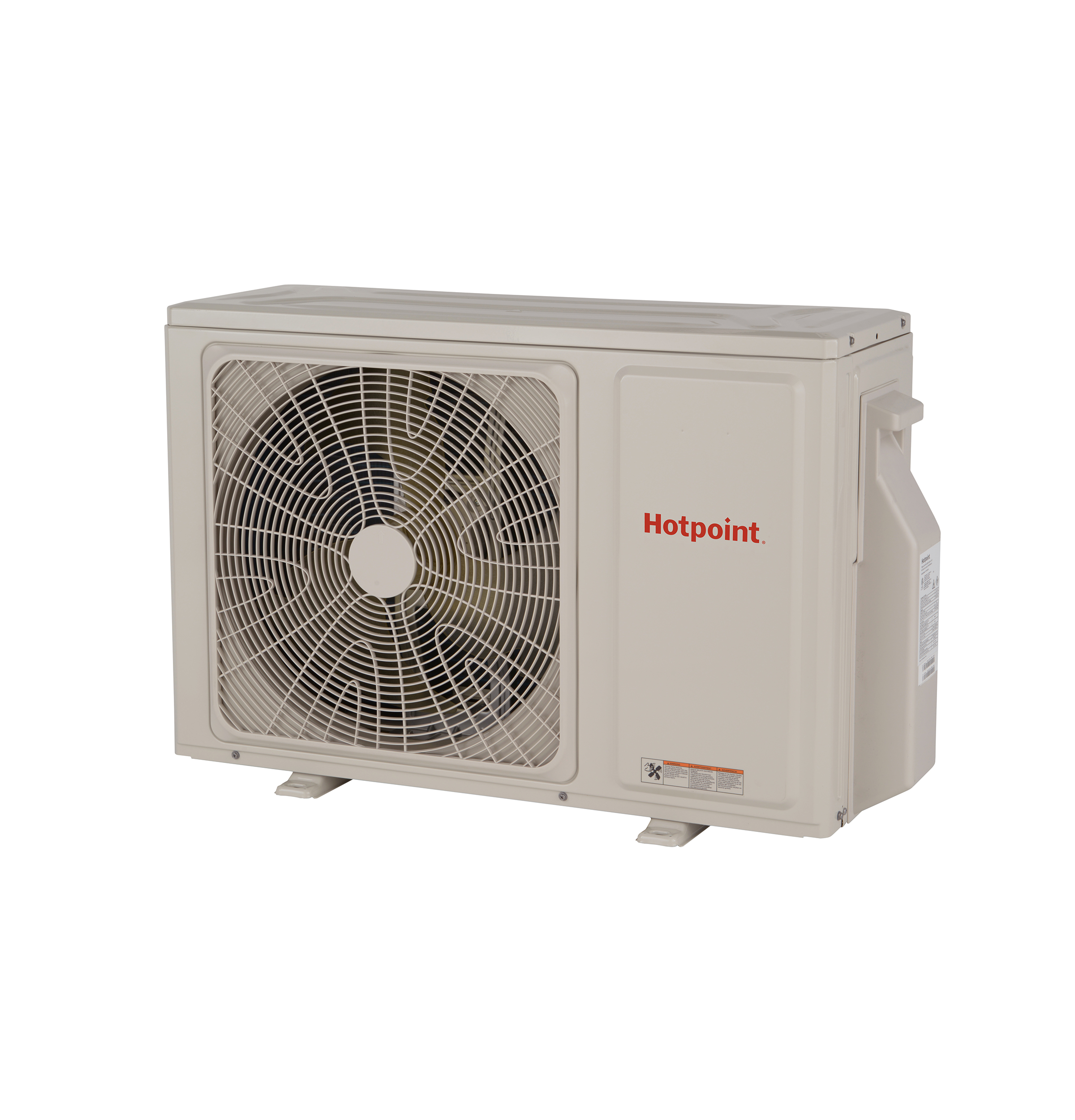

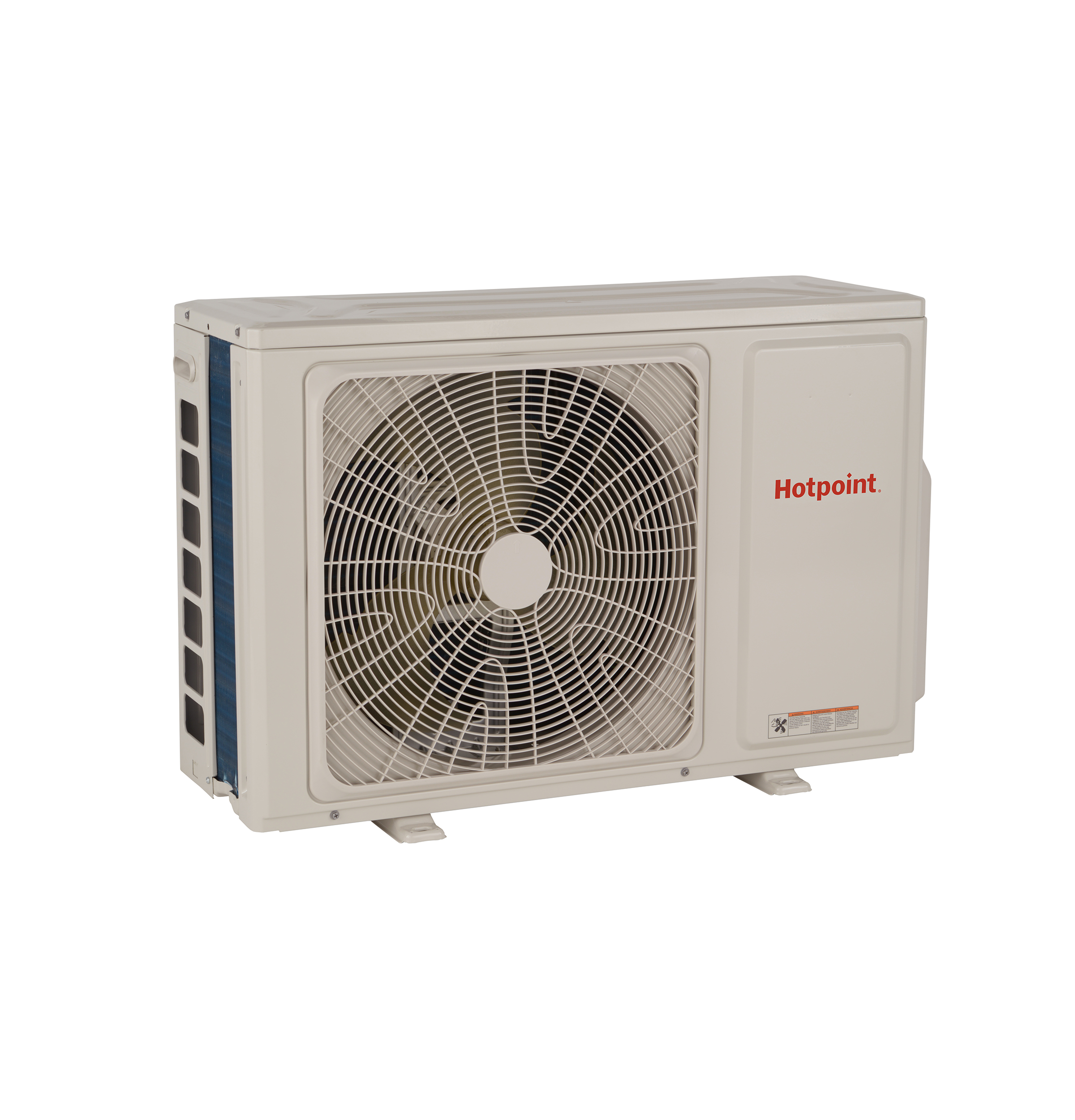

208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System - 1H24HN2DAA
208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: 1H24HN2DAA






208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: 1H24HN2DAA
Key Features
High Efficiency Ductless Heat Pump
High-Performance Inverter Technology
All-Season Comfort
Built to Last
Protective Base Pan Heater
Environmentally Compliant
Federal & State Incentives
Worry-Free Warranty
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
High Efficiency Ductless Heat Pump
18 SEER2 and 9.5 HSPF2 when paired with HW24HN2DAA.
High-Performance Inverter Technology
A DC inverter compressor keeps indoor temperatures consistent in almost any climate and helps homeowners save money on energy.
All-Season Comfort
With heating down to -15°F and cooling up to 115°F, homeowners know they’re coming home to comfort — no matter the weather outside.
Built to Last
A hydrophilic aluminum fin helps prevent condensation buildup and ensures water flows through the unit smoothly.
Protective Base Pan Heater
A built-in base pan heater on outdoor units prevents systems from freezing, keeping systems operating at peak performance.
Environmentally Compliant
All Hotpoint systems use R-32 refrigerant, ensuring that they meet EPA Low GWP (A2L) refrigerant regulations.
Federal & State Incentives
Eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers. All Hotpoint heat pumps are certified CEE Tier-2 except for 24K units installed in the South region. See CEE directory for qualifying models.
Worry-Free Warranty
Unlock a 5-year limited parts and compressor warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Specifications
WEIGHTS & DIMENSIONS
| Overall Height | 25.25 in |
| Overall Depth | 12 in |
| Overall Width | 32.25 in |
| Suction O.D. Refrigerant Line | 1/2" |
| Liquid O.D. Refrigerant Line | 1/4" |
| Net Weight | 83.78 lb |
| Approximate Shipping Weight | 96.34 lb |
FEATURES
| Product Type | Single Zone |
| Outdoor Noise Level | 60 dBA |
| System | 24K Hotpoint |
| Factory Charge (ounces) | 46 oz |
| Temperature Range - Cooling Mode | 14-115 F (-10-46 C) |
| Unit Type | Outdoor |
| Temperature Range - Heating Mode | -15-75 F (-26-24 C) |
| Maximum Fuse Size A | 25 |
| Maximum Line Length (Ft/M) | 83/25 |
| Series | Hotpoint |
| Style | Outdoor |
| Connections | Flare |
| Rotary Compressor | DC Inverter Driven Rotary |
| Compatible Indoor Models | HW24HN2DAA |
| Maximum Height (Ft/m) | 50/15 |
| Refrigerant Type | R32 |
POWER / RATINGS
| Voltage/Hertz/Phase | 208-230/60/1 |
| Minimum Circuit Amp | 18 |
| Cooling Rated Capacity BTU/Hr | 24,000 |
Other
| Suction O.D. Refrigerant Line | 1/2" |
| Liquid O.D. Refrigerant Line | 1/4" |
Dimensions & Weight
| Width | 32.25 in. |
| Height | 25.25 in. |
| Length | 12 in. |
| Weight | 83.78 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 37.25 in. |
| Shipping Height | 30.25 in. |
| Shipping Length | 17 in. |
| Shipping Weight | 123.78 lbs. |
| Total of Shipping Weight | 123.78 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.65 ft³ |
| Dimensional Weight | 70.3 lbs. |
| Total of Cubes | 5.65 ft³ |
| Total of Dimensional Weight | 70.3 lbs. |
Warranty
| Parts (Compressor) | 7 Year |
