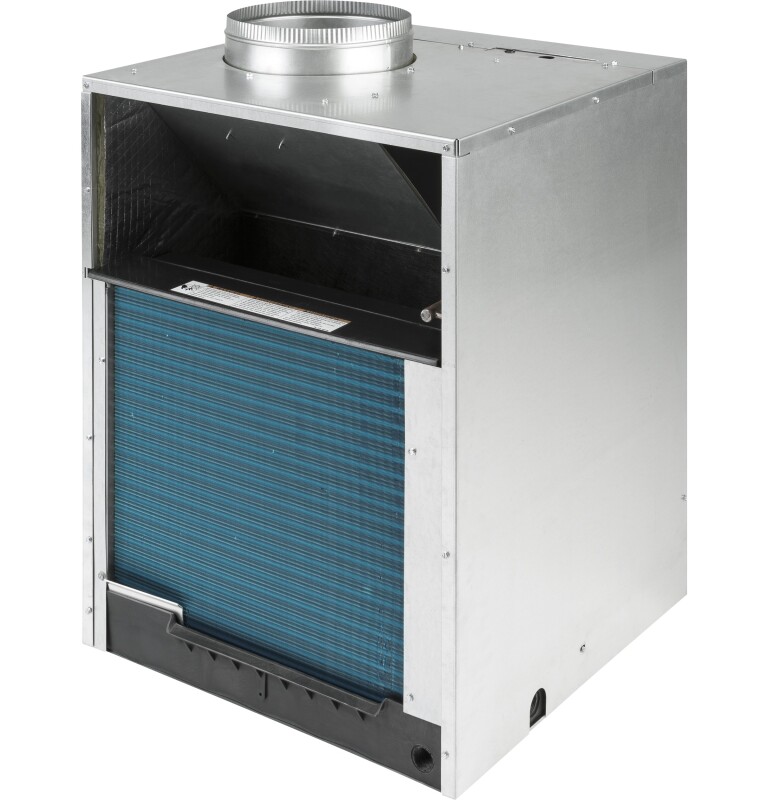

Zoneline Heat Pump Single Package Vertical Air Conditioner 30 Amp 230/208 Volt - AZ91H12D5C
Zoneline Heat Pump Single Package Vertical Air Conditioner 30 Amp 230/208 Volt
Model: AZ91H12D5C
Zoneline Heat Pump Single Package Vertical Air Conditioner 30 Amp 230/208 Volt
Model: AZ91H12D5C
Color : Other
Key Features
Cooling capacity

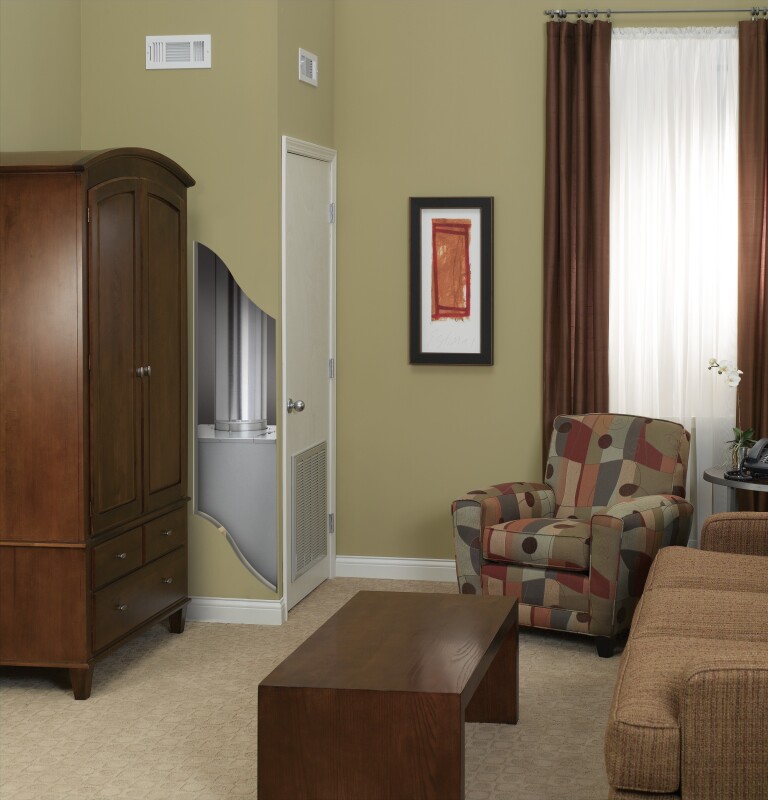

Vertical space-saving design
Reliable & quiet
Corrosion treatment on outside coils
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Cooling capacity
12,200/12,000 BTU
Vertical space-saving design
Optimizes usable floor space
Reliable & quiet
Every component is engineered to provide exceptional performance
Corrosion treatment on outside coils
Certifications
California Prop 65
Specifications
FEATURES
| Remote Thermostat | RAK148 |
| Manual Vent Control | Yes |
| Heating System | Heat Pump |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Product Type | Vertical Air Conditioners |
| Refrigerant Type | R410A |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Emergency Heat |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Electronic Error Diagnostics |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Pump with Resistance Heat Backup |
| Zoneline Features | Quick Heat Recovery |
| Zoneline Features | Remote Control Disconnect Kit |
| Zoneline Features | Solid State Thermostat |
| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 75% |
| Freeze Sentinel | Yes |
| Heat Pump | Yes |
| Corrosion Treated | Yes |
| Heating - Reverse Cycle - COP | 3.0/3.0 |
| Fan Speed Selections | 3 Cooling |
CAPACITY
| Vent CFM (high fan at zero ESP) | 60 |
| Cooling EER (BTUH / Watt) | 10.0/10.0 |
| Dehumidification (pts./hr.) | 2.8 |
| CFM Indoor Fan High | 450 |
| CFM Indoor Fan Low | 420 |
| Heating - Reverse Cycle - BTUH | 11100/10900 |
| Cooling BTUH (MAX) | 12,200 Btu |
| Cooling BTUH (MIN) | 12,000 Btu |
POWER / RATINGS
| Heating - Electric - Heater Watts | 5000/4090 |
| Cooling - Amperes; F.L. - Cooling | 5.7/5.9 |
| Heating - Electric - Heater Amps | 21.7/19.7 |
| Cooling - Watts | 1220/1200 |
| Heating - Reverse Cycle - Watts | 1075/1050 |
| Heating - Reverse Cycle - Amps | 5.0/5.3 |
| Cooling - Amperes | 5.7/5.9 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |

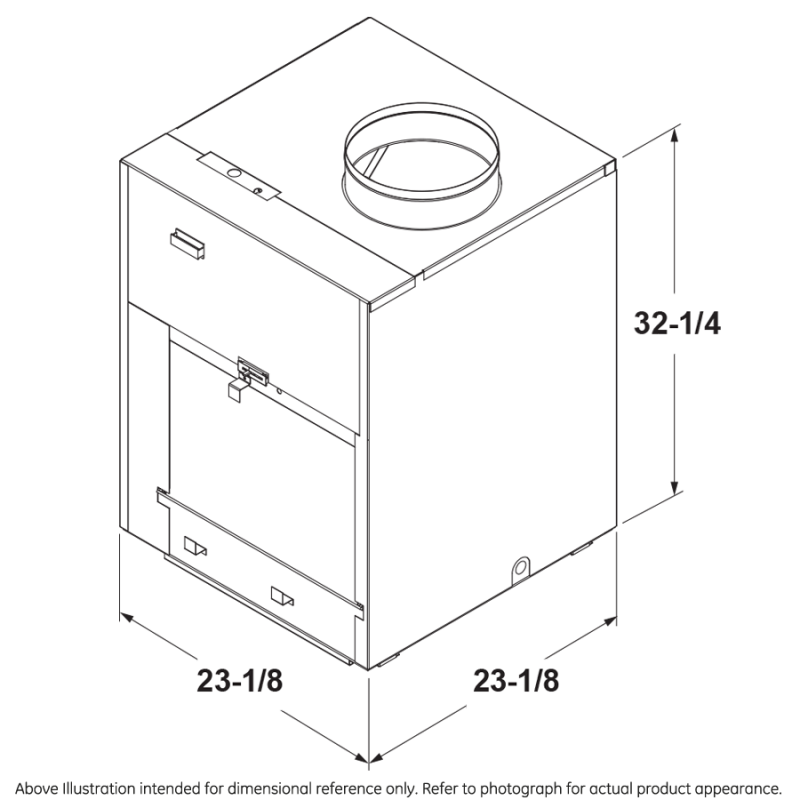

Dimensions & Weight
| Width | 23.13 in. |
| Height | 32.25 in. |
| Length | 23.13 in. |
| Weight | 125 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.13 in. |
| Shipping Height | 37.25 in. |
| Shipping Length | 28.13 in. |
| Shipping Weight | 165 lbs. |
| Total of Shipping Weight | 165 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.98 ft³ |
| Dimensional Weight | 124.07 lbs. |
| Total of Cubes | 9.98 ft³ |
| Total of Dimensional Weight | 124.07 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 136 lb |
| Net Weight | 125 lb |
| Overall Depth | 23 1/8 in |
| Overall Height | 32 1/4 in |
| Overall Width | 23 1/8 in |
