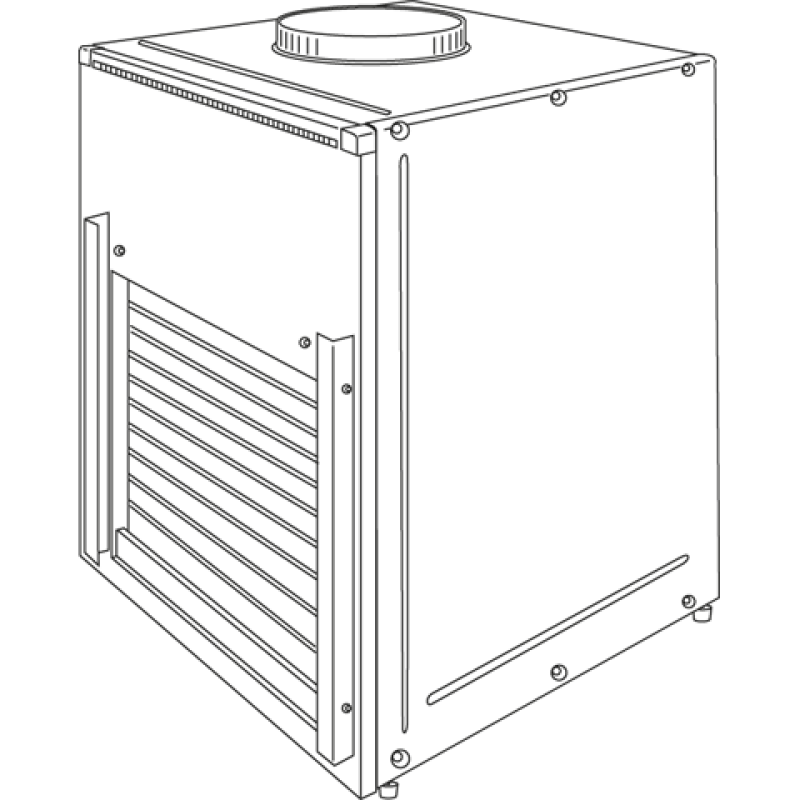

Zoneline Single Package Vertical Air Conditioner - AZ85W09DAC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

Zoneline Single Package Vertical Air Conditioner

Model: AZ85W09DAC

Zoneline Single Package Vertical Air Conditioner AZ85W09DACZoneline Single Package Vertical Air Conditioner AZ85W09DACZoneline Single Package Vertical Air Conditioner AZ85W09DAC
Zoneline Single Package Vertical Air Conditioner AZ85W09DAC
Zoneline Single Package Vertical Air Conditioner AZ85W09DAC
Zoneline Single Package Vertical Air Conditioner AZ85W09DAC

Color : Warm Gray Beige

Zoneline Single Package Vertical Air Conditioner AZ85W09DAC
Warm Gray Beige

Key Features

  • 9,500 / 9,300 cooling BTU

  • 10.5 / 10.5 EER

  • R-410A refrigerant

  • Vertical design

  • Freeze Sentinel protects unoccupied rooms against freeze-up

  • Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

  • Full corrosion treatment on outside coils and other components is standard

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

9,500 / 9,300 cooling BTU

10.5 / 10.5 EER

R-410A refrigerant

Vertical design

Optimizes usable floor space

Freeze Sentinel protects unoccupied rooms against freeze-up

Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

Full corrosion treatment on outside coils and other components is standard

Certifications

California Prop 65 certification

California Prop 65

Specifications

FEATURES

Remote ThermostatRAK164 - Optional
Manual Vent ControlHidden
Central Desk Control CompatibilityYes
Rotary CompressorYes
Power Connection KitRAK3152/3202/3302
Sensible Heat Ratio at 230 Volts77%
Refrigerant TypeR410A
Electronic Micro Computer ControlYes
Zoneline Features"Smart Fan" Fan Cycle Control
Zoneline FeaturesAuto Power Recovery
Zoneline FeaturesAutomatic Indoor Frost Control
Zoneline FeaturesCentral Desk Control Compatibility
Zoneline FeaturesDC Indoor and Outdoor Motors
Zoneline FeaturesFreeze Sentinel
Zoneline FeaturesHeat Sentinel (85F)
Zoneline FeaturesRemote Control Disconnect Kit
Zoneline FeaturesSolid State Thermostat
Zoneline FeaturesWeather Protected Electrical Components
Freeze SentinelOptional Kit
Corrosion TreatedYes
Temperature LimitingOptional Kit
Fan Speed Selections3 Cooling

CAPACITY

Vent CFM (high fan at zero ESP)48 @ .3' water
Cooling EER (BTUH / Watt)10.5
Dehumidification (pts./hr.)2.7
CFM Indoor Fan High310
CFM Indoor Fan Low260
Cooling BTUH (MAX)9,000 Btu

POWER / RATINGS

Cooling - Amperes; F.L. - Cooling4.3/4.5
Power ConnectionPower Cord
Cooling - Watts900/880
Cooling - Amperes4.3/4.5
Voltage (MAX)230 V
Voltage (MIN)208 V

APPEARANCE

Color AppearanceWarm Gray Beige

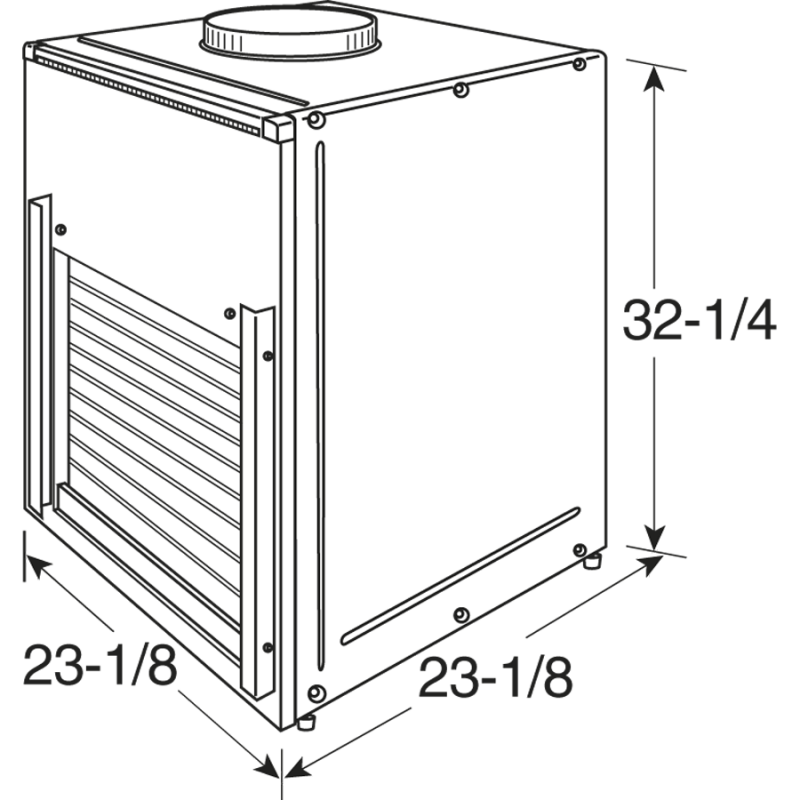

Dimensions & Weight

Width23.13 in.
Height32.25 in.
Length23.13 in.
Weight141 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.13 in.
Shipping Height37.25 in.
Shipping Length28.13 in.
Shipping Weight181 lbs.
Total of Shipping Weight181 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement9.98 ft³
Dimensional Weight124.07 lbs.
Total of Cubes9.98 ft³
Total of Dimensional Weight124.07 lbs.

WEIGHTS & DIMENSIONS

Approximate Shipping Weight152 lb
Net Weight141 lb
Overall Depth23 1/8 in
Overall Height32 1/4 in
Overall Width23 1/8 in

Warranty

Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year
Parts5 Year
