Zoneline Single Package Vertical Air Conditioner - AZ85H18EAC
Zoneline Single Package Vertical Air Conditioner
Model: AZ85H18EAC
Zoneline Single Package Vertical Air Conditioner
Model: AZ85H18EAC
Color : Warm Gray Beige
Key Features
Cooling capacity
Heating capacity
Energy efficiency
Vertical design
Freeze Sentinel
Unique sleeve design
Corrosion resistant
R-410A refrigerant
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Cooling capacity
17,600 BTUH
Heating capacity
16,500 BTUH
Energy efficiency
9.0 EER (BTU/Watt) and 3.0 COP
Vertical design
Optimizes usable floor space
Freeze Sentinel
Protects unoccupied rooms against freeze-up (Requires RAVRMS)
Unique sleeve design
Makes units easier to install; features three-way, slide-out chassis with specially designed case for quick and easy maintenance and service
Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
R-410A refrigerant
Certifications
California Prop 65
Specifications
FEATURES
| Remote Thermostat | RAK148 |
| Manual Vent Control | Hidden |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Power Connection Kit | RAK5157/5207/5307 |
| Refrigerant Type | R410A |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Emergency Heat |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | DC Indoor and Outdoor Motors |
| Zoneline Features | Electric Resistance Heat Lockout |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Pump Defrost System |
| Zoneline Features | Heat Pump with Resistance Heat Backup |
| Zoneline Features | Heat Pump with Supplemental Resistance Heat |
| Zoneline Features | Heat Sentinel (85F) |
| Zoneline Features | Quick Heat Recovery |
| Zoneline Features | Remote Control Disconnect Kit |
| Zoneline Features | Solid State Thermostat |
| Zoneline Features | Universal Heaters |
| Zoneline Features | Weather Protected Electrical Components |
| Freeze Sentinel | Yes |
| Heat Pump | Yes |
| Corrosion Treated | Yes |
| Temperature Limiting | Yes |
| Fan Speed Selections | 3 Cooling |
| Heating - Reverse Cycle - COP | 3.0 |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.0 |
| Dehumidification (pts./hr.) | 5.0 |
| CFM Indoor Fan High | 600 |
| CFM Indoor Fan Low | 400 |
| Heating - Reverse Cycle - BTUH | 16500 |
| Cooling BTUH (MAX) | 17,600 Btu |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 7.8 |
| Power Connection | Direct Connect Kit |
| Cooling - Watts | 1960 |
| Heating - Reverse Cycle - Watts | 1630 |
| Heating - Reverse Cycle - Amps | 6.6 |
| Cooling - Amperes | 7.8 |
| Voltage (MAX) | 265 V |
APPEARANCE
| Color Appearance | Warm Gray Beige |

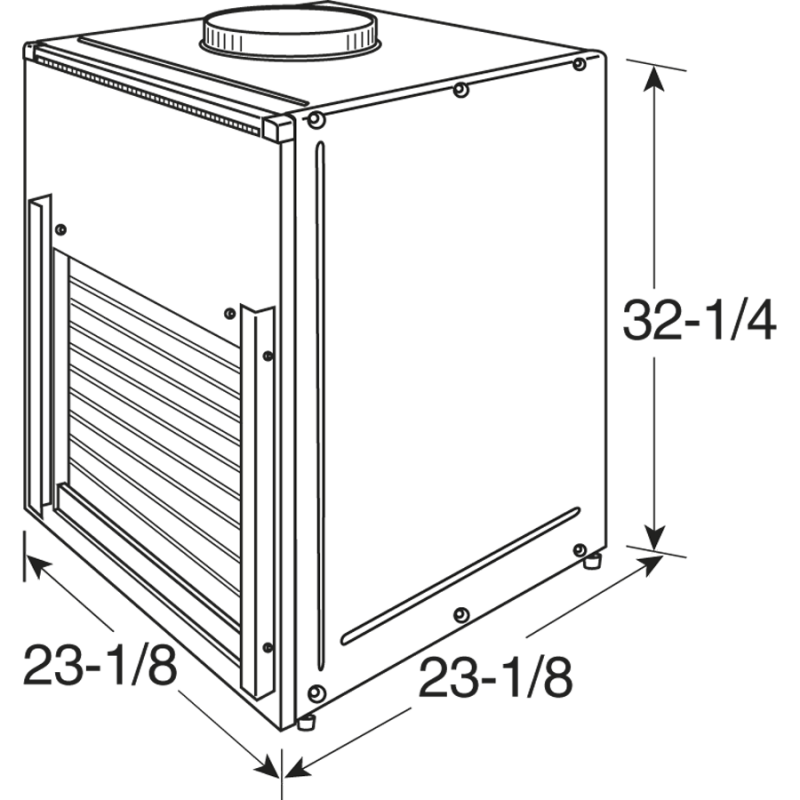

Dimensions & Weight
| Width | 23.13 in. |
| Height | 32.25 in. |
| Length | 23.13 in. |
| Weight | 163 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.13 in. |
| Shipping Height | 37.25 in. |
| Shipping Length | 28.13 in. |
| Shipping Weight | 203 lbs. |
| Total of Shipping Weight | 203 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.98 ft³ |
| Dimensional Weight | 124.07 lbs. |
| Total of Cubes | 9.98 ft³ |
| Total of Dimensional Weight | 124.07 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 174 lb |
| Net Weight | 163 lb |
| Overall Depth | 23 1/8 in |
| Overall Height | 32 1/4 in |
| Overall Width | 23 1/8 in |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts (Entire Appliance) | 2 Year |
