Zoneline Single Package Vertical Air Conditioner - AZ85E09DAC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

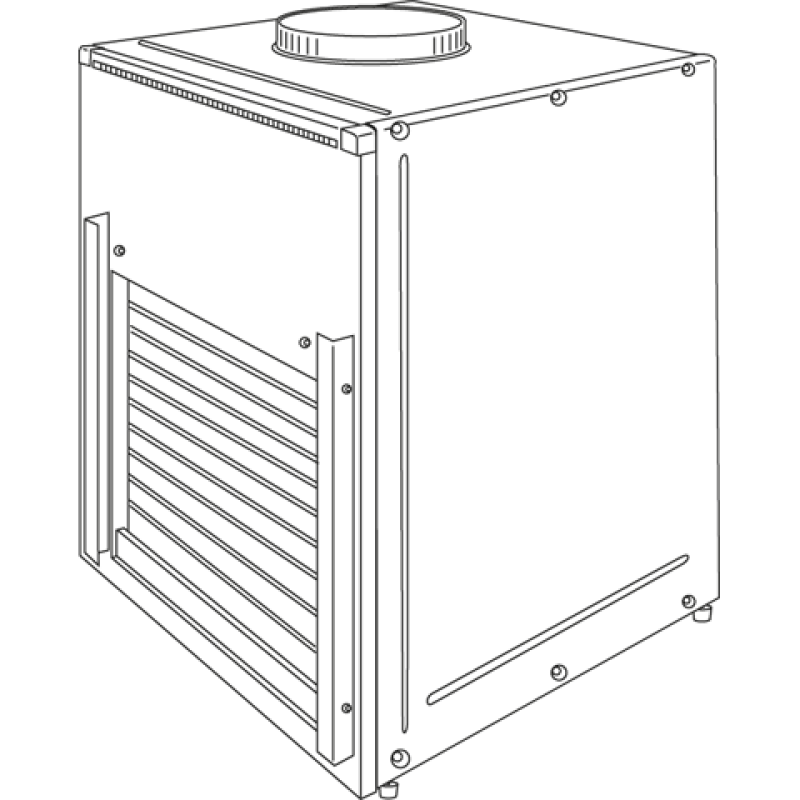

Zoneline Single Package Vertical Air Conditioner

Model: AZ85E09DAC

Zoneline Single Package Vertical Air Conditioner AZ85E09DACZoneline Single Package Vertical Air Conditioner AZ85E09DACZoneline Single Package Vertical Air Conditioner AZ85E09DACZoneline Single Package Vertical Air Conditioner AZ85E09DAC
Zoneline Single Package Vertical Air Conditioner AZ85E09DAC
Zoneline Single Package Vertical Air Conditioner AZ85E09DAC
Zoneline Single Package Vertical Air Conditioner AZ85E09DAC
Zoneline Single Package Vertical Air Conditioner AZ85E09DAC

Color : Warm Gray Beige

Zoneline Single Package Vertical Air Conditioner AZ85E09DAC
Warm Gray Beige

Key Features

  • Cooling capacity

  • Vertical design

  • Freeze Sentinel

  • Unique sleeve design

  • Corrosion resistant

  • R-410A refrigerant

  • Energy efficiency

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Cooling capacity

9,000/8,800 BTU

Vertical design

Optimizes usable floor space

Freeze Sentinel

Protects unoccupied rooms against freeze-up (Requires RAVRMS)

Unique sleeve design

Makes units easier to install; features three-way, slide-out chassis with specially designed case for quick and easy maintenance and service

Corrosion resistant

Extends life of the unit in sea coast areas/corrosive environments

R-410A refrigerant

Energy efficiency

10.5 EER

Certifications

California Prop 65 certification

California Prop 65

Specifications

FEATURES

Remote ThermostatRAK164
Manual Vent ControlHidden
Central Desk Control CompatibilityYes
Rotary CompressorYes
Power Connection KitRAK3152/3202/3302
Refrigerant TypeR410A
Zoneline Features"Smart Fan" Fan Cycle Control
Zoneline FeaturesAuto Power Recovery
Zoneline FeaturesAutomatic Indoor Frost Control
Zoneline FeaturesDC Indoor and Outdoor Motors
Zoneline FeaturesFreeze Sentinel
Zoneline FeaturesHeat Sentinel (85F)
Zoneline FeaturesRemote Control Disconnect Kit
Zoneline FeaturesSolid State Thermostat
Zoneline FeaturesWeather Protected Electrical Components
Sensible Heat Ratio81%
Corrosion TreatedYes
Universal HeatersYes
Temperature LimitingYes
Fan Speed Selections3 Cooling

CAPACITY

Vent CFM (high fan at zero ESP)62
Cooling EER (BTUH / Watt)10.5
Dehumidification (pts./hr.)2.7
CFM Indoor Fan High310
CFM Indoor Fan Low260
Cooling BTUH (MAX)9,000 Btu

POWER / RATINGS

Cooling - Amperes; F.L. - Cooling4.3/4.5
Power ConnectionPower Cord
Cooling - Watts900/880
Cooling - Amperes4.3/4.5
Voltage (MAX)230 V
Voltage (MIN)208 V

APPEARANCE

Color AppearanceWarm Gray Beige

Warranty

Parts1 Year
Labor1 Year
Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year

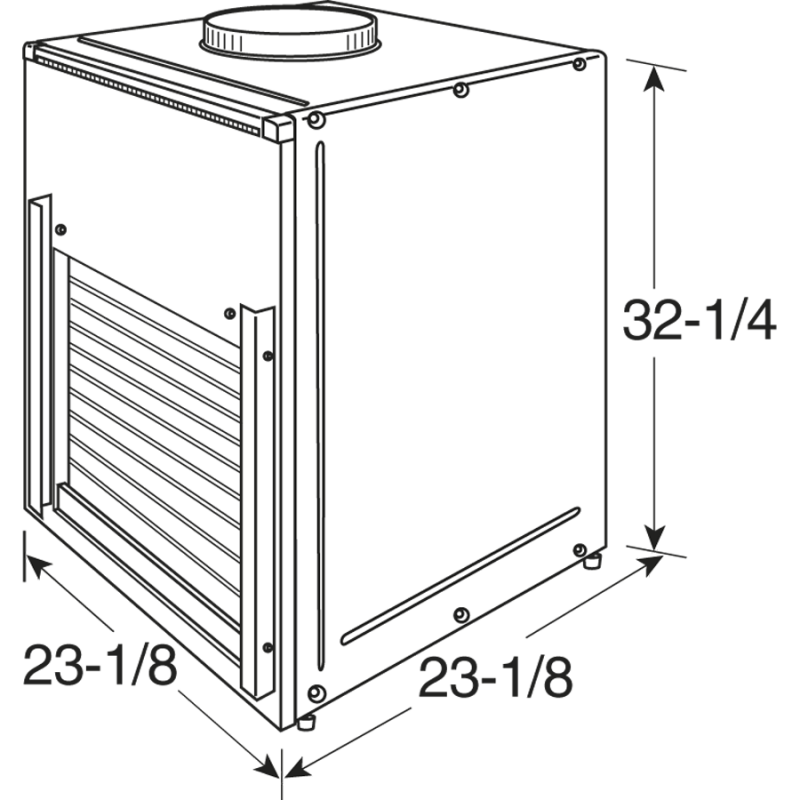

Dimensions & Weight

Width23.13 in.
Height32.25 in.
Length23.13 in.
Weight141 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.13 in.
Shipping Height37.25 in.
Shipping Length28.13 in.
Shipping Weight181 lbs.
Total of Shipping Weight181 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement9.98 ft³
Dimensional Weight124.07 lbs.
Total of Cubes9.98 ft³
Total of Dimensional Weight124.07 lbs.

WEIGHTS & DIMENSIONS

Approximate Shipping Weight152 lb
Net Weight141 lb
Overall Depth23 1/8 in
Overall Height32 1/4 in
Overall Width23 1/8 in
