Vertical Zoneline Packaged Terminal Heat Pump - AZ75H09DAC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

Vertical Zoneline Packaged Terminal Heat Pump

Model: AZ75H09DAC

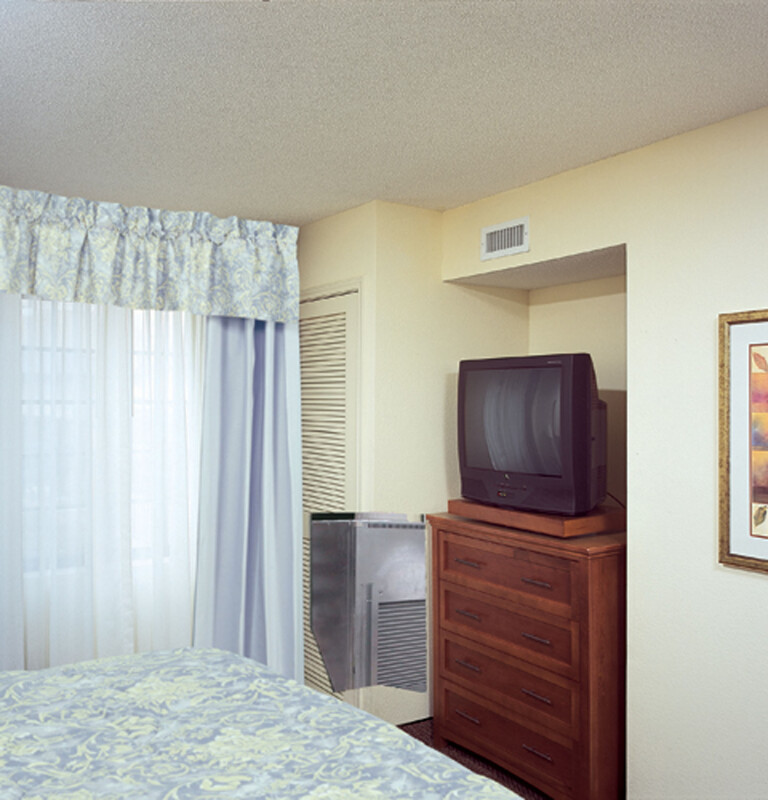

Vertical Zoneline Packaged Terminal Heat Pump AZ75H09DACVertical Zoneline Packaged Terminal Heat Pump AZ75H09DAC
Vertical Zoneline Packaged Terminal Heat Pump AZ75H09DAC
Vertical Zoneline Packaged Terminal Heat Pump AZ75H09DAC

Color : Other

Vertical Zoneline Packaged Terminal Heat Pump AZ75H09DAC
Other

Key Features

  • 9,500 / 9,300 cooling BTU

  • 8,400 / 8,200 BTU heating capacity

  • 10.5 / 10.5 EER

  • Vertical design

  • Freeze Sentinel protects unoccupied rooms against freeze-up

  • Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

  • Full corrosion treatment on outside coils and other components is standard

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

9,500 / 9,300 cooling BTU

8,400 / 8,200 BTU heating capacity

10.5 / 10.5 EER

Vertical design

Optimizes usable floor space

Freeze Sentinel protects unoccupied rooms against freeze-up

Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

Full corrosion treatment on outside coils and other components is standard

Certifications

California Prop 65 certification

California Prop 65

Specifications

FEATURES

Fan Speed Selections3 Cooling
Remote ThermostatRAK163 - Optional
Corrosion TreatedYes
Freeze SentinelYes
Power Connection KitRAK5157/5207/5307
Heat PumpYes
Central Desk Control CompatibilityYes
Vent Control3-position
Temperature LimitingYes

CAPACITY

CFM Indoor Fan High310
Heating - Reverse Cycle - BTUH8400/8200
Cooling EER (BTUH / Watt)10.5/10.5
Dehumidification (pts./hr.)2.7
CFM Indoor Fan Low260
Cooling BTUH (MAX)9,500 Btu
Cooling BTUH (MIN)9,300 Btu

Dimensions & Weight

Width23.13 in.
Height32.25 in.
Length23.13 in.
Weight141 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.13 in.
Shipping Height37.25 in.
Shipping Length28.13 in.
Shipping Weight181 lbs.
Total of Shipping Weight181 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement9.98 ft³
Dimensional Weight124.07 lbs.
Total of Cubes9.98 ft³
Total of Dimensional Weight124.07 lbs.

WEIGHTS & DIMENSIONS

Approximate Shipping Weight152 lb
Net Weight141 lb
Overall Depth23 1/8 in
Overall Height32 1/4 in
Overall Width23 1/8 in

POWER / RATINGS

Voltage (MAX)230 V
Voltage (MIN)208 V

Warranty

Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year
Parts5 Year
