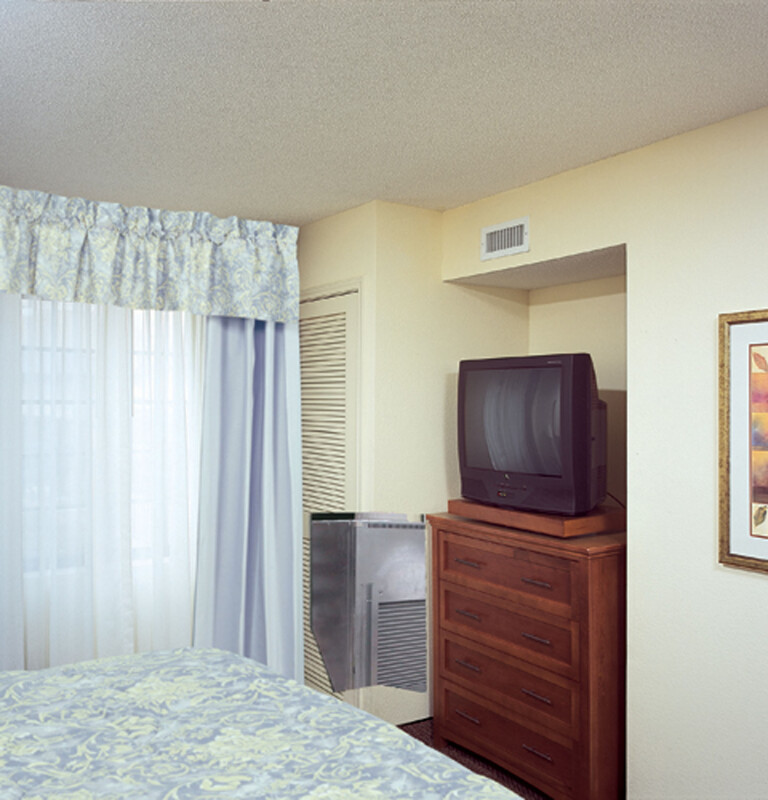

Vertical Zoneline Packaged Terminal Air Conditioner - AZ75E12EAC
Vertical Zoneline Packaged Terminal Air Conditioner
Model: AZ75E12EAC
Vertical Zoneline Packaged Terminal Air Conditioner
Model: AZ75E12EAC
Color : Other
Key Features
11,700 / 11,500 BTU cooling capacity
10.7 / 10.7 E.E.R (BTU/Watt)
Vertical design
Freeze Sentinel protects unoccupied rooms against freeze-up
Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy
Full corrosion treatment on outside coils and other components is standard
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
11,700 / 11,500 BTU cooling capacity
10.7 / 10.7 E.E.R (BTU/Watt)
Vertical design
Optimizes usable floor space
Freeze Sentinel protects unoccupied rooms against freeze-up
Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy
Full corrosion treatment on outside coils and other components is standard
Certifications
California Prop 65
Specifications
FEATURES
| Remote Thermostat | RAK163 - Optional |
| Vent Control | 3-position |
| Central Desk Control Compatibility | Yes |
| Freeze Sentinel | Yes |
| Corrosion Treated | Yes |
| Temperature Limiting | Yes |
| Power Connection Kit | RAK3152/3202/3302 |
| Fan Speed Selections | 3 Cooling |
CAPACITY
| Cooling EER (BTUH / Watt) | 10.7/10.7 |
| Dehumidification (pts./hr.) | 3.6 |
| CFM Indoor Fan High | 375 |
| CFM Indoor Fan Low | 315 |
| Cooling BTUH (MAX) | 11,700 Btu |
| Cooling BTUH (MIN) | 11,500 Btu |
Dimensions & Weight
| Width | 23.13 in. |
| Height | 32.25 in. |
| Length | 23.13 in. |
| Weight | 154 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.13 in. |
| Shipping Height | 37.25 in. |
| Shipping Length | 28.13 in. |
| Shipping Weight | 194 lbs. |
| Total of Shipping Weight | 194 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.98 ft³ |
| Dimensional Weight | 124.07 lbs. |
| Total of Cubes | 9.98 ft³ |
| Total of Dimensional Weight | 124.07 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 165 lb |
| Net Weight | 154 lb |
| Overall Depth | 23 1/8 in |
| Overall Height | 32 1/4 in |
| Overall Width | 23 1/8 in |
POWER / RATINGS
| Voltage (MAX) | 265 V |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts | 5 Year |
