Vertical Zoneline Packaged Terminal Air Conditioner - AZ75E12DAC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

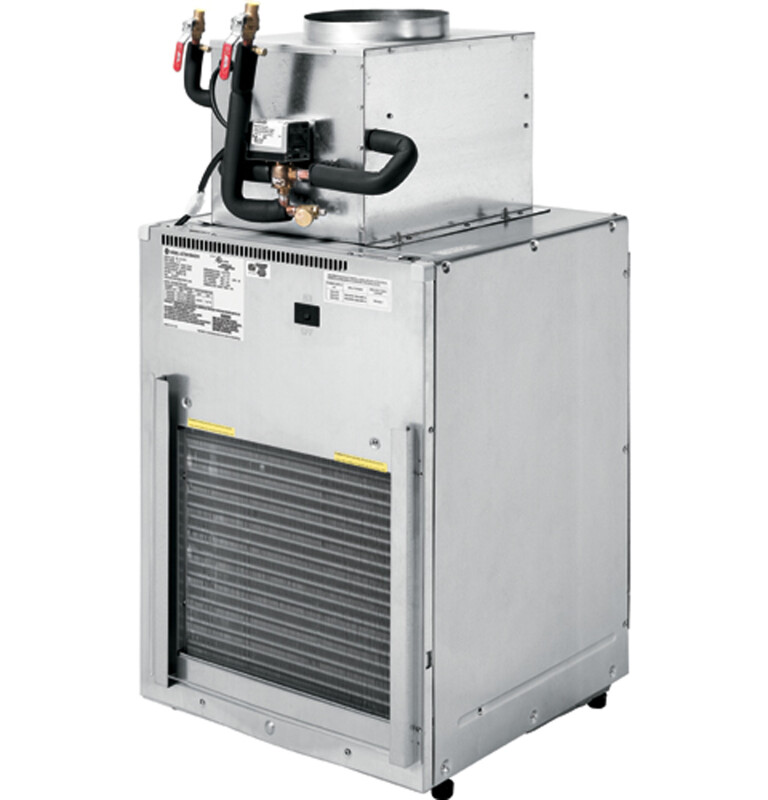

Vertical Zoneline Packaged Terminal Air Conditioner

Model: AZ75E12DAC

Vertical Zoneline Packaged Terminal Air Conditioner AZ75E12DACVertical Zoneline Packaged Terminal Air Conditioner AZ75E12DACVertical Zoneline Packaged Terminal Air Conditioner AZ75E12DAC
Vertical Zoneline Packaged Terminal Air Conditioner AZ75E12DAC
Vertical Zoneline Packaged Terminal Air Conditioner AZ75E12DAC
Vertical Zoneline Packaged Terminal Air Conditioner AZ75E12DAC

Color : Other

Vertical Zoneline Packaged Terminal Air Conditioner AZ75E12DAC
Other

Key Features

  • 11,700 / 11,500 BTU cooling capacity

  • 10.7 / 10.7 E.E.R (BTU/Watt)

  • Vertical design

  • Freeze Sentinel protects unoccupied rooms against freeze-up

  • Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

  • Full corrosion treatment on outside coils and other components is standard

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

11,700 / 11,500 BTU cooling capacity

10.7 / 10.7 E.E.R (BTU/Watt)

Vertical design

Optimizes usable floor space

Freeze Sentinel protects unoccupied rooms against freeze-up

Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

Full corrosion treatment on outside coils and other components is standard

Certifications

California Prop 65 certification

California Prop 65

Specifications

FEATURES

Central Desk Control CompatibilityYes
Fan Speed Selections3 Cooling
Vent Control3-position
Temperature LimitingYes
Remote ThermostatRAK163 - Optional
Corrosion TreatedYes
Freeze SentinelYes
Power Connection KitRAK5157/5207/5307

CAPACITY

CFM Indoor Fan High375
Cooling EER (BTUH / Watt)10.7/10.7
Dehumidification (pts./hr.)3.6
CFM Indoor Fan Low315
Cooling BTUH (MAX)11,700 Btu
Cooling BTUH (MIN)11,500 Btu

Dimensions & Weight

Width23.13 in.
Height32.25 in.
Length23.13 in.
Weight154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.13 in.
Shipping Height37.25 in.
Shipping Length28.13 in.
Shipping Weight194 lbs.
Total of Shipping Weight194 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement9.98 ft³
Dimensional Weight124.07 lbs.
Total of Cubes9.98 ft³
Total of Dimensional Weight124.07 lbs.

WEIGHTS & DIMENSIONS

Approximate Shipping Weight165 lb
Net Weight154 lb
Overall Depth23 1/8 in
Overall Height32 1/4 in
Overall Width23 1/8 in

POWER / RATINGS

Voltage (MAX)230 V
Voltage (MIN)208 V

Warranty

Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year
Parts5 Year
