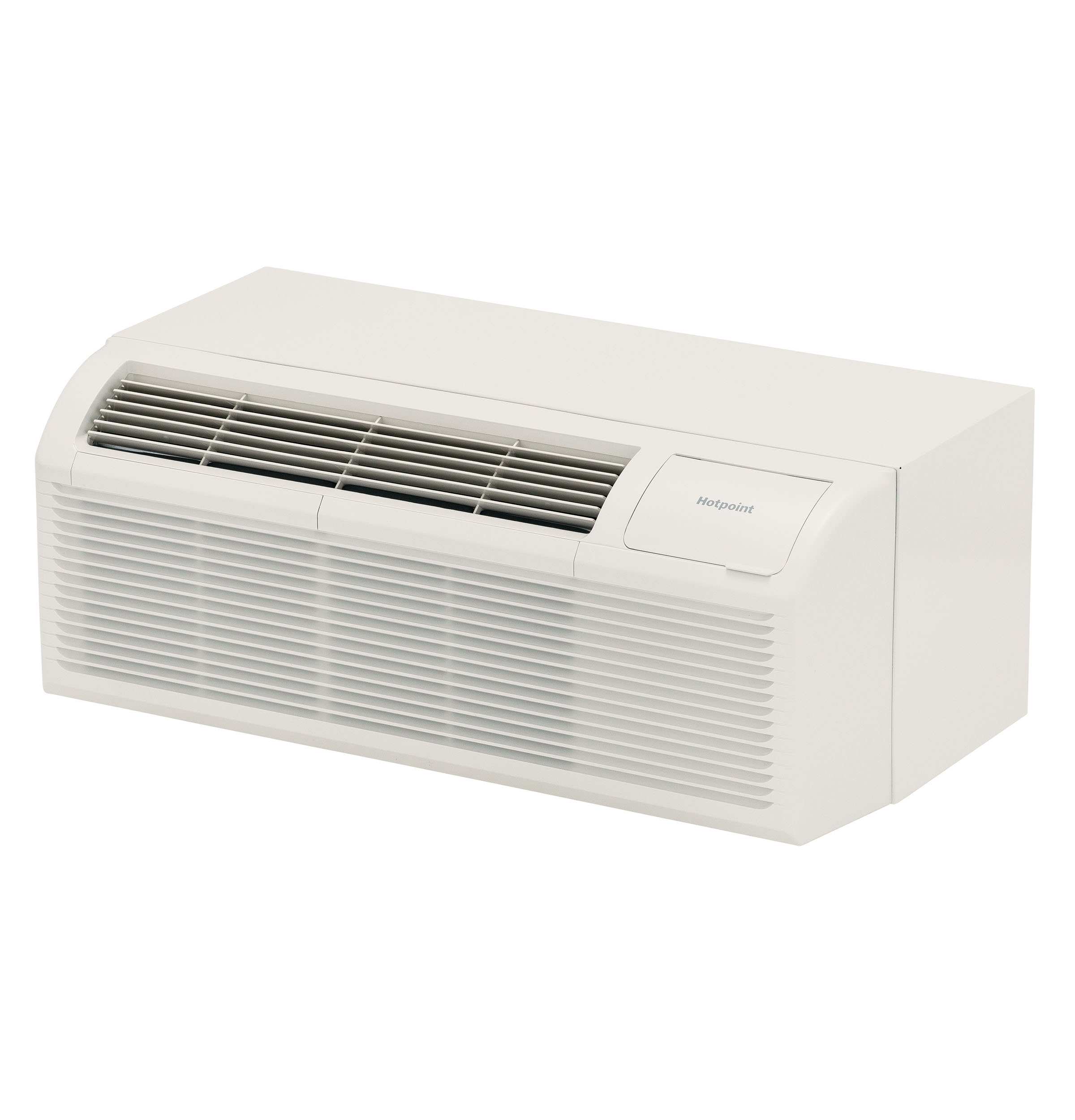

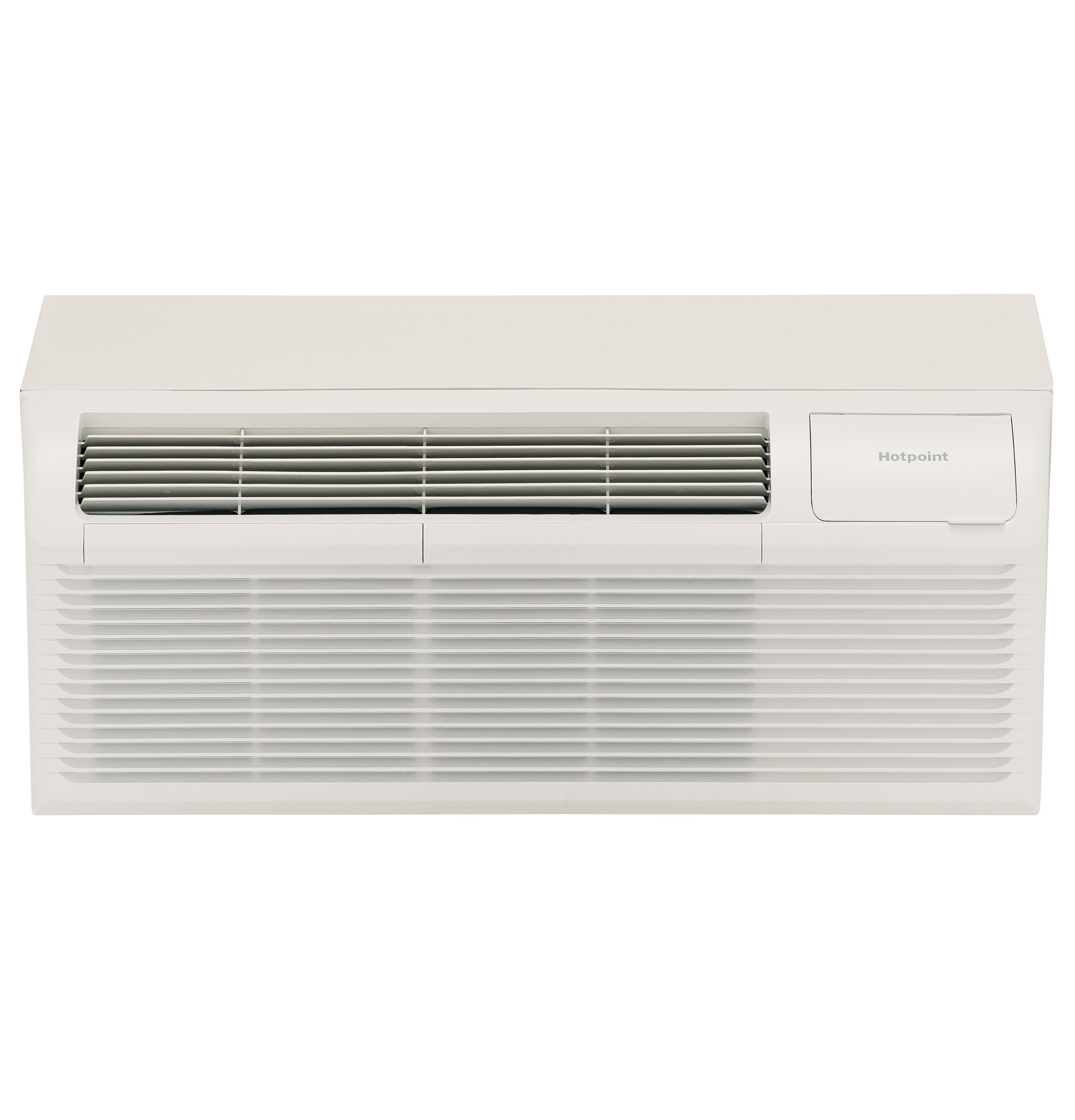

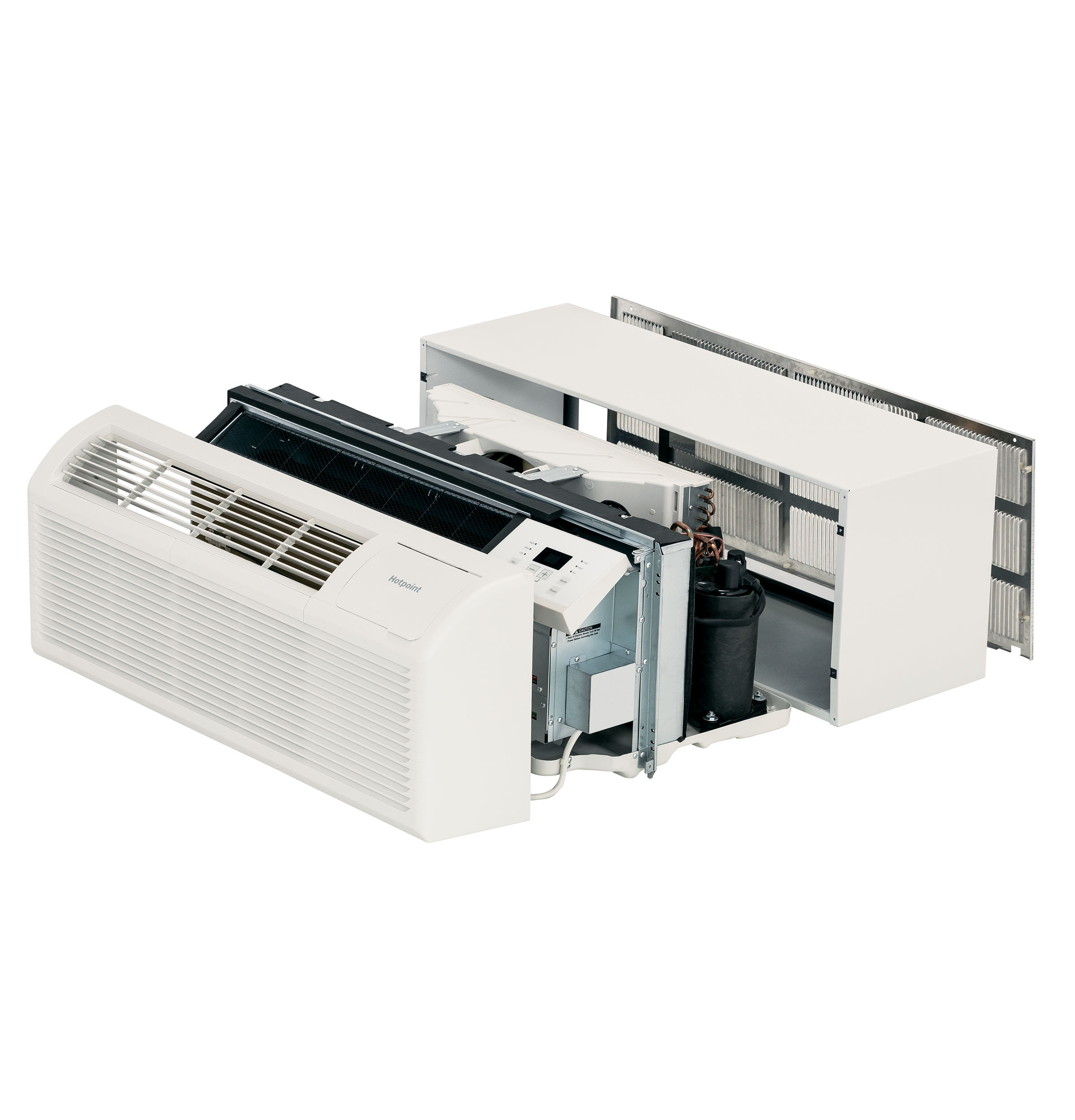

PTAC Heat Pump 7,000 BTU, 230/208V, 20amp - AH12H07D3B

This product is discontinued and has been replaced by the model below.

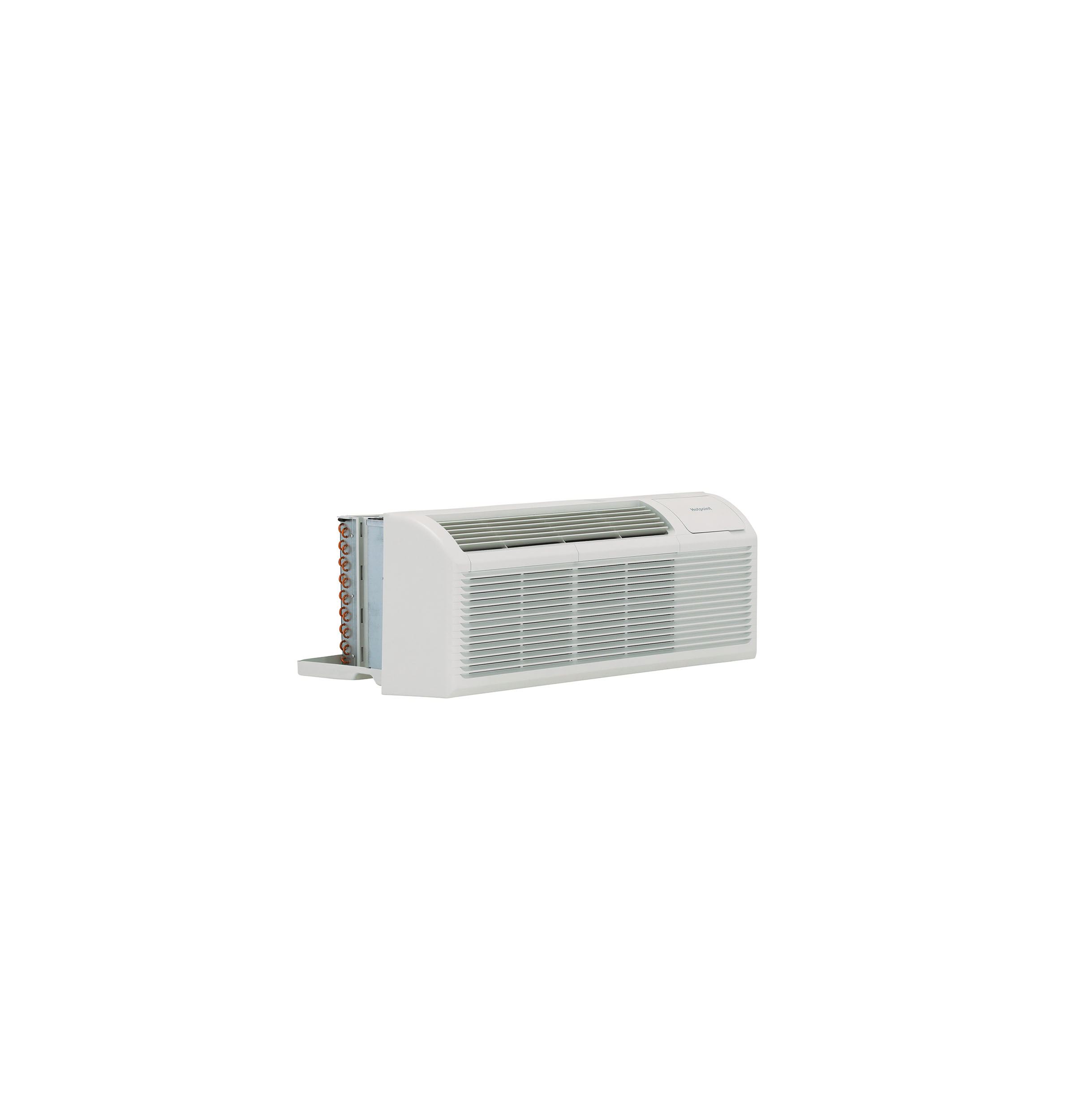

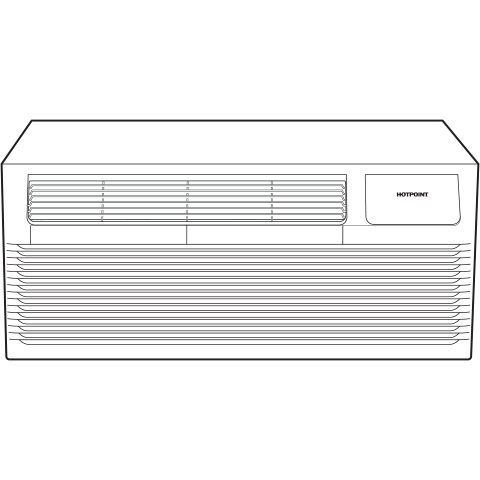

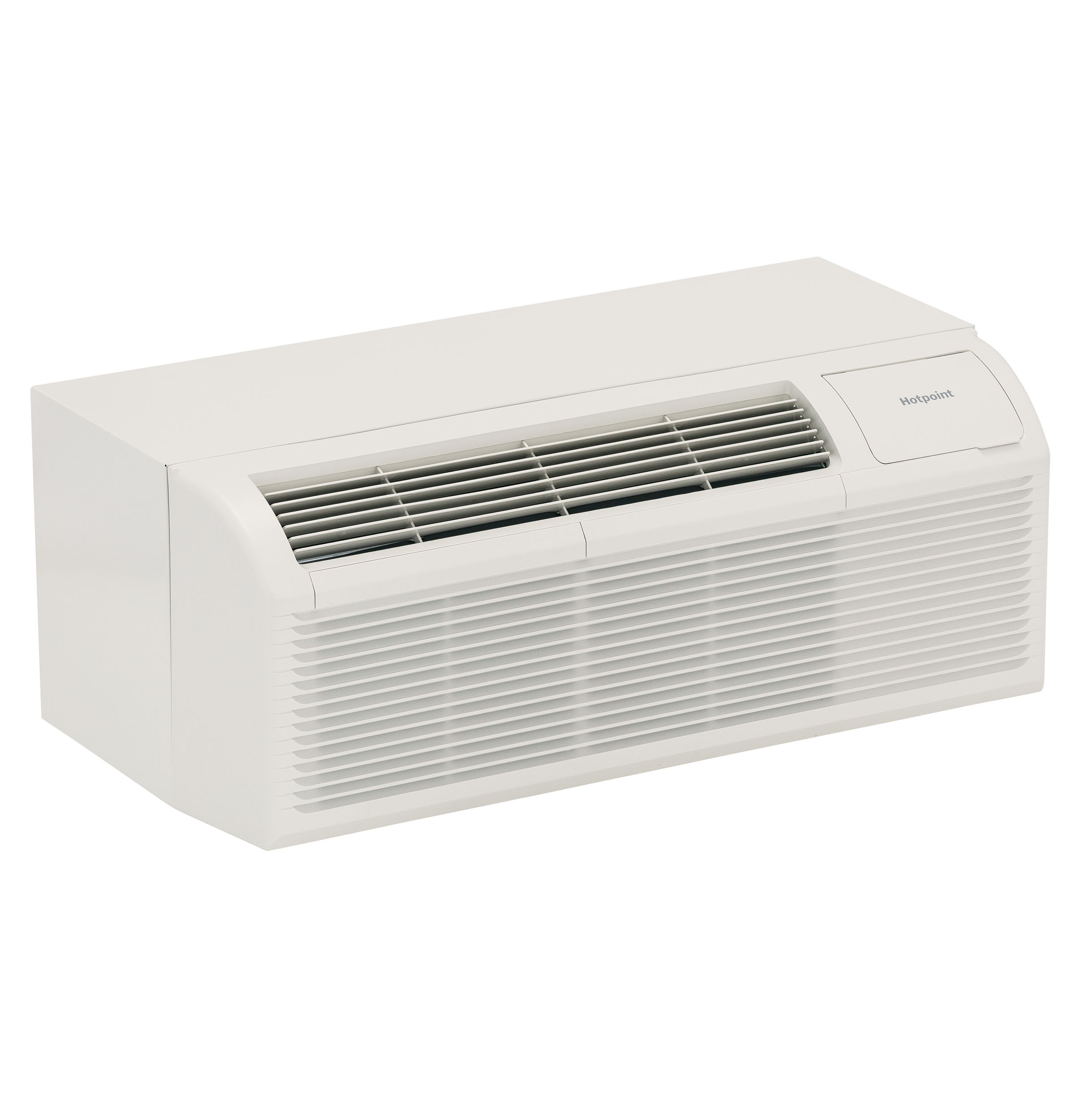

PTAC Heat Pump 7,000 BTU, 230/208V, 20amp

Model: AH12H07D3B

PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3BPTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
+17more

Color : White

PTAC Heat Pump 7,000 BTU, 230/208V, 20amp AH12H07D3B
White
Replaced By

FreshAire PTAC Air Conditioner

Model: PZH07K3SC

Product - PZH07K3SC
View Product

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Self diagnostics

  • Backed by an industry leader

  • Automatic emergency heat

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

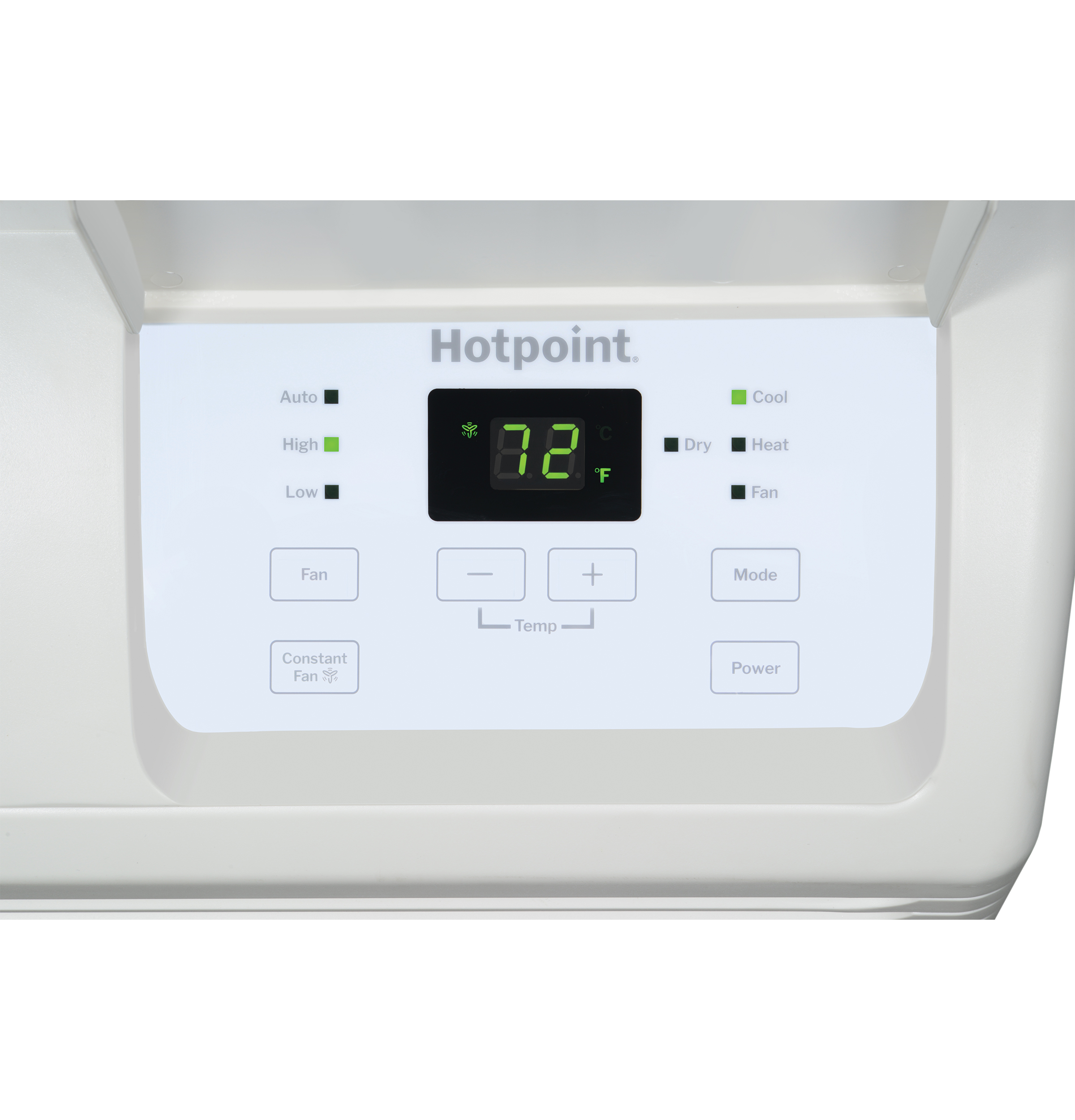

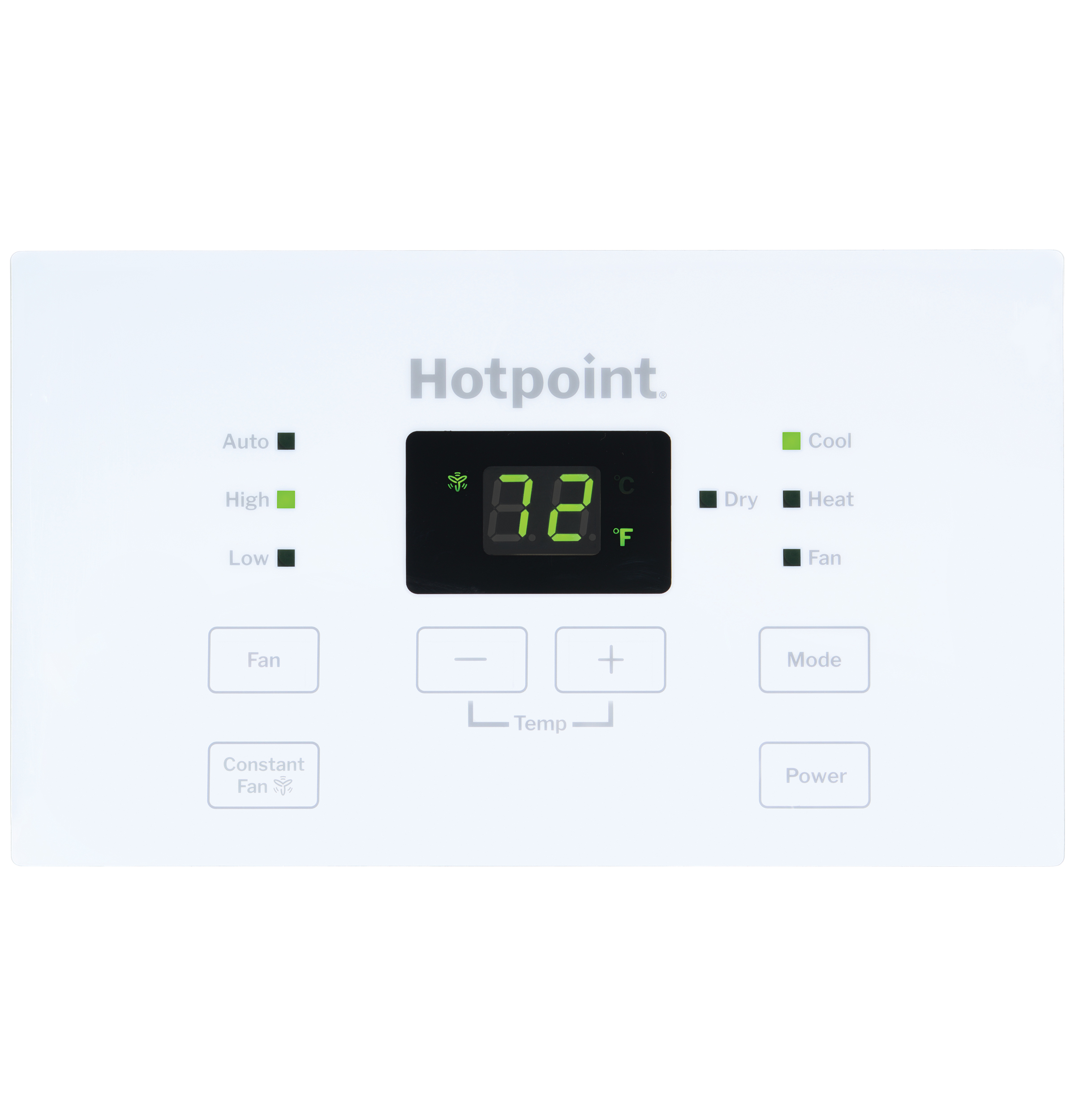

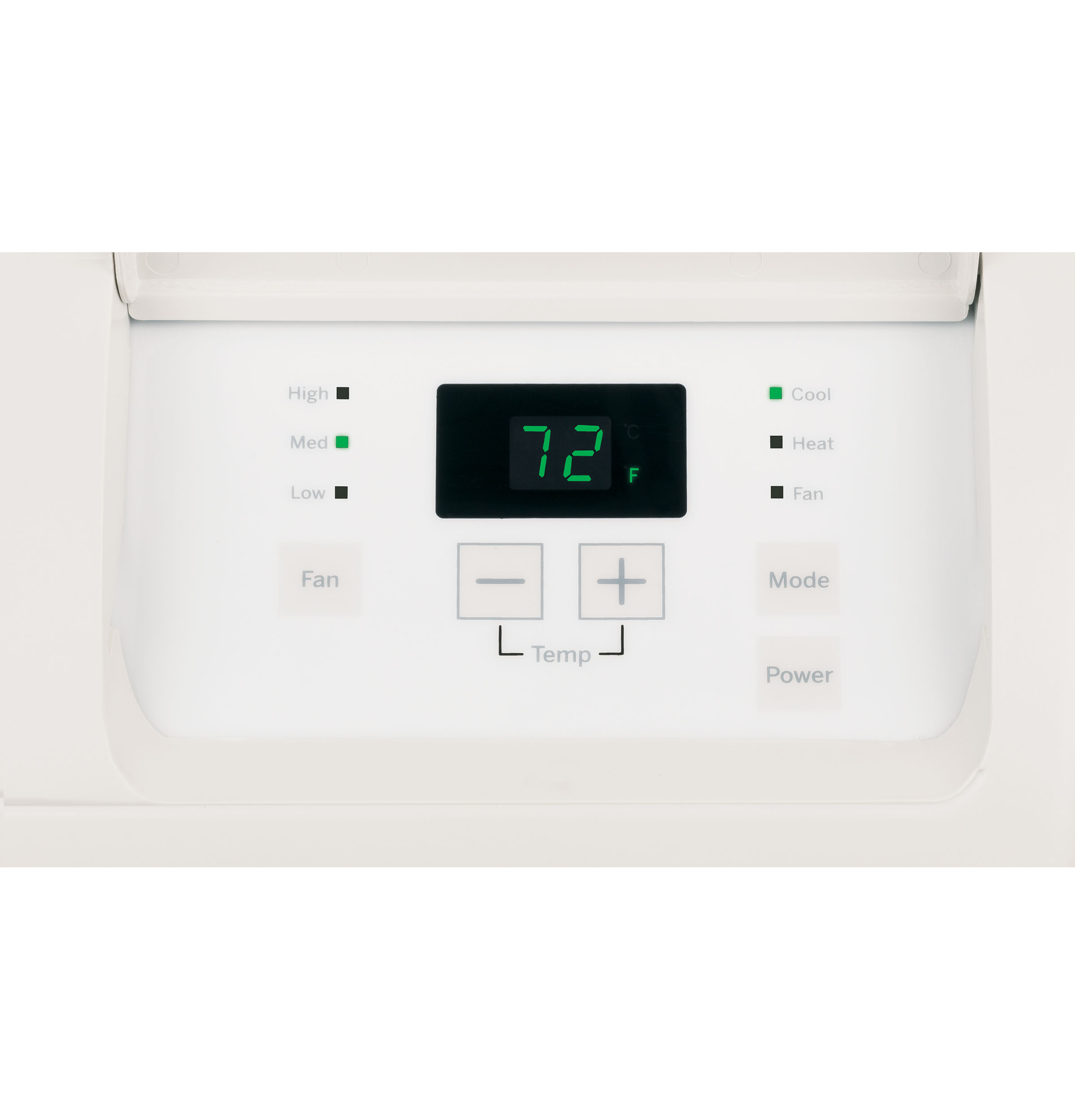

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

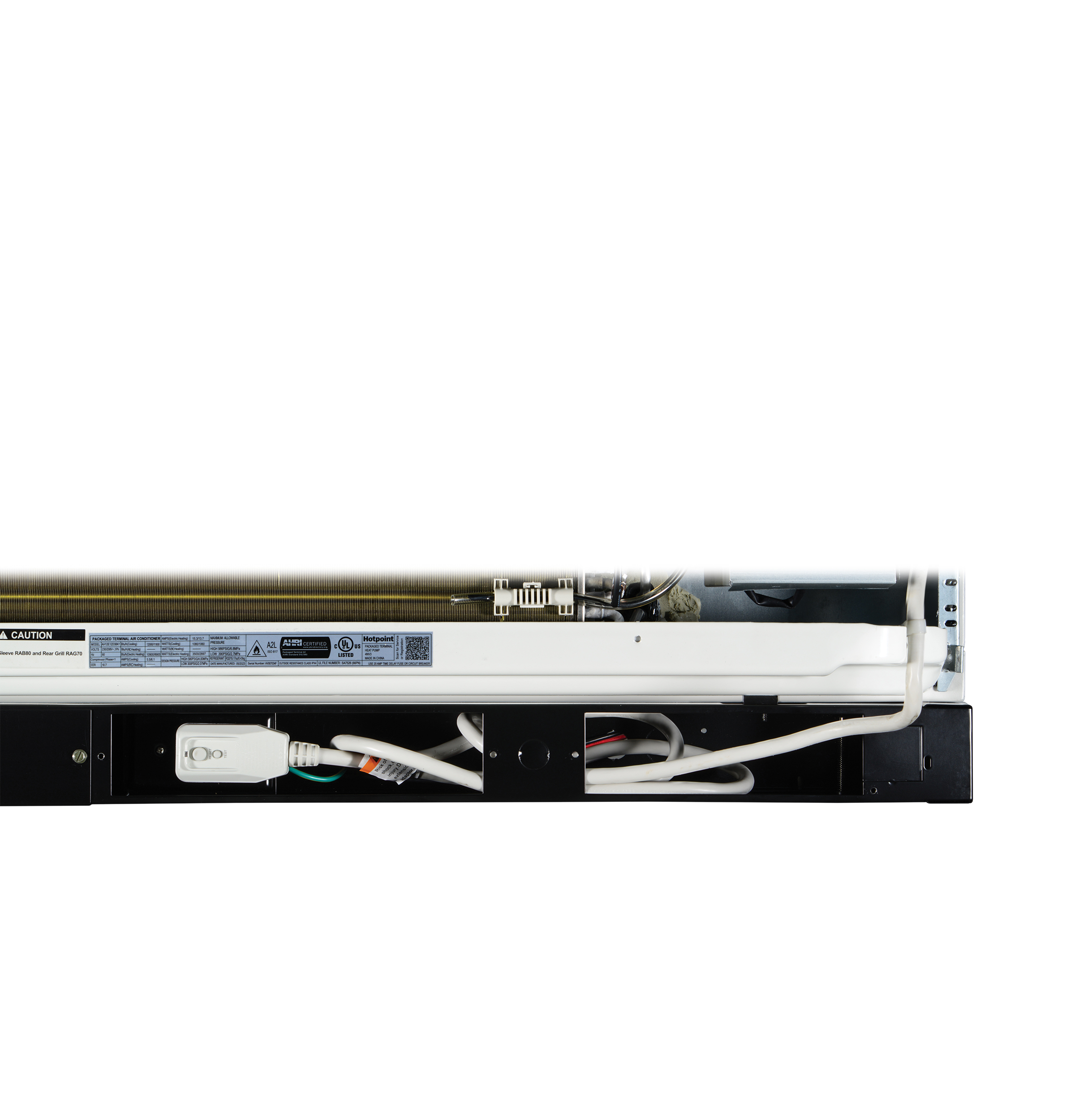

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available

Certifications

AHRI certification

AHRI

CSA certification

CSA

CUL certification

CUL

NRCAN certification

NRCAN

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width42.4 in
Overall Height16 in
Overall Depth20.9 in
Approximate Shipping Weight115.5 lb
Net Weight104.7 lb

CAPACITY

Cooling BTUH (MAX)7200 Btu
CFM Indoor Fan Low240
CFM Indoor Fan Medium281
CFM Indoor Fan High335
Cooling EER (BTUH / Watt)11.9
Heating - Reverse Cycle - BTUH6000/5800
Cooling BTUH (MIN)6800 Btu

FEATURES

Control TypeElectronic
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
Manual Vent ControlHidden
"SmartFan" Fan CycleYes

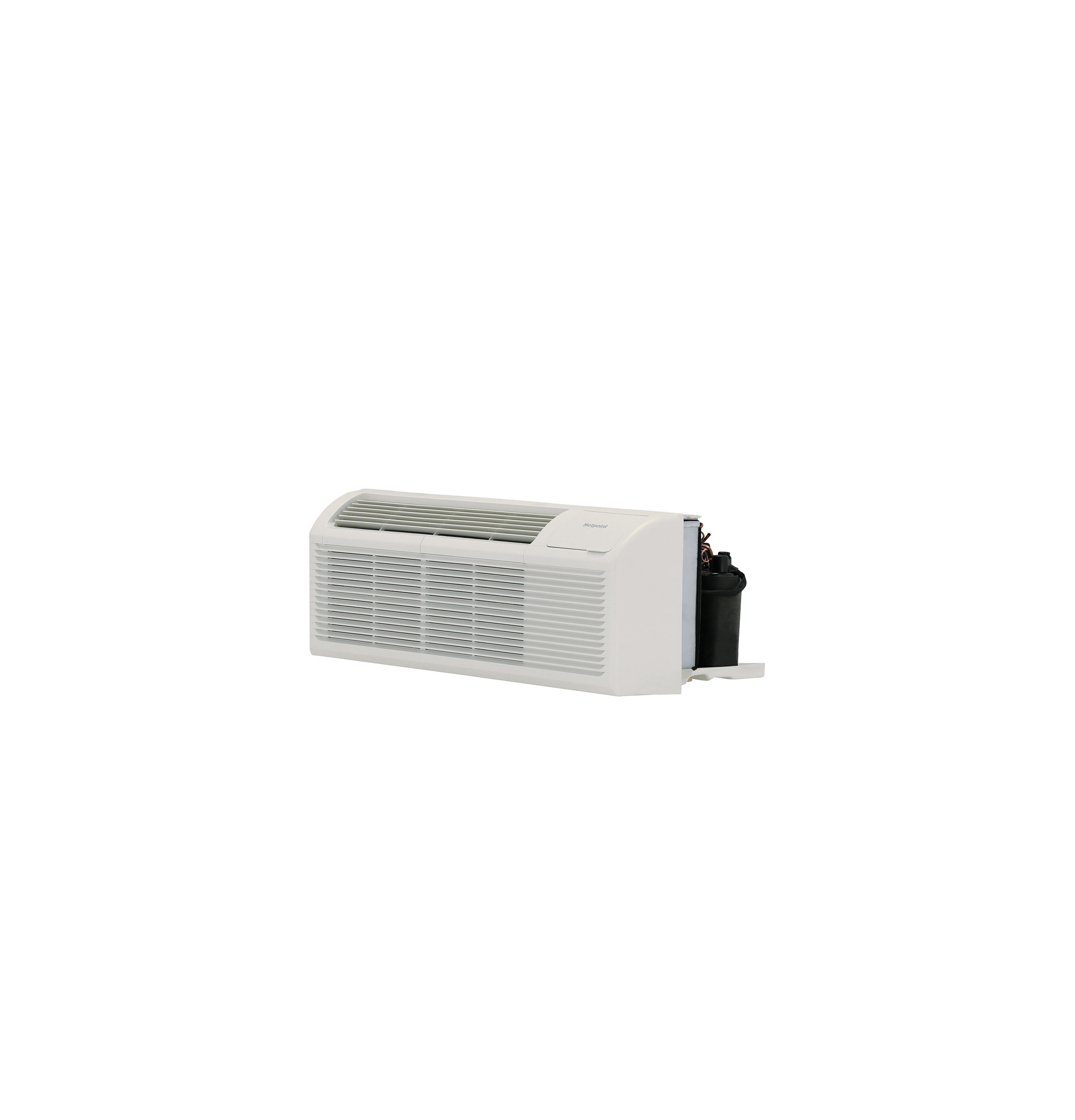

Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Temperature Range62 - 80 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - COP3.6
Outdoor Vent / ExhaustYes

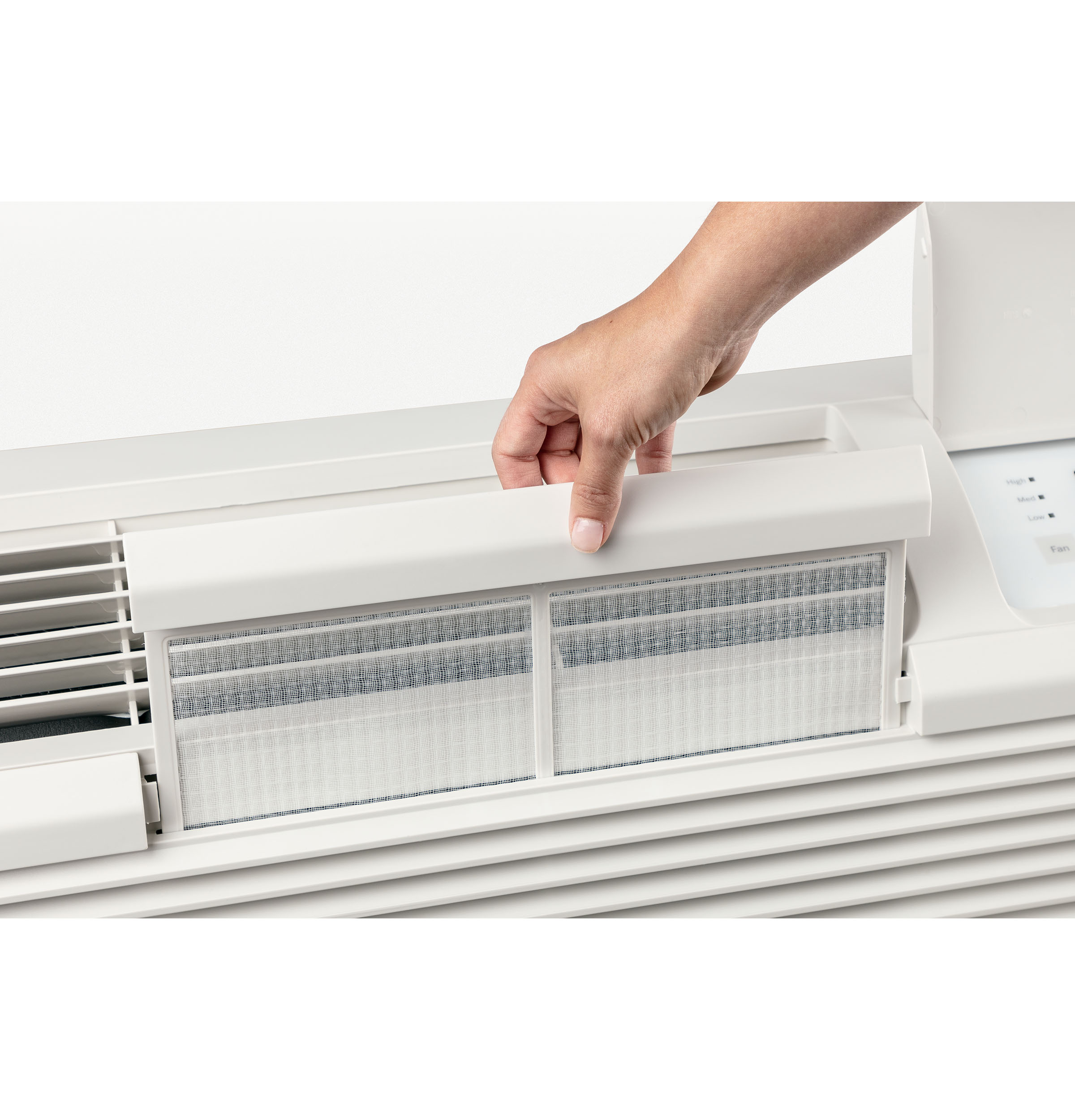

Venting FeaturesVent Air Filter
Heating SystemHeat Pump with Resistance Backup
Fan Speed Selections3 Fan Only
Unit FeaturesAutomatic Emergency Heat

POWER / RATINGS

Heating - Reverse Cycle - Watts515/500
Cooling - Amperes; F.L. - Cooling2.7/2.8
Cooling - Amperes2.4/2.6
Cooling - Watts605/570
Heating - Reverse Cycle - Amps2.22/2.38
Voltage (MIN)208 V
Heating - Electric - Heater Watts3535/2900
Voltage (MAX)230 V
Heating - Electric - Heater Amps15.3/13.7

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

Dimensions & Weight

Width42.4 in.
Height16 in.
Length20.9 in.
Weight104.7 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.4 in.
Shipping Height21 in.
Shipping Length25.9 in.
Shipping Weight144.7 lbs.
Total of Shipping Weight144.7 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.21 ft³
Dimensional Weight102 lbs.
Total of Cubes8.21 ft³
Total of Dimensional Weight102 lbs.

Warranty

Labor (Sealed System)5 Year
Parts (Entire Appliance)2 Year
