PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt - AH11H15D5B

This product has been discontinued by the manufacture and is no longer available.

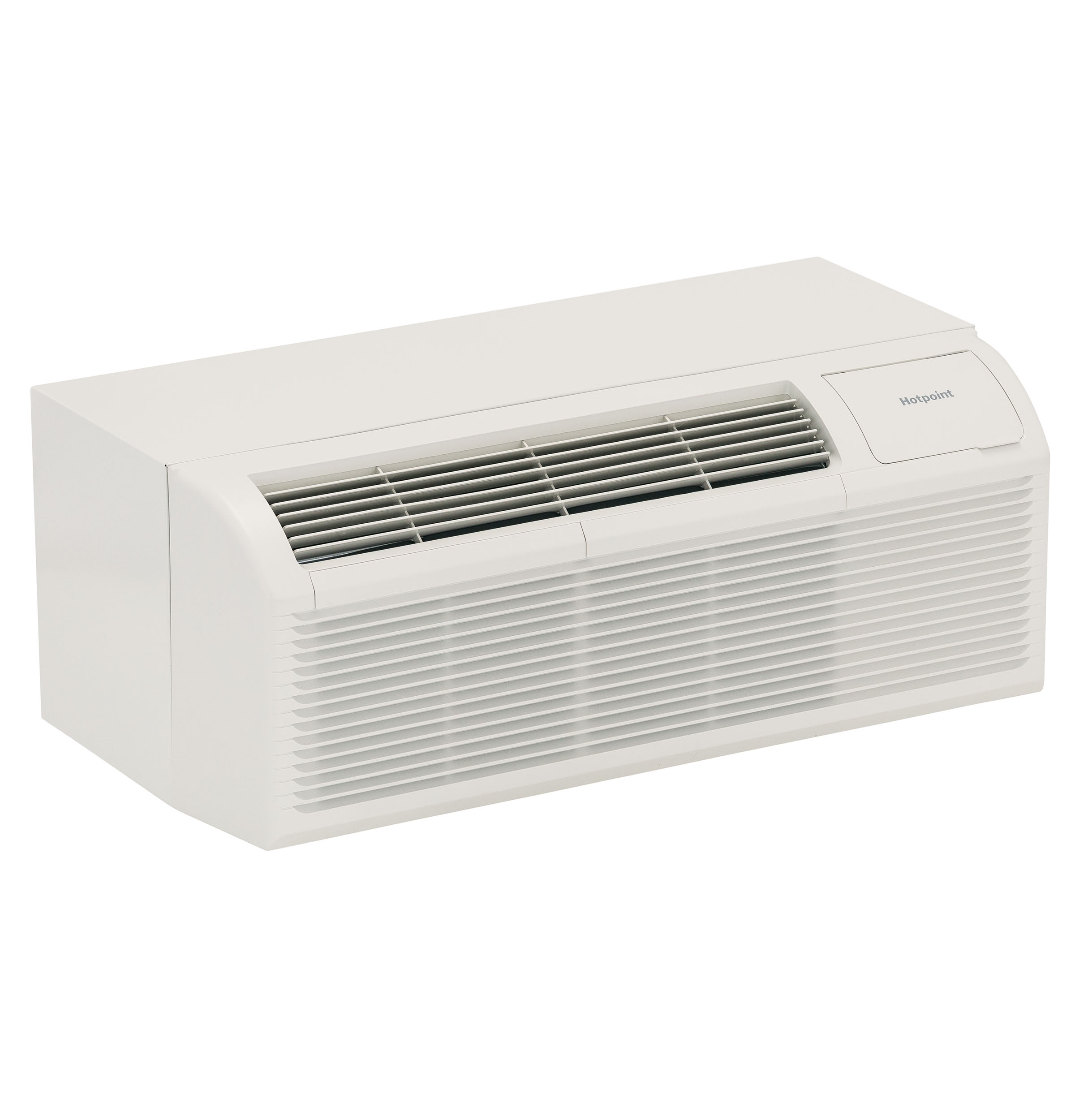

PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt

Model: AH11H15D5B

PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5BPTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
+10more

Color : White

PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 30 amps, 208/230 Volt AH11H15D5B
White

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Automatic emergency heat

  • Self diagnostics

  • Backed by an industry leader

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

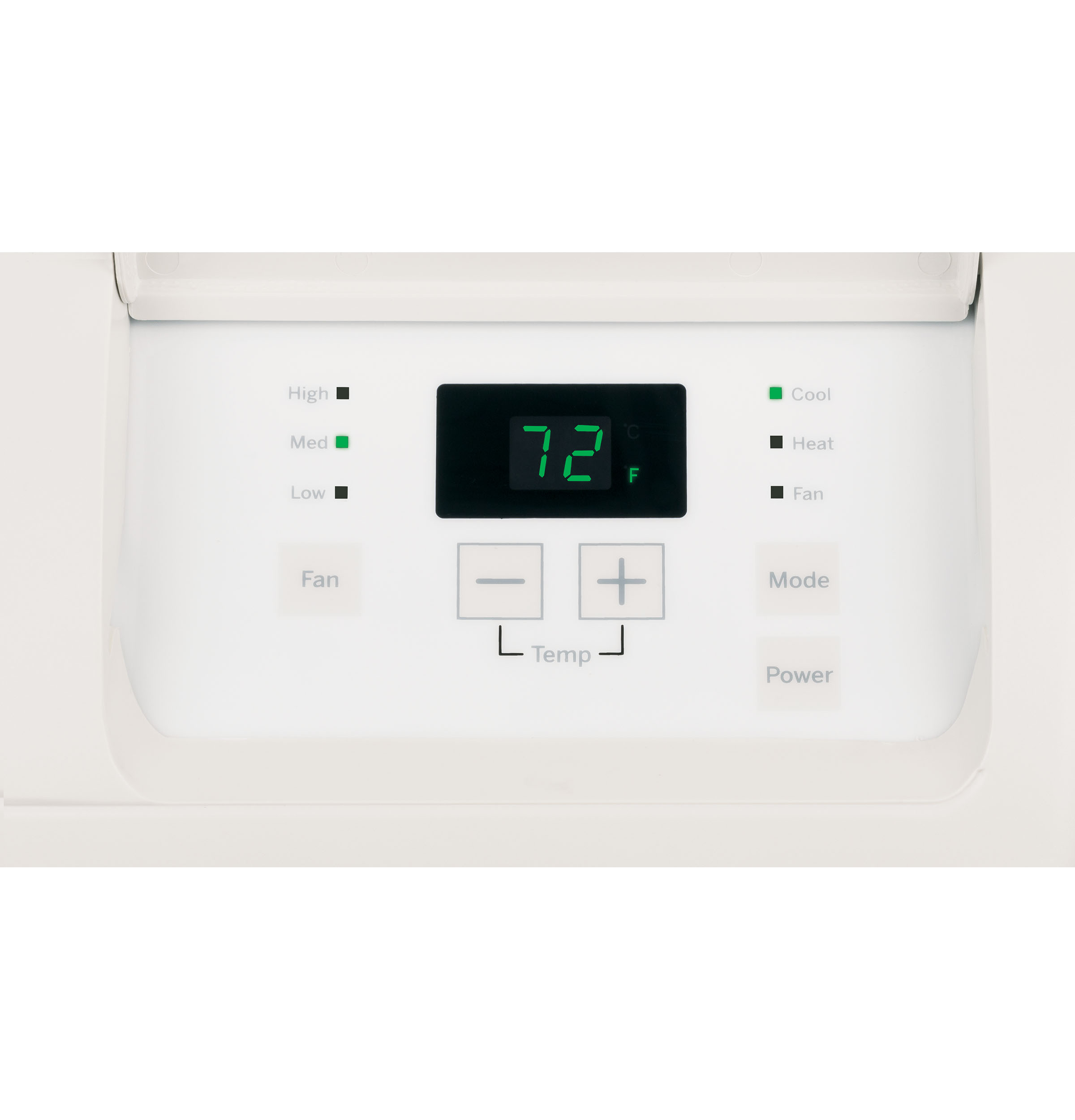

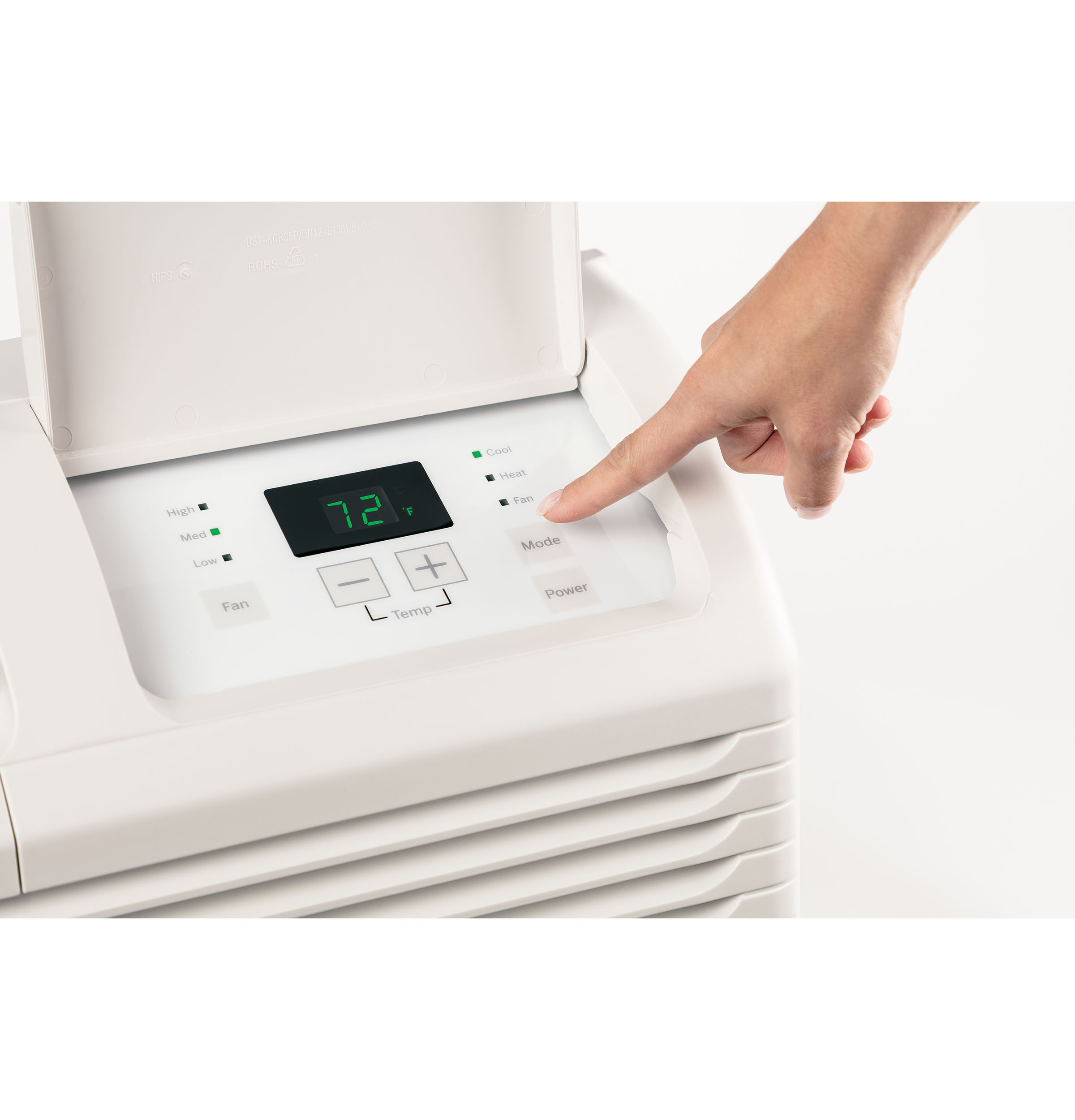

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available

Certifications

AHRI certification

AHRI

CUL certification

CUL

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width42 in
Overall Height16 in
Overall Depth21 in
Approximate Shipping Weight127.3 lb
Net Weight117.6 lb

CAPACITY

Cooling BTUH (MAX)14700 Btu
CFM Indoor Fan Low311
CFM Indoor Fan Medium344
CFM Indoor Fan High373
Cooling EER (BTUH / Watt)9.7
Heating - Reverse Cycle - BTUH13500/13200
Cooling BTUH (MIN)14500 Btu

FEATURES

Control TypeElectronic
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR410A
Manual Vent ControlHidden
"SmartFan" Fan CycleYes
Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Temperature Range62 - 86 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - COP3.0
Outdoor Vent / ExhaustYes

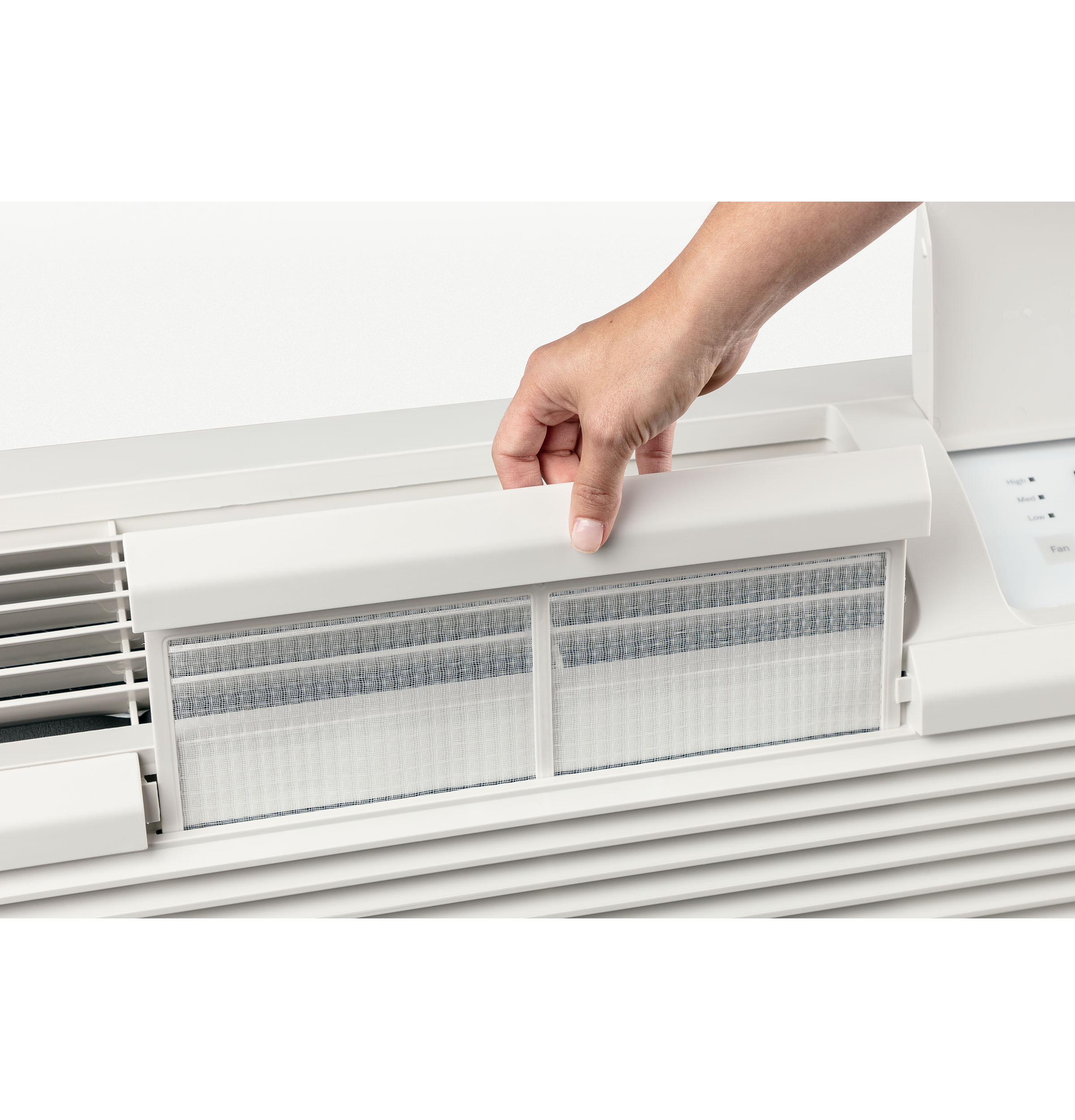

Venting FeaturesConcealed Manual Vent Control • Vent Air Filter
Heating SystemHeat Pump with Resistance Backup
Venting FeaturesConcealed Manual Vent Control¶Vent Air Filter
Fan Speed Selections3 Fan Only
Unit FeaturesAutomatic Emergency Heat

POWER / RATINGS

Heating - Reverse Cycle - Watts1315/1285
Cooling - Amperes6.03/6.58
Heating - Reverse Cycle - Amps5.38/5.82
Cooling - Watts1515/1490
Voltage (MIN)208 V
Heating - Electric - Heater Watts5035/4125
Voltage (MAX)230 V
Heating - Electric - Heater Amps22.0/19.7

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

Dimensions & Weight

Width42 in.
Height16 in.
Length21 in.
Weight117.6 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47 in.
Shipping Height21 in.
Shipping Length26 in.
Shipping Weight157.6 lbs.
Total of Shipping Weight157.6 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.17 ft³
Dimensional Weight101.53 lbs.
Total of Cubes8.17 ft³
Total of Dimensional Weight101.53 lbs.

Warranty

Labor (Sealed System)5 Year
Parts (Entire Appliance)2 Year
