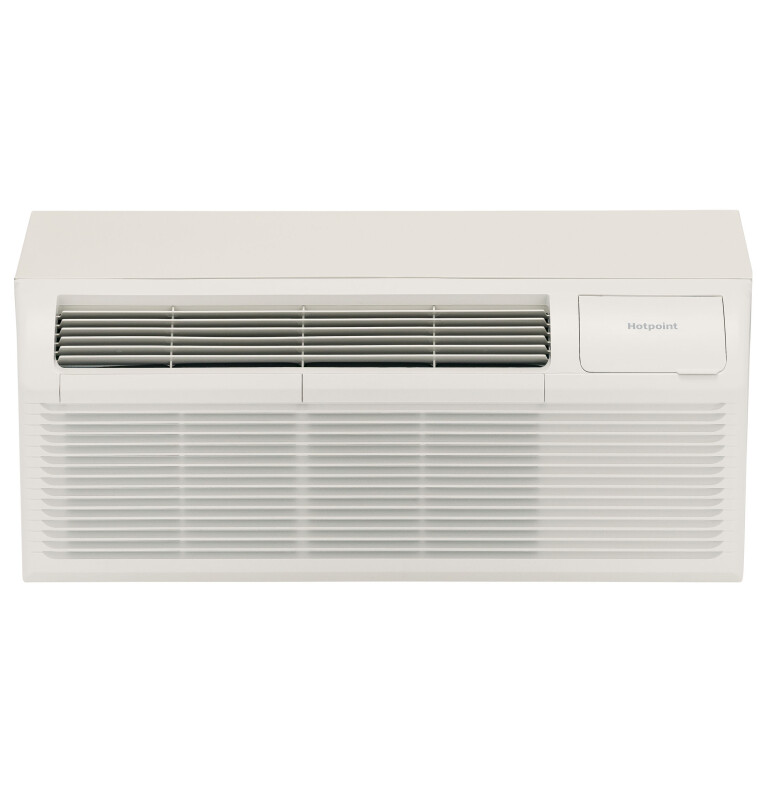

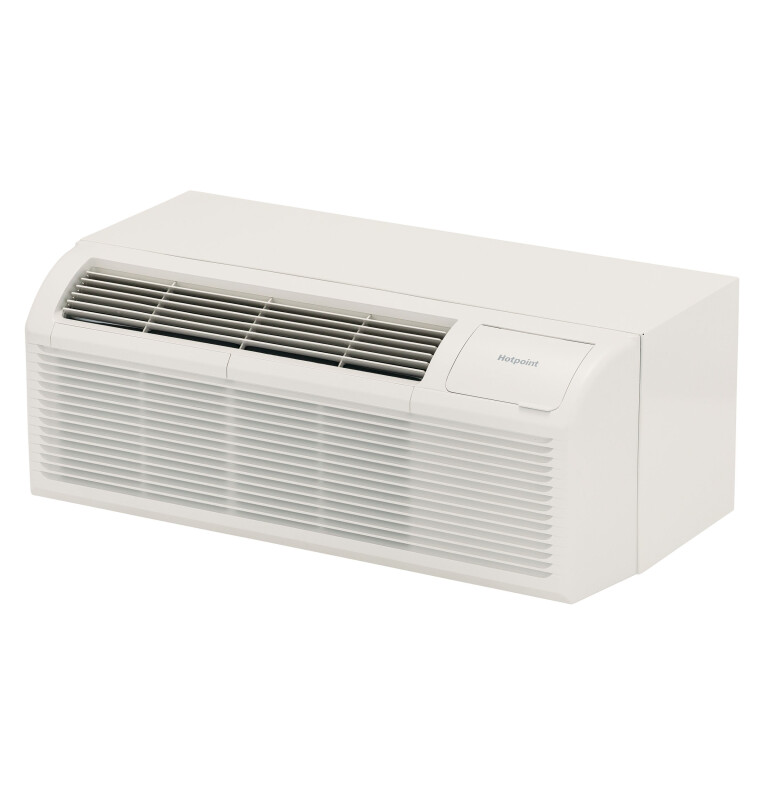

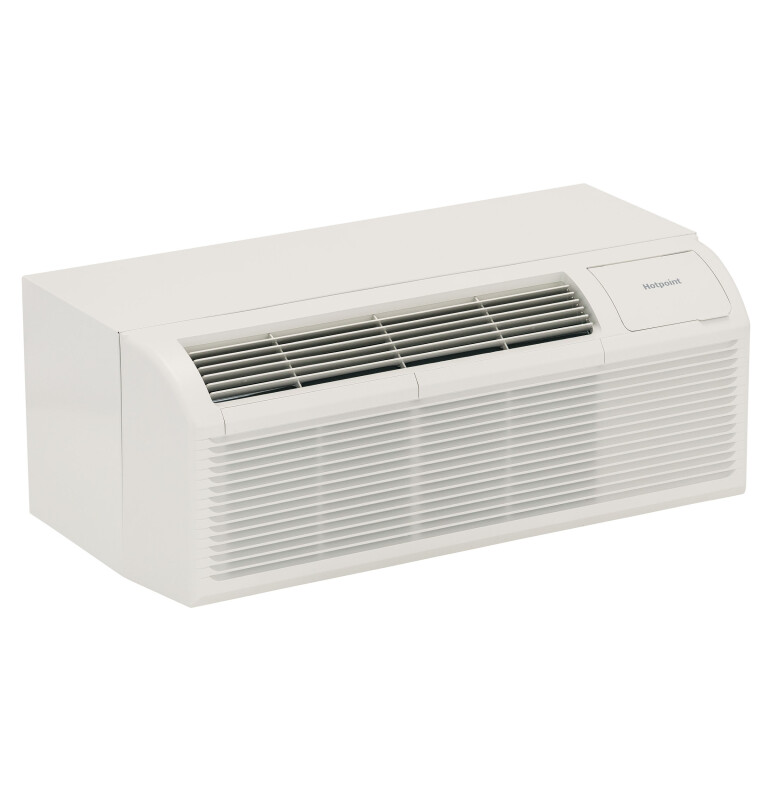

PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 20 amps, 230/208 Volt - AH11H15D3B
PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 20 amps, 230/208 Volt
Model: AH11H15D3B




















PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 20 amps, 230/208 Volt
Model: AH11H15D3B
Key Features
3-speed fan
4-temperature limiting options
Auto power recovery
Freeze and frost protection
Self diagnostics
Automatic emergency heat
Backed by an industry leader
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

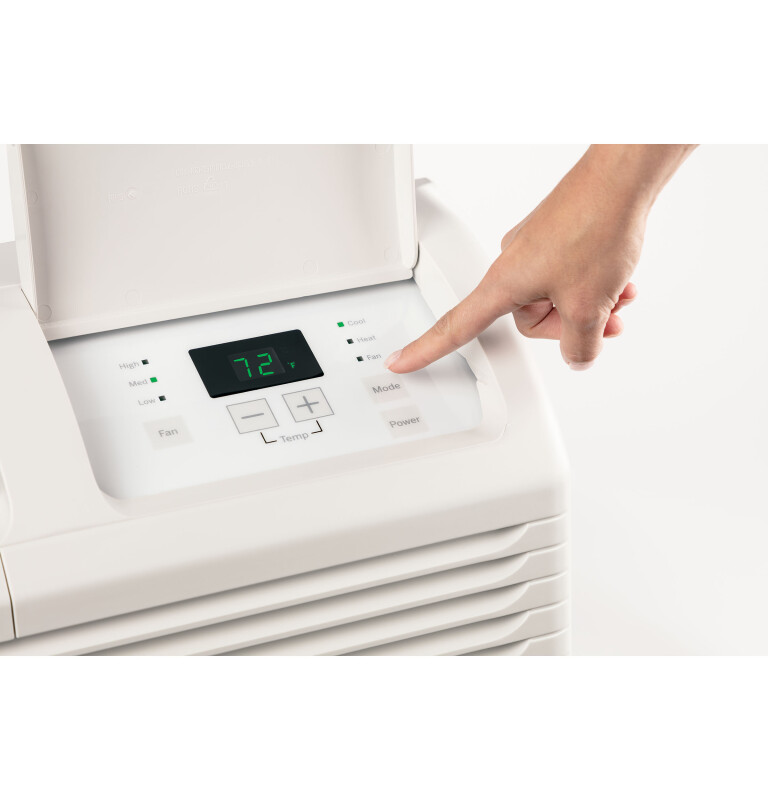

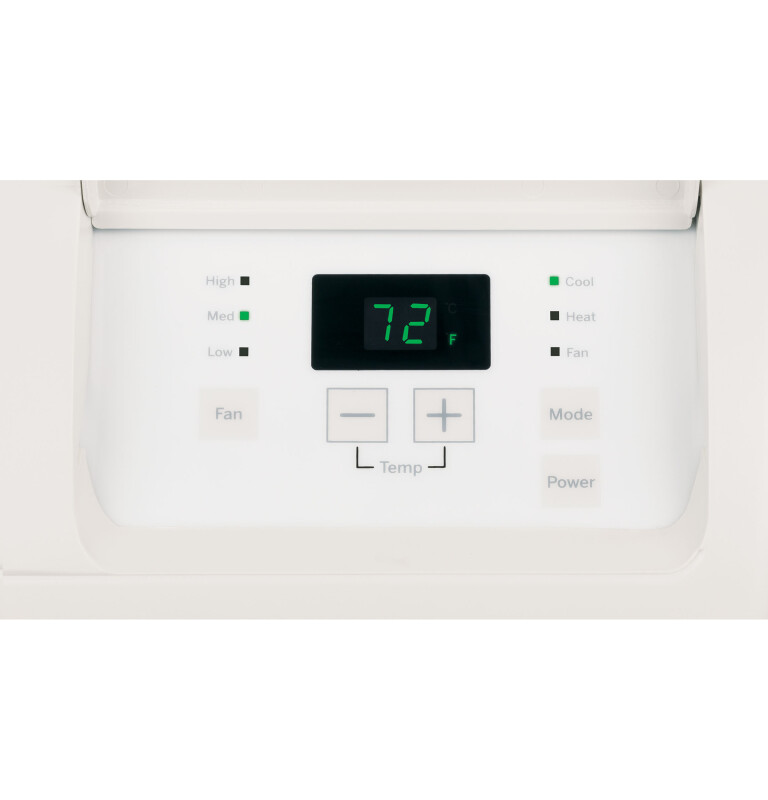

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Energy-efficient heat pump models available
Heatpump models include staged heating
Tangential fan for air flow and smooth sound
Certifications
AHRI
CUL
UL
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 42 in |
| Overall Height | 16 in |
| Overall Depth | 21 in |
| Approximate Shipping Weight | 141 lb |
| Net Weight | 116.4 lb |
CAPACITY
| Cooling BTUH (MAX) | 14700 Btu |
| CFM Indoor Fan Low | 311 |
| CFM Indoor Fan Medium | 344 |
| CFM Indoor Fan High | 373 |
| Cooling EER (BTUH / Watt) | 9.7 |
| Heating - Reverse Cycle - BTUH | 13500/13200 |
| Cooling BTUH (MIN) | 14500 Btu |
FEATURES
| Control Type | Electronic |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |

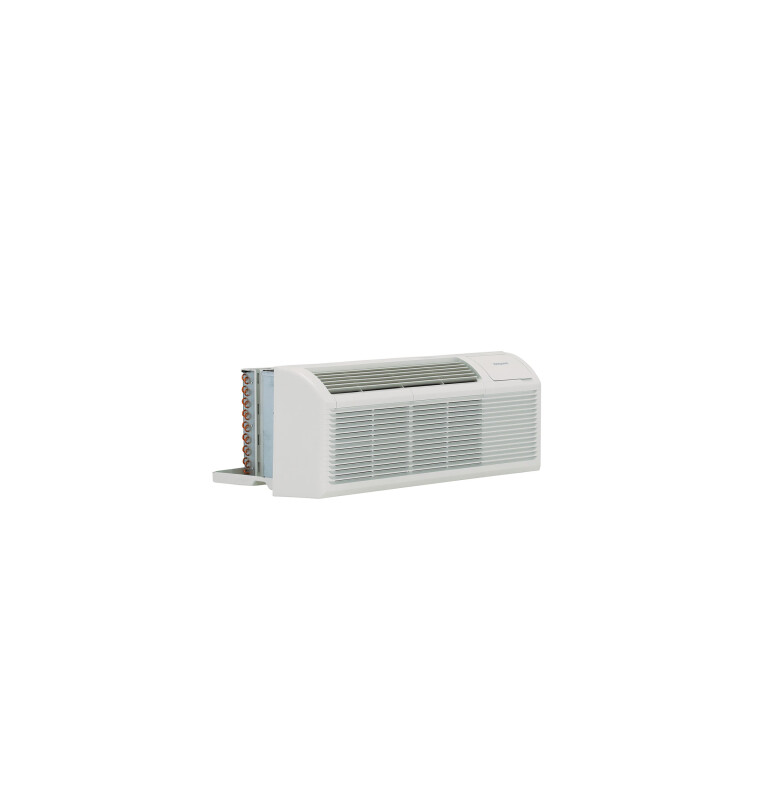

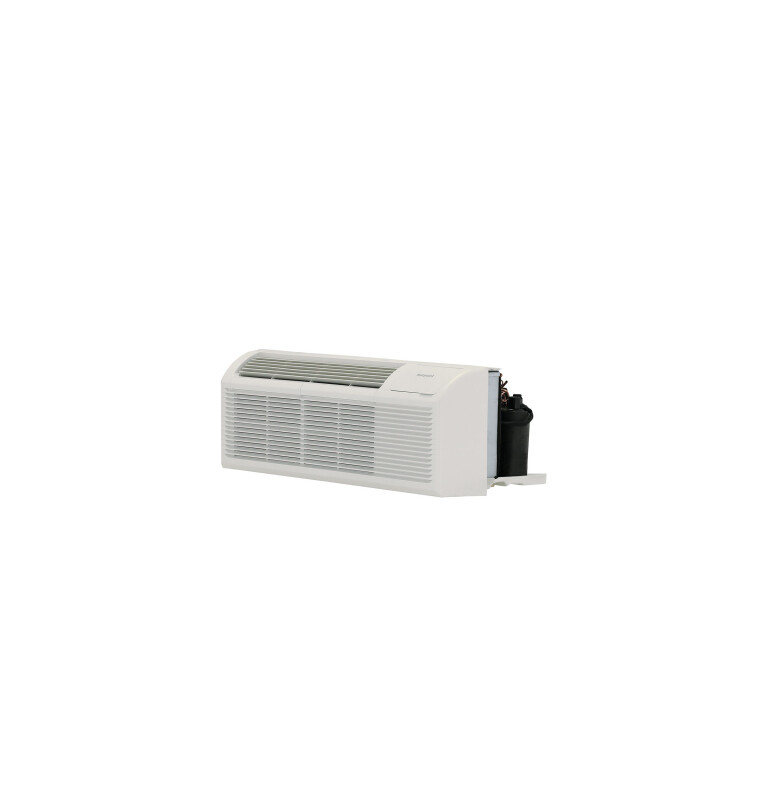

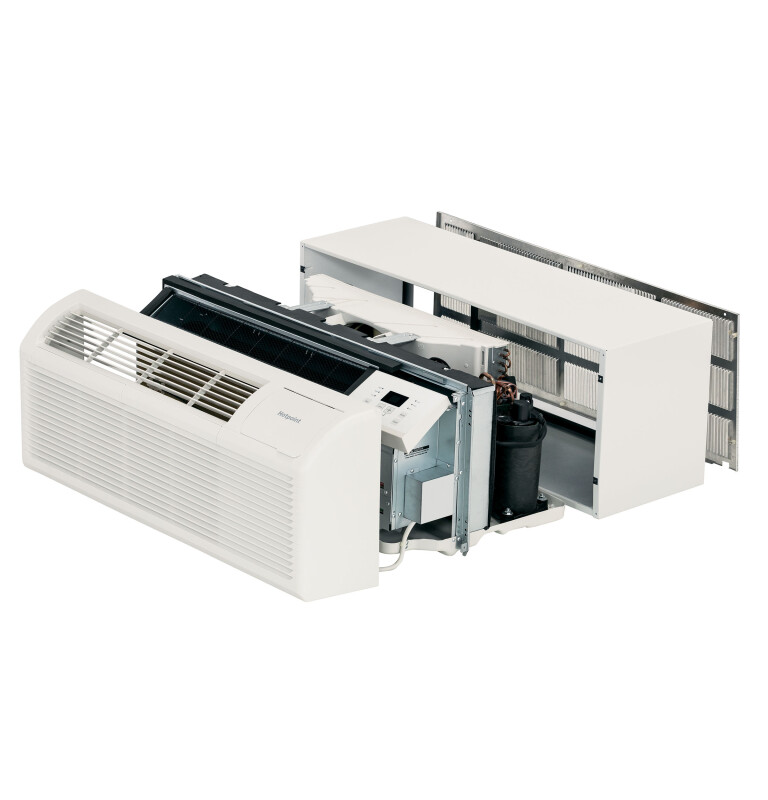

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Heat Pump | Yes |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Outdoor Vent / Exhaust | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.0 |

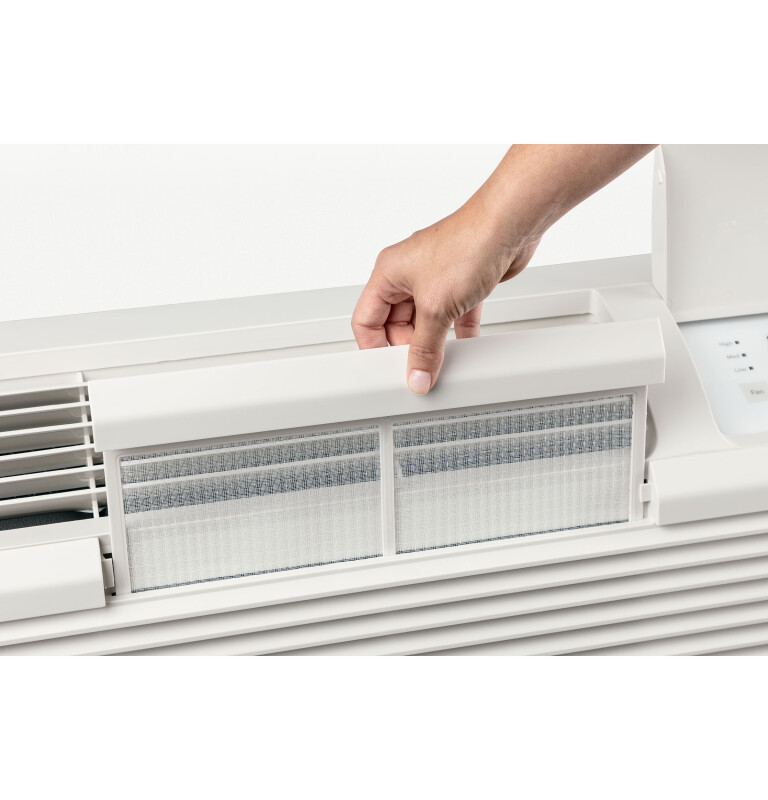

| Venting Features | Concealed Manual Vent Control • Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter |
| Fan Speed Selections | 3 Fan Only |
| Unit Features | Automatic Emergency Heat |
POWER / RATINGS
| Heating - Reverse Cycle - Watts | 1315/1285 |
| Cooling - Amperes; F.L. - Cooling | 6.7/7.3 |
| Cooling - Amperes | 6.03/6.58 |
| Cooling - Watts | 1515/1490 |
| Heating - Reverse Cycle - Amps | 5.38/5.82 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2935 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |
APPEARANCE
| Installation | Through-the-Wall |
| Color Appearance | White |

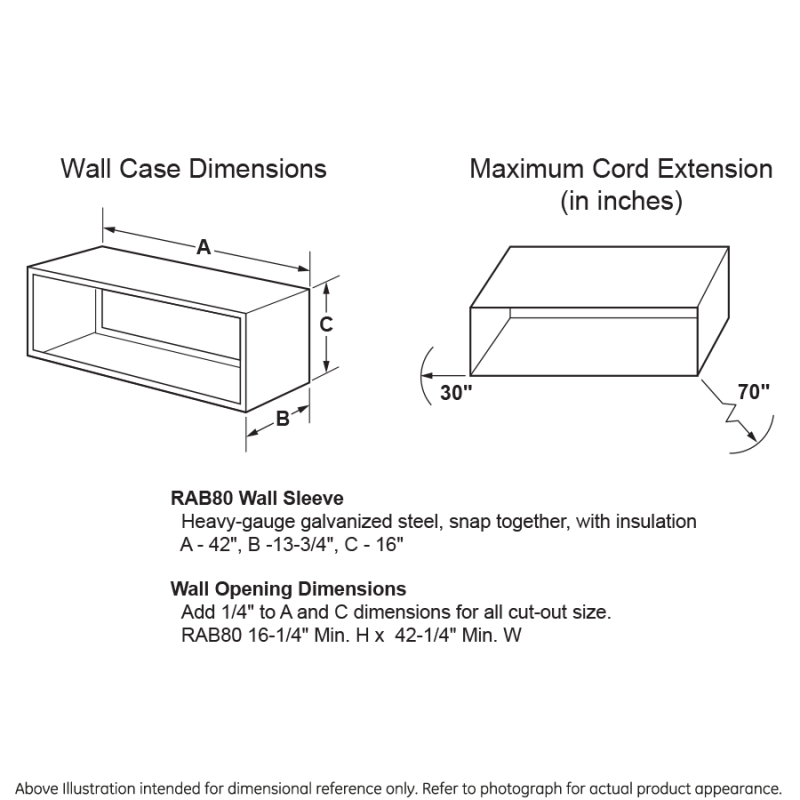

Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 21 in. |
| Weight | 116.4 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 156.4 lbs. |
| Total of Shipping Weight | 156.4 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.17 ft³ |
| Dimensional Weight | 101.53 lbs. |
| Total of Cubes | 8.17 ft³ |
| Total of Dimensional Weight | 101.53 lbs. |
Warranty
| Labor (Sealed System) | 5 Year |
| Parts (Entire Appliance) | 2 Year |
