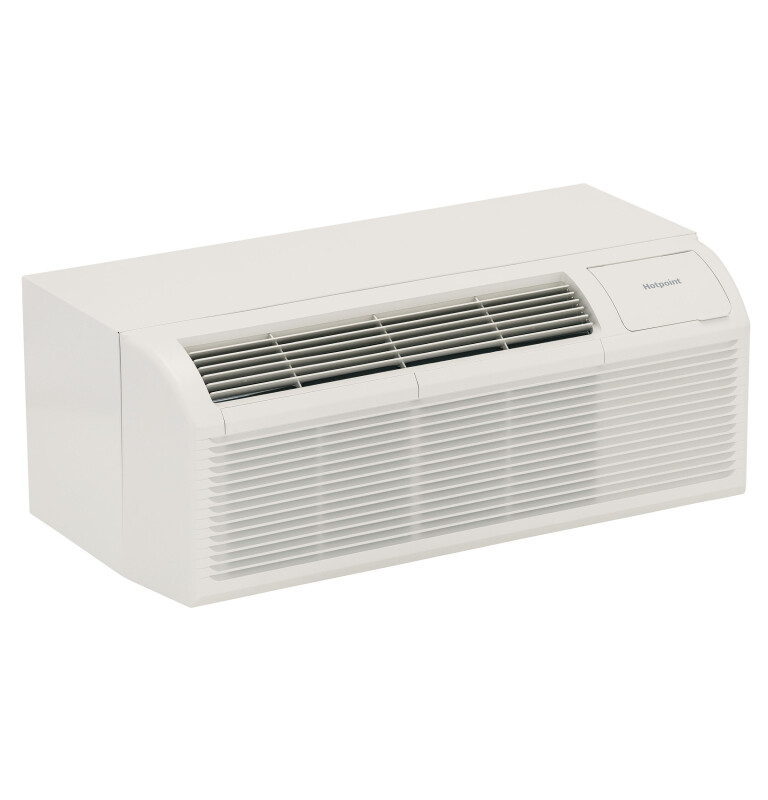

PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt - AH11E12D3B

This product has been discontinued by the manufacture and is no longer available.

PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt

Model: AH11E12D3B

PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3BPTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
+10more

Color : White

PTAC with Electric Heat 12,000 BTU, 20 amps, 230/208 Volt AH11E12D3B
White

Key Features

  • 3-speed fan

  • Freeze and frost protection

  • Auto power recovery

  • 4-temperature limiting options

  • Self diagnostics

  • Automatic emergency heat

  • Backed by an industry leader

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Description

Hotpoint Wall Mount PTAC with Tangential 3-speed Fan and Frost Protection in White

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

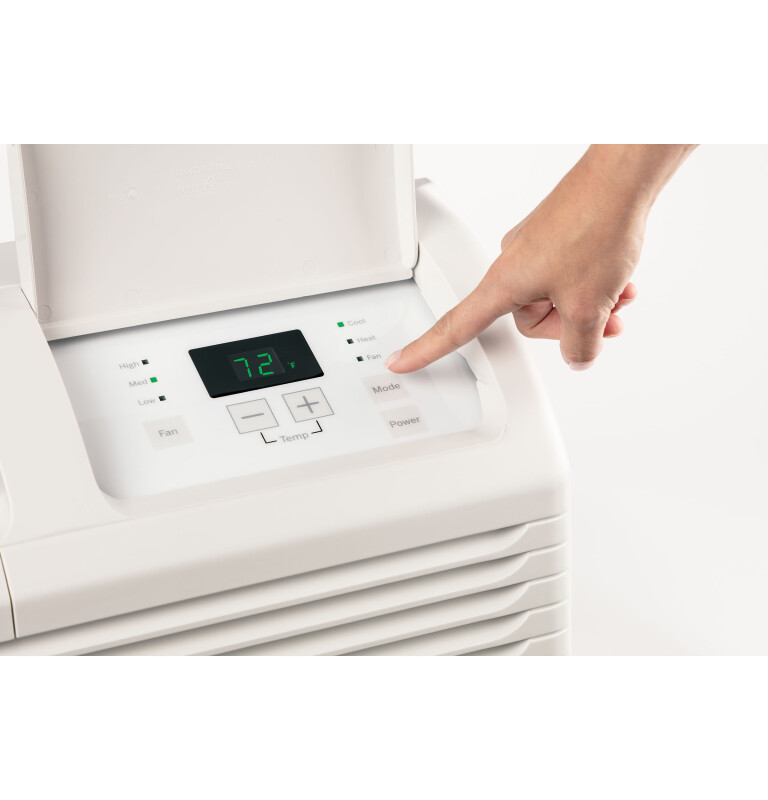

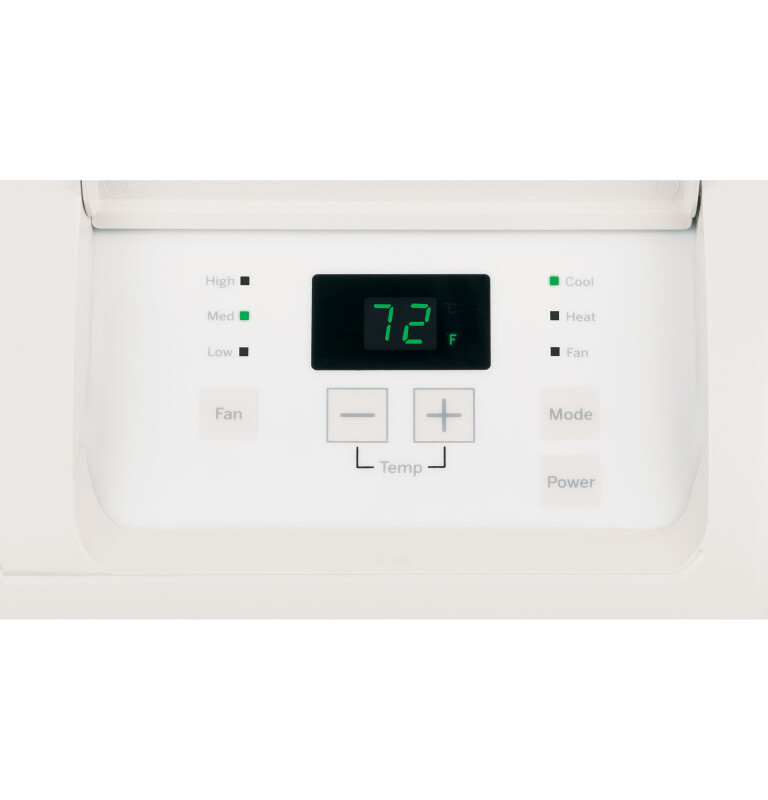

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Works with central desk control systems

Tangential fan for air flow and smooth sound

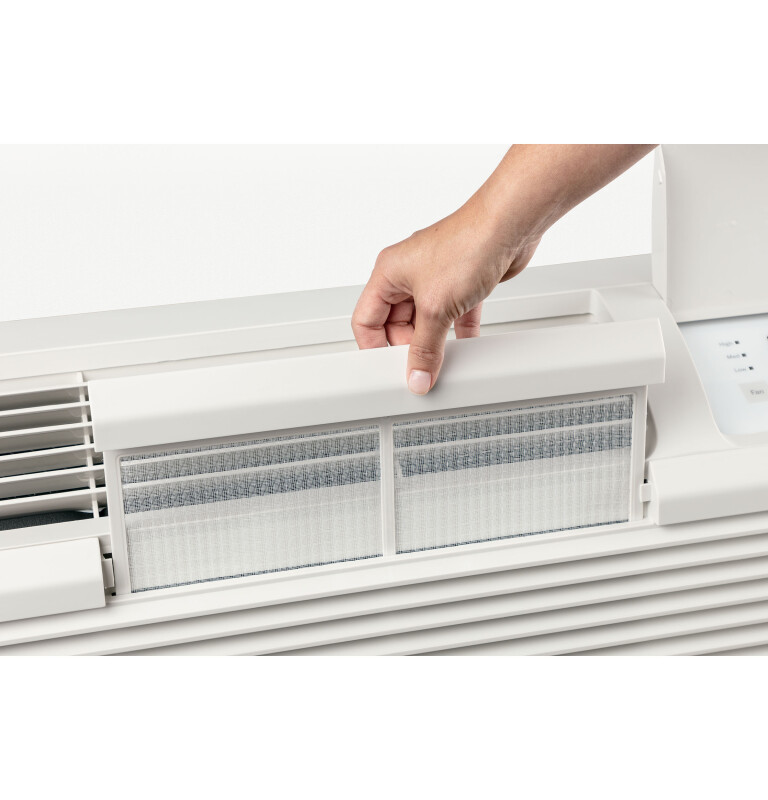

Removable filters for easy maintenance

Certifications

AHRI certification

AHRI

CUL certification

CUL

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width42 in
Overall Height16 in
Overall Depth21 in
Approximate Shipping Weight136 lb
Net Weight111.8 lb

CAPACITY

Cooling BTUH (MAX)12000 Btu
CFM Indoor Fan Low310
CFM Indoor Fan Medium349
CFM Indoor Fan High383
Cooling EER (BTUH / Watt)10.7
Cooling BTUH (MIN)11800 Btu

FEATURES

Control TypeElectronic
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR410A
Manual Vent ControlHidden
"SmartFan" Fan CycleYes
Chassis TypeSlide-In
Fan Motor2
Temperature Range62 - 86 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Venting FeaturesConcealed Manual Vent Control • Vent Air Filter
Heating SystemElectric Resistance
Venting FeaturesConcealed Manual Vent Control¶Vent Air Filter
Fan Speed Selections3 Fan Only
Unit FeaturesAutomatic Indoor Frost Control

POWER / RATINGS

Cooling - Amperes; F.L. - Cooling4.9/5.3
Cooling - Amperes4.9/5.3
Cooling - Watts1120/1100
Voltage (MIN)208 V
Heating - Electric - Heater Watts3535/2935
Voltage (MAX)230 V
Heating - Electric - Heater Amps15.3/13.7

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

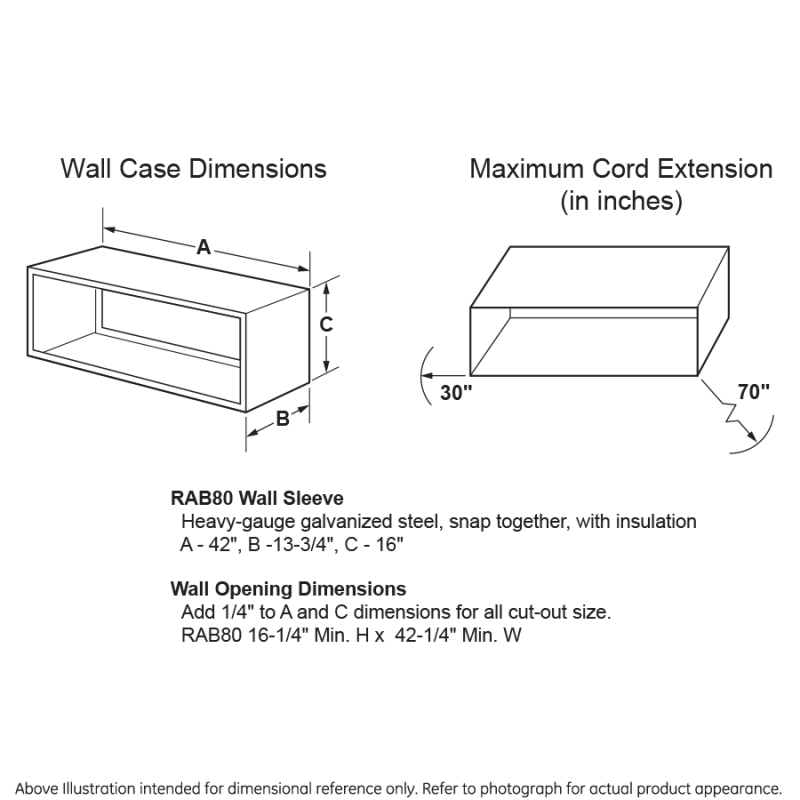

Dimensions & Weight

Width42 in.
Height16 in.
Length21 in.
Weight111.8 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47 in.
Shipping Height21 in.
Shipping Length26 in.
Shipping Weight151.8 lbs.
Total of Shipping Weight151.8 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.17 ft³
Dimensional Weight101.53 lbs.
Total of Cubes8.17 ft³
Total of Dimensional Weight101.53 lbs.

Warranty

Labor (Sealed System)5 Year
Parts5 Year
