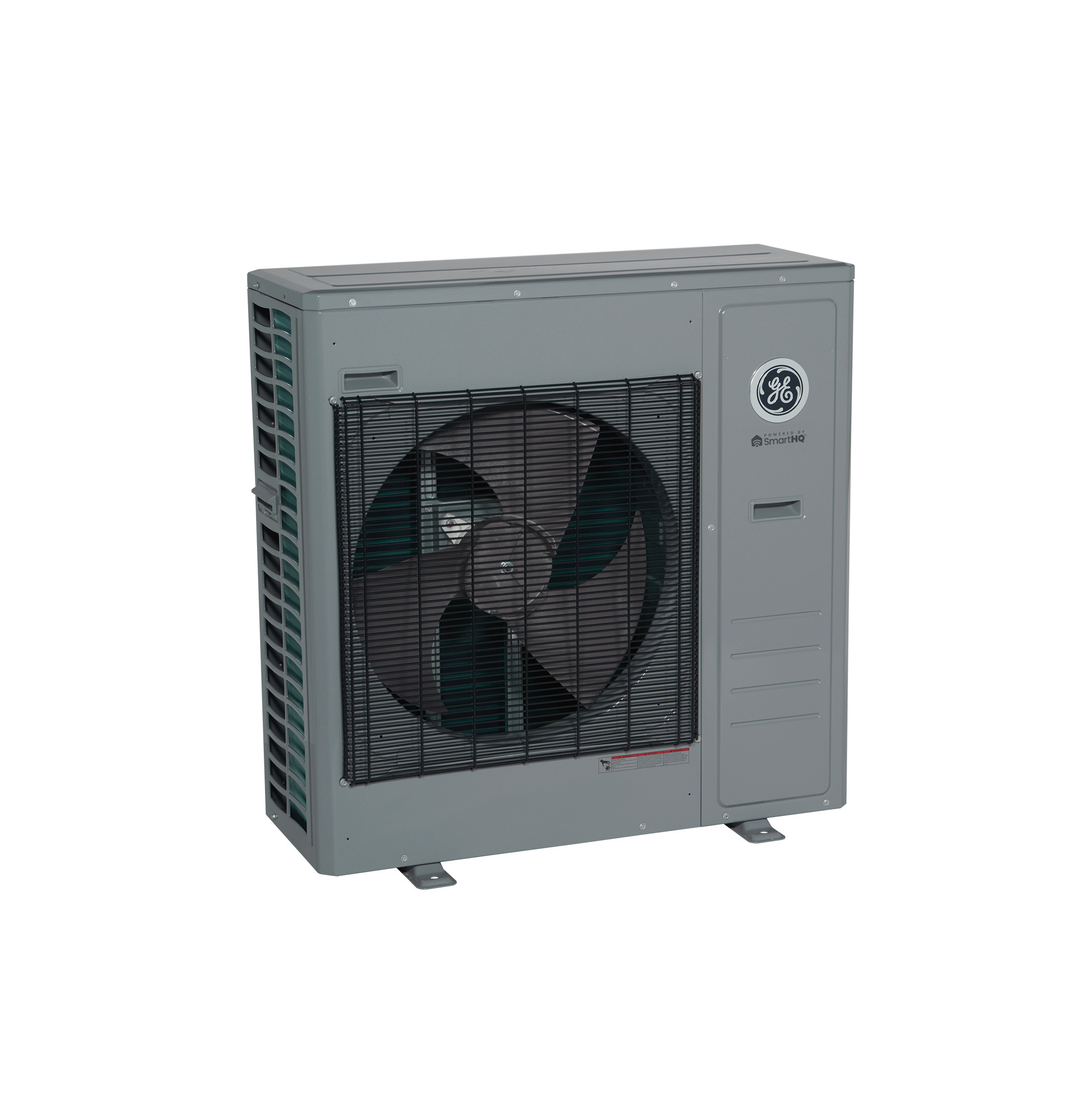

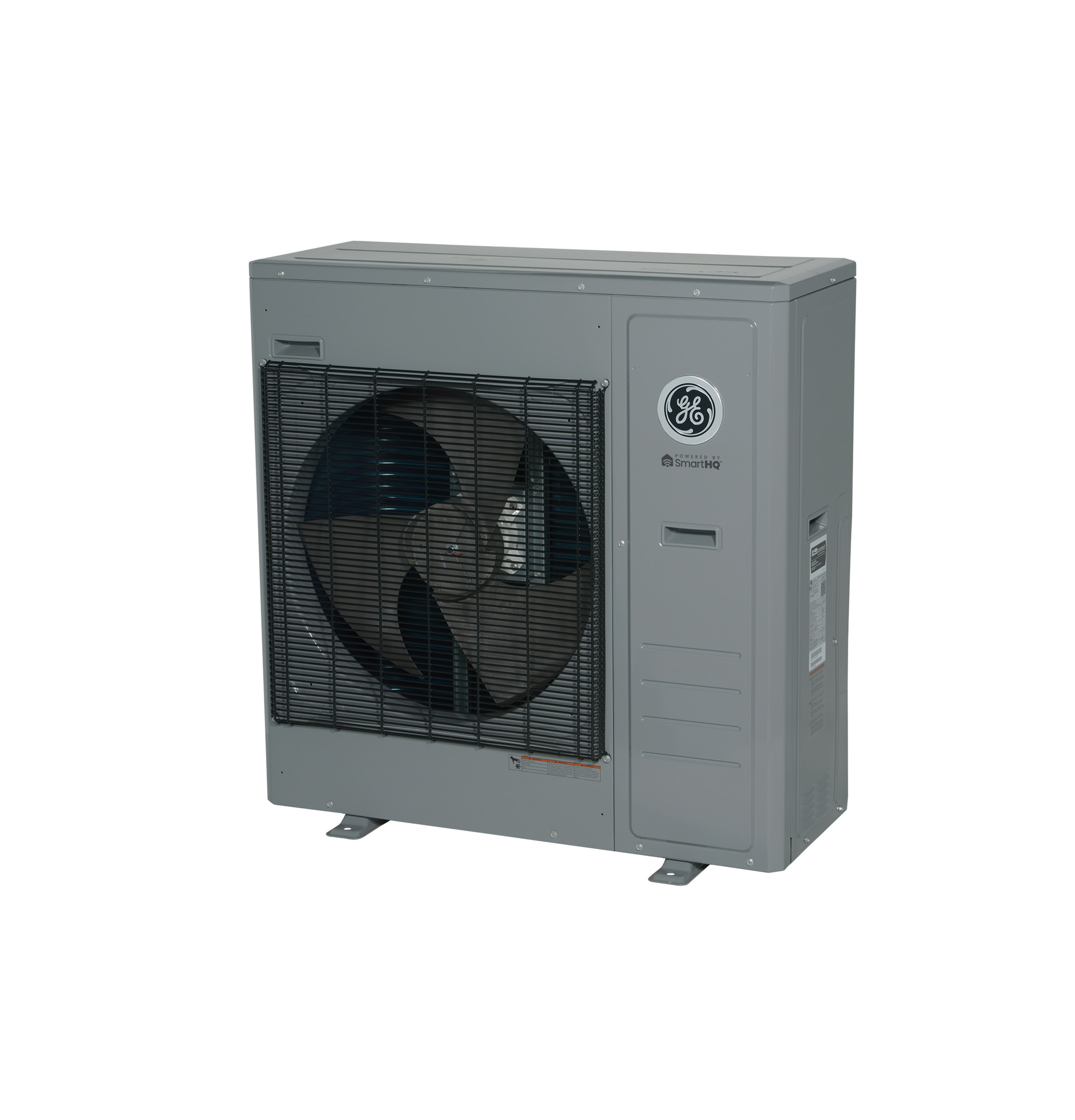

Multilink Series 208-230V 5 Zones 42,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System - ASH542JCDDA
Multilink Series 208-230V 5 Zones 42,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System
Model: ASH542JCDDA
Multilink Series 208-230V 5 Zones 42,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System
Model: ASH542JCDDA
Color : Gray
Key Features
SmartHQ Service
High Efficiency
5 Zones
Indoor Compatibility
Blue Fin
See specification book for full heating, cooling, and system details
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
SmartHQ Service
Using the innovative SmartHQ Service tool, techs can gather diagnostics quickly and resolve problems fast to save time on each job.
High Efficiency
Latest high efficiency A-PAM DC inverter technology
5 Zones
Capable of heating and cooling up to 5 zones
Indoor Compatibility
Compatible with select highwall, mid-static ducted, cassette, and console models
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly
See specification book for full heating, cooling, and system details
Specifications
FEATURES
| Base Pan Heater | Standard |
| Compatible Indoor Models | Select Multi Zone Indoor Units |
| Connections | Flare |
| Factory Charge (ounces) | 113 |
| Maximum Fuse Size A | 40 |
| Maximum Height (Ft/m) | 50/15 |
| Maximum Line Length (Ft/M) | 262/80 |
| Number of Indoor Models | 2, 3, 4, or 5 |
| Outdoor Noise Level | 63 dBA |
| Product Type | Multi Zone |
| Rotary Compressor | DC Inverter Driven Rotary |
| Series | Multilink |
| Style | Outdoor |
| System | 42K Endure Multi Zone |
| Temperature Range - Cooling Mode | 14-115 F (-10-46 C) |
| Temperature Range - Heating Mode | -15-75 F (-26-24 C) |
| Unit Type | Outdoor |
APPEARANCE
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 244 lb |
| Liquid O.D. Refrigerant Line | 1/4", 1/4", 1/4", 1/4", 1/4" |
| Net Weight | 222 lb |
| Overall Depth | 14.625 in |
| Overall Height | 37.5 in |
| Overall Width | 38 in |
| Suction O.D. Refrigerant Line | 3/8", 3/8", 3/8", 1/2", 1/2" |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 41,000 |
| Minimum Circuit Amp | 33 |
| Voltage/Hertz/Phase | 208-230/60/1 |
Warranty
| Parts | 5 Year |
