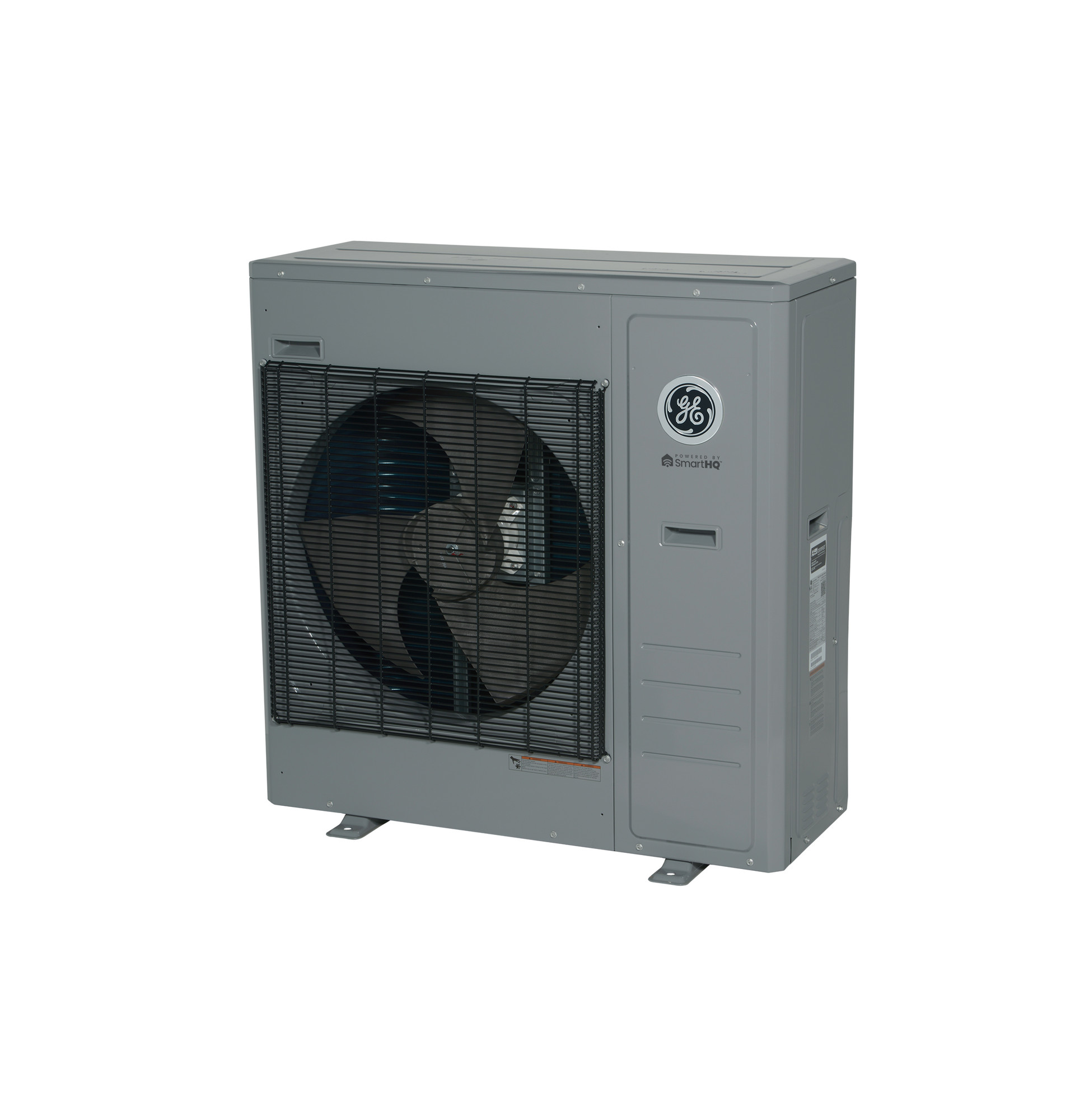

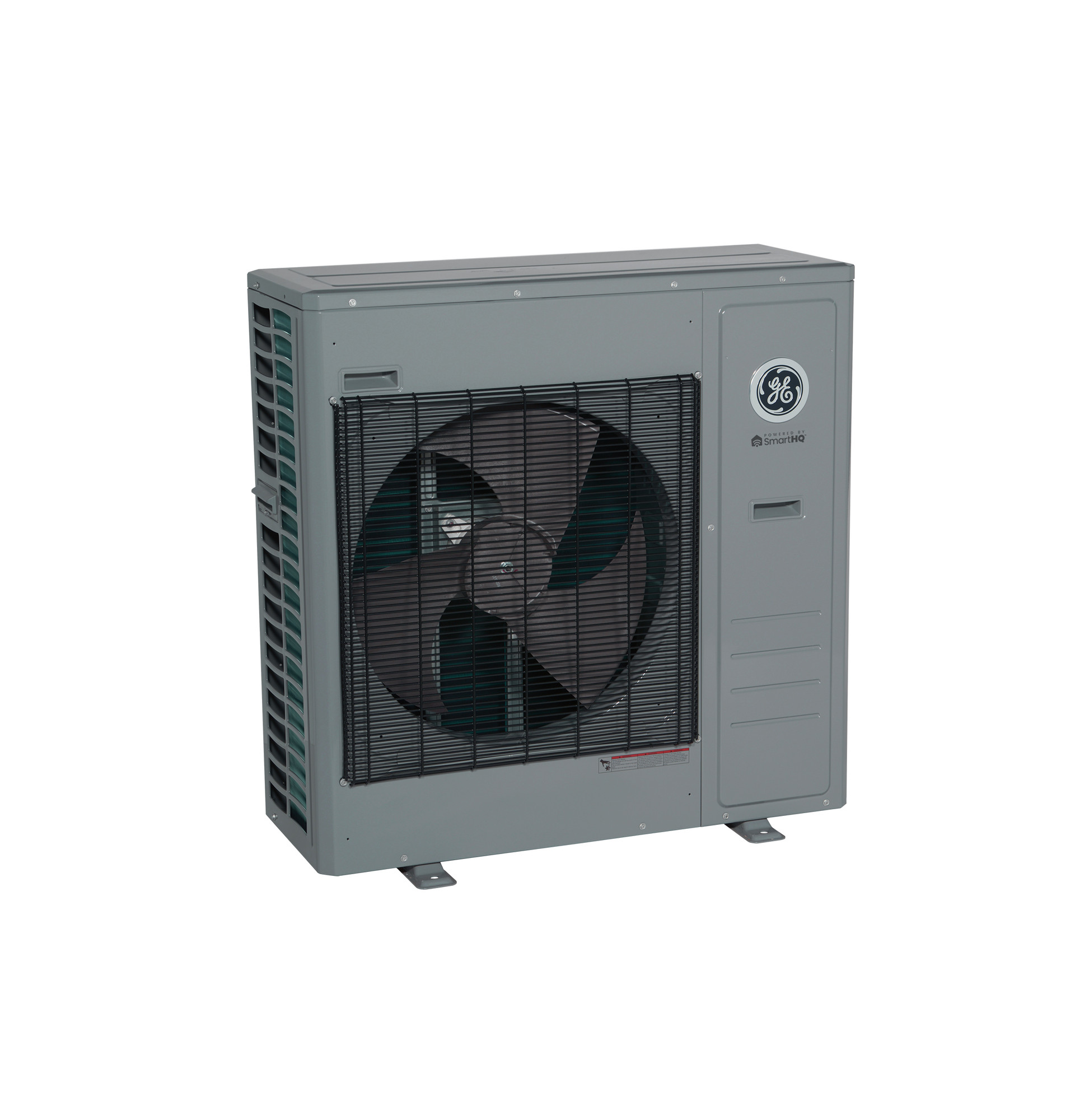

Endure Series 208-230V 4 Zones 36,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System - ASH436NCDDA
Endure Series 208-230V 4 Zones 36,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System
Model: ASH436NCDDA
Endure Series 208-230V 4 Zones 36,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System
Model: ASH436NCDDA
Color : Gray
Key Features
High Efficiency Ductless Heat Pump
A-PAM DC Inverter
Blue Fin
Low Ambient Heating down to -15F
Base Pan Heater
Quiet Operation
Wind Baffle and Snow Hood Compatibility
10-Year Limited Warranty with Registration
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
High Efficiency Ductless Heat Pump
Non-Ducted SEER2 of 19 and HSPF2 of 9.5.
A-PAM DC Inverter
Inverter compressor technology designed for high performance and maximum comfort.
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly.
Low Ambient Heating down to -15F
Exceptional year-round comfort with greater than 70% rated heating capacity at 5 degrees F and comfortably warm air down to -15 degrees F.
Base Pan Heater
Prevents condensed water from freezing and blocking the base pan drain openings.
Quiet Operation
Ductless heat pumps operate quietly for maximum homeowner comfort.
Wind Baffle and Snow Hood Compatibility
Compatible with QAWB46A Wind Baffle and UAWB80A Snow Hood.
10-Year Limited Warranty with Registration
10-Year Limited Parts and Compressor Warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Specifications
FEATURES
| Base Pan Heater | Standard |
| Compatible Indoor Models | Select Multi Zone Indoor Units |
| Connections | Flare |
| Factory Charge (ounces) | 102 |
| Maximum Fuse Size A | 40 |
| Maximum Height (Ft/m) | 50/15 |
| Maximum Line Length (Ft/M) | 230/70 |
| Number of Indoor Models | 2-4 |
| Outdoor Noise Level | 59 dBA |
| Product Type | Multi Zone |
| Rotary Compressor | DC Inverter Driven Rotary |
| Series | Endure Multi |
| Style | Outdoor |
| System | 36K Endure Multi Zone |
| Temperature Range - Cooling Mode | 14-115 F (-10-46 C) |
| Temperature Range - Heating Mode | -15-75 F (-26-24 C) |
| Unit Type | Outdoor |
APPEARANCE
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 241 lb |
| Liquid O.D. Refrigerant Line | 1/4", 1/4", 1/4", 1/4" |
| Net Weight | 221 lb |
| Overall Depth | 14.625 in |
| Overall Height | 38 in |
| Overall Width | 37.5 in |
| Suction O.D. Refrigerant Line | 3/8", 3/8", 3/8", 1/2" |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 33,400 |
| Minimum Circuit Amp | 33 |
| Voltage/Hertz/Phase | 208-230/60/1 |
Warranty
| Parts | 5 Year |
