Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System - ASH4248UCDDA

This product has been discontinued by the manufacture and is no longer available.

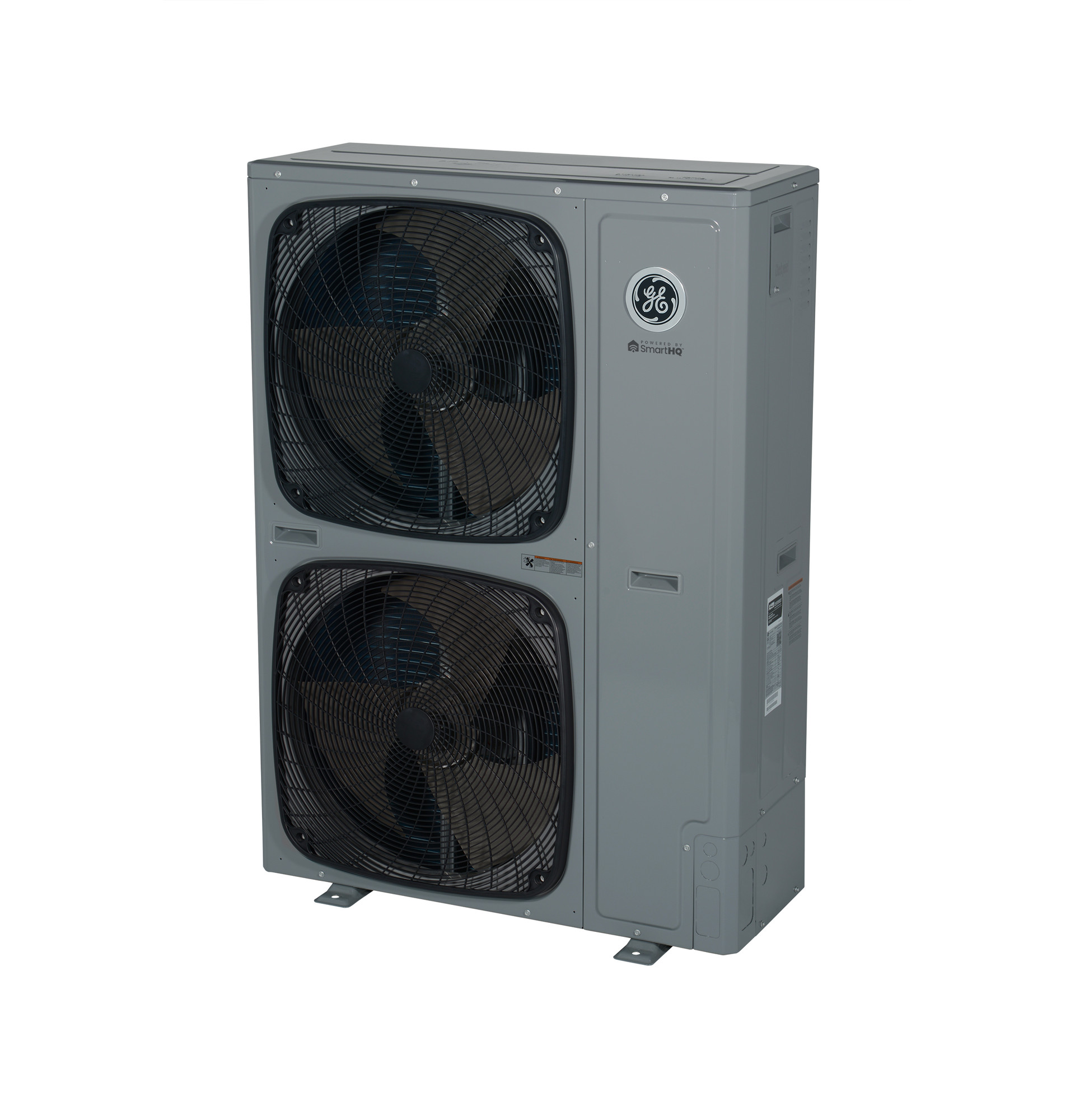

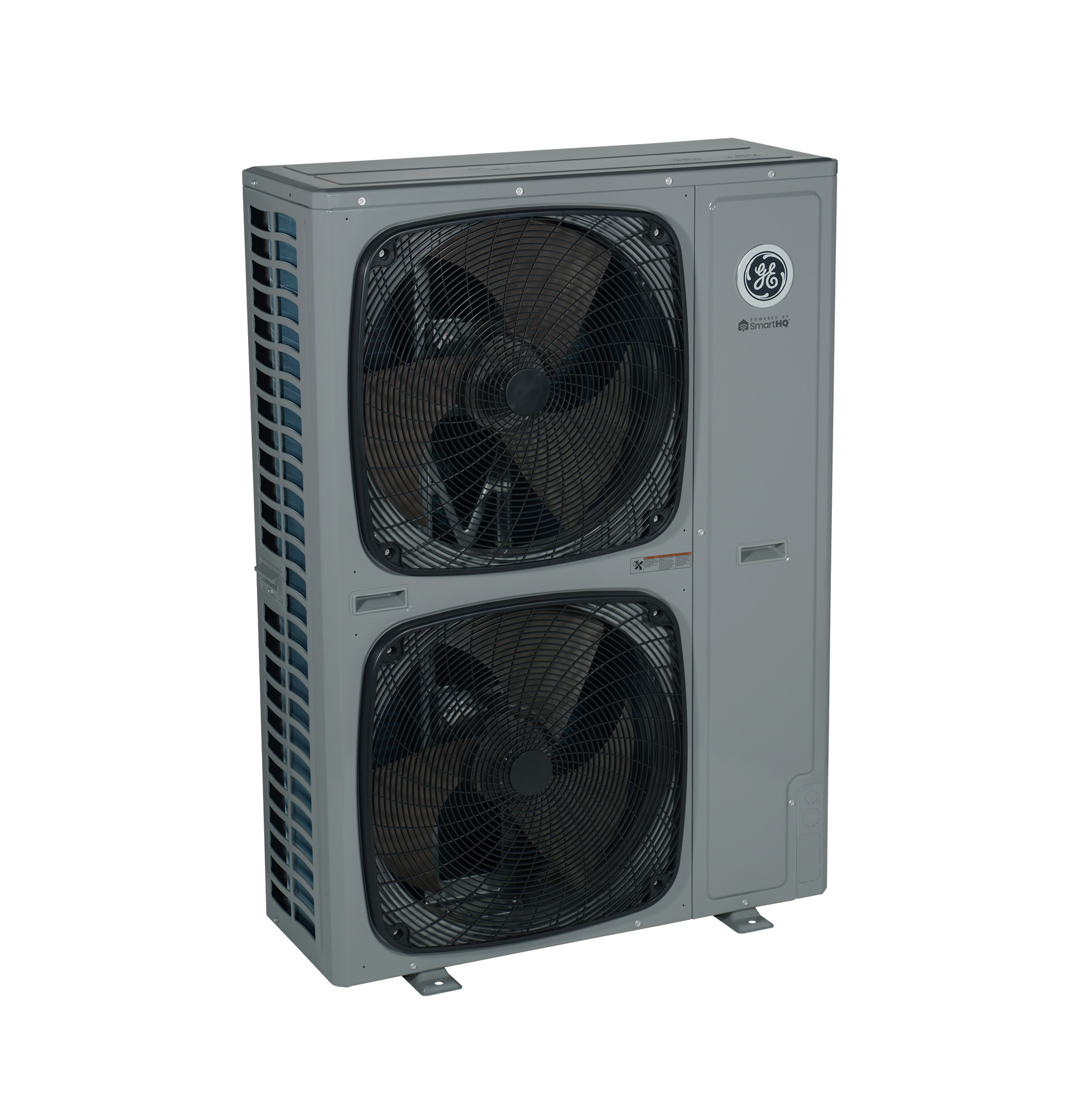

Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Model: ASH4248UCDDA

Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDAEndure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDAEndure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDA
Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDA
Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDA
Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDA

Color : Gray

Endure Series 208-230V 42,000/48,000 BTU Ductless Mini-Split Outdoor Heat Pump System ASH4248UCDDA
Gray

Key Features

  • High Efficiency Ductless Heat Pump

  • A-PAM DC Inverter

  • Blue Fin

  • Low Ambient Heating down to -31F

  • Base Pan Heater

  • Quiet Operation

  • Long Distance Refrigerant Piping

  • Wind Baffle and Snow Hood Compatibility

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

High Efficiency Ductless Heat Pump

SEER2 up to 15.2 and HSPF2 up to 8.7 when paired with ducted model USYM42UCDDA; SEER2 up to 15.2 and HSPF2 up to 8.8 when paired with ducted model USYM48UCDDA. SEER2 and HSPF2 vary when paired with other indoor units. See specification document for full details.

A-PAM DC Inverter

Inverter compressor technology designed for high performance and maximum comfort.

Blue Fin

A hydrophilic aluminum fin ensures condensing water flows smoothly.

Low Ambient Heating down to -31F

Exceptional year-round comfort with 100% rated heating capacity at 5 degrees F and comfortably warm air down to -31 degrees F.

Base Pan Heater

Prevents condensed water from freezing and blocking the base pan drain openings.

Quiet Operation

Ductless heat pumps operate quietly for maximum homeowner comfort.

Long Distance Refrigerant Piping

Allows greater distance between outdoor and indoor units for installation flexibility.

Wind Baffle and Snow Hood Compatibility

Compatible with QAWB38A Wind Baffle and UAWB86A Snow Hood (requires 2 wind baffles).

10-Year Limited Warranty with Registration

10-Year Limited Parts and Compressor Warranty with registration; see warranty documentation for complete information.

See specification guide for full heating, cooling, and system details.

Specifications

FEATURES

Base Pan HeaterStandard
Compatible Indoor ModelsSelect Indoor Units
ConnectionsFlare
Factory Charge (ounces)141
Maximum Fuse Size A40
Maximum Height (Ft/m)100/30
Maximum Line Length (Ft/M)230/70
Outdoor Noise Level60 dBA
Product TypeSingle Zone
Rotary CompressorDC Inverter Driven Rotary
SeriesEndure
StyleOutdoor
System42/48K Endure
Temperature Range - Cooling Mode-4-115 F (-20-46 C) (With Wind Baffle)
Temperature Range - Heating Mode-15-75 F (-26-24 C)
Unit TypeOutdoor

APPEARANCE

Color AppearanceGray

WEIGHTS & DIMENSIONS

Approximate Shipping Weight260.1 lb
Liquid O.D. Refrigerant Line3/8"
Net Weight231.5 lb
Overall Depth14.625 in
Overall Height53.125 in
Overall Width37.5 in
Suction O.D. Refrigerant Line3/4"

POWER / RATINGS

Cooling Rated Capacity BTU/Hr42,000/48,000
Minimum Circuit Amp35
Voltage/Hertz/Phase208-230/60/1

Warranty

Parts5 Year
