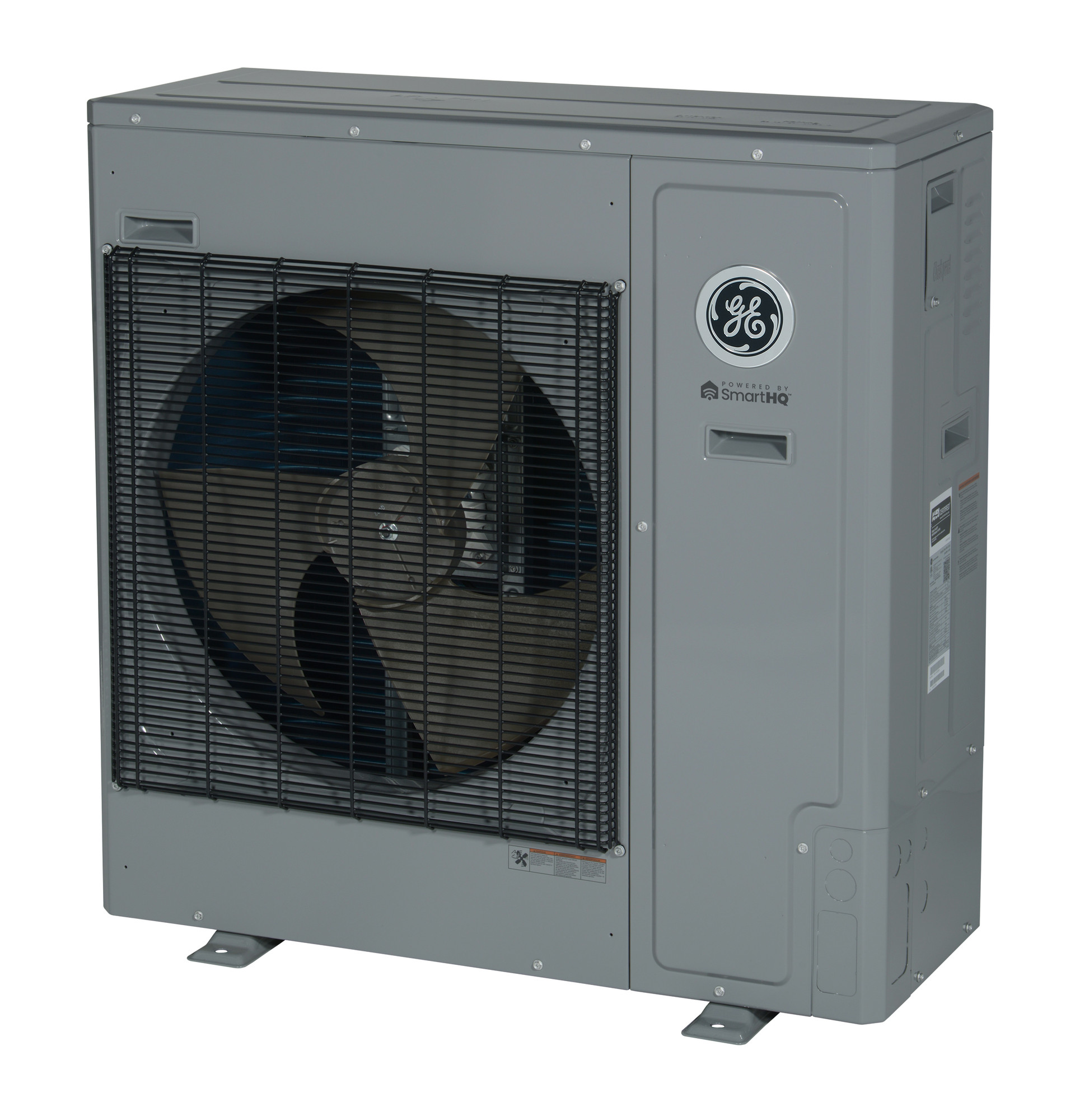

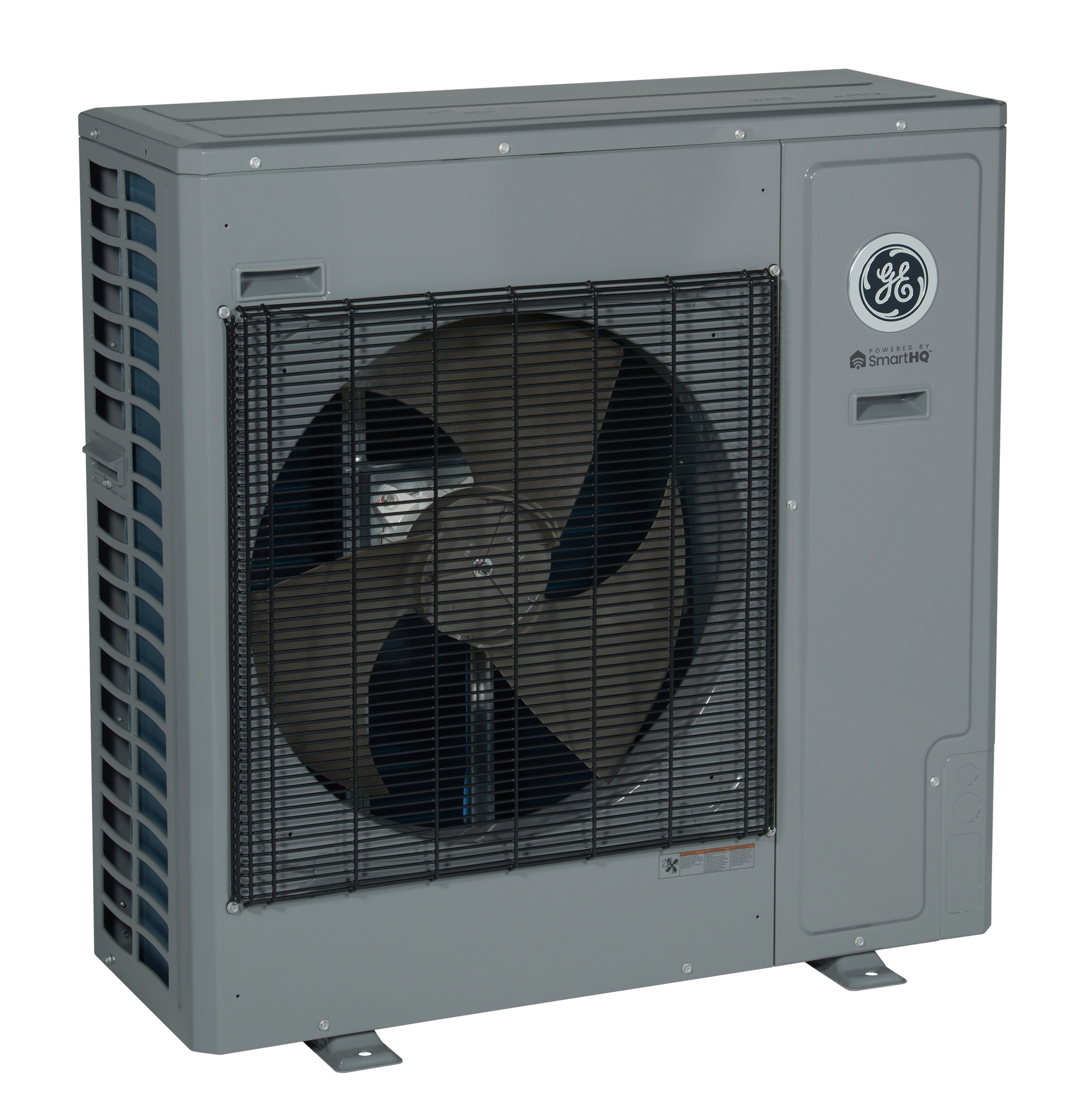

Endure Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System - ASH124UCDDA
Endure Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH124UCDDA
Endure Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH124UCDDA
Color : Gray
Key Features
High Efficiency Ductless Heat Pump
A-PAM DC Inverter
Blue Fin
Low Ambient Heating down to -31F
Base Pan Heater
Quiet Operation
Long Distance Refrigerant Piping
Wind Baffle and Snow Hood Compatibility
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
High Efficiency Ductless Heat Pump
SEER2 up to 21 and HSPF2 up to 10 when paired with highwall model ASYW24TRDFA. SEER2 and HSPF2 vary when paired with other indoor units. See specification document for full details.
A-PAM DC Inverter
Inverter compressor technology designed for high performance and maximum comfort.
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly.
Low Ambient Heating down to -31F
Exceptional year-round comfort with 100% rated heating capacity at 5 degrees F and comfortably warm air down to -31 degrees F.
Base Pan Heater
Prevents condensed water from freezing and blocking the base pan drain openings.
Quiet Operation
Ductless heat pumps operate quietly for maximum homeowner comfort.
Long Distance Refrigerant Piping
Allows greater distance between outdoor and indoor units for installation flexibility.
Wind Baffle and Snow Hood Compatibility
Compatible with QAWB38A Wind Baffle and UAWB85A Snow Hood.
10-Year Limited Warranty with Registration
10-Year Limited Parts and Compressor Warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Specifications
FEATURES
| Base Pan Heater | Standard |
| Compatible Indoor Models | Select Indoor Units |
| Connections | Flare |
| Factory Charge (ounces) | 85 |
| Maximum Fuse Size A | 25 |
| Maximum Height (Ft/m) | 100/30 |
| Maximum Line Length (Ft/M) | 165/50 |
| Outdoor Noise Level | 60 dBA |
| Product Type | Single Zone |
| Rotary Compressor | DC Inverter Driven Rotary |
| Series | Endure |
| Style | Outdoor |
| System | 24K Endure |
| Temperature Range - Cooling Mode | -4-115 F (-20-46 C) (With Wind Baffle) |
| Temperature Range - Heating Mode | -15-75 F (-26-24 C) |
| Unit Type | Outdoor |
APPEARANCE
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 202.8 lb |
| Liquid O.D. Refrigerant Line | 3/8" |
| Net Weight | 176.4 lb |
| Overall Depth | 14.625 in |
| Overall Height | 37.875 in |
| Overall Width | 37.5 in |
| Suction O.D. Refrigerant Line | 5/8" (Standard lineset size is 3/4", a 3/4" to 5/8" adapter will be shipped with outdoor unit for matching the indoor lineset size. Recommended to use adapter on the outdoor unit.) |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 24,000 |
| Minimum Circuit Amp | 21 |
| Voltage/Hertz/Phase | 208-230/60/1 |
Warranty
| Parts | 5 Year |
