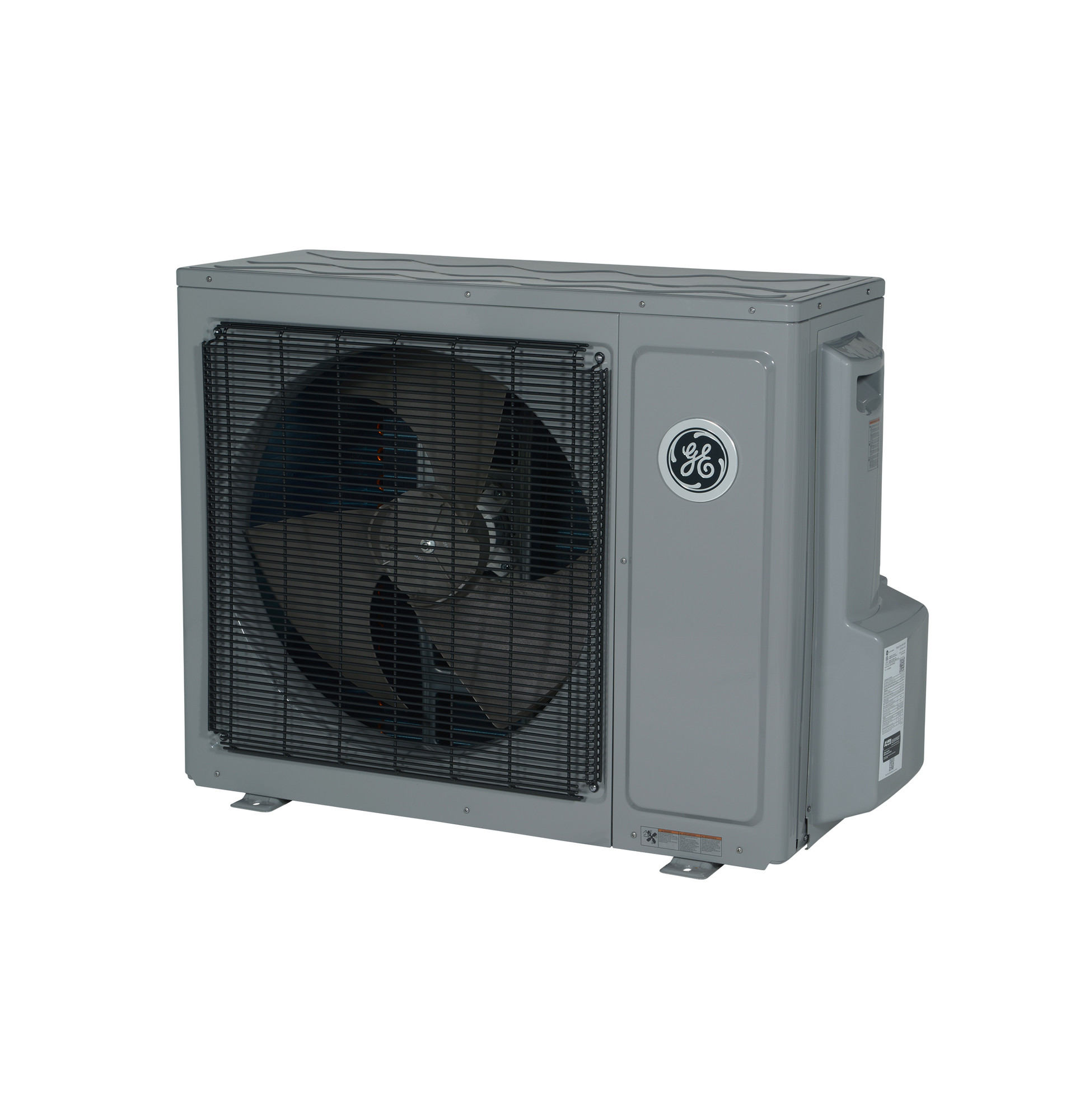

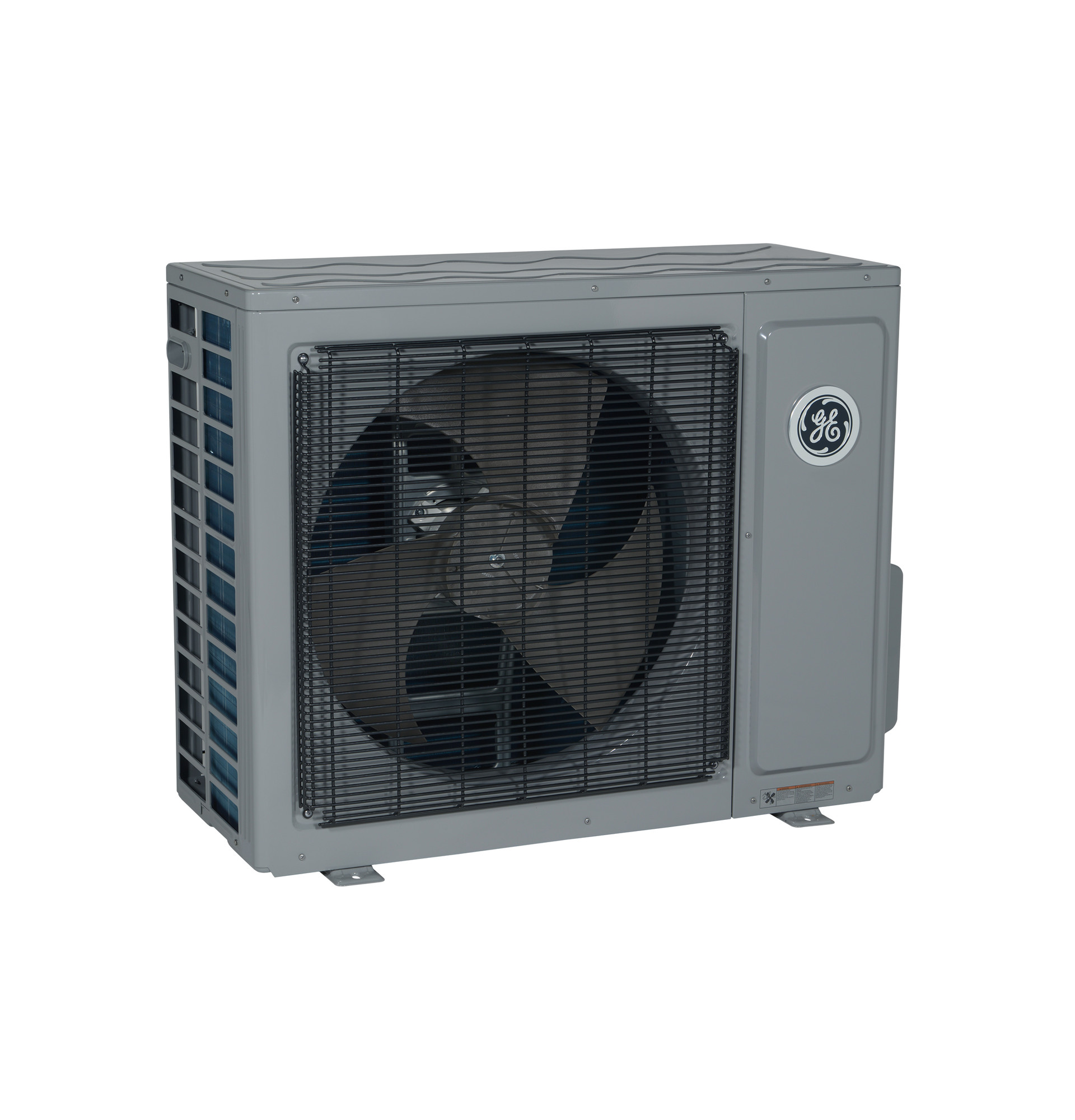

Altitude Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System - ASH124PRDBB
Altitude Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH124PRDBB
Altitude Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH124PRDBB
Color : Gray
Key Features
High Efficiency Ductless Heat Pump
A-PAM DC Inverter
Blue Fin
Quiet Operation
Wind Baffle Compatibility for Better Performance
See specification book for full heating, cooling, and system details
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
High Efficiency Ductless Heat Pump
20 SEER2 and 9.6 HSPF2 when paired with ASYW24PRDBB
A-PAM DC Inverter
Inverter compressor technology designed for high performance and maximum comfort
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly
Quiet Operation
Ductless heat pumps operate quietly for maximum homeowner comfort
Wind Baffle Compatibility for Better Performance
Compatible with QAWB45A Wind Baffle and UAWB82A Snow Hood
See specification book for full heating, cooling, and system details
Specifications
FEATURES
| Base Pan Heater | Standard |
| Compatible Indoor Models | ASYW24PRDBB |
| Connections | Flare |
| Factory Charge (ounces) | 74.1 |
| Maximum Fuse Size A | 30 |
| Maximum Height (Ft/m) | 50/15 |
| Maximum Line Length (Ft/M) | 83/25 |
| Outdoor Noise Level | 57 dBA |
| Product Type | Single Zone |
| Rotary Compressor | DC Inverter Driven Rotary |
| Series | Altitude |
| Style | Outdoor |
| System | 24K Altitude |
| Temperature Range - Cooling Mode | 14-115 F (-10-46 C) |
| Temperature Range - Heating Mode | -15-75 F (-26-24 C) |
| Unit Type | Outdoor |
APPEARANCE
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 149.5 lb |
| Liquid O.D. Refrigerant Line | 1/4" |
| Net Weight | 126.9 lb |
| Overall Depth | 15.125 in |
| Overall Height | 30 in |
| Overall Width | 36.1875 in |
| Suction O.D. Refrigerant Line | 1/2" |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 22,000 |
| Minimum Circuit Amp | 20 |
| Voltage/Hertz/Phase | 208-230/60/1 |
Warranty
| Parts | 5 Year |
