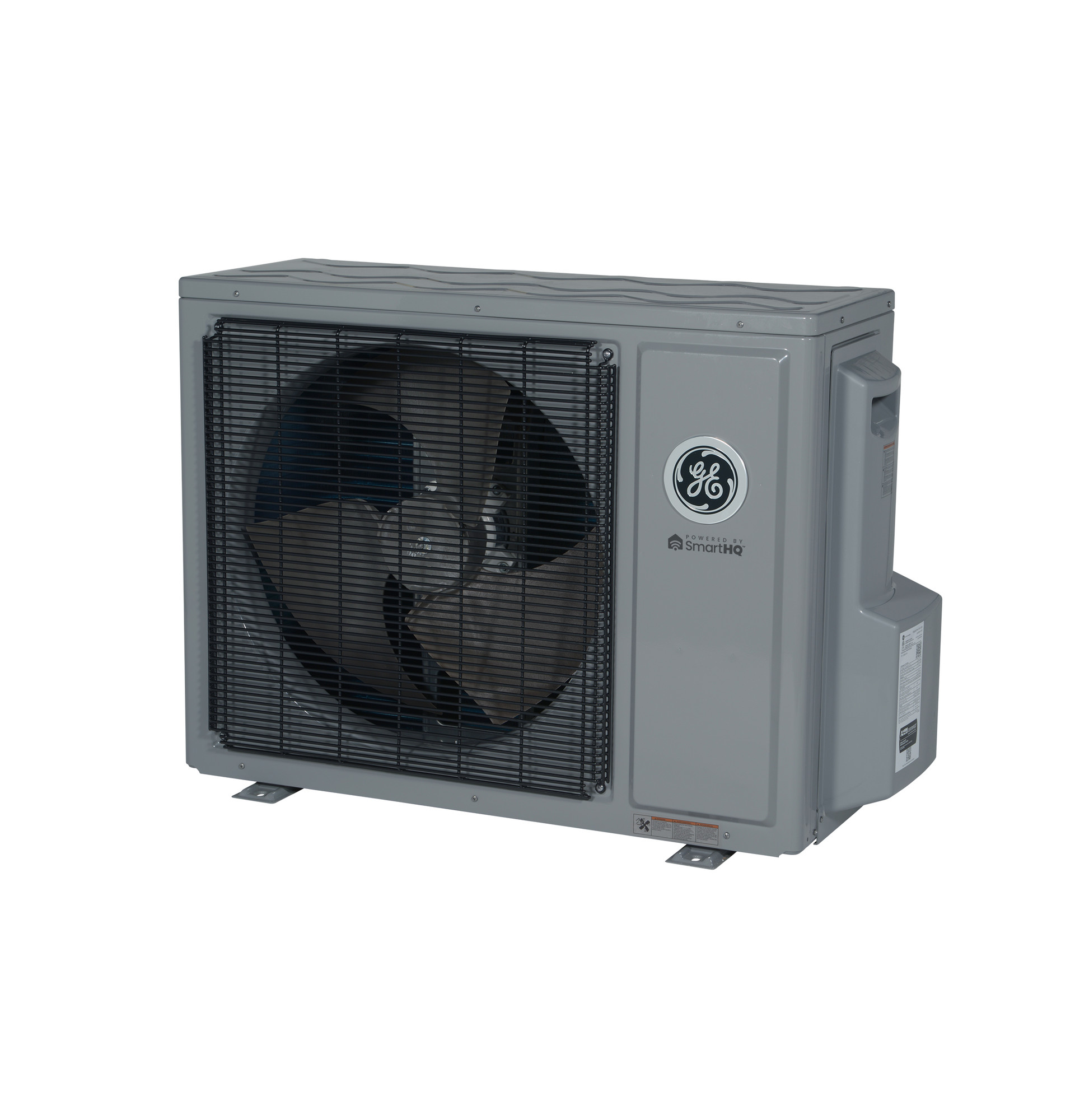

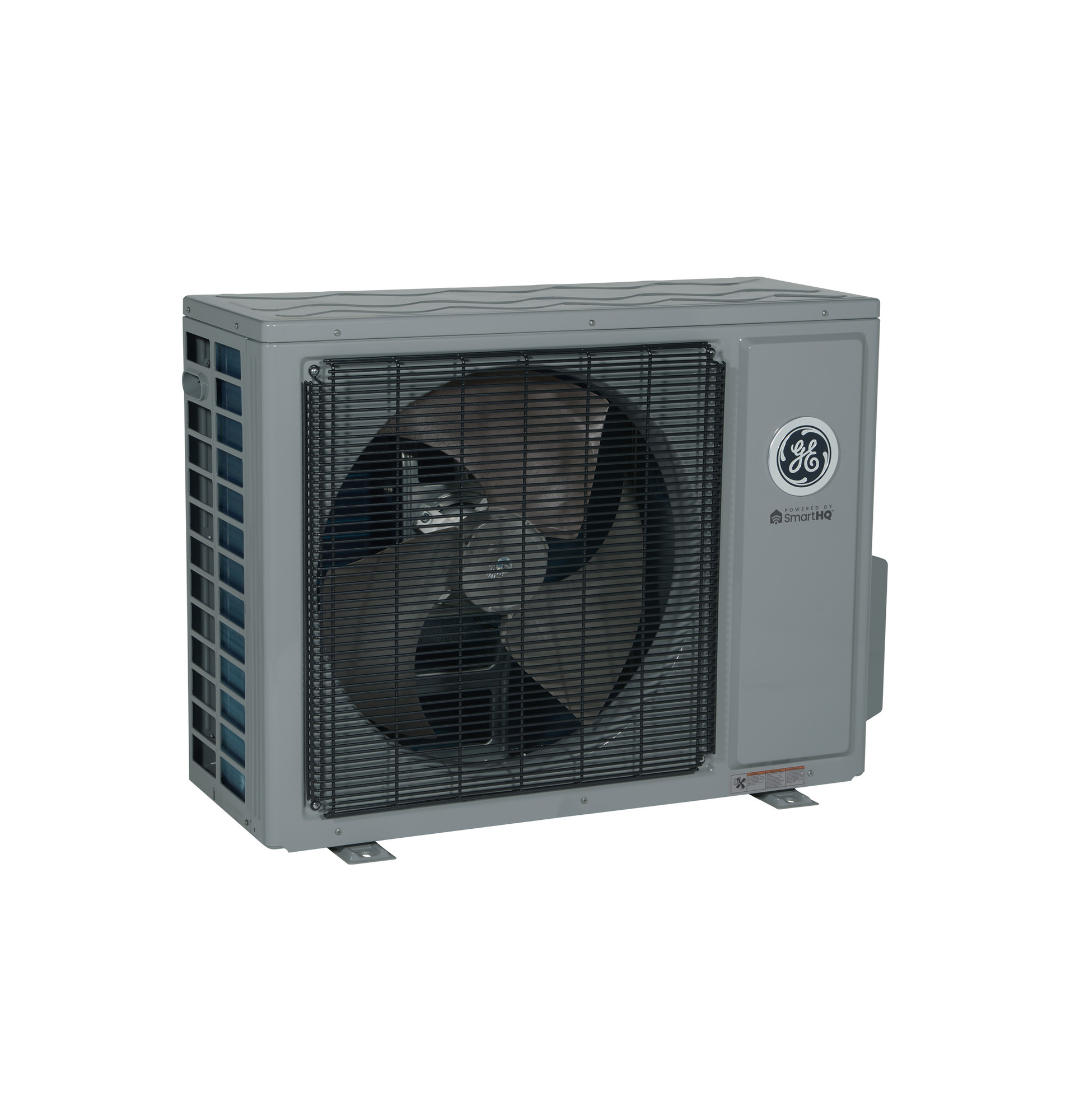

Endure Series 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System - ASH112URDEB
Endure Series 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH112URDEB
Endure Series 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH112URDEB
Color : Gray
Key Features
High Efficiency Ductless Heat Pump
A-PAM DC Inverter
Low Ambient Heating down to -31F
Base Pan Heater
Wind Baffle Compatibility for Better Performance
Quiet Operation
Blue Fin
See specification book for full heating, cooling, and system details
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
High Efficiency Ductless Heat Pump
SEER2 up to 27 and HSPF2 up to 13 when paired with highwall model ASYW12URDEB. SEER2 and HSPF2 vary when paired with other indoor units. See specification document for full details
A-PAM DC Inverter
Inverter compressor technology designed for high performance and maximum comfort
Low Ambient Heating down to -31F
Exceptional year-round comfort with 100% rated heating capacity at 5 degrees F and comfortably warm air down to -31 degrees F
Base Pan Heater
Prevents condensed water from freezing and blocking the base pan drain openings
Wind Baffle Compatibility for Better Performance
Compatible with QAWB37A Wind Baffle and UAWB81A Snow Hood
Quiet Operation
Ductless heat pumps operate quietly for maximum homeowner comfort
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly
See specification book for full heating, cooling, and system details
Specifications
FEATURES
| Base Pan Heater | Standard |
| Compatible Indoor Models | ASYW12URDEB |
| Connections | Flare |
| Factory Charge (ounces) | 62.1 |
| Maximum Fuse Size A | 20 |
| Maximum Height (Ft/m) | 33/10 |
| Maximum Line Length (Ft/M) | 50/15 |
| Outdoor Noise Level | 56 dBA |
| Product Type | Single Zone |
| Rotary Compressor | DC Inverter Driven Rotary |
| Series | Endure |
| Style | Outdoor |
| System | 12K Endure |
| Temperature Range - Cooling Mode | 14-115 F (-10-46 C) |
| Temperature Range - Heating Mode | -31-75 F (-35-24 C) |
| Unit Type | Outdoor |
APPEARANCE
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 116.9 lb |
| Net Weight | 84.9 lb |
| Overall Depth | 13.875 in |
| Overall Height | 27.5 in |
| Overall Width | 35 in |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 12,000 |
| Minimum Circuit Amp | 14 |
| Voltage/Hertz/Phase | 208-230/60/1 |
Warranty
| Parts | 5 Year |
