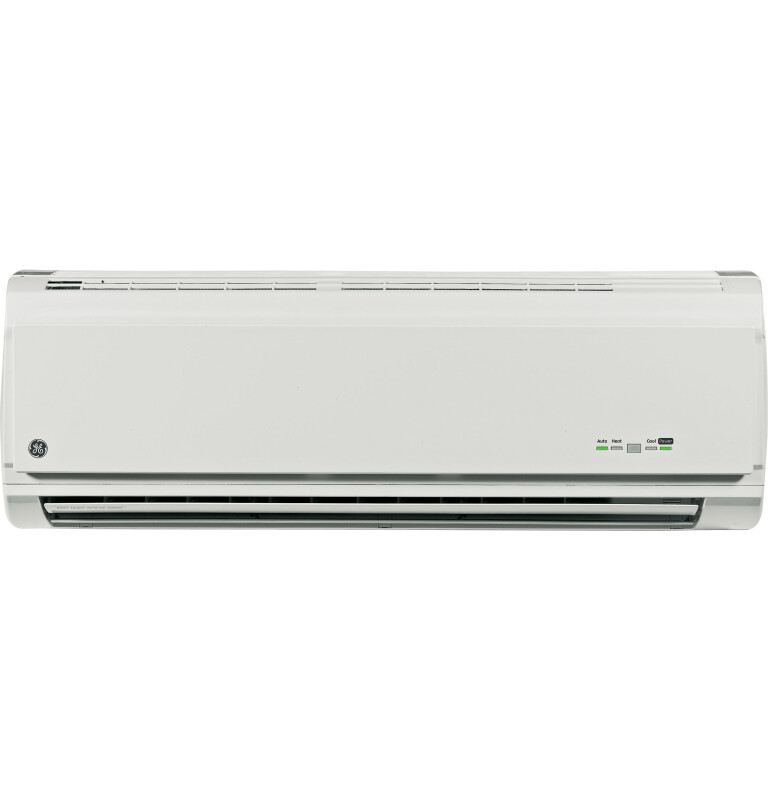

Split System Heat Pump - Indoor unit - AE1RD10AM
Split System Heat Pump - Indoor unit
Model: AE1RD10AM
Split System Heat Pump - Indoor unit
Model: AE1RD10AM
Color : Gray
Key Features
Requires licensed HVAC installer
Complete system requires the purchase of the model shown in the Related Products section
R-410A refrigerant
Inverter Compressor Technology
Auto / Cool / Fan / Dehumidify / Sleep / Timer / Circulaire™ modes
Full-function wireless remote
Uses 16' or 32' field supplied tubing kit
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Requires licensed HVAC installer
Complete system requires the purchase of the model shown in the Related Products section
R-410A refrigerant
Inverter Compressor Technology
Auto / Cool / Fan / Dehumidify / Sleep / Timer / Circulaire™ modes
Full-function wireless remote
Uses 16' or 32' field supplied tubing kit
Certifications
California Prop 65
Specifications
Dimensions & Weight
| Width | 30.31 in. |
| Height | 9.69 in. |
| Length | 7.5 in. |
| Weight | 20 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.31 in. |
| Shipping Height | 14.69 in. |
| Shipping Length | 12.5 in. |
| Shipping Weight | 60 lbs. |
| Total of Shipping Weight | 60 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.27 ft³ |
| Dimensional Weight | 15.84 lbs. |
| Total of Cubes | 1.27 ft³ |
| Total of Dimensional Weight | 15.84 lbs. |
FEATURES
| Control Type | Wireless Handheld Remote |
| HSPF Rating | 8.3 |
| Split System Configuration - Outdoor Component | AE0RD10AM |
| Indoor Product Features | Washable Air Filter |
| Refrigerant Type | R410A |
| Air Discharge | Manual Left/Right |
| Filter Type | Slide-Out |
| Temperature Range - Cooling Mode | 61-102 F - Indoor |
| Split System Configuration - Indoor Component | AE1RD10AM |
| Drain Valve | Evaporator Drain Tube |
| Temperature Range - Heating Mode | 32 - 86 F - Indoor |
| Thermostat Type | Electronic |
| Temperature Range | 61 - 86 F (Set Point) |
| Heating - Reverse Cycle - Rated Heating Amps - AHAM | 18.0 |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 2.4 |
| Unit Type | Heat / Cool Unit |
| Fan Speed Selections | 3 Fan Only |
| Split-System Settings | Automatic Mode |
| Airflow (cfm) Roomside | 550 |
| Fan Speed Selections | 3 Indoor Unit |
| Split-System Settings | Timer Mode |
| Air Discharge | Automatic Up/Down |
| Fan Speed Selections | 3 Cooling |
| Fan Speed Selections | 3 Heating |
| Indoor Product Features | 1 Temperature Increments (°F) |
| Split-System Settings | Quick Cooling Mode |
| Split-System Settings | Cool Mode |
| Split-System Settings | Fan Only Mode |
| Split-System Settings | Dehumidifier Mode |
| Split-System Settings | Sleep Mode |
| Split-System Settings | Emergency Mode (Without Remote) |
| Split-System Settings | Heat Mode |
| Split-System Settings | 24 Hr. Timer (Delay Start/Pre-Set Stop) |

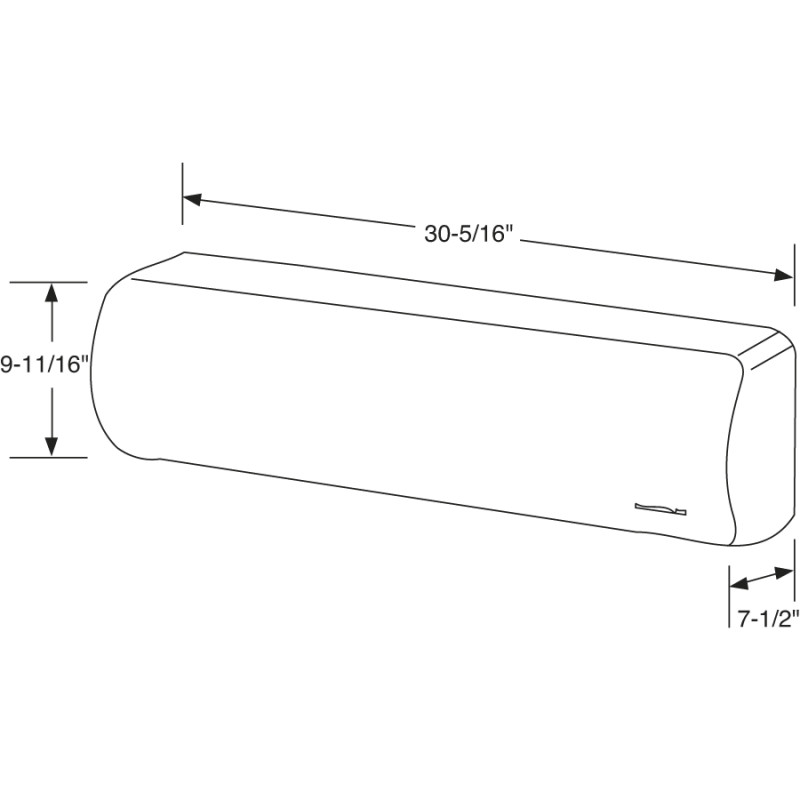

WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 29 lb |
| Net Weight | 20 lb |
| Overall Depth | 7 1/2 in |
| Overall Height | 9 11/16 in |
| Overall Width | 30 5/16 in |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 16.0 |
| Power Connection | Direct Wire |
| Heating - Reverse Cycle - Watts | 1550 |
| Sound Level (Max) | 40 dBA |
| Cooling - Watts | 1280 |
| Voltage/Hertz/Phase | 115/60/1 |
WARRANTY
| Parts Warranty | Limited 5-Year Sealed System |
| Parts Warranty | Limited 1-year entire appliance |
CAPACITY
| Cooling EER (BTUH / Watt) | 8.1 |
| Heating - Reverse Cycle - BTUH | 11500 |
| Dehumidification (pts./hr.) | 8.3 |
| Heating - Reverse Cycle - BTUH - AHAM - H.P. | 9200 |
| Cooling BTUH (MAX) | 10,000 Btu |
APPEARANCE
| Color Appearance | Light Cool Gray |
ECONOMICAL / QUIET
| Sound Level (dBA) | 40 dBA (Max) |
