Split System Air Conditioner - Outdoor unit - AE0CD14DM
Split System Air Conditioner - Outdoor unit
Model: AE0CD14DM
Split System Air Conditioner - Outdoor unit
Model: AE0CD14DM
Color : Gray
Key Features
Requires licensed HVAC installer
Complete system requires the purchase of the model shown in the Related Products section
R-410A refrigerant
Inverter Compressor Technology
Auto / Cool / Fan / Dehumidify / Sleep / Timer / Circulaire™ modes
Full-function wireless remote
Uses 16' or 32' field supplied tubing kit
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Requires licensed HVAC installer
Complete system requires the purchase of the model shown in the Related Products section
R-410A refrigerant
Inverter Compressor Technology
Auto / Cool / Fan / Dehumidify / Sleep / Timer / Circulaire™ modes
Full-function wireless remote
Uses 16' or 32' field supplied tubing kit
Certifications
California Prop 65
Specifications

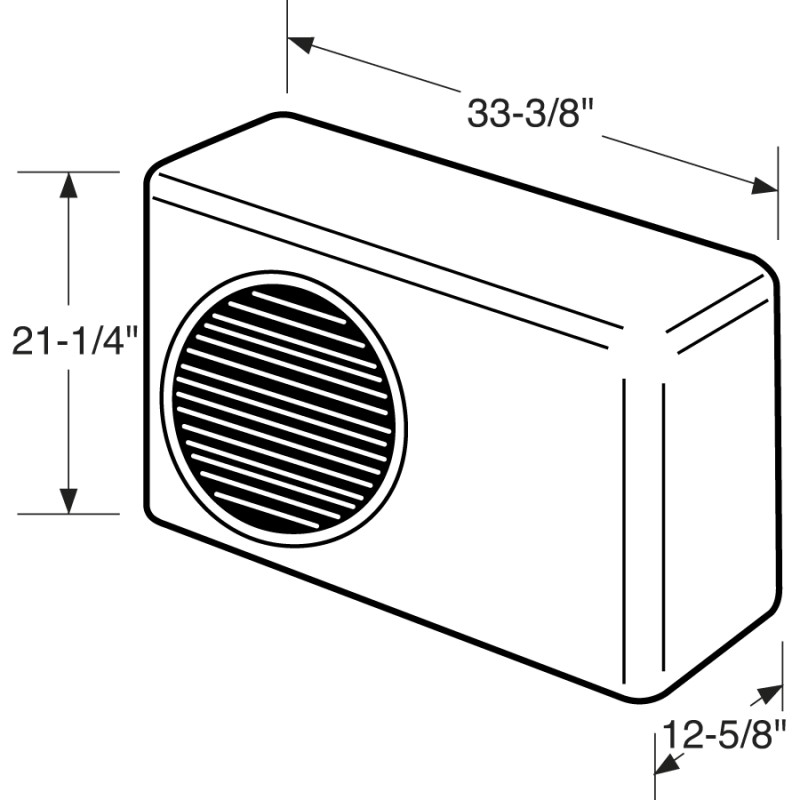

Dimensions & Weight
| Width | 33.38 in. |
| Height | 21.25 in. |
| Length | 12.63 in. |
| Weight | 82 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 38.38 in. |
| Shipping Height | 26.25 in. |
| Shipping Length | 17.63 in. |
| Shipping Weight | 122 lbs. |
| Total of Shipping Weight | 122 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.18 ft³ |
| Dimensional Weight | 64.42 lbs. |
| Total of Cubes | 5.18 ft³ |
| Total of Dimensional Weight | 64.42 lbs. |
FEATURES
| Control Type | Wireless Handheld Remote |
| Fan Speed Selections | 3 Fan Only |
| Split System Configuration - Outdoor Component | AE0CD14DM |
| Refrigerant Type | R410A |
| Temperature Range - Cooling Mode | 50-120 F |
| Split System Configuration - Indoor Component | AE1CD14DM |
| Thermostat Type | Electronic |
| Temperature Range | 61 - 86 F (Set Point) |
| Outdoor Product Features (Split-Systems) | Corrosion Protection |
| Rotary Compressor | Yes |
| Unit Type | Cool Only |
| Split-System Settings | Automatic Mode |
| Split-System Settings | Timer Mode |
| Fan Speed Selections | 3 Cooling |
| Split-System Settings | Quick Cooling Mode |
| Split-System Settings | Cool Mode |
| Split-System Settings | Fan Only Mode |
| Split-System Settings | Dehumidifier Mode |
| Split-System Settings | Sleep Mode |
| Split-System Settings | Emergency Mode (Without Remote) |
| Split-System Settings | 24 Hr. Timer (Delay Start/Pre-Set Stop) |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 95 lb |
| Net Weight | 82 lb |
| Overall Depth | 12 5/8 in |
| Overall Height | 21 1/4 in |
| Overall Width | 33 3/8 in |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 5.5/5.0 |
| Power Connection | Direct Wire |
| Sound Level (Max) | 54 dBA |
| Cooling - Watts | 1485 |
| Voltage/Hertz/Phase | 230-208/60/1 |
WARRANTY
| Parts Warranty | Limited 5-Year Sealed System |
| Parts Warranty | Limited 1-year entire appliance |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.8 |
| Cooling BTUH (MAX) | 14,000 Btu |
APPEARANCE
| Case Color | Galvanized Steel |
| Color Appearance | Light Cool Gray |
ECONOMICAL / QUIET
| Sound Level (dBA) | 54 dBA (Max) |
