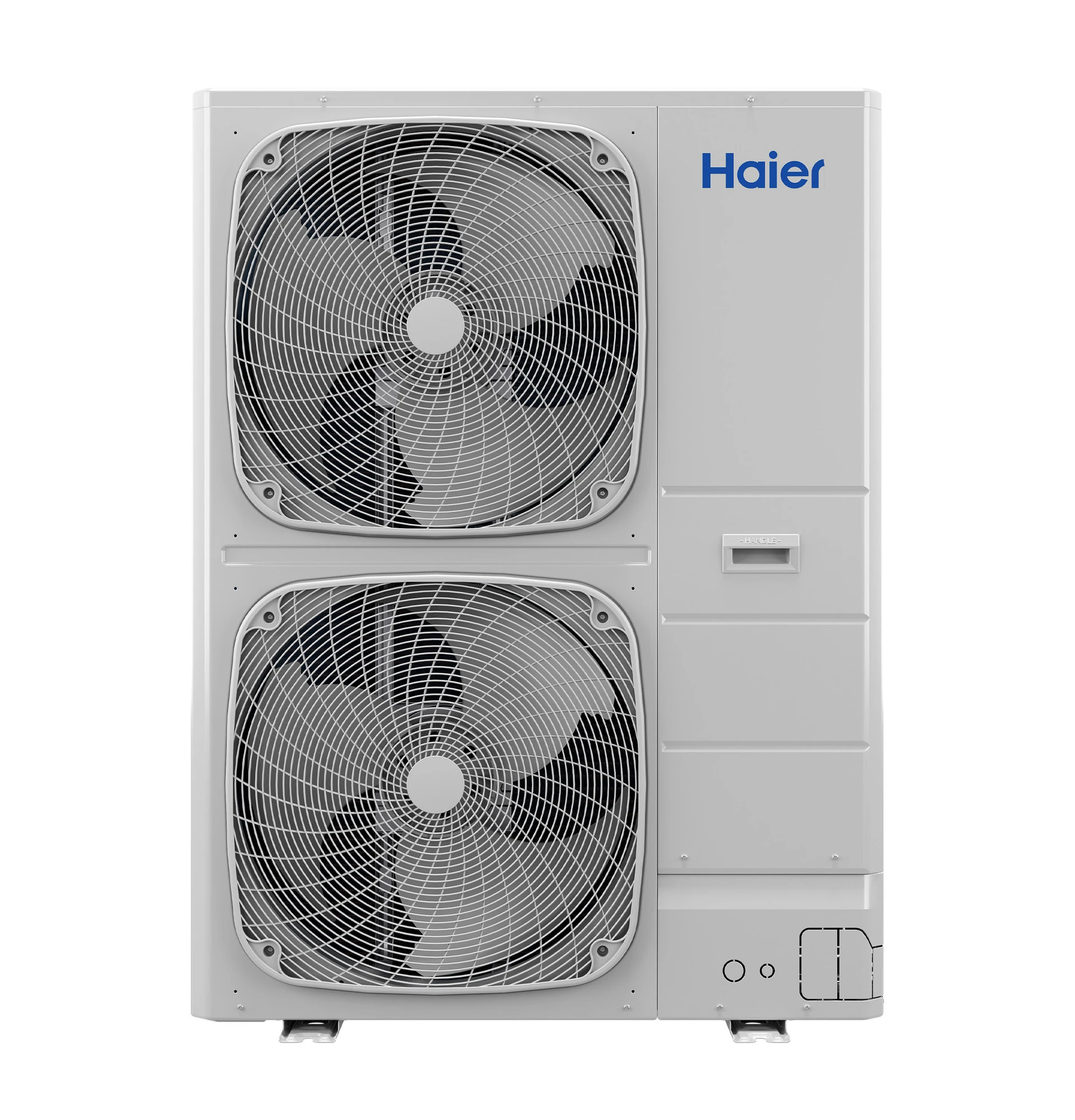

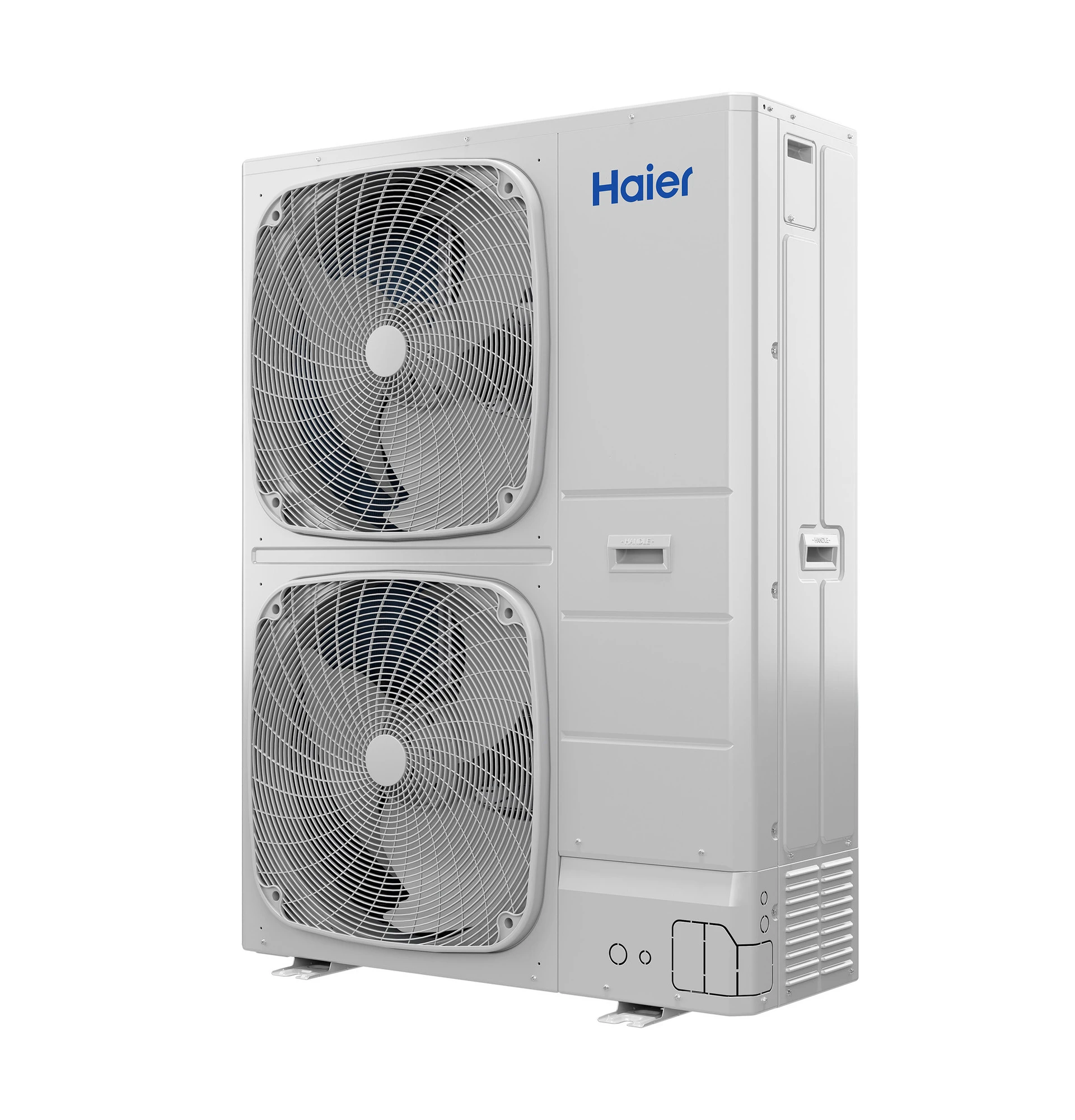

4/5-Ton SD Series Side-Discharge Inverter Heat Pump - 1U60T3PE1HE
4/5-Ton SD Series Side-Discharge Inverter Heat Pump
Model: 1U60T3PE1HE
4/5-Ton SD Series Side-Discharge Inverter Heat Pump
Model: 1U60T3PE1HE
Color : Other
Key Features
Compact Design
High-Performance Inverter Technology
Comfort in Cold Climates
Built for Quieter Living
Environmentally Friendly
24V Thermostat Compatibility
Worry-Free Ten-Year Limited Warranty
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Compact Design
Designed to fit tight spaces, the compact side-discharge unit needs minimal clearance (4” in the back/14” in the front) — making it easy to install in small yards or close to walls while still delivering full comfort.
High-Performance Inverter Technology
An energy-saving heat pump that keeps your home comfortable year-round while lowering utility costs.
Comfort in Cold Climates
Easy to own and built for extremes - keeps your home warm down to -22ºF.
Built for Quieter Living
Designed to minimize outdoor noise, so your comfort blends in without disruption. 1U24T3PS1HE capable of performing at 54 dB; see product specifications for other models.
Environmentally Friendly
Uses R454B - a smart, eco-friendly refrigerant with low environmental impact and high efficiency.
24V Thermostat Compatibility
Compatible with popular 24V thermostats; no extra adapters or special controls needed.
Worry-Free Ten-Year Limited Warranty
Register your unit and double your warranty from 5 to 10 years. Comfort made easy, with coverage that’s easy to own. See warranty documentation for complete details.
Specifications
FEATURES
| Base Pan Heater | Yes |
| Breaker Size A | 40/15 |
| Compressor Type | Inverter |
| Control Voltage | 24V |
| Cooling Capacity Range BTU/Hr | 19,200-55,000 |
| EER | 11.7 (4-Ton)/10 (5-Ton) |
| Electric Backup Heat Kit | 10/12.5/15/20 kW |
| HSPF2 Rating | 9.5 (4-Ton)/9.4 (5-Ton) |
| Heating Capacity Range BTU/Hr | 14,400-55,000 |
| Maximum Height (Ft/m) | 50/15 |
| Maximum Line Length (Ft/M) | 100/30 |
| Outdoor Noise Level | 62 dB |
| Product Type | Electric Heat Pump |
| Rated Capacity | 48,000 (4-Ton)/60,000 (5-Ton) |
| Refrigerant Type | R454B |
| SEER2 | 18 (4-Ton)/17 (5-Ton) |
| Series | SD Series |
| Style | Heat Pump |
| Temperature Range - Cooling Mode | 5-125°F (-15-52°C) |
| Temperature Range - Heating Mode | -22-75°F (-30-24°C) |
| Tonnage | 4 or 5 |
| Unit Type | Outdoor |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 306.4 lb |
| Liquid O.D. Refrigerant Line | 3/8 |
| Net Weight | 257.9 lb |
| Overall Depth | 19.88 |
| Overall Height | 56.31 in |
| Overall Width | 41.63 in |
| Suction O.D. Refrigerant Line | 7/8 |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 48,000/60,000 |
| Minimum Circuit Ampacity (MCA) | 37 |
| Voltage/Hertz/Phase | 208-230/60/1 |
WARRANTY
| Labor Warranty | No Warranty |
| Parts Warranty | Limited 5-year entire appliance |
| Parts Warranty | Limited 10-year entire appliance with registration |
| Warranty Notes | See written warranty for full details |
