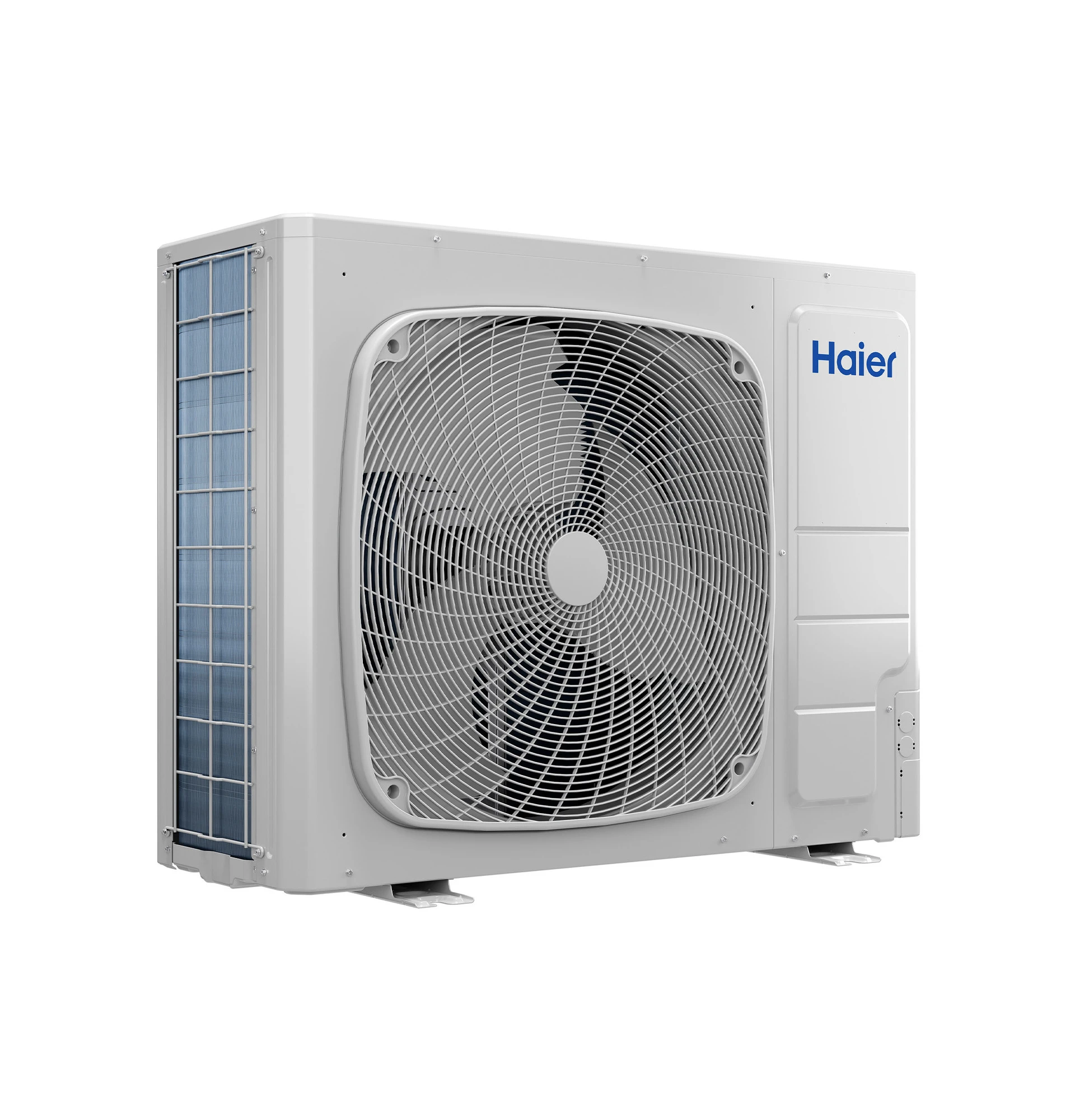

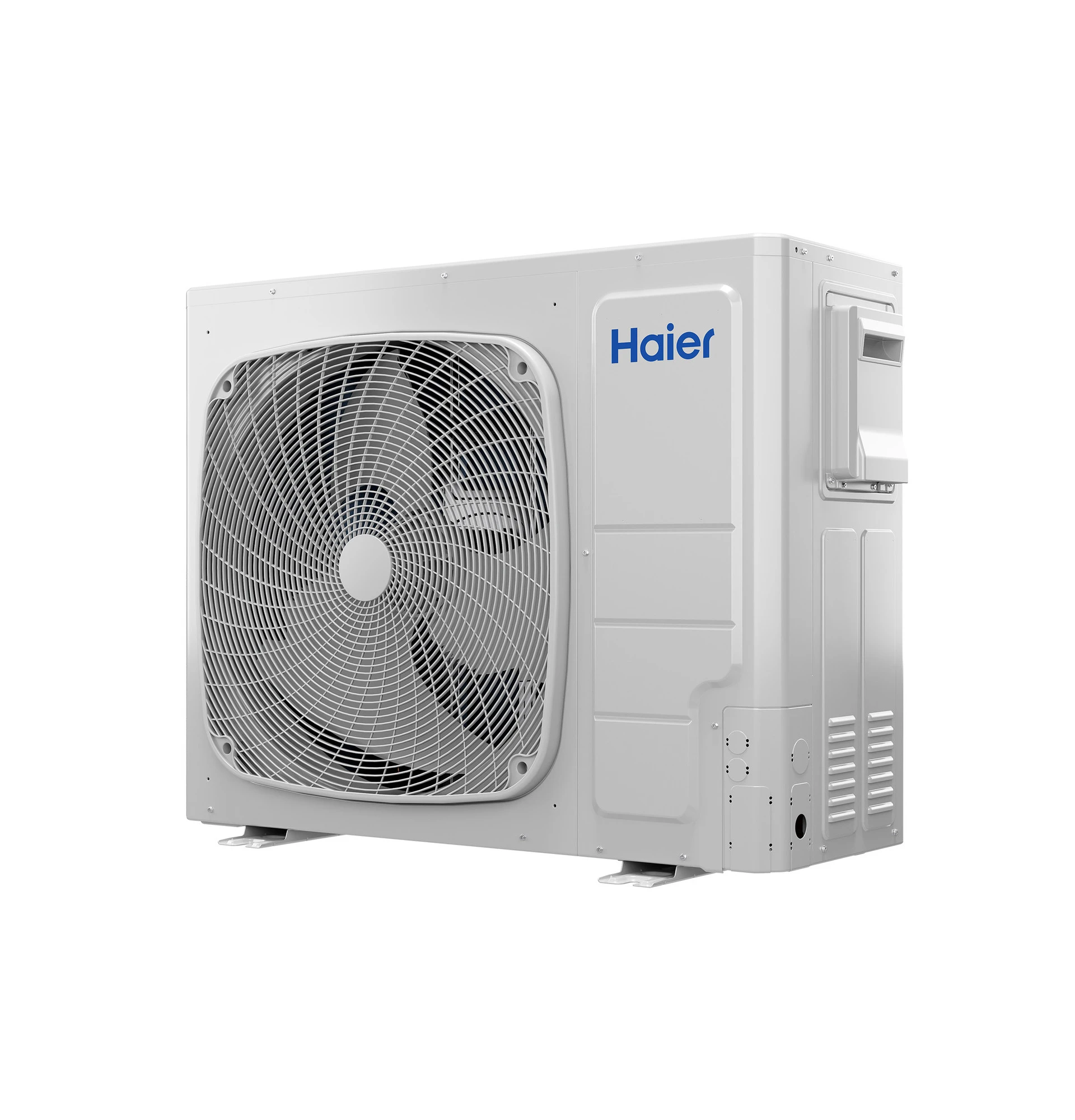

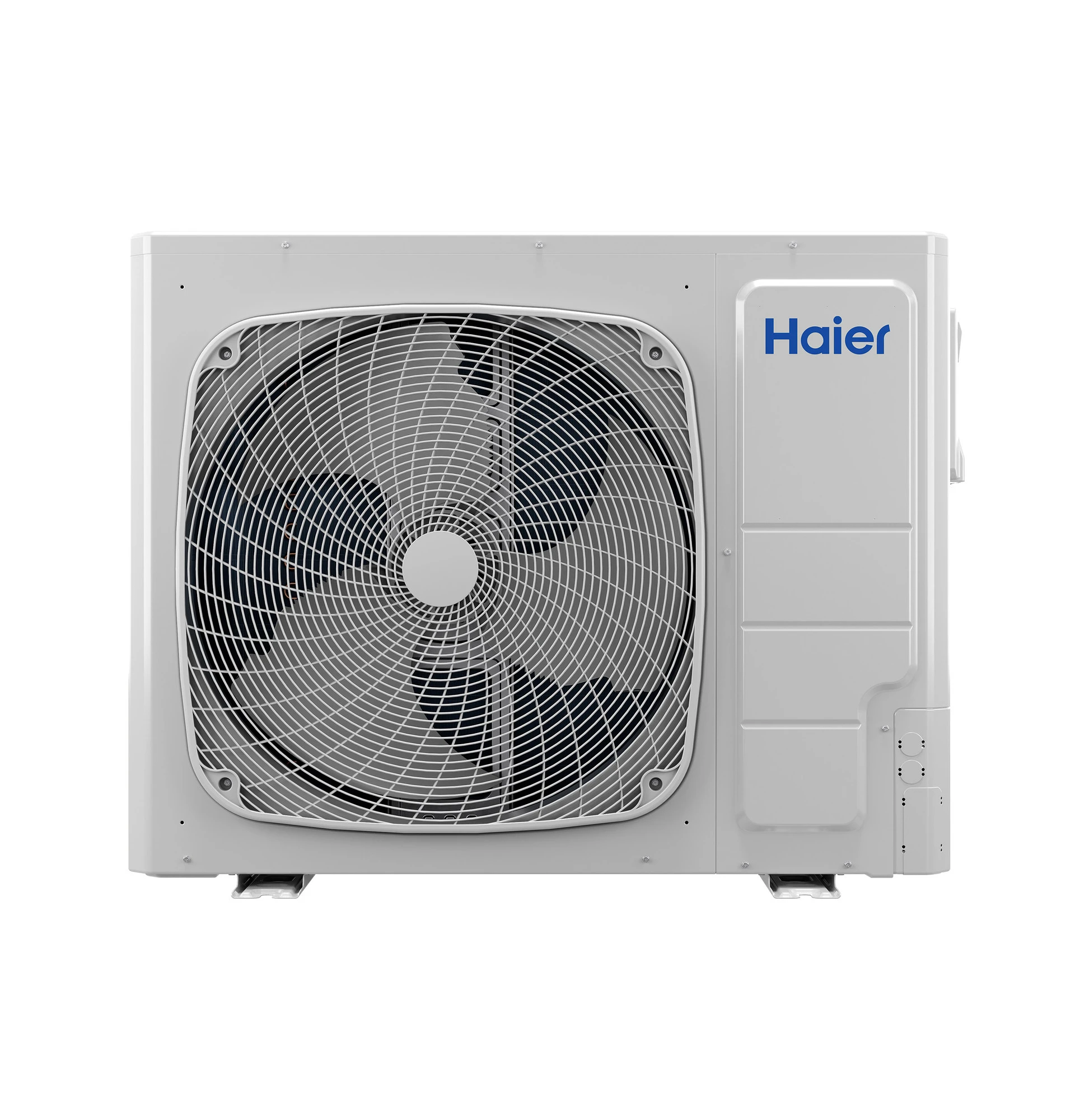

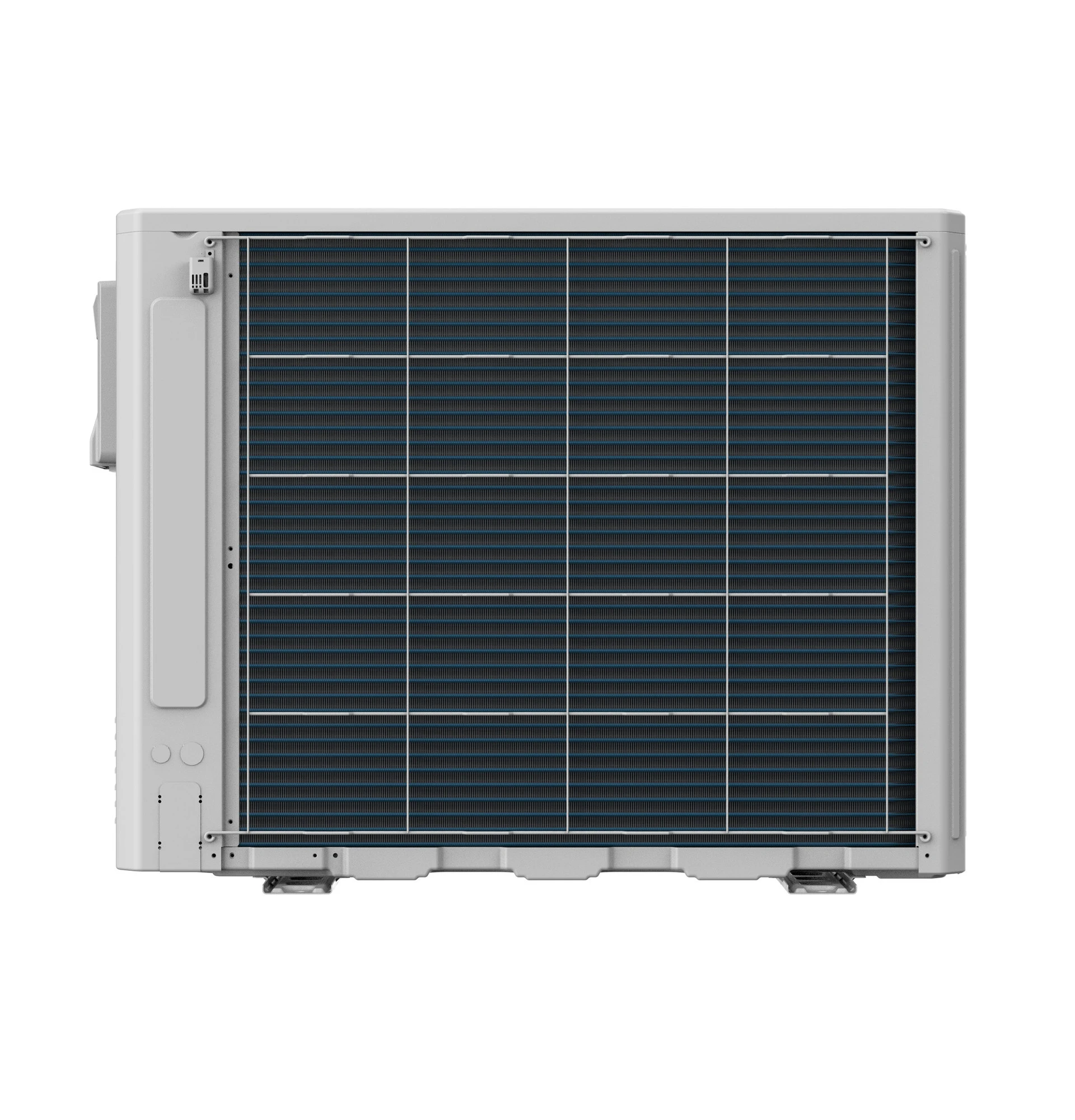

3-Ton SD Series Side-Discharge Inverter Heat Pump - 1U36T3PC1HE
3-Ton SD Series Side-Discharge Inverter Heat Pump
Model: 1U36T3PC1HE
3-Ton SD Series Side-Discharge Inverter Heat Pump
Model: 1U36T3PC1HE
Color : Other
Key Features
Compact Design
High-Performance Inverter Technology
Comfort in Cold Climates
Built for Quieter Living
Environmentally Friendly
24V Thermostat Compatibility
Worry-Free Ten-Year Limited Warranty
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Compact Design
Designed to fit tight spaces, the compact side-discharge unit needs minimal clearance (4” in the back/14” in the front) — making it easy to install in small yards or close to walls while still delivering full comfort.
High-Performance Inverter Technology
An energy-saving heat pump that keeps your home comfortable year-round while lowering utility costs.
Comfort in Cold Climates
Easy to own and built for extremes - keeps your home warm down to -22ºF.
Built for Quieter Living
Designed to minimize outdoor noise, so your comfort blends in without disruption. 1U24T3PS1HE capable of performing at 54 dB; see product specifications for other models.
Environmentally Friendly
Uses R454B - a smart, eco-friendly refrigerant with low environmental impact and high efficiency.
24V Thermostat Compatibility
Compatible with popular 24V thermostats; no extra adapters or special controls needed.
Worry-Free Ten-Year Limited Warranty
Register your unit and double your warranty from 5 to 10 years. Comfort made easy, with coverage that’s easy to own. See warranty documentation for complete details.
Specifications
FEATURES
| Base Pan Heater | Yes |
| Breaker Size A | 35/15 |
| Compressor Type | Inverter |
| Control Voltage | 24V |
| Cooling Capacity Range BTU/Hr | 14,400-36,000 |
| EER | 11.7 |
| Electric Backup Heat Kit | 5/7.5/10/12.5/15 kW |
| HSPF2 Rating | 9.5 |
| Heating Capacity Range BTU/Hr | 10,800-36,000 |
| Maximum Height (Ft/m) | 50/15 |
| Maximum Line Length (Ft/M) | 150/45 |
| Outdoor Noise Level | 57 dB |
| Product Type | Electric Heat Pump |
| Rated Capacity | 36000 |
| Refrigerant Type | R454B |
| SEER2 | 19 |
| Series | SD Series |
| Style | Heat Pump |
| Temperature Range - Cooling Mode | 5-125°F (-15-52°C) |
| Temperature Range - Heating Mode | -22-75°F (-30-24°C) |
| Tonnage | 3 |
| Unit Type | Outdoor |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 213.8 lb |
| Liquid O.D. Refrigerant Line | 3/8 |
| Net Weight | 167.5 lb |
| Overall Depth | 19.88 |
| Overall Height | 33.06 in |
| Overall Width | 43.13 in |
| Suction O.D. Refrigerant Line | 7/8 |
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 36,000 |
| Minimum Circuit Ampacity (MCA) | 24 |
| Voltage/Hertz/Phase | 208-230/60/1 |
WARRANTY
| Labor Warranty | No Warranty |
| Parts Warranty | Limited 5-year entire appliance |
| Parts Warranty | Limited 10-year entire appliance with registration |
| Warranty Notes | See written warranty for full details |
