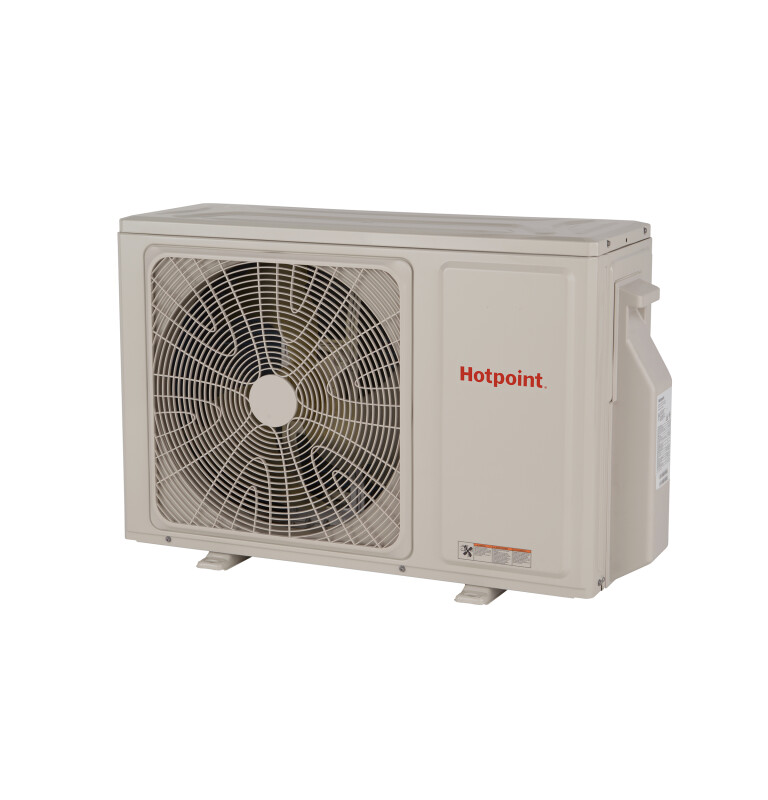

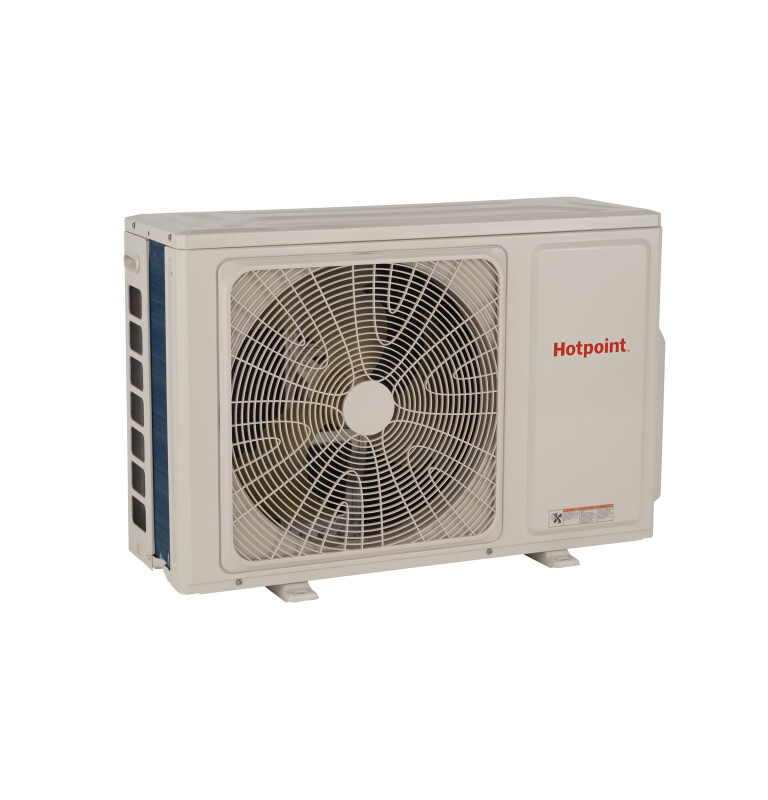

208-230v 12,000 Btu Ductless Mini-split Outdoor Heat Pump - 1H12HN2DAB
208-230v 12,000 Btu Ductless Mini-split Outdoor Heat Pump
Model: 1H12HN2DAB






208-230v 12,000 Btu Ductless Mini-split Outdoor Heat Pump
Model: 1H12HN2DAB
Key Features
High Efficiency Ductless Heat Pump
High-Performance Inverter Technology
All-Season Comfort
Built to Last
Protective Basepan Heater
Environmentally Compliant
Federal & State Incentives
Worry-Free Warranty
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
High Efficiency Ductless Heat Pump
18 SEER2 and 9.5 HSPF2 when paired with HW12HN2DAB.
High-Performance Inverter Technology
A DC inverter compressor keeps indoor temperatures consistent in almost any climate and helps homeowners save money on energy.
All-Season Comfort
With heating down to -15°F and cooling up to 115°F, homeowners know they’re coming home to comfort — no matter the weather outside.
Built to Last
A hydrophilic aluminum fin helps prevent condensation buildup and ensures water flows through the unit smoothly.
Protective Basepan Heater
A built-in basepan heater on outdoor units prevents systems from freezing, keeping systems operating at peak performance.
Environmentally Compliant
All Hotpoint® systems use R-32 refrigerant, ensuring that they meet EPA Low GWP (A2L) refrigerant regulations.
Federal & State Incentives
Potential eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers.
Worry-Free Warranty
Unlock a 10-year limited parts warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Specifications
Features
| Product Type | Single Zone |
| Style | Outdoor |
| System | 12K Hotpoint |
| Rotary Compressor | DC Inverter Driven Rotary |
| Temperature Range - Cooling Mode | 14-115°F (-10-46°C) |
| Temperature Range - Heating Mode | -15-75°F (-26-24°C) |
| Unit Type | Outdoor |
| Compatible Indoor Models | HW12HN2DAB |
| Maximum Fuse Size A | 15 |
| Outdoor Noise Level | 55 dBA |
| Series | Hotpoint |
| Connections | Flare |
| Factory Charge (ounces) | 25.8 oz |
| Maximum Height (ft/m) | 33/10 |
| Maximum Line Length (ft/m) | 66/20 |
| Refrigerant Type | R32 |
Weights & Dimensions
| Overall Depth | 11 in |
| Overall Height | 21 3/4 in |
| Overall Width | 31 1/2 in |
| Approximate Shipping Weight | 80 39/83 lb |
| Net Weight | 67 9/10 lb |
| Liquid O.d. Refrigerant Line | 1/4" |
| Suction O.d. Refrigerant Line | 3/8" |
Power / Ratings
| Voltage/hertz/phase | 208-230/60/1 |
| Minimum Circuit Amp | 12 |
| Cooling Rated Capacity Btu/hr | 12,000 |
Claims & Certifications
| 12,000 | Yes |
Warranty
| Parts | 5 Year |
