208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump - 1H09HN2DAB

This product has been discontinued by the manufacture and is no longer available.

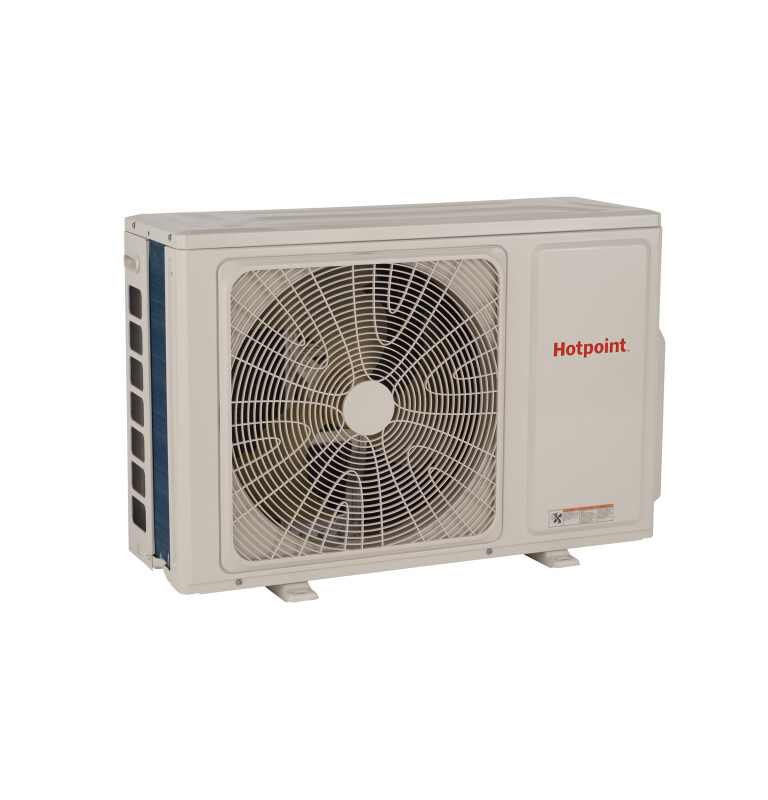

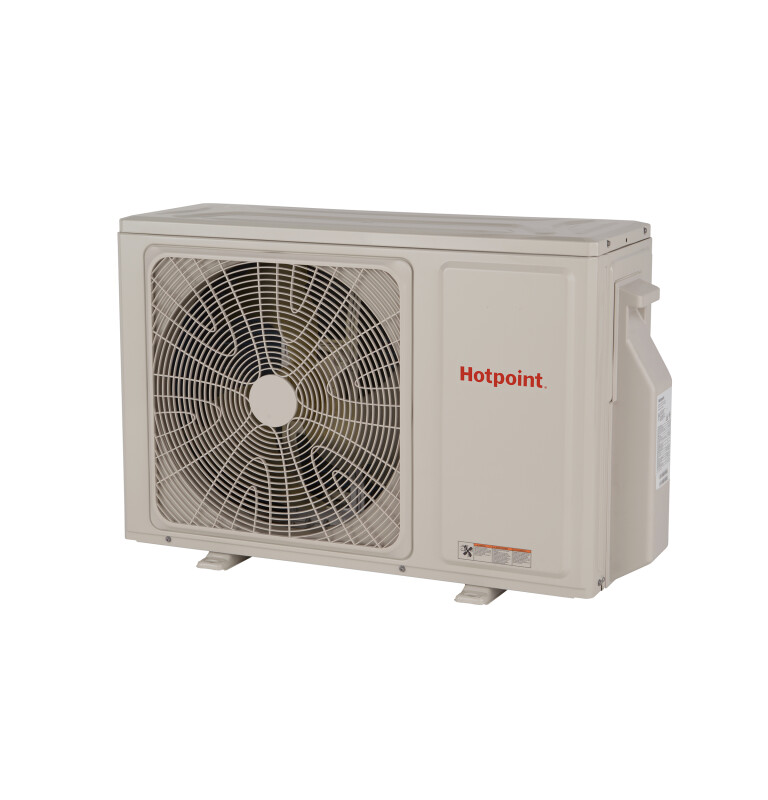

208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump

Model: 1H09HN2DAB

208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB
208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB
208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB
208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB

Color : White

208-230v 9,000 Btu Ductless Mini-split Outdoor Heat Pump 1H09HN2DAB
White

Key Features

  • High Efficiency Ductless Heat Pump

  • High-Performance Inverter Technology

  • All-Season Comfort

  • Built to Last

  • Protective Basepan Heater

  • Environmentally Compliant

  • Federal & State Incentives

  • Worry-Free Warranty

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

High Efficiency Ductless Heat Pump

18 SEER2 and 9.5 HSPF2 when paired with HW09HN2DAB.

High-Performance Inverter Technology

A DC inverter compressor keeps indoor temperatures consistent in almost any climate and helps homeowners save money on energy.

All-Season Comfort

With heating down to -15°F and cooling up to 115°F, homeowners know they’re coming home to comfort — no matter the weather outside.

Built to Last

A hydrophilic aluminum fin helps prevent condensation buildup and ensures water flows through the unit smoothly.

Protective Basepan Heater

A built-in basepan heater on outdoor units prevents systems from freezing, keeping systems operating at peak performance.

Environmentally Compliant

All Hotpoint® systems use R-32 refrigerant, ensuring that they meet EPA Low GWP (A2L) refrigerant regulations.

Federal & State Incentives

Potential eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers.

Worry-Free Warranty

Unlock a 10-year limited parts warranty with registration; see warranty documentation for complete information.

See specification guide for full heating, cooling, and system details.

Specifications

Features

Product TypeSingle Zone
StyleOutdoor
System9K Hotpoint
Rotary CompressorDC Inverter Driven Rotary
Temperature Range - Cooling Mode14-115°F (-10-46°C)
Temperature Range - Heating Mode-15-75°F (-26-24°C)
Unit TypeOutdoor
Compatible Indoor ModelsHW09HN2DAB
Maximum Fuse Size A15
Outdoor Noise Level55 dBA
SeriesHotpoint
ConnectionsFlare
Factory Charge (ounces)25.8 oz
Maximum Height (ft/m)33/10
Maximum Line Length (ft/m)66/20
Refrigerant TypeR32

Weights & Dimensions

Overall Depth11 in
Overall Height21 3/4 in
Overall Width31 1/2 in
Approximate Shipping Weight80 39/83 lb
Net Weight67 9/10 lb
Liquid O.d. Refrigerant Line1/4"
Suction O.d. Refrigerant Line3/8"

Power / Ratings

Voltage/hertz/phase208-230/60/1
Minimum Circuit Amp12
Cooling Rated Capacity Btu/hr9,000

Claims & Certifications

9,000Yes

Warranty

Parts5 Year
