7.3 cu.ft. Ultra Large Capacity High Efficiency Front Control SteamDryer™ with SteamFresh™ - DLEY1701W
7.3 cu.ft. Ultra Large Capacity High Efficiency Front Control SteamDryer™ with SteamFresh™
Model: DLEY1701W
7.3 cu.ft. Ultra Large Capacity High Efficiency Front Control SteamDryer™ with SteamFresh™
Model: DLEY1701W
Color : White
Replaced By
7.4 Cu. Ft. Ultra Large Capacity Smart Front Load Electric Dryer With Turbosteam®, Ai Sensing And Hybrid Electronic Controls With Lcd Display
Model: DLEX5800V
$1,499.00
Key Features
Big time saver
The quick fix
Get wise
ENERGY STAR Qualified
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Big time saver
Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.
The quick fix

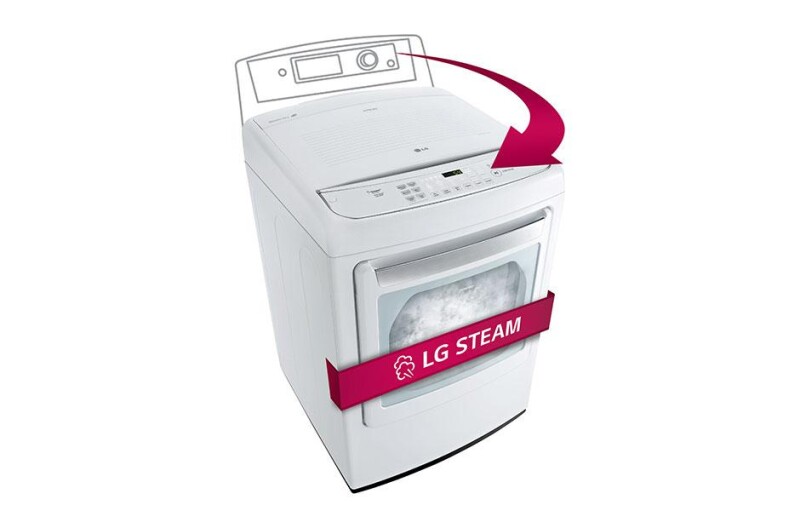

Late for the party and no time to iron your favorite outfit? The SteamFresh Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.
Get wise
If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.
ENERGY STAR Qualified
Among the most energy-efficient dryers in its class.
Specifications
SUMMARY
| Dryer Type | Electric |
| SteamDryer™ | Yes |
CAPACITY
| Capacity | 7.3 cu. ft. |
APPEARANCE
| Design Look | Front Control |
| Front Electronic Control Panel with LED Display | Yes |
| Touch Buttons | Yes |
ENERGY
| ENERGY STAR® Qualified | Yes |
DRYING PROGRAMS
| No. of Programs | 12 |
| Programs (Sensor Dry) | Cotton/Normal, Perm. Press/Casual, Heavy Duty, Small Load, Bulky/Bedding, Anti-Bacterial, Towels, Delicates, SteamFresh™, Wrinkle Free |
| No. of Options | 8 |
| Programs (Manual Dry) | Speed Dry, Air Dry |
| Options | More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal, Rack Dry |
| Drying Levels | Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry |
| Temperature Settings | High, Medium High, Medium, Low, Ultra Low |
| Manual Dry Times | 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time |
FABRIC CARE FEATURES
| SteamFresh™ Cycle | Yes |
| Sensor Dry | Yes |
| Wrinkle Free Cycle | Yes |
| Precise Temperature Control with Variable Heater | Yes |
CONVENIENCE FEATURES
| LoDecibel™ Quiet Operation | Yes |
| SmartDiagnosis™ | Yes |
| FlowSense™ Duct Clogging Indicator | Yes |
| Wrinkle Care Option | Yes |
| Anti-Bacterial Cycle | Yes |
| Remaining Time Display/Status Indicator(s) | Yes |
| End of Cycle Signal | Yes |
| Child Lock | Yes |
| Drum Light | Yes |
| Reversible Door | Yes |
| Leveling Legs | 4 Adjustable Legs |
| Venting Option | Electric: 4 Way Venting / Gas: 3 Way Venting |
| 3 Minute Installation Check | Yes |
| Drying Rack | Yes |
MATERIALS AND FINISHES
| NeveRust™ Stainless Steel Drum | Yes |
| Cabinet | Painted Steel |
| Control Panel | Plastic |
| Top Cover | Plastic |
| Diamond Glass Door | Transparent (White), Dark Gray Tint (Graphite Steel) |
| Available Colors | White (W), Graphite Steel (V) |
POWER SOURCE
| Ratings | CSA Listed |
| Electrical Requirements | 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric) |
| Type | Gas/Electric |
OPTIONS
| LP Conversion Kit | 4948EL4002B |
| Side Venting Kit | 383EEL9001B |
Dimensions & Weight
| Width | 27 in. |
| Height | 40.16 in. |
| Length | 28.38 in. |
| Weight | 133.7 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 45.16 in. |
| Shipping Length | 33.38 in. |
| Shipping Weight | 173.7 lbs. |
| Total of Shipping Weight | 173.7 lbs. |
| Source | Manufacturer |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.8 ft³ |
| Dimensional Weight | 221.33 lbs. |
| Total of Cubes | 17.8 ft³ |
| Total of Dimensional Weight | 221.33 lbs. |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
