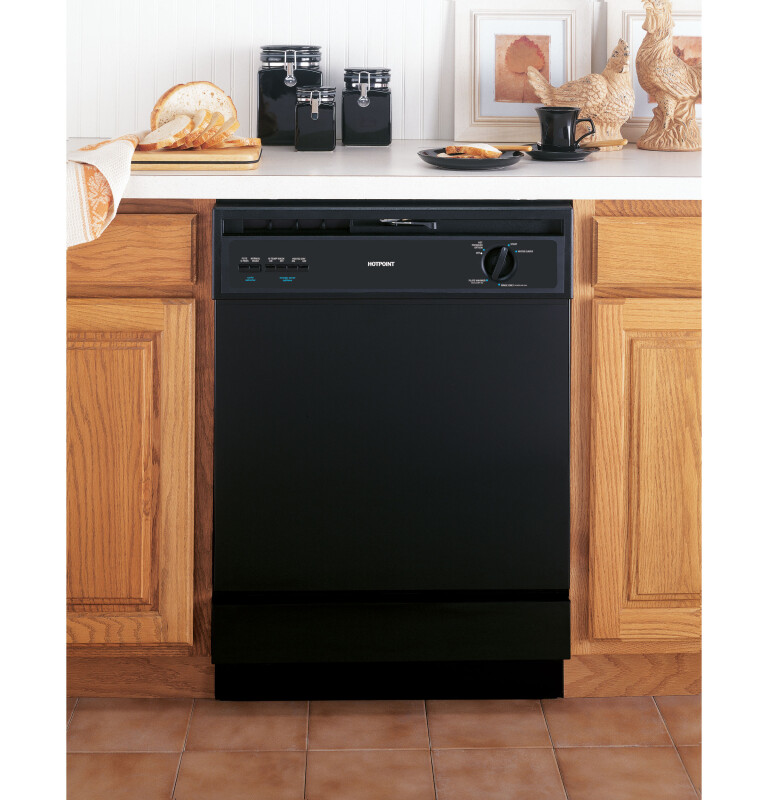

Built-In Dishwasher - HDA3500NBB
Built-In Dishwasher
Model: HDA3500NBB
Built-In Dishwasher
Model: HDA3500NBB
Color : Other
Replaced By
Key Features
5-level wash system
100% water filtration with Extra Fine filter
Hot PreWash option
QuietPower motor
Push-button controls
Pots and pans cycle
Piranha hard food disposer
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
5-level wash system
5 wash levels and redesigned wash arms direct water precisely for a quiet and efficient clean
100% water filtration with Extra Fine filter
Clean water helps deliver clean dishes
Hot PreWash option
Preheats water before the main wash cycle for excellent performance time after time
QuietPower motor
Runs quietly and efficiently to keep the kitchen peaceful and quiet
Push-button controls
Operate with ease
Pots and pans cycle
Scours off baked-on food with a wall of water
Piranha hard food disposer
Grinds food into small particles that are washed away
Certifications
California Prop 65
Specifications
FEATURES
| Tub and Door Liner | Plastic |
| Control Type | 6 Pushbuttons |
| Control Type | Pushbutton with Dial |
| Number of Options | 3 |
| Wash Arms | 1 |
| Wash Arms | Lower |
| Wash Arms | Middle Tower |
| Dishwasher Options | Heated Dry |
| Dishwasher Options | Hi-Temp Wash |
| Dishwasher Options | Hot PreWash Dial |
| Dishwasher Options | Water Saver Dial |
| Wash System Features | Self-Cleaning Filter System |
| Upper Rack | Flat |
| Latch | Center Throw |
| Dispenser | Rinse Aid |
| Dishwasher Cycles | Normal Wash |
| Dishwasher Cycles | Plate Warmer |
| Dishwasher Cycles | Pots & Pans |
| Dishwasher Cycles | Rinse Only |
| Lower Rack | Standard |
| Rack Features | Deluxe Silverware Basket |
| Water Filtration System | Self-Cleaning Water Filtration |
| Dishwasher Drying Features | Calrod Heater |
| Exterior Style | Traditional |
| Style | Built-In |
| Dishwasher Control Features | Cycle Progress Indicator Dial |
| Number of Cycles | 5 |
ECONOMICAL / QUIET
| Quiet Package | 61 dBA |
| Outer Wrap | Insulation Blanket |
| Motor Type | QuietPower™ Motor |
POWER / RATINGS
| Electrical Requirements | 120V ; 60 Hz ; 6.2 A |
| Calrod Heater Watts | 500 |
APPEARANCE
| Color Appearance | Black |
ACCESSORIES
| Requires Kit for 1/4" Panel Capability (w/Trim) | GPF325B |
| Optional Heavy Door Spring Kit | GPF100 |
| Non-Wood Countertop Kit | GPF65 |

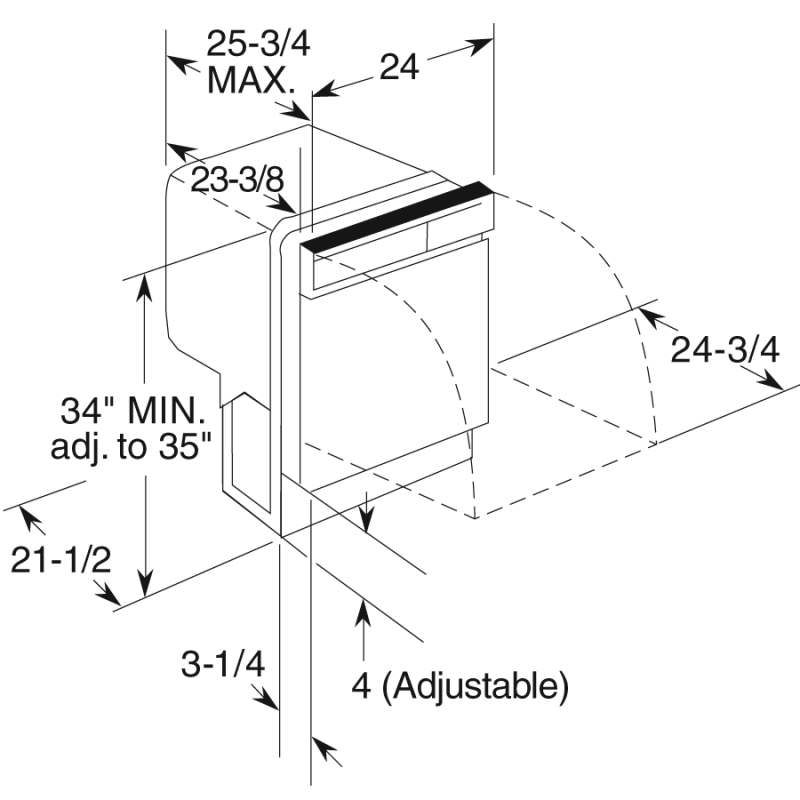

Dimensions & Weight
| Width | 24 in. |
| Height | 34 in. |
| Length | 25.75 in. |
| Weight | 90 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 29 in. |
| Shipping Height | 39 in. |
| Shipping Length | 30.75 in. |
| Shipping Weight | 130 lbs. |
| Total of Shipping Weight | 130 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.16 ft³ |
| Dimensional Weight | 151.17 lbs. |
| Total of Cubes | 12.16 ft³ |
| Total of Dimensional Weight | 151.17 lbs. |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
