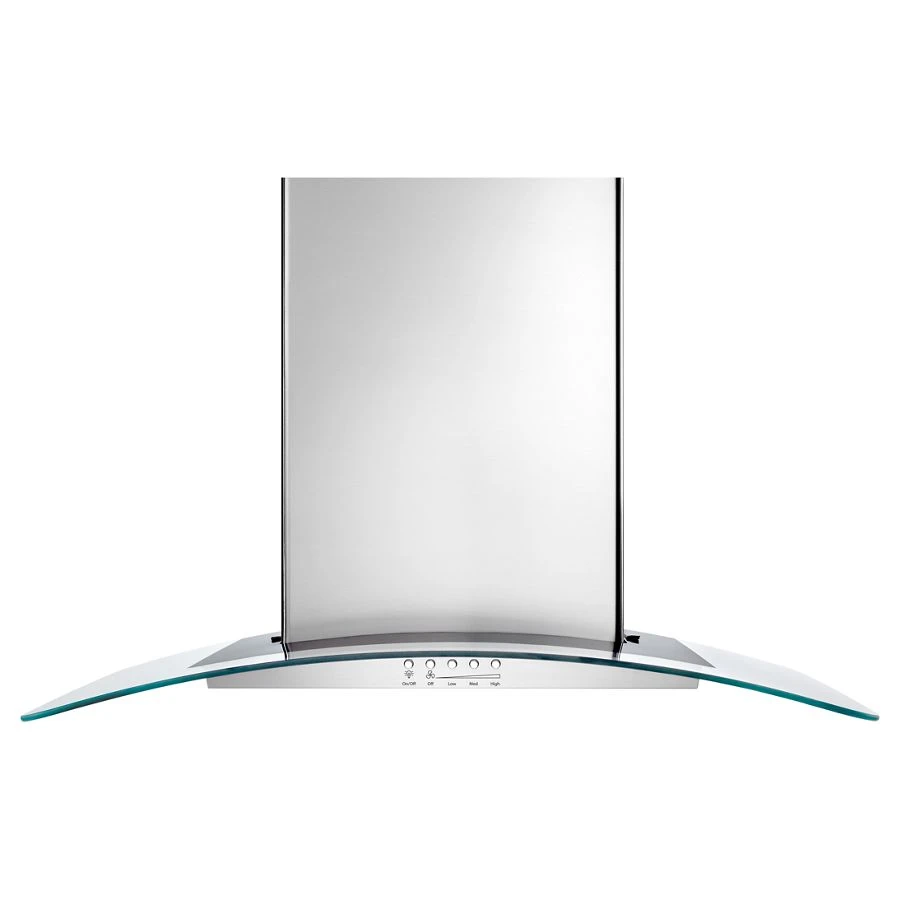

30" Convertible Wall-Mount 400-CFM Glass Canopy Hood - UXW6530BSS
30" Convertible Wall-Mount 400-CFM Glass Canopy Hood
Model: UXW6530BSS
30" Convertible Wall-Mount 400-CFM Glass Canopy Hood
Model: UXW6530BSS
Color : Stainless Steel
Replaced By
Key Features
400 CFM Centrifugal Blower
3-Speed Push Button Control
Incandescent Lighting (Bulbs Included)
Dishwasher Safe Mesh Filters
7.0 Vertical Sones (Round)
Damper Included
Vertical Exterior Ventilation (6" Round Duct)
Convertible to Recirculating (Ductless Installation) - Optional Kit Required
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
400 CFM Centrifugal Blower
3-Speed Push Button Control
Incandescent Lighting (Bulbs Included)
Dishwasher Safe Mesh Filters
7.0 Vertical Sones (Round)
Damper Included
Vertical Exterior Ventilation (6" Round Duct)
Convertible to Recirculating (Ductless Installation) - Optional Kit Required
Optional Chimney Extension Kit
Extends chimney height for ceilings over 9'. See installation instructions for details.
Air exhausts downward for versatile installation options
Specifications
Certifications
| Prop 65 | Standard |
| Star K Certified | Yes |
Ventilation Details
| Blower Type | Centrifugal |
| CFM Motor Class | 400 |
| Duct Direction | Vertical |
| Duct Outlet Size | 6 in |
| Duct Type | Round |
| Filters | Charcoal Odor Removing Filter, Grease Filters |
| Lighting Control Type | Push Button |
| Number of Night Light Settings | 1 |
| Number of Task Light Settings | 1 |
| Task Light Type | Incandescent |
| Task Lighting | Yes |
| Venting | Exterior or Recirculating |
Controls
| Control Location | Front |
| Control Type | Push Button |
| Number of Vent Speeds | 3 |
Details
| Blower Type | Centrifugal |
| Hood Type | Wall Mount |
| Material | Stainless Steel with Glass |
Electrical
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
Dimensions & Weight
| Width | 30 in. |
| Height | 27.13 in. |
| Length | 20 in. |
| Weight | 54.7 lbs. |
| Gross Weight | 54-7/10 lbs |
| Net Weight | 39-3/5 lbs |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 32.13 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 94.7 lbs. |
| Total of Shipping Weight | 94.7 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.42 ft³ |
| Dimensional Weight | 117.09 lbs. |
| Total of Cubes | 9.42 ft³ |
| Total of Dimensional Weight | 117.09 lbs. |
Other
| Common Size | 30 in |
