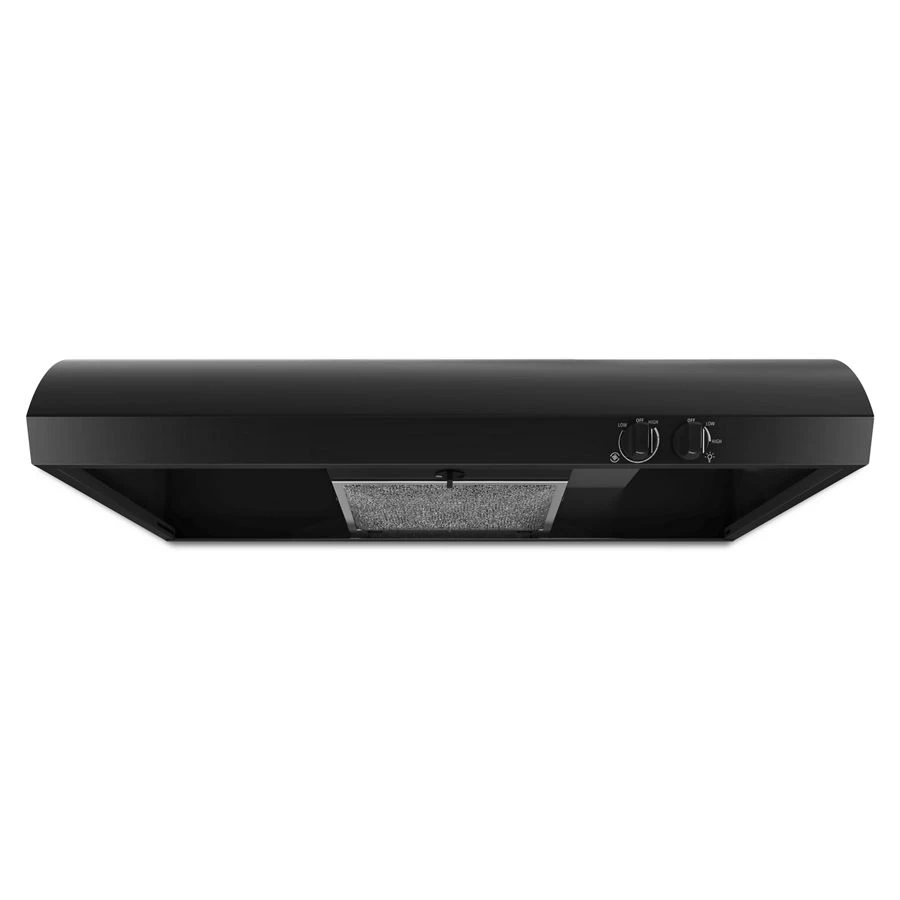

36" Range Hood with the FIT System - UXT4236ADB
36" Range Hood with the FIT System
Model: UXT4236ADB
36" Range Hood with the FIT System
Model: UXT4236ADB
Color : Black
Key Features
FIT System
Hidden Vent
Incandescent Lighting
3-1/4" x 10" Damper
Recirculation (Non-Vented/Duct-Free)
ADA compliant
Grease filter
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
FIT System
The FIT system eliminates measuring, cutting and trim for a perfect fit every time.
Hidden Vent
Incandescent Lighting
Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
3-1/4" x 10" Damper
Recirculation (Non-Vented/Duct-Free)
By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
ADA compliant
This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Grease filter
The grease filter helps trap unwanted grease and helps remove odors.
Specifications
Details
| Blower Type | Axial |
| Hood Type | Under-the-Cabinet |
| Material | Painted Steel |
Ventilation Details
| CFM Motor Class | 225 |
| Duct Direction | Vertical or Horizontal |
| Duct Outlet Size | 3.25 W x 10 H in |
| Duct Type | Rectangular |
| Filters | Charcoal Odor Removing Filter, Grease Filters |
| Number of Task Light Settings | 2 |
| Task Light Type | Incandescent |
| Task Lighting | Yes |
| Venting | Exterior or Recirculating |
Controls
| Control Type | Knobs |
| Number of Vent Speeds | 2 |
Refinements
| Features | FIT System, Grease Filter |
Certifications
| ADA Compliant | Yes |
| Prop 65 | Standard |
Dimensions & Weight
| Width | 35.94 in. |
| Height | 4.94 in. |
| Length | 18.63 in. |
| Weight | 19 lbs. |
| Gross Weight | 19 lbs |
| Net Weight | 16 lbs |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.94 in. |
| Shipping Height | 9.94 in. |
| Shipping Length | 23.63 in. |
| Shipping Weight | 59 lbs. |
| Total of Shipping Weight | 59 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.91 ft³ |
| Dimensional Weight | 23.78 lbs. |
| Total of Cubes | 1.91 ft³ |
| Total of Dimensional Weight | 23.78 lbs. |
Other
| Common Size | 36 in |
