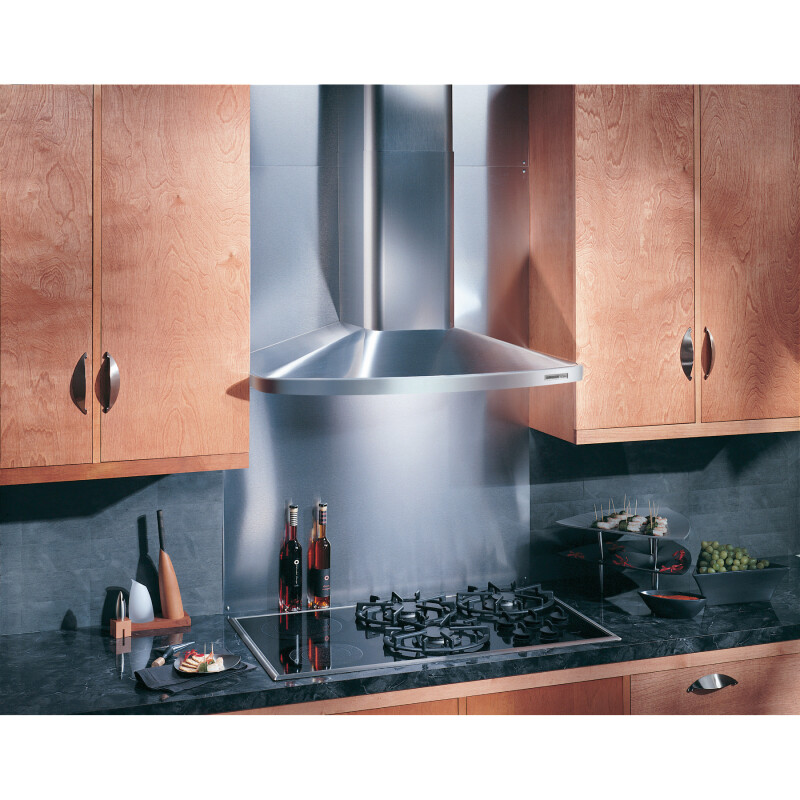

30-Inch Convertible Wall-Mount Chimney Range Hood Heat Sentry, 370 CFM, Stainless Steel - RM523004
30-Inch Convertible Wall-Mount Chimney Range Hood Heat Sentry, 370 CFM, Stainless Steel
Model: RM523004
30-Inch Convertible Wall-Mount Chimney Range Hood Heat Sentry, 370 CFM, Stainless Steel
Model: RM523004
Color : Stainless Steel
Key Features
Product Discontinued, suggested replacement EW4830SS
370 CFM blower to quickly pull smoke and cooking odors out of the air

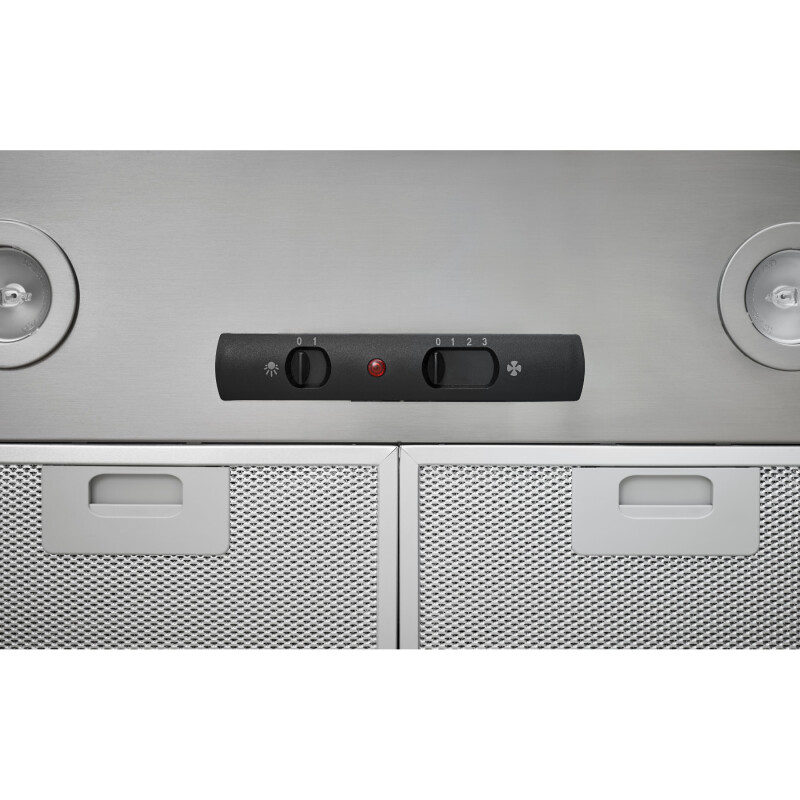

Easy-to-use slide controls let you adjust the blower speed and the light setting
3 blower speeds let you adjust the speed to fit your needs
Convertible range hood can be installed as ducted using 6 in. round ductwork for easy installation or non-ducted to fit a variety of installation needs
Heat Sentry detects excessive heat and adjusts speed of blower to high automatically
Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 ft.
Dishwasher-safe aluminum filter features a quick-release latch and professional style
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Product Discontinued, suggested replacement EW4830SS
370 CFM blower to quickly pull smoke and cooking odors out of the air
Easy-to-use slide controls let you adjust the blower speed and the light setting
3 blower speeds let you adjust the speed to fit your needs
Convertible range hood can be installed as ducted using 6 in. round ductwork for easy installation or non-ducted to fit a variety of installation needs
Heat Sentry detects excessive heat and adjusts speed of blower to high automatically
Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 ft.
Dishwasher-safe aluminum filter features a quick-release latch and professional style
Dual 20-Watt halogen lamps (included) provide bright lighting to the cooktop
Requires separate purchase of a non-ducted kit (RRK51) for indoor exhaust recirculation
Combines graceful curves and traditional European styling
Specifications
Other
| Filter Type | Aluminum |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| Sound Level (Sones) | 7 |
| Light Bulb Wattage | 20 |
| Light Levels | 1 |
| Speed Levels | 4 |
| Switch Control Type | Slide |
| Rated Voltage | 120 |
| Rated Amps | 2.63 |
| CFM | 370 |
| Diameter | 6" Round |
| Vent Type | Convertible with Kit |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Type JC 12 V 20 W G4 Base |
| Manufacturer Warranty | 1 Year |
| Wattage | 316 |
Dimensions & Weight
| Width | 30 in. |
| Height | 30 in. |
| Length | 19.63 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 35 in. |
| Shipping Length | 24.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.22 ft³ |
| Dimensional Weight | 127.07 lbs. |
| Total of Cubes | 10.22 ft³ |
| Total of Dimensional Weight | 127.07 lbs. |
