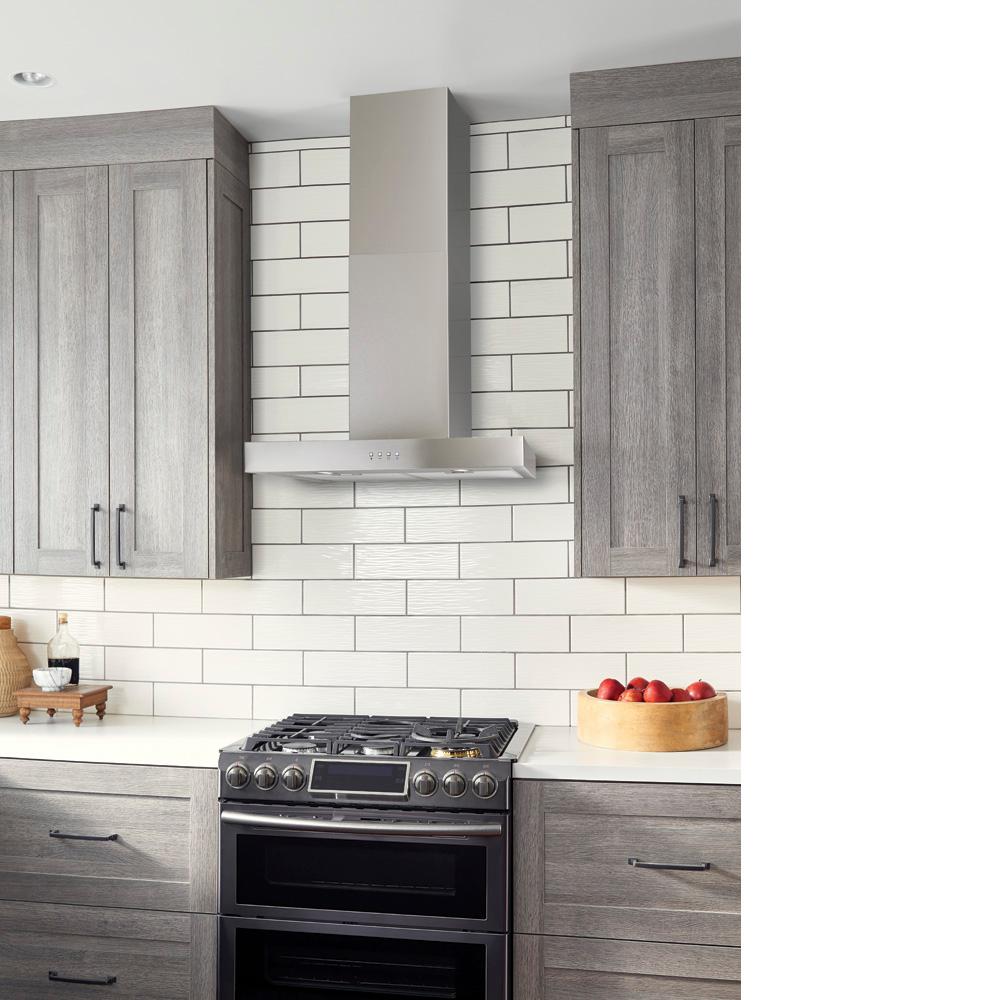

NuTone 30-In. Convertible Wall Mount T-Style Chimney Range Hood with LED Light in Stainless Steel - NW330SS
NuTone 30-In. Convertible Wall Mount T-Style Chimney Range Hood with LED Light in Stainless Steel
Model: NW330SS
NuTone 30-In. Convertible Wall Mount T-Style Chimney Range Hood with LED Light in Stainless Steel
Model: NW330SS
Color : Stainless Steel
Key Features
Product is DISCONTINUED. Suggested Replacement is model BWT2304SS
Powerful 450 CFM, HVI Certified, provides good capture over your cooktop.
Two speed control provide quiet (2.5 sones) normal speed operation
2-Way vent convertibility allows unit to be installed as ducted or non-ducted.
Integrated LED modules are specially designed for cooking environments.
Up-front controls: Provide convenient access and operation of hood.
Install hood so that the bottom of the unit is 26 to 30 inches above the cooking surface. Mounting height is affected by ceiling height
19.5” deep design provides 30% more coverage than standard OTR.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Product is DISCONTINUED. Suggested Replacement is model BWT2304SS
Powerful 450 CFM, HVI Certified, provides good capture over your cooktop.
Two speed control provide quiet (2.5 sones) normal speed operation
2-Way vent convertibility allows unit to be installed as ducted or non-ducted.
Integrated LED modules are specially designed for cooking environments.
Up-front controls: Provide convenient access and operation of hood.
Install hood so that the bottom of the unit is 26 to 30 inches above the cooking surface. Mounting height is affected by ceiling height
19.5” deep design provides 30% more coverage than standard OTR.
Specifications
Product Details
| Filter Type | Aluminum Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 2.5 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 3 |
| Light Bulbs Included | Yes |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Switch Control Type | Push Button |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | China |
| Rated Amps | 3.3 |
| Product Depth | 19.75 |
| Product Height | 18.875" |
| Product Width | 30" |
| Built-In Timer | No |
| CFM | 450 |
| Diameter | 6" Round |
| Vent Type | Ducted & Non-Ducted |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Manufacturer Warranty | 1 Year |
| Wattage | 396 |

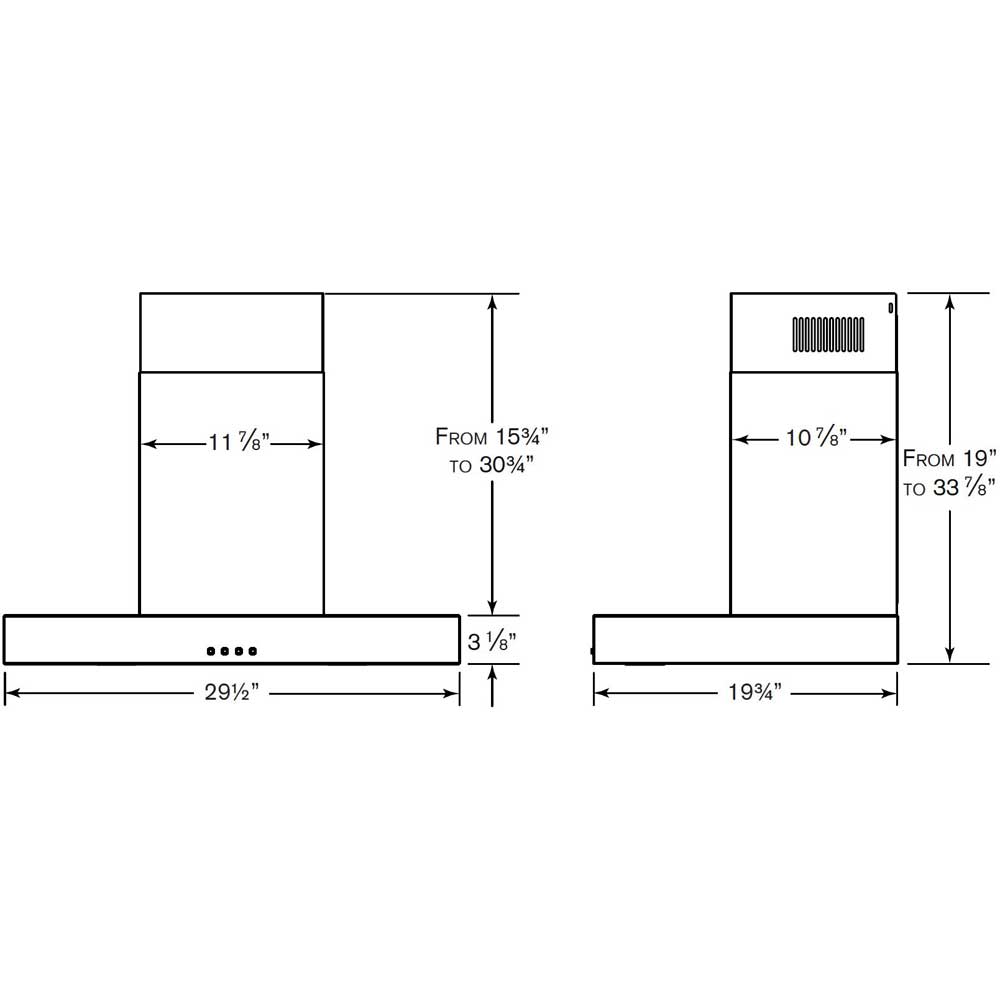

Dimensions & Weight
| Width | 30 in. |
| Height | 18.88 in. |
| Length | 19.75 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 23.88 in. |
| Shipping Length | 24.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.47 ft³ |
| Dimensional Weight | 80.46 lbs. |
| Total of Cubes | 6.47 ft³ |
| Total of Dimensional Weight | 80.46 lbs. |
