48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood - KVWC958JSS

KitchenAidKitchenAid brand logo
This product has been discontinued by the manufacture and is no longer available.

48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood

Model: KVWC958JSS

48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, product image 1 of 648'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, product image 2 of 648'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, product image 3 of 648'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, product image 4 of 648'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, product image 5 of 648'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, product image 6 of 6
48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, thumbnail image 1 of 6
48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, thumbnail image 2 of 6
48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, thumbnail image 3 of 6
48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, thumbnail image 4 of 6
48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS, thumbnail image 5 of 6
+1more

Color : Stainless Steel

48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC958JSS
Stainless Steel

Description

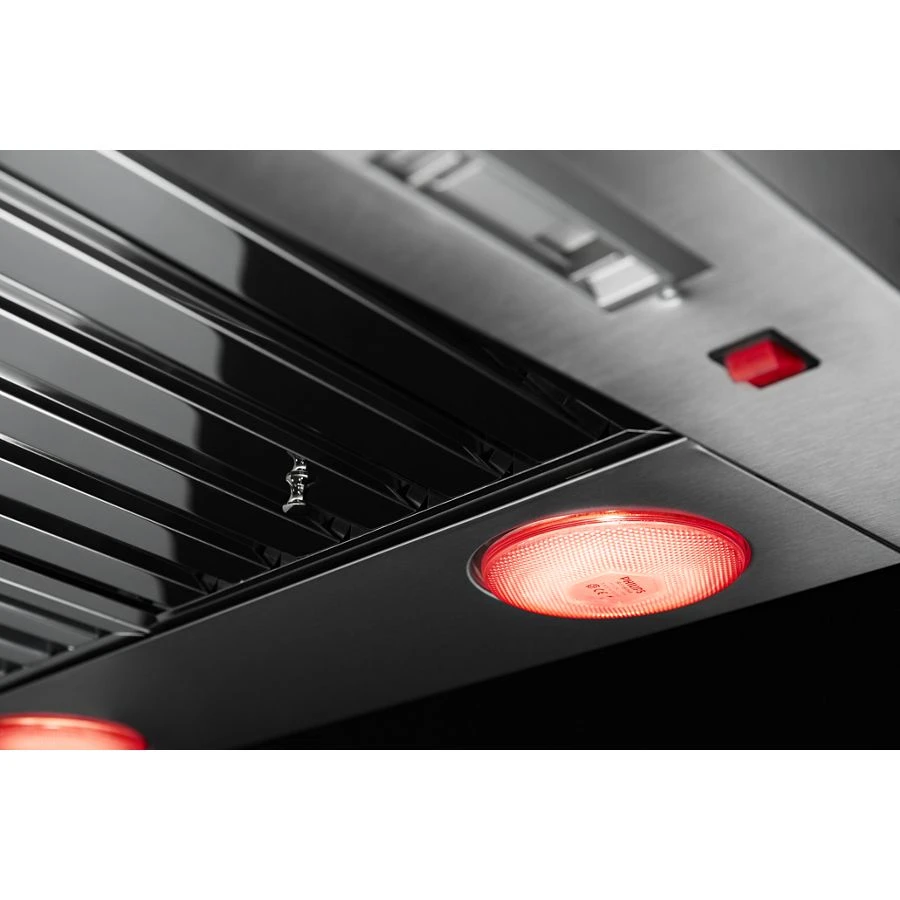

Designed to pair with 48-inch KitchenAid® Commercial-Style Ranges and Rangetops, this 48-inch wall-mount canopy range hood equips your kitchen with powerful ventilation. 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Two food warming heat lamps hold cooked items at serving temperature for up to an hour while you finish other dishes.
Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Specifications

Specifications

Certifications

Energy Star® QualifiedNo
Energy Star QualifiedNo
Prop 65No

Electrical

Power Cord IncludedNo
Watts790
Hz60
Volts120
Amps6-3/5

Controls

Control LocationHidden

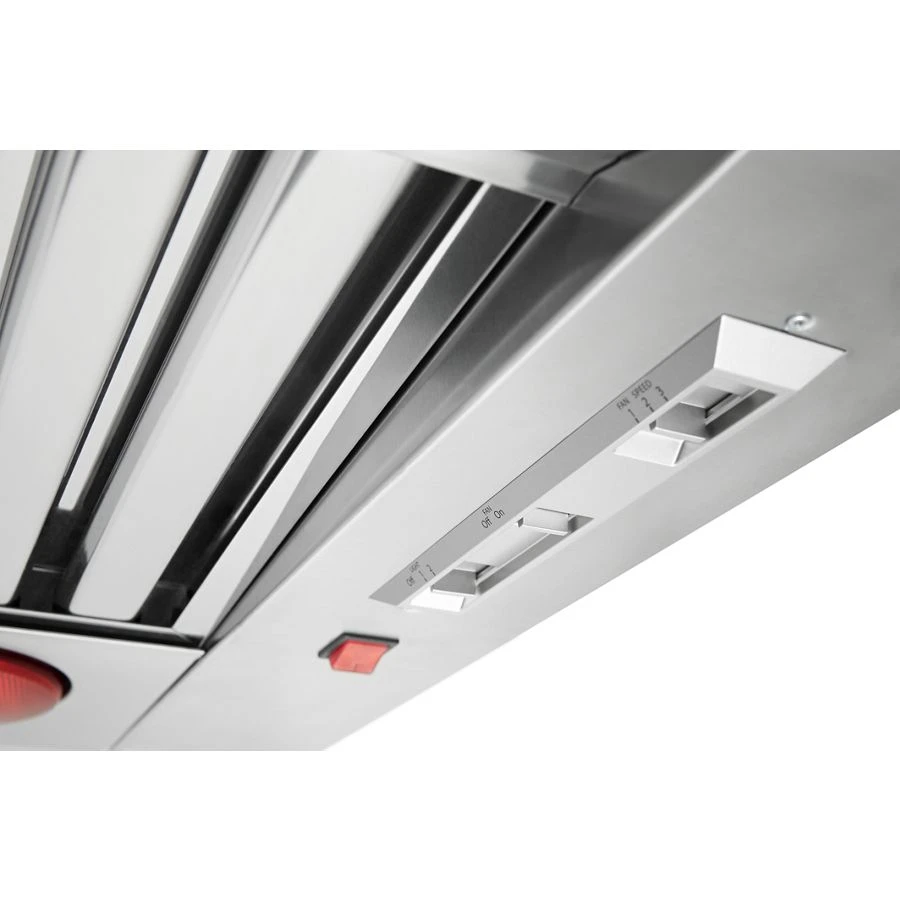

Control TypeSlide Controls
Number of Vent Speeds3

Dimensions & Weight

Width48 in.
Height-
Length25 in.
Weight96 lbs.
Carton Depth30 1/8
Carton Height24 5/8
Carton Width53 1/4
Cutout Width (in)48
Gross Weight96
Minimum Height24
Net Weight57.3
Cutout Width48.0 in
Canopy Height (IN,inches)7 7/8
Cutout Width(IN,inches)48
Net Weight(LB,pounds)57
Gross Weight(LB,pounds)96

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width53 in.
Shipping Height-
Shipping Length30 in.
Shipping Weight136 lbs.
Total of Shipping Weight136 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Dimensions

Canopy Height7-7/8 in
Common Size48 in
Depth25 in
Gross Weight96-17/50 lbs
Net Weight57-8/25 lbs
Width48 in

Ventilation Details

Auto FunctionAuto On
Blower MotorBlower Motor to be Purchased Separately
Duct DirectionVertical
Duct Length13
Duct Outlet Size10 in
Duct TypeRound
Exhaust Vent LocationTop
FiltersGrease Filters
HVI (CFM HS Horizontal)N/A
HVI (CFM HS Vertical)530/950
Lighting Control TypeSlider
Maximum Motor CFM1,170
Night LightNo
Number of Night Light Settings1
Task Light TypeLED
Task LightingYes
Vent Fan LocationSide
VentingExterior

Details

Blower TypeCentrifugal
Hood TypeWall Canopy
