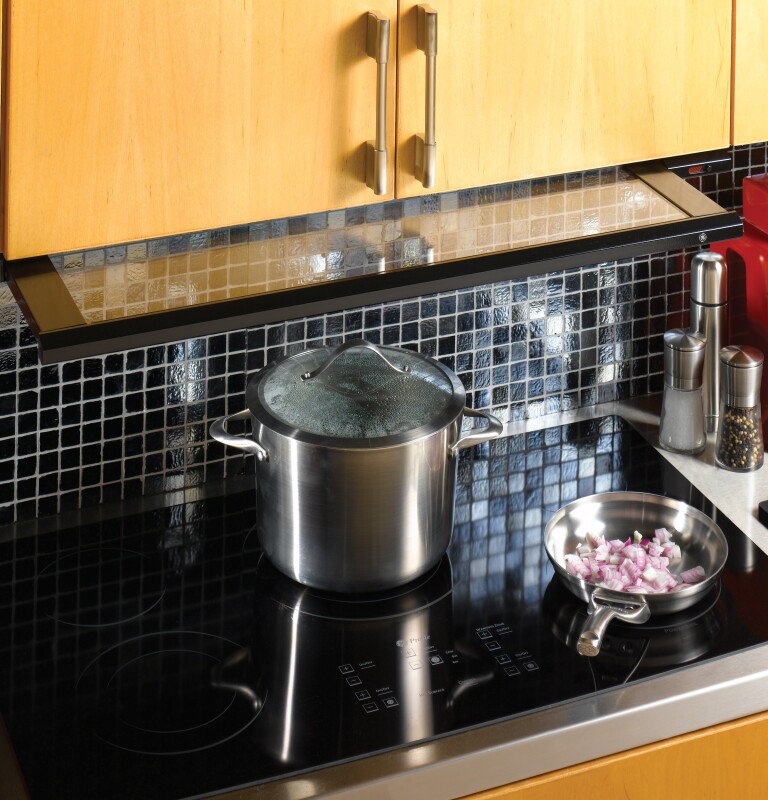

Series 30" Slide Out Hood - JV394SBB

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

Series 30" Slide Out Hood

Model: JV394SBB

Series 30" Slide Out Hood JV394SBBSeries 30" Slide Out Hood JV394SBB
Series 30" Slide Out Hood JV394SBB
Series 30" Slide Out Hood JV394SBB

Color : Black on Black

Series 30" Slide Out Hood JV394SBB
Black on Black

Key Features

  • Glass visor

  • 320-CFM blower

  • Variable speed fan control

  • Vertical exhaust

  • Removable grease filter

  • Cooktop light

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Glass visor

Slides in and out for enhanced venting performance

320-CFM blower

Helps effectively remove smoke, grease, odors and moisture

Variable speed fan control

Helps draw smoke, grease, odors and moisture out of the kitchen air

Vertical exhaust

Exhausts from the top of the hood

Removable grease filter

Collects grease and removes for easy cleaning

Cooktop light

Brightens the cooktop surface

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Overall Width30 in
Net Weight32 lb
Approximate Shipping Weight37 lb
Overall Depth12 1/8 in
Overall Height14 3/4 in

FEATURES

Fan Speed ControlVariable
Cooktop LightingFluorescent
Filter Size (sq. in.)147
Max CFM320
CFM/ Sones Rating320/ 4.5 (High Speed)
Exhaust Options3-1/4" x 10" Rectangular Duct
Ventilation System Control FeaturesAuto Heat Sensor
Removable Grease Filter(s)Yes
CFM/ Sones Rating110/ < 0.3 (Working Speed)
DuctingRectangular Damper Included

POWER / RATINGS

Amp Rating at 120V3.7

APPEARANCE

Color AppearanceBlack on Black

Dimensions & Weight

Width30 in.
Height14.75 in.
Length12.13 in.
Weight32 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height19.75 in.
Shipping Length17.13 in.
Shipping Weight72 lbs.
Total of Shipping Weight72 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.1 ft³
Dimensional Weight38.6 lbs.
Total of Cubes3.1 ft³
Total of Dimensional Weight38.6 lbs.

Warranty

Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
