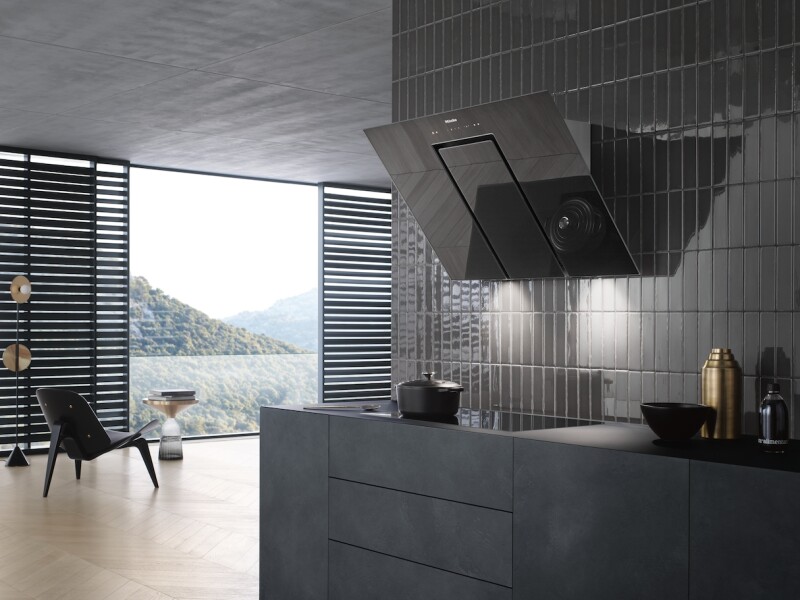

Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation. - DA6498WPUREGREY
Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation.
Model: DA6498WPUREGREY
Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation.
Model: DA6498WPUREGREY
Color : Graphite grey
Key Features
Always on the safe side
Automatic blower run-on
Automatic operation for intelligent blower control
Countdown time conveniently in view
Convenience and safety in detail
Blowercy single panel instead of metal grease filter
Easy to use and effective against grease
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Automatic operation for intelligent blower control
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Blowercy single panel instead of metal grease filter
Efficient and beautiful: With edge vented the grease filters are concealed by a stainless steel or glass panel.
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Specifications
Design
| Wall ventilation hood | Yes |
| Color | Graphite grey |
| Edge extraction | Yes |
Operating modes
| Recirculated mode | Can be retrofitted |
| OdorFree charcoal filter (order separately) | DKF 25-P |
User convenience
| Electronic controls | Yes |
| Touch controls | Yes |
| Power levels (number excl. Intensive) | 3 |
| Automatic function Con@ctivity | Yes |
| Programmable Intensive switch-off | Yes |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Programmable charcoal filter saturation indicator | Yes |
| Programmable grease filter saturation indicator | Yes |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | Yes |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 1 |
Lighting
| LED ClearView lighting | Yes |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 440 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
Blower
| Dual-action blower | Yes |
| AC motor | Yes |
Exhaust air
| Air throughput | Values upon request |
Safety
| Safety shut-off | Yes |
| Single-ply safety glass (ESG) | Yes |
Installation note
| Vent connection at top | Yes |
| Vent connection at top and rear | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
Standard accessories
| Non-return flap | Yes |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
Other
| Hard-wired | Yes |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Dimensions & Weight
| Width | - |
| Height | 0.86 in. |
| Length | - |
| Weight | 123.2 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | 5.86 in. |
| Shipping Length | - |
| Shipping Weight | 163.2 lbs. |
| Total of Shipping Weight | 163.2 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
