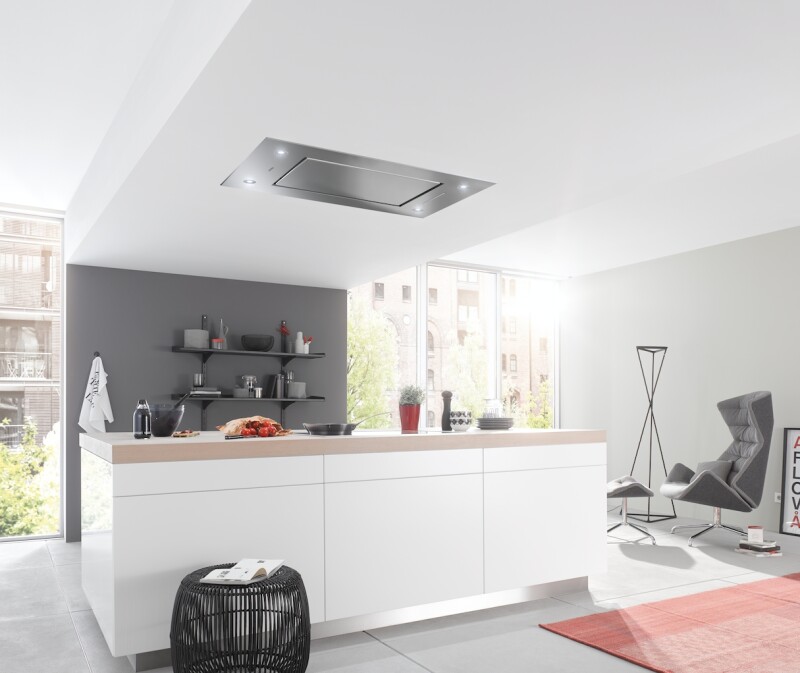

Ceiling extractor with energy-efficient LED lighting and backlit controls for easy use. - DA2818
Ceiling extractor with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2818
Ceiling extractor with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2818
Rebate AvailableColor : Stainless steel
Current Rebates
Key Features
Automatic blower run-on
Countdown time conveniently in view
Automatic operation for intelligent blower control
Always on the safe side
Easy to use and effective against grease
Convenience and safety in detail
Blowercy single panel instead of metal grease filter
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Automatic operation for intelligent blower control
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Blowercy single panel instead of metal grease filter
Efficient and beautiful: With edge vented the grease filters are concealed by a stainless steel or glass panel.
Specifications
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 2900-900 |
Design
| Ceiling fan | Yes |
| Color | Stainless steel |
| Edge extraction | Yes |
User convenience
| Miele@home | Yes |
| Automatic function Con@ctivity | Yes |
| Electronic controls | Yes |
| Miele@mobile app | Yes |
| Power levels (number excl. Intensive) | 3 |
| Programmable Intensive switch-off | Yes |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Programmable grease filter saturation indicator | Yes |
| Programmable charcoal filter saturation indicator | Yes |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | Yes |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 2 |
Lighting
| LED ClearView lighting | Yes |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 600 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
Blower
| Dual-action blower | Yes |
| AC motor | Yes |
Exhaust air
| Air throughput | Values upon request |
Safety
| Safety shut-off | Yes |
Installation note
| Vent connection at top | Yes |
| Vent connection on side | Yes |
| Vent connection at top, rear, and side | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Installation template | Yes |
| Combination with WiFi-enabled Miele cooktop | required |
Standard accessories
| Non-return flap | Yes |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
Other
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Dimensions & Weight
| Width | - |
| Height | 0.53 in. |
| Length | - |
| Weight | 103.4 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | 5.53 in. |
| Shipping Length | - |
| Shipping Weight | 143.4 lbs. |
| Total of Shipping Weight | 143.4 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
