Convertible Wall-Mount Pyramidal Chimney Range Hood - BWP2306SS

BroanBroan brand logo
This product has been discontinued by the manufacture and is no longer available.

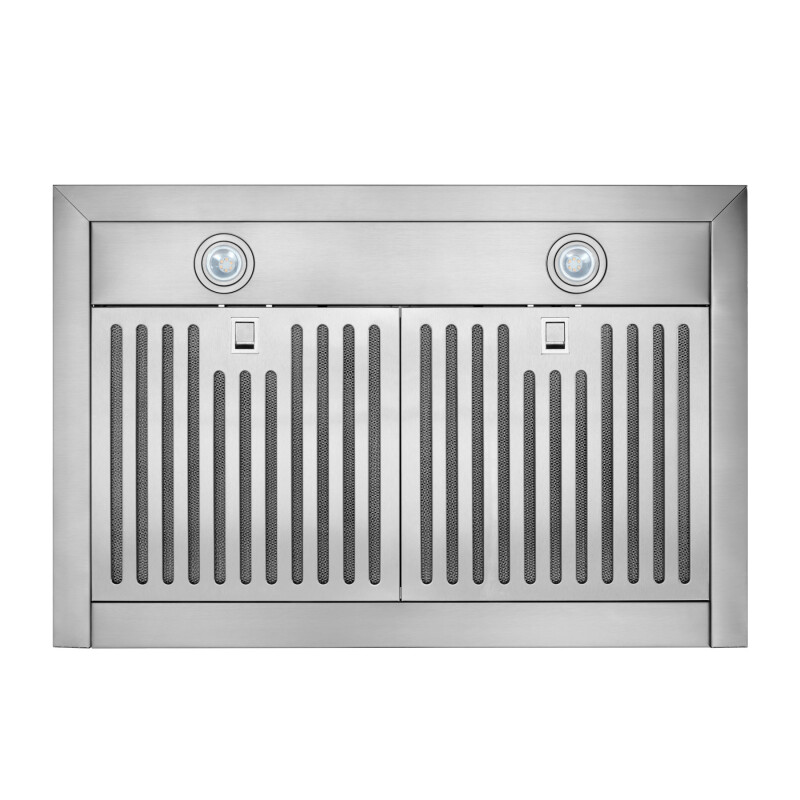

Convertible Wall-Mount Pyramidal Chimney Range Hood

Model: BWP2306SS

Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SSConvertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SSConvertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SSConvertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SSConvertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS
Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS
Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS
Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS
Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS
Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS

Color : Stainless Steel

Convertible Wall-Mount Pyramidal Chimney Range Hood BWP2306SS
Stainless Steel

Key Features

  • Powerful 630 MAX blower CFM operates at a quiet 1.5 sones at normal speed.

  • Bright 1-level LED modules are included to enhance your cooking experience.

  • 3-speed back-lit soft touch control for easy operation.

  • Dishwasher-safe hybrid baffle filters feature quick-release latch for easy removal.

  • 5 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

  • Optional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

  • Ducted/non-ducted telescopic flue extension accomodates 8" to 9" ceiling heights. Flue extensions are available to accommodate ceiling heights from 9" to 10".

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Powerful 630 MAX blower CFM operates at a quiet 1.5 sones at normal speed.

Bright 1-level LED modules are included to enhance your cooking experience.

3-speed back-lit soft touch control for easy operation.

Dishwasher-safe hybrid baffle filters feature quick-release latch for easy removal.

5 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

Optional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

Ducted/non-ducted telescopic flue extension accomodates 8" to 9" ceiling heights. Flue extensions are available to accommodate ceiling heights from 9" to 10".

Specifications

Other

Filter TypeHybrid Baffle
Heat Sentry™No
HVI CertifiedYes
Lighting TypeLED
Sound Level (Sones)1.5
Light Levels1
Speed Levels3
Switch Control TypeElectronic Pushbutton
Rated Voltage120
Rated Amps2.6
CFM630 Max
Diameter6" Round
Vent TypeConvertible with Kit
Duct DirectionVertical
Bulb (Recommended Type)Integrated LED Module
Manufacturer Warranty1 Year

Dimensions & Weight

Width30 in.
Height25.38 in.
Length19.69 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height30.38 in.
Shipping Length24.69 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.67 ft³
Dimensional Weight107.83 lbs.
Total of Cubes8.67 ft³
Total of Dimensional Weight107.83 lbs.
