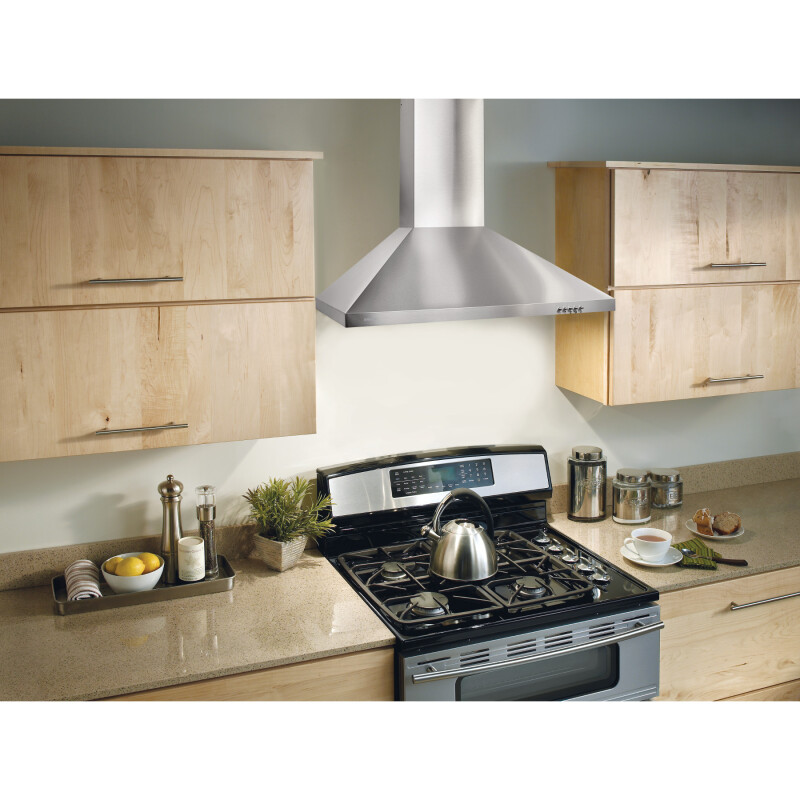

30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM - BW5030SS

BroanBroan brand logo
This product has been discontinued by the manufacture and is no longer available.

30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM

Model: BW5030SS

30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS
30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS
30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS
30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS
30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS
30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS

Color : Stainless Steel

30-Inch Convertible European Style Wall-Mounted Chimney Range Hood, 350 CFM BW5030SS
Stainless Steel

Key Features

  • Three-speed pushbutton control and integrated dual light assembly

  • Dual 40-watt incandescent lamp included (Type B10, 120V, 40W max. candelabra)

  • Dishwasher-safe aluminum filter features a quick-release latch and professional style appearance

  • Requires separate purchase of a non-ducted kit for indoor exhaust recirculation

  • Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet. Flue extension for higher ceilings is also available (Optional flue extension for 10" ceilings)

  • Non-ducted flue extensions available in stainless steel only (includes non-ducted filter)

  • Install hood so that the bottom of the unit is 30 to 36 inches above the cooking surface. Mounting height is affected by ceiling height

  • For use with electric cooktops and gas ranges to 45,000 BTUs

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Three-speed pushbutton control and integrated dual light assembly

Dual 40-watt incandescent lamp included (Type B10, 120V, 40W max. candelabra)

Dishwasher-safe aluminum filter features a quick-release latch and professional style appearance

Requires separate purchase of a non-ducted kit for indoor exhaust recirculation

Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet. Flue extension for higher ceilings is also available (Optional flue extension for 10" ceilings)

Non-ducted flue extensions available in stainless steel only (includes non-ducted filter)

Install hood so that the bottom of the unit is 30 to 36 inches above the cooking surface. Mounting height is affected by ceiling height

For use with electric cooktops and gas ranges to 45,000 BTUs

Specifications

Other

Filter TypeAluminum Mesh
Heat Sentry™No
HVI CertifiedYes
Lighting TypeIncandescent
Sound Level (Sones)9
Light Bulb Wattage40
Light Levels1
Speed Levels3
Switch Control TypePush Button
Rated Voltage120
Rated Amps2.6
CFM350
Diameter6" Round
Vent TypeDucted & Non-Ducted
Duct DirectionVertical
Bulb (Recommended Type)B10
Manufacturer Warranty1 Year
Wattage312

Dimensions & Weight

Width30 in.
Height25.5 in.
Length19.75 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height30.5 in.
Shipping Length24.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.74 ft³
Dimensional Weight108.7 lbs.
Total of Cubes8.74 ft³
Total of Dimensional Weight108.7 lbs.
