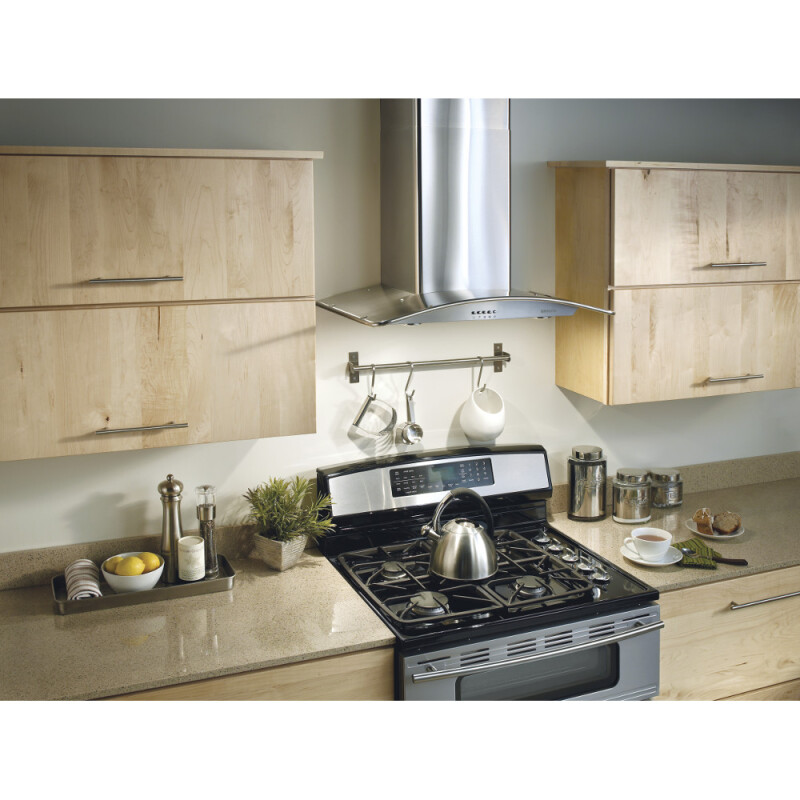

30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM - B5730SS

BroanBroan brand logo
This product has been discontinued by the manufacture and is no longer available.

30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM

Model: B5730SS

30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM B5730SS30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM B5730SS
30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM B5730SS
30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM B5730SS

Color : Stainless Steel

30-Inch Convertible Arched Canopy Wall-Mount Chimney Range Hood, 450 CFM B5730SS
Stainless Steel

Key Features

  • Wall mounted chimney style range hood

  • 450 CFM internal blower provides the power you need at 8.5 sones on High speed

  • Three-speed pushbutton control allows you to set just the right exhaust speed to keep up with whatever is cooking

  • Halogen lighting brightly illuminates the cooktop. (bulbs included)

  • Dishwasher-safe aluminum filter features a quick-release latch and professional appearance for a fresh kitchen

  • Telescopic flue accommodates 8’ to 9’ ceilings

  • Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet. Extension flues for higher ceilings are also available for ducted or non-ducted applications

  • 6" round duct connector/backdraft damper

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Wall mounted chimney style range hood

450 CFM internal blower provides the power you need at 8.5 sones on High speed

Three-speed pushbutton control allows you to set just the right exhaust speed to keep up with whatever is cooking

Halogen lighting brightly illuminates the cooktop. (bulbs included)

Dishwasher-safe aluminum filter features a quick-release latch and professional appearance for a fresh kitchen

Telescopic flue accommodates 8’ to 9’ ceilings

Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet. Extension flues for higher ceilings are also available for ducted or non-ducted applications

6" round duct connector/backdraft damper

Specifications

Other

Filter TypeAluminum
Heat Sentry™No
HVI CertifiedYes
Lighting TypeHalogen
Sound Level (Sones)8.5
Light Bulb Wattage20
Light Levels1
Speed Levels3
Switch Control TypePush Button
Rated Voltage120
Rated Amps3.3
CFM450
Diameter6" Round
Vent TypeConvertible with Kit
Duct DirectionVertical
Bulb (Recommended Type)JC G4
Manufacturer Warranty1 Year
Wattage396

Dimensions & Weight

Width30 in.
Height24 in.
Length19.75 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height29 in.
Shipping Length24.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.23 ft³
Dimensional Weight102.3 lbs.
Total of Cubes8.23 ft³
Total of Dimensional Weight102.3 lbs.
