36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series - UCB3I36SBN

This product has been discontinued by the manufacture and is no longer available.

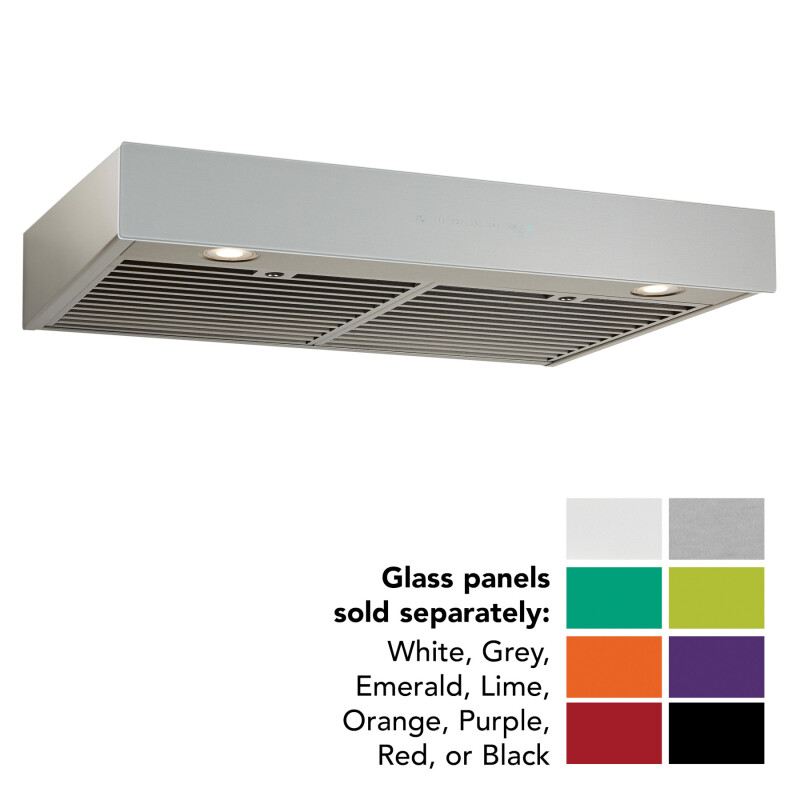

36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series

Model: UCB3I36SBN

36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN
36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN
36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN
36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN

Color : Stainless Steel

36-inch Under-Cabinet Range Hood w/ PURLED™ 550 Max Blower CFM Without Glass UCB3 Series UCB3I36SBN
Stainless Steel

Key Features

  • Hood without glass requires a front glass panel for operation sold separately

  • Width:36"

  • Depth:20 1/8"

  • Powered by internal blower system with either 550 MAX blower CFM

  • Ultra quiet 0.9 Sones at normal setting

  • 4-speed electronic controls with blue or white backlighting and 5 minute delay-off feature keeps hood running after cooking to ensure smoke & odors have cleared the environment

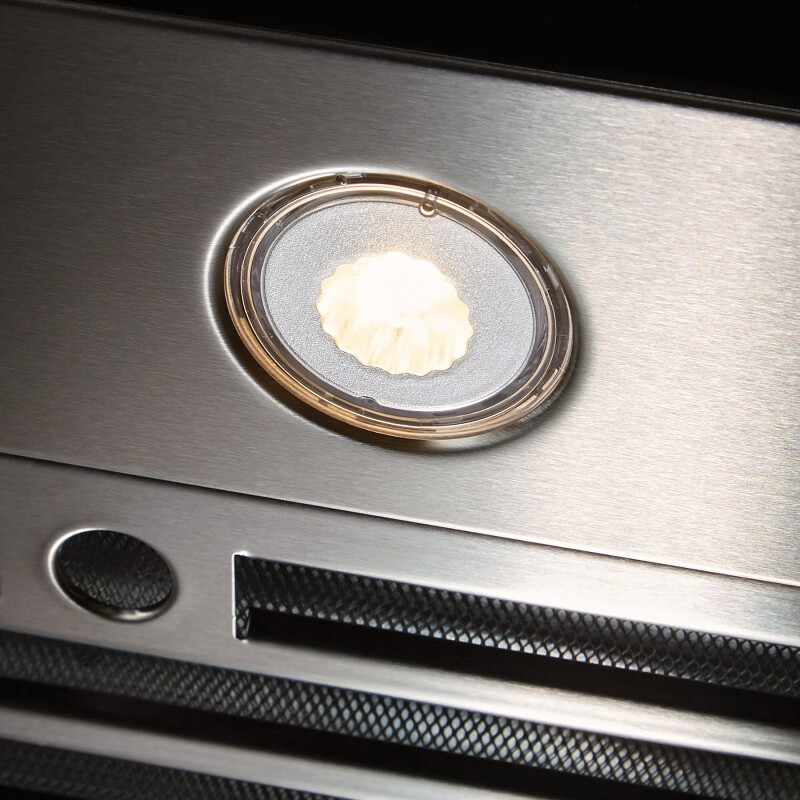

  • 2- level Exclusive PURLED LED module 3000K boosts light output by 25%, distributes light six times better and improves energy efficiency

  • Hybrid aluminum mesh & stainless steel low profile baffle filters effectively capture grease and are dishwasher safe making it easier to have a cleaner, odor-free kitchen

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Hood without glass requires a front glass panel for operation sold separately

Width:36"

Depth:20 1/8"

Powered by internal blower system with either 550 MAX blower CFM

Ultra quiet 0.9 Sones at normal setting

4-speed electronic controls with blue or white backlighting and 5 minute delay-off feature keeps hood running after cooking to ensure smoke & odors have cleared the environment

2- level Exclusive PURLED LED module 3000K boosts light output by 25%, distributes light six times better and improves energy efficiency

Hybrid aluminum mesh & stainless steel low profile baffle filters effectively capture grease and are dishwasher safe making it easier to have a cleaner, odor-free kitchen

Heat Sentry detects excessive heat and adjusts blower speed to high automatically to prolong product life by reducing damaging effects of high temperatures

3 1/4 x 10 H-V duct connector with backdraft damper

ENERGY STAR rated for optimum energy savings in ducted applications -- good for the environment, good for your pocket

Code Ready Technology provides capability to reduce CFM level to 300 CFM to address local codes or make-up air requirements

Modern design with choice of standard white, grey and black glass colors or interchangeable optional color panels to help personalized your kitchen decor

Certifications

ENERGY STAR certification

ENERGY STAR

Specifications

Warranty

Parts5 Year
Labor2 Year

Other

FinishStainless Steel
Sound Level (Sones)0.9
Max Blower CFM550
Lighting TypeLED
Lighting Level3
Light Bulbs IncludedYes
Control TypeInfrared
Speed Levels4
Filter TypeStainless Steel Baffle
Remote Operation CapableNo
Manufacturer Warranty5 Year Parts/2 Year Labor

Dimensions & Weight

Width35.88 in.
Height5 in.
Length20.12 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width40.88 in.
Shipping Height10 in.
Shipping Length25.12 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement2.09 ft³
Dimensional Weight25.97 lbs.
Total of Cubes2.09 ft³
Total of Dimensional Weight25.97 lbs.
