Elite 30-Inch Convertible Under-Cabinet Range Hood - TEN130BL

BroanBroan brand logo
This product has been discontinued by the manufacture and is no longer available.

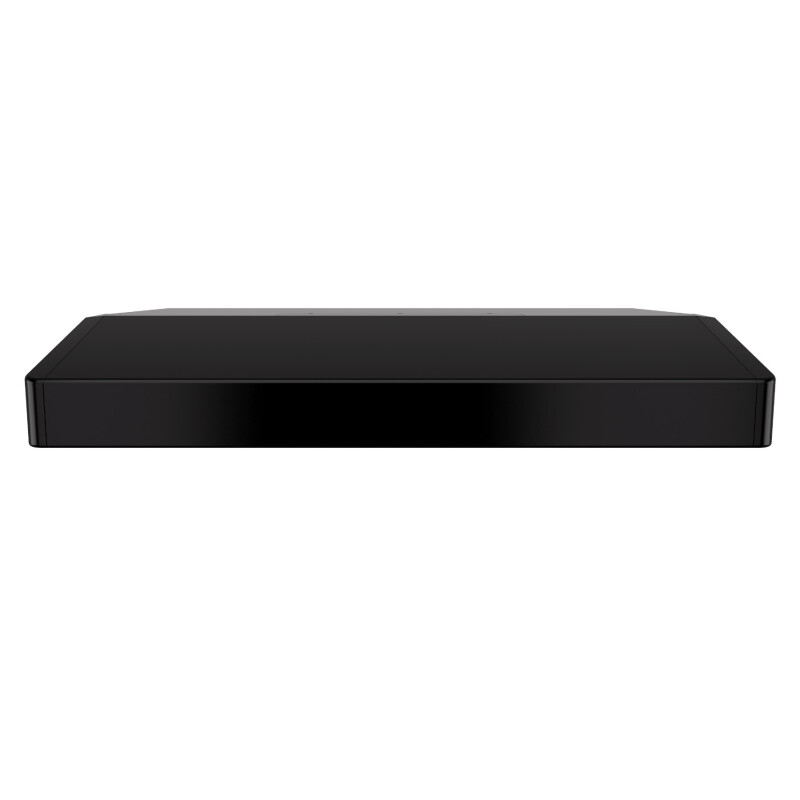

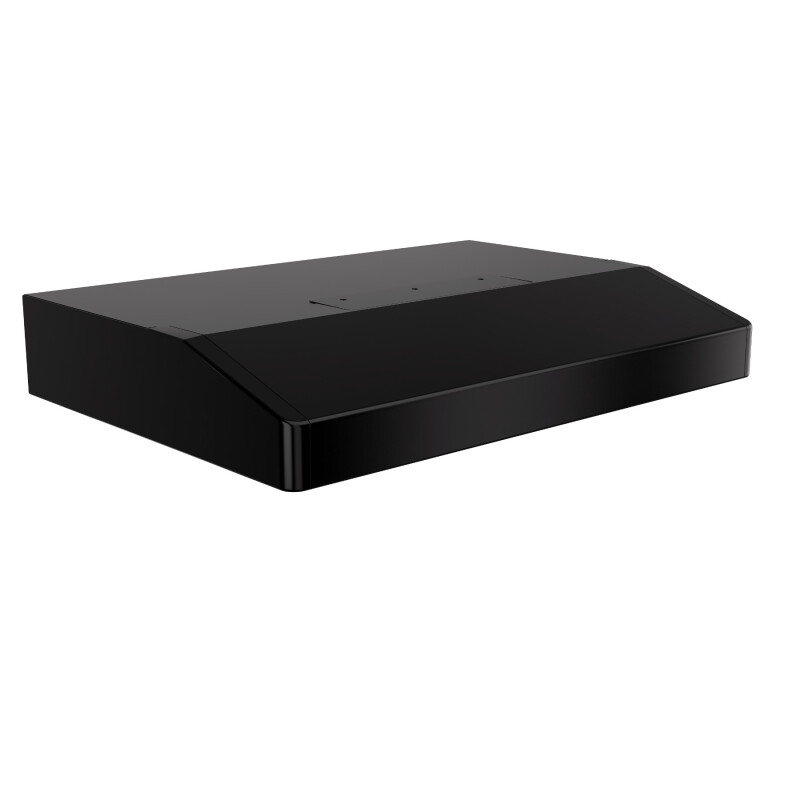

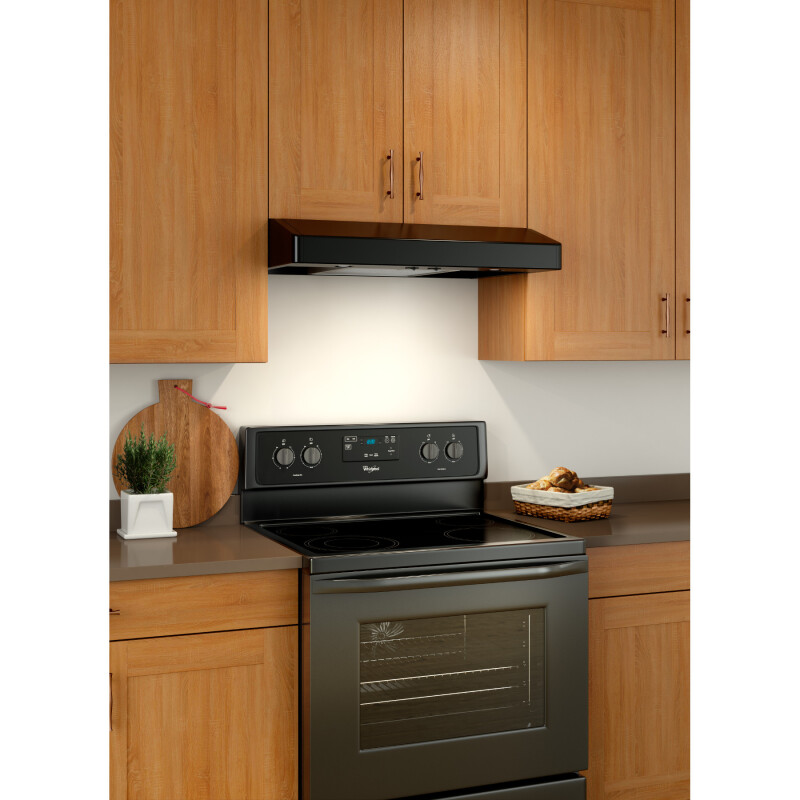

Elite 30-Inch Convertible Under-Cabinet Range Hood

Model: TEN130BL

Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BLElite 30-Inch Convertible Under-Cabinet Range Hood TEN130BLElite 30-Inch Convertible Under-Cabinet Range Hood TEN130BLElite 30-Inch Convertible Under-Cabinet Range Hood TEN130BLElite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL
Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL
Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL
Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL
Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL
Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL

Color : Black

Elite 30-Inch Convertible Under-Cabinet Range Hood TEN130BL
Black

Key Features

  • UL Listed

  • Model replaced BNSC130BL

  • The Captur system"s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM

  • Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sones operation at normal speed

  • Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination. (50W bulbs sold separately.)

  • Hidden on/off rocker switches controls two blower speeds and light levels

  • Large dishwasher-safe, single open mesh filter provides efficient grease removal

  • ADA compliant, remote operation is possible using a standard UL approved wall switch.

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

UL Listed

Model replaced BNSC130BL

The Captur system"s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM

Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sones operation at normal speed

Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination. (50W bulbs sold separately.)

Hidden on/off rocker switches controls two blower speeds and light levels

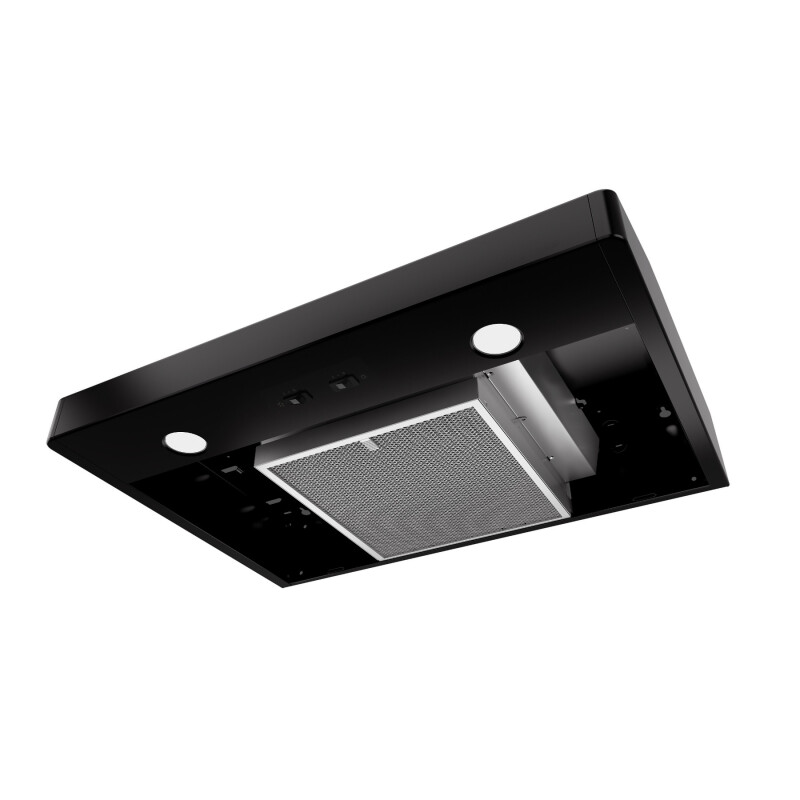

Large dishwasher-safe, single open mesh filter provides efficient grease removal

ADA compliant, remote operation is possible using a standard UL approved wall switch.

Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry

Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)

UL Listed

Certifications

UL Listed certification

UL Listed

Specifications

Other

Filter TypeOpen Mesh
Heat Sentry™No
HVI CertifiedYes
Lighting TypeHalogen
Sound Level (Sones)1.5
Light Levels2
MaterialSteel
Switch Control TypeRocker
Rated Voltage120
Country of OriginMexico
Rated Amps1.4
Capture Efficiency97.4
CFM250
Diameter7" Round
Vent TypeConvertible Built-In
Duct DirectionHorizontal/Vertical
Bulb (Recommended Type)MR16 or PAR16
Manufacturer Warranty1 Year
Wattage168

Dimensions & Weight

Width30 in.
Height5 in.
Length21.13 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height10 in.
Shipping Length26.13 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.83 ft³
Dimensional Weight22.8 lbs.
Total of Cubes1.83 ft³
Total of Dimensional Weight22.8 lbs.
