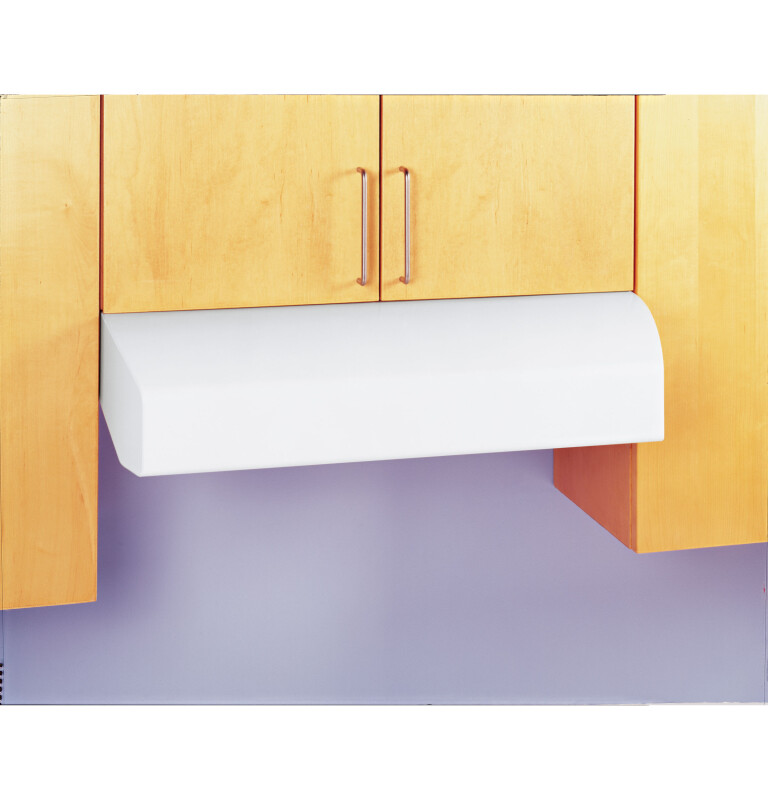

Series 30" High Performance Range Hood - JV635HWW
Series 30" High Performance Range Hood
Model: JV635HWW
Series 30" High Performance Range Hood
Model: JV635HWW
Color : White on White
Replaced By
Key Features
Vented
Vertical and rear exhaust
Four-speed fan control
Halogen cooktop light
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Vented
Channels exhaust from the kitchen to the outside of the home
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
Halogen cooktop light
Illuminates the cooking surface
Certifications
AHAM
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Overall Depth | 20 in |
| Net Weight | 24 lb |
| Approximate Shipping Weight | 31 lb |
| Overall Height | 4 3/4 in |
| Overall Width | 29 7/8 in |
FEATURES
| Fan Speed Control | 4-Speed |
| Cooktop Lighting | Dual Halogen |
| Max CFM | 390 |
| Ducting | 3-Way |
| Light Controls | Off/High/Night |
| Filter Cleaning | Dishwasher Safe |
| Fan Controls | Knob |
| CFM/ Sones Rating | 390/ 7.0 (Top Round High Speed) |
| LED Indicators | "On" |
| Control Location | Hidden |
| Removable Grease Filter(s) | Designer |
| CFM/ Sones Rating | 150/ 1.0 (Top Rectangular Working Speed) |
| CFM/ Sones Rating | 380/ 7.5 (Back Rectangular High Speed) |
| CFM/ Sones Rating | 150/ 1.0 (Back Rectangular Working Speed) |
| CFM/ Sones Rating | 160/ 0.8 (Top Round Working Speed Speed) |
| CFM/ Sones Rating | 350/ 8.5 (Top Rectangular High Speed) |
APPEARANCE
| Blower / Light Switch Color | White |
| Color Appearance | White on White |
ACCESSORIES
| Optional Damper Accessory (Round) | JXDA22 |
POWER / RATINGS
| Amp Rating at 120V | 2.5 |
ECONOMICAL / QUIET
| Venting Type | Externally Vented |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 4.75 in. |
| Length | 20 in. |
| Weight | 24 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 9.75 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 64 lbs. |
| Total of Shipping Weight | 64 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.64 ft³ |
| Dimensional Weight | 20.42 lbs. |
| Total of Cubes | 1.64 ft³ |
| Total of Dimensional Weight | 20.42 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
