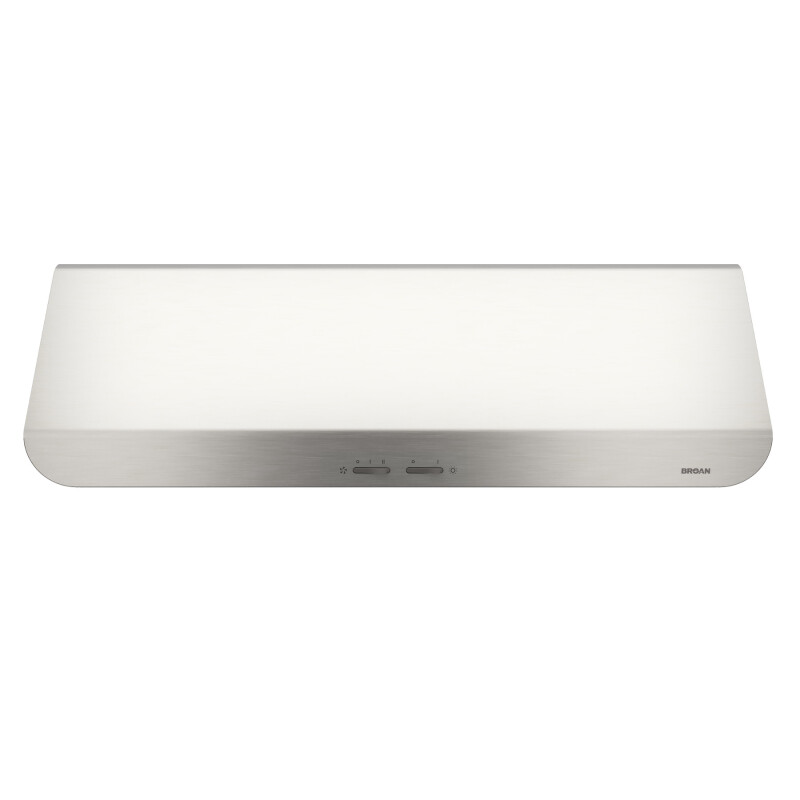

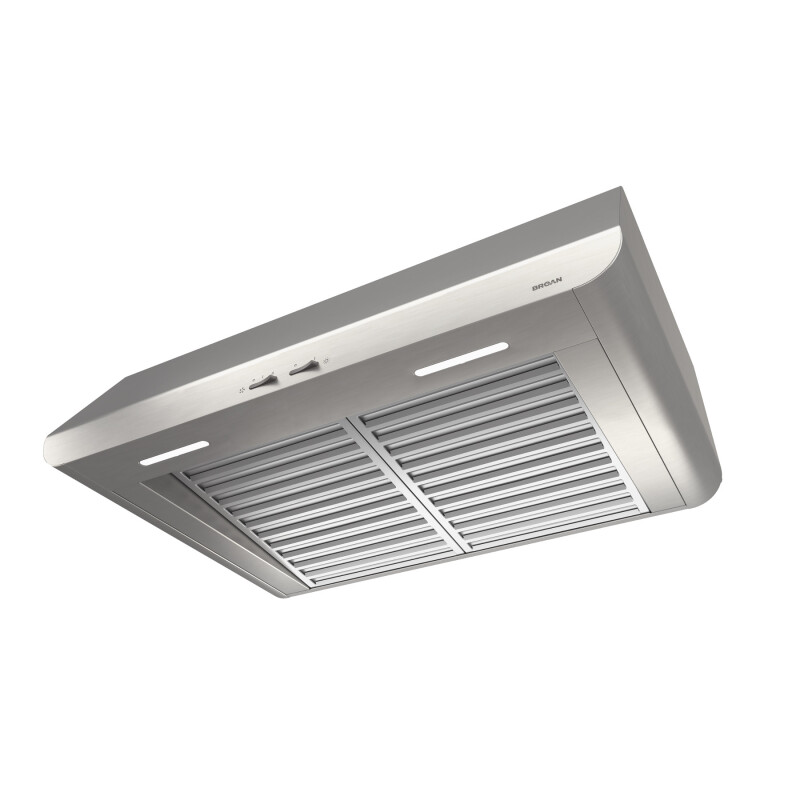

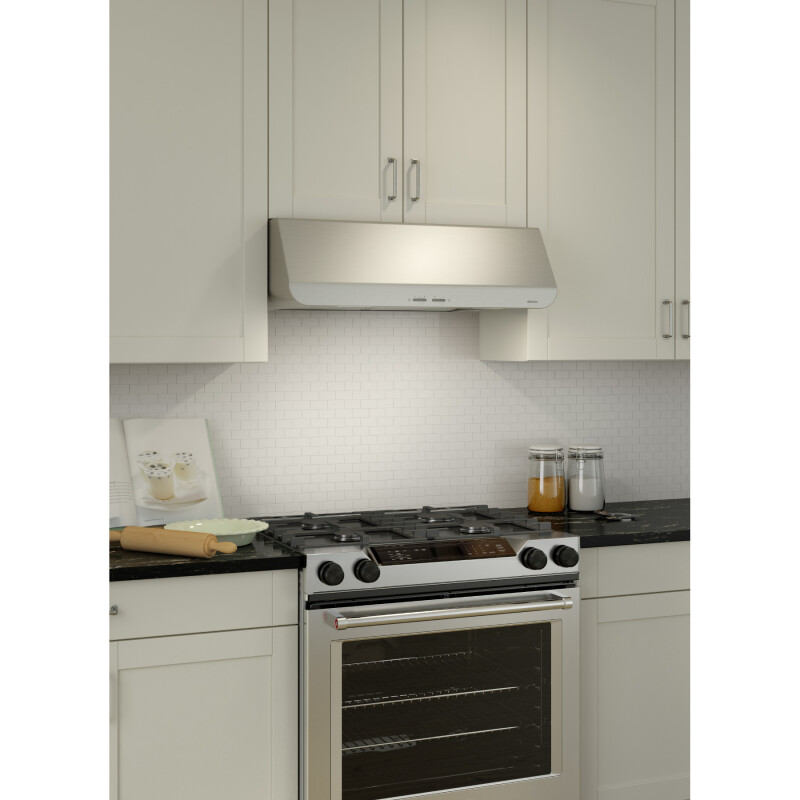

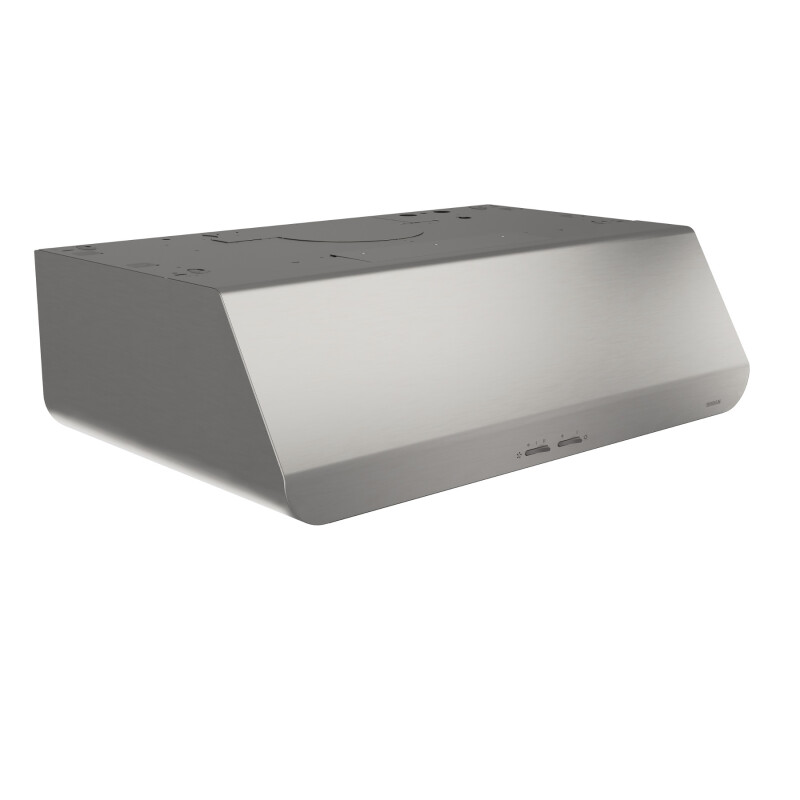

Spire 30-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM - BPDP130SS
Spire 30-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM
Model: BPDP130SS










Spire 30-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM
Model: BPDP130SS
Key Features
UL Listed
HVI Certified
The Captur system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
450 Max blower CFM operates at 1.0 sones at normal speed
Bright, single intensity LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Streamlined, deluxe rocker control operates light and fan speeds
Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow
EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
UL Listed
HVI Certified
The Captur system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
450 Max blower CFM operates at 1.0 sones at normal speed
Bright, single intensity LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Streamlined, deluxe rocker control operates light and fan speeds
Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow
EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch
Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
Ductless capable with use of charcoal filters, sold separately
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
1-Person Installation in Half the Time
HVI Certified
UL Listed
Certifications
HVI Certified
UL Listed
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Filter Type | Hybrid Baffle |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 0.4 |
| Light Bulb Wattage | 4.5 |
| Light Levels | 1 |
| Material | Steel |
| Speed Levels | 2 |
| Switch Control Type | Deluxe Rocker |
| Rated Voltage | 120 |
| Country of Origin | Mexico |
| Rated Amps | 1.4 |
| Capture Efficiency | 98.5 |
| CFM | 450 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 168 |
Dimensions & Weight
| Width | 30 in. |
| Height | 9 in. |
| Length | 19.25 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 14 in. |
| Shipping Length | 24.25 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.01 ft³ |
| Dimensional Weight | 37.39 lbs. |
| Total of Cubes | 3.01 ft³ |
| Total of Dimensional Weight | 37.39 lbs. |
