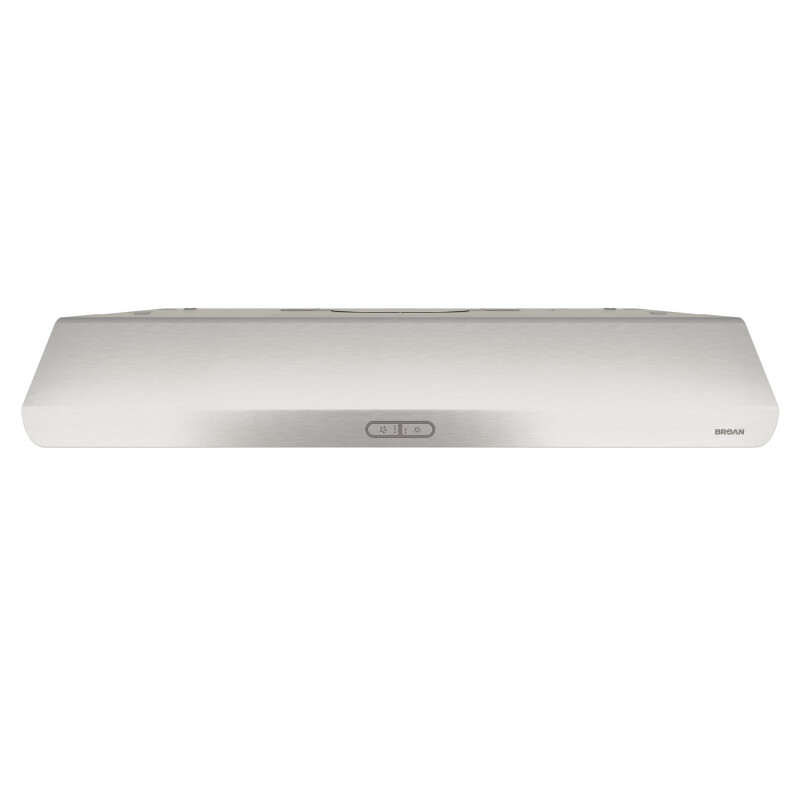

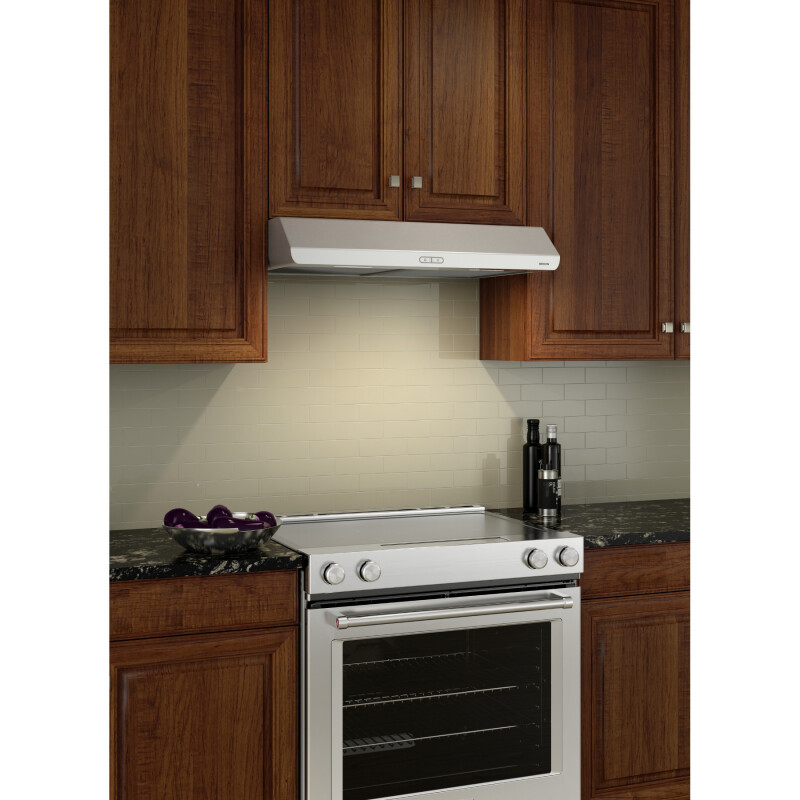

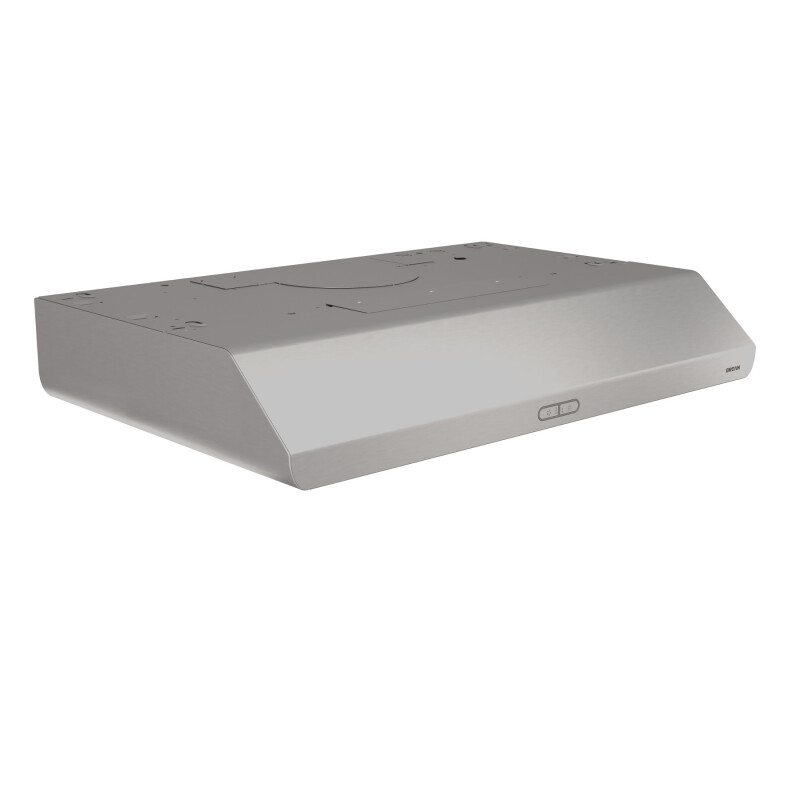

36-Inch Convertible Under-Cabinet Range Hood, 300 Max Blower CFM - BKDB136SS
36-Inch Convertible Under-Cabinet Range Hood, 300 Max Blower CFM
Model: BKDB136SS










36-Inch Convertible Under-Cabinet Range Hood, 300 Max Blower CFM
Model: BKDB136SS
Key Features
UL Listed
HVI Certified
Slim and refined lines in an under-cabinet convertible range hood for a refreshing change in today’s kitchens
Tap-touch electronic controls feature LED indicators that display fan speed, lighting levels and signal filter replacement reminders
Captur exhaust system and 300 MAX Blower CFM is 97.4% efficient in removal of smoke and odor from cooking
Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)

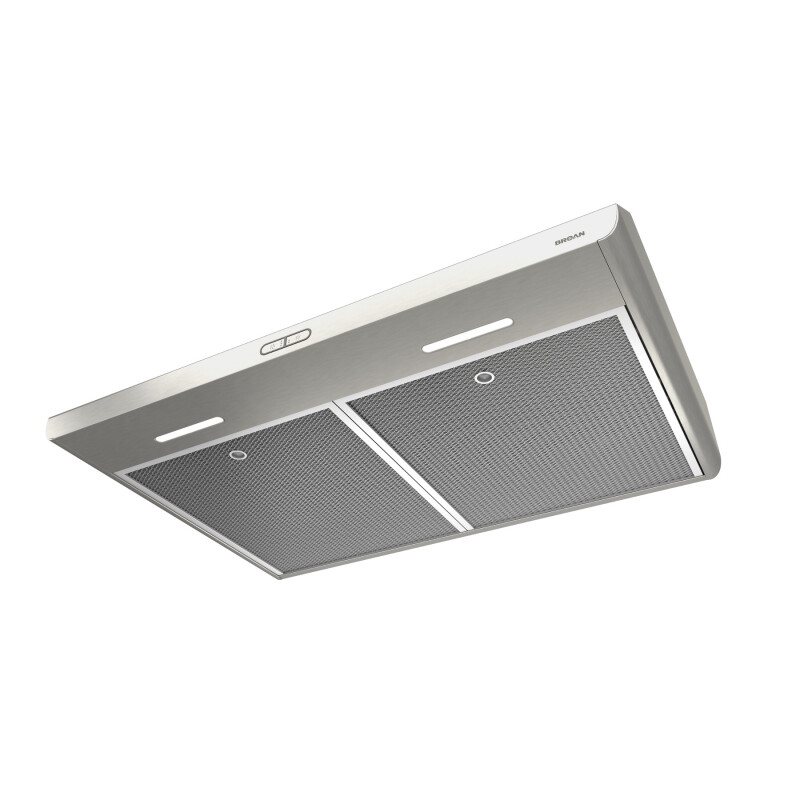

2 dishwasher-safe micro-mesh filters feature advanced high-flow technology to grab more airborne grease
Heat-resistant, 2-level LED lighting with 3-year warranty provides crisp, even light over the entire cooking surface
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
UL Listed
HVI Certified
Slim and refined lines in an under-cabinet convertible range hood for a refreshing change in today’s kitchens
Tap-touch electronic controls feature LED indicators that display fan speed, lighting levels and signal filter replacement reminders
Captur exhaust system and 300 MAX Blower CFM is 97.4% efficient in removal of smoke and odor from cooking
Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
2 dishwasher-safe micro-mesh filters feature advanced high-flow technology to grab more airborne grease
Heat-resistant, 2-level LED lighting with 3-year warranty provides crisp, even light over the entire cooking surface
EZ1 system enables easy single-person installation in up to half the time of traditional methods
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
1-year limited manufacturer’s warranty
1-Person Installation in Half the Time
HVI Certified
UL Listed
Certifications
UL Listed
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Filter Type | Micro Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.2 |
| Light Levels | 2 |
| Material | Stainless Steel |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Country of Origin | Mexico |
| Rated Amps | 0.65 |
| CFM | 300 Max |
| Diameter | 7" Round |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
Dimensions & Weight
| Width | 36 in. |
| Height | 5 in. |
| Length | 19.88 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 10 in. |
| Shipping Length | 24.88 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.07 ft³ |
| Dimensional Weight | 25.74 lbs. |
| Total of Cubes | 2.07 ft³ |
| Total of Dimensional Weight | 25.74 lbs. |
