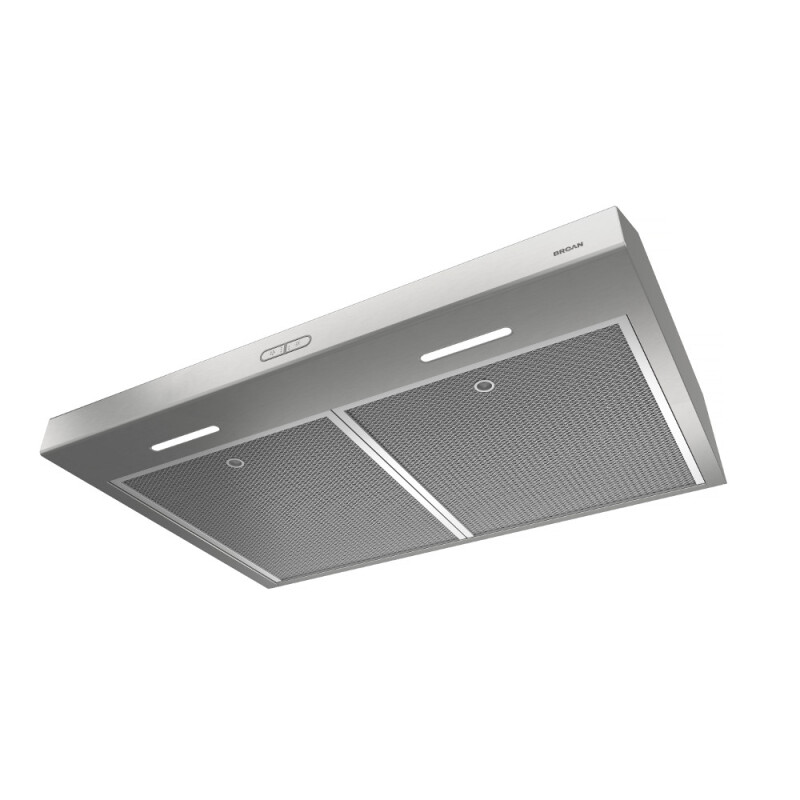

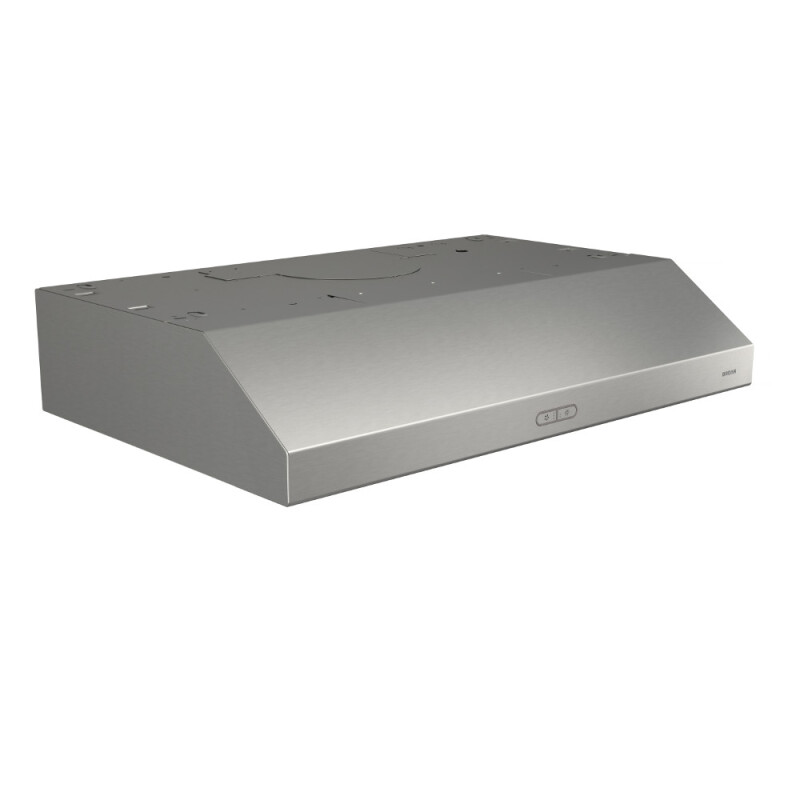

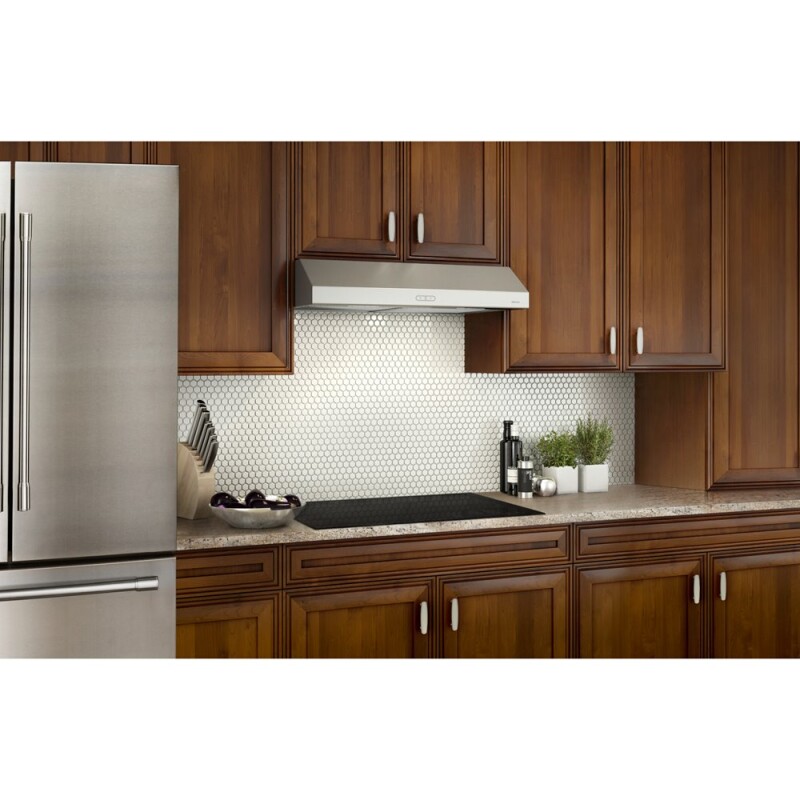

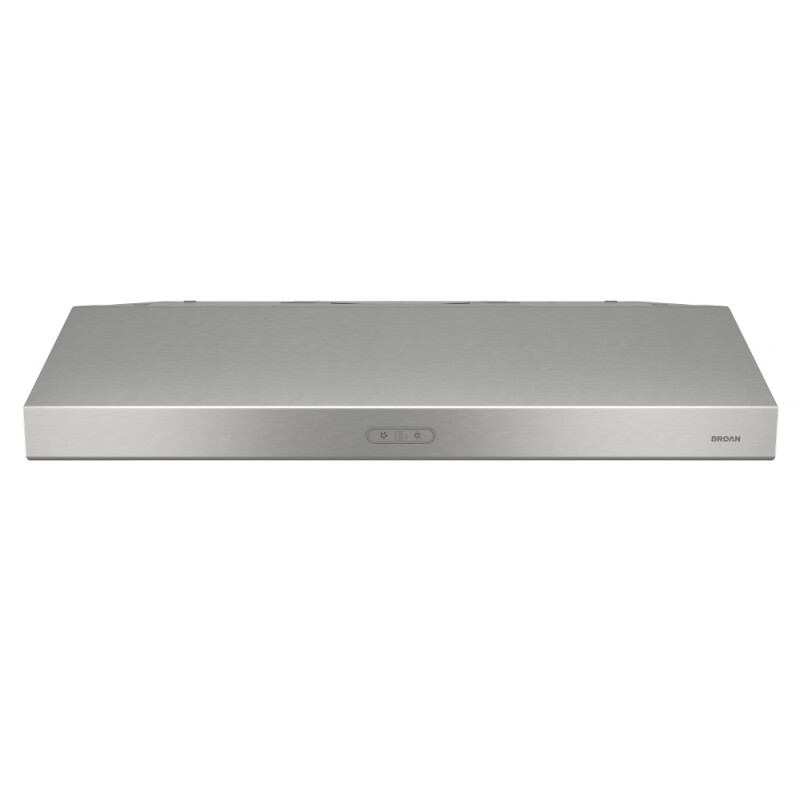

Glacier 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM - BCDF136SS
Glacier 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM
Model: BCDF136SS










Glacier 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM
Model: BCDF136SS
Key Features
HVI Certified
UL Listed
Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
Tap-touch capacitive control features a smooth, easy-to-clean surface
Captur system and 375 max blower CFM is 98.1% efficient in removal of smoke and odor from cooking
Smooth-flow blower wheel design and high flow filters ensure quiet operation, 2.0 Sones, at normal speed
Dishwasher-safe, micromesh filters with clean reminder provide efficient grease removal
Bright, 2-level LED modules are supported by a 3-year warranty and illuminate evenly (Modules included)
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
HVI Certified
UL Listed
Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
Tap-touch capacitive control features a smooth, easy-to-clean surface
Captur system and 375 max blower CFM is 98.1% efficient in removal of smoke and odor from cooking
Smooth-flow blower wheel design and high flow filters ensure quiet operation, 2.0 Sones, at normal speed
Dishwasher-safe, micromesh filters with clean reminder provide efficient grease removal
Bright, 2-level LED modules are supported by a 3-year warranty and illuminate evenly (Modules included)
Hidden louvers on top of hood exhaust away from cabinetry
EZ1 system makes it easy for single-person installation in less than half the time of traditional methods
Limited 1 year warranty
Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
Non-duct capable with use of charcoal filters (model HPF36 [service part #S97020467]), sold separately
Comparable to NuTone model AHDA136SS
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
1-Person Installation in Half the Time
HVI Certified
UL Listed
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Filter Type | Micro Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| Light Bulb Wattage | 4.5 |
| Light Levels | 2 |
| Material | Steel |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Rated Amps | 0.65 |
| Capture Efficiency | 98.1 |
| CFM | 375 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
Dimensions & Weight
| Width | 36 in. |
| Height | 6 in. |
| Length | 19.63 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 11 in. |
| Shipping Length | 24.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.45 ft³ |
| Dimensional Weight | 30.5 lbs. |
| Total of Cubes | 2.45 ft³ |
| Total of Dimensional Weight | 30.5 lbs. |
