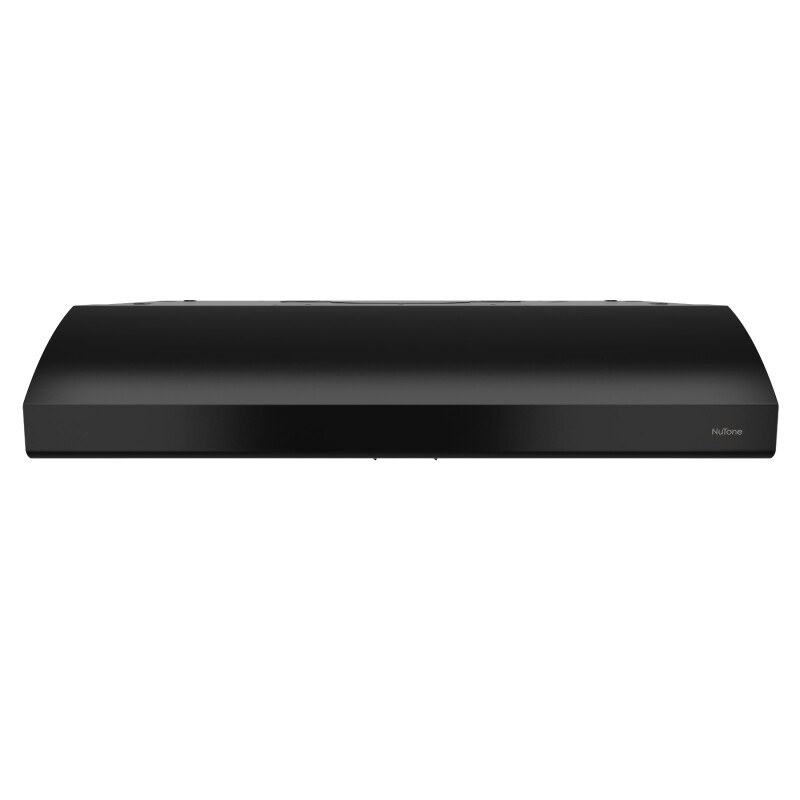

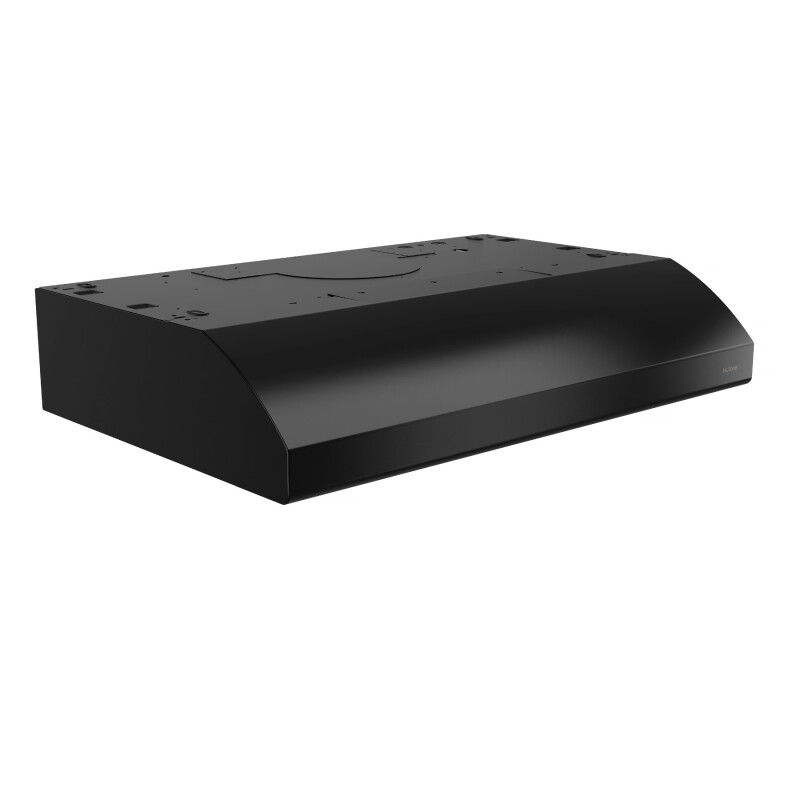

NuTone 30-Inch Convertible Under-Cabinet Range Hood, 250 CFM - AHSA130BL
NuTone 30-Inch Convertible Under-Cabinet Range Hood, 250 CFM
Model: AHSA130BL










NuTone 30-Inch Convertible Under-Cabinet Range Hood, 250 CFM
Model: AHSA130BL
Key Features
HVI Certified
UL Listed
Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
Hidden rocker switches adjust fan speed and lighting levels
Quiet operation at both high and low speeds
Captur exhaust system and 250 CFM blower is up to 97.4% efficient in removal of smoke and odor from cooking
Convertible to accommodate either top or rear venting applications, or non-ducted operation using charcoal filters, which are sold separately (Filter Model S97020464)

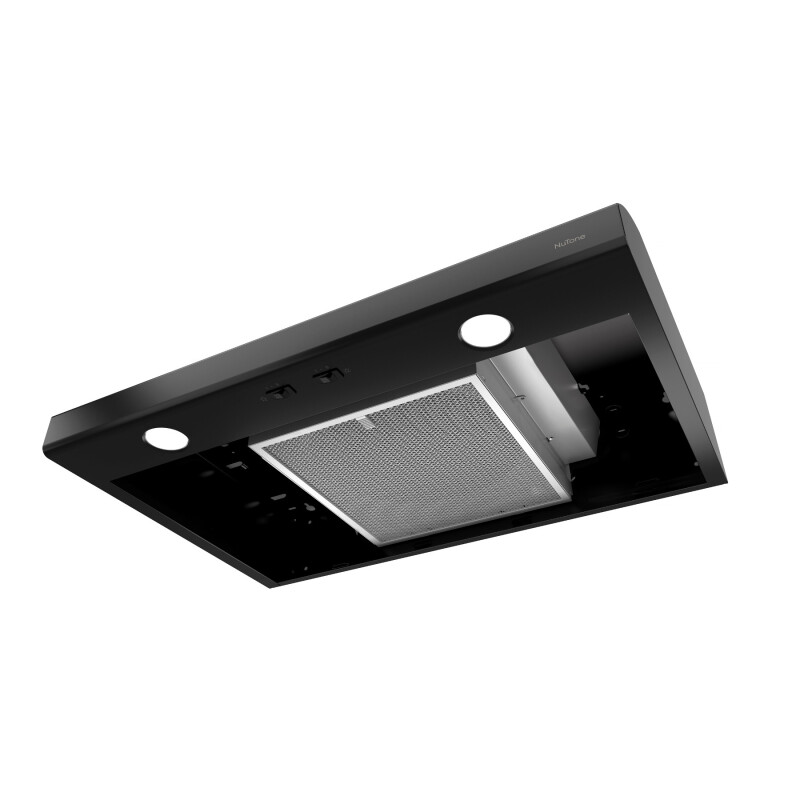

Dishwasher-safe open mesh filter features high-flow technology to grab more airborne grease
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
HVI Certified
UL Listed
Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
Hidden rocker switches adjust fan speed and lighting levels
Quiet operation at both high and low speeds
Captur exhaust system and 250 CFM blower is up to 97.4% efficient in removal of smoke and odor from cooking
Convertible to accommodate either top or rear venting applications, or non-ducted operation using charcoal filters, which are sold separately (Filter Model S97020464)
Dishwasher-safe open mesh filter features high-flow technology to grab more airborne grease
2 halogen bulbs, included, provide warm light over the cook surface, adjustable to high or low levels
Hidden louvers on top of hood exhaust away from cabinetry

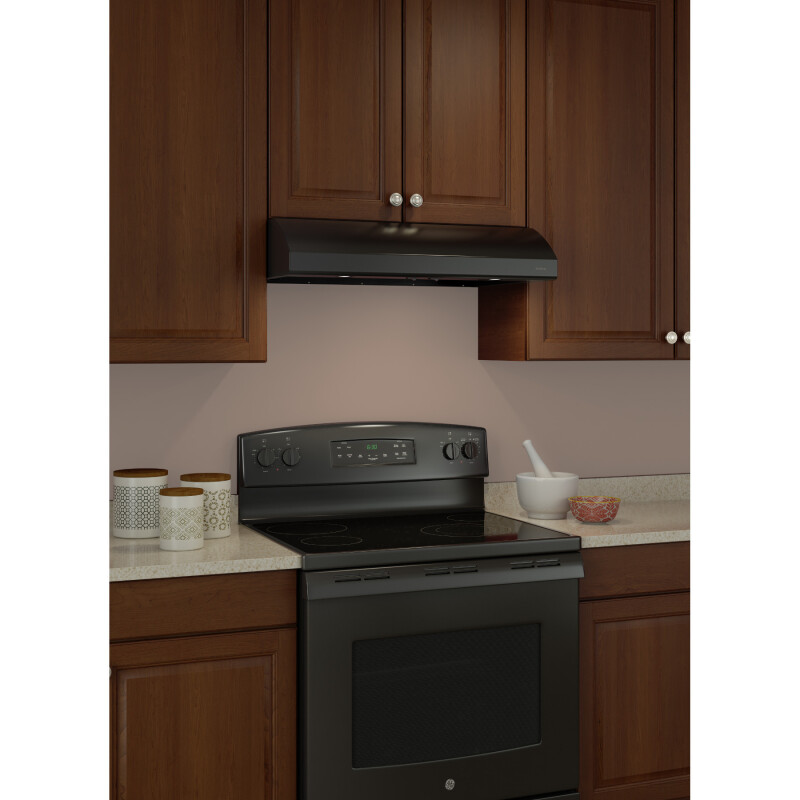

Open-bottom, under-cabinet convertible range hood features stylish, curved design and hidden controls to blend neatly into any kitchen
1-year limited manufacturer’s warranty
Non-duct capable with use of charcoal filters (NuTone model HPF1 sold separately)
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
HVI Certified
UL Listed
Certifications
HVI Certified
UL Listed
Specifications
Other
| Filter Type | Open Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| Sound Level (Sones) | 1.5 |
| Light Bulb Wattage | 50 |
| Light Levels | 2 |
| Material | Steel |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Country of Origin | Mexico |
| Rated Amps | 1.4 |
| Capture Efficiency | 97.4 |
| CFM | 250 |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | GU10 MR16 |
| Manufacturer Warranty | 1 year |
Dimensions & Weight
| Width | 30 in. |
| Height | 6 in. |
| Length | 19.63 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 11 in. |
| Shipping Length | 24.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.04 ft³ |
| Dimensional Weight | 25.41 lbs. |
| Total of Cubes | 2.04 ft³ |
| Total of Dimensional Weight | 25.41 lbs. |
