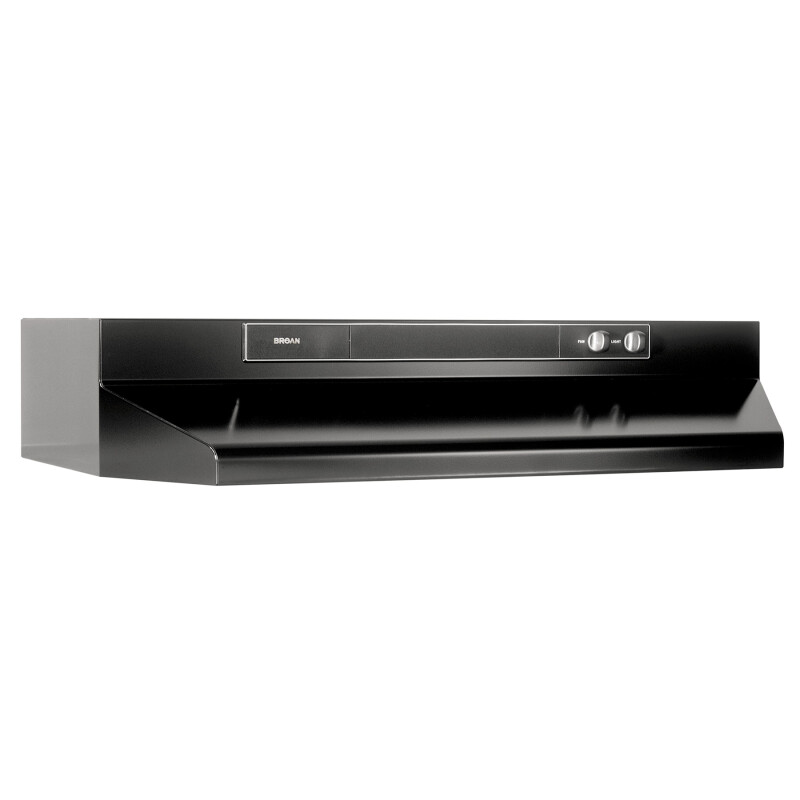

30-Inch Convertible Under-Cabinet Range Hood, 220 CFM - 463023
30-Inch Convertible Under-Cabinet Range Hood, 220 CFM
Model: 463023
30-Inch Convertible Under-Cabinet Range Hood, 220 CFM
Model: 463023
Color : Black
Key Features
Install as ducted or non-ducted to fit a variety of installation needs
220 CFM blower helps quickly remove smoke and cooking odors from the air
Top or rear exhaust option lets you connect the ductwork to suit your installation requirement
75-Watt cooktop lighting with protective polymeric lens for easy cooktop viewing (bulb not included)

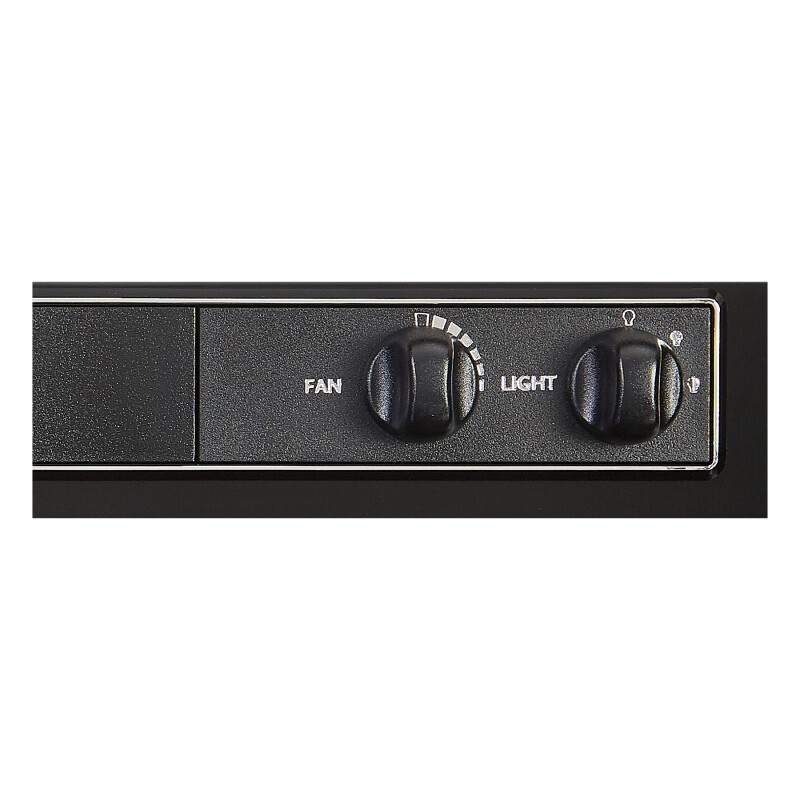

Rotary dial controls for easy operation
Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation
Mitered sides and hemmed bottom for safety and good looks
One year limited warranty
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Install as ducted or non-ducted to fit a variety of installation needs
220 CFM blower helps quickly remove smoke and cooking odors from the air
Top or rear exhaust option lets you connect the ductwork to suit your installation requirement
75-Watt cooktop lighting with protective polymeric lens for easy cooktop viewing (bulb not included)
Rotary dial controls for easy operation
Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation
Mitered sides and hemmed bottom for safety and good looks
One year limited warranty

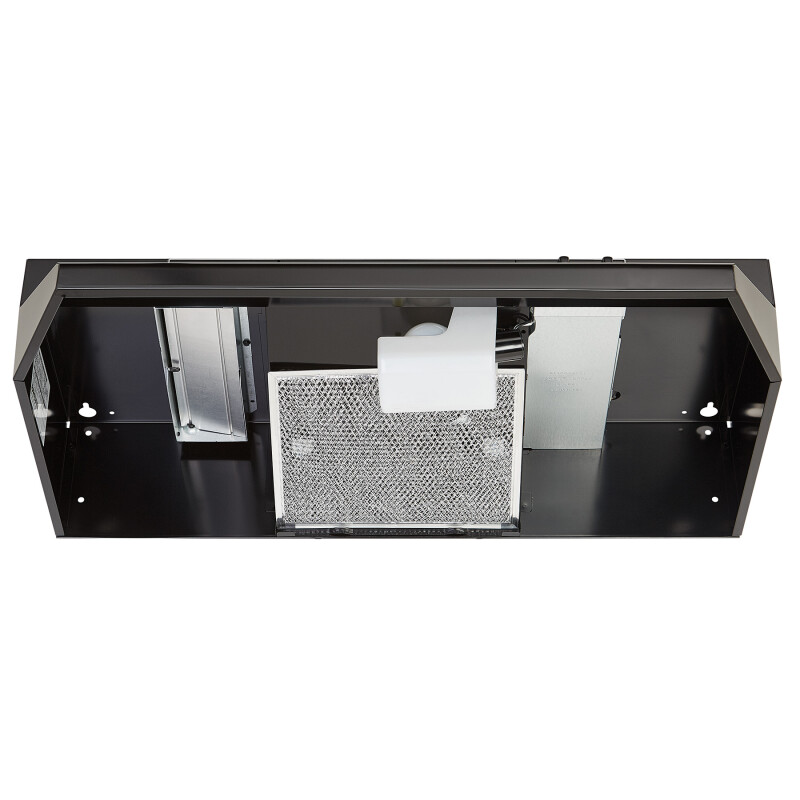

Reusable aluminum mesh filter is dishwasher safe for easy cleaning
UL listed and HVI-2100 certified for your safety and protection
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Specifications
Other
| Filter Type | Aluminum |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| Light Levels | 2 |
| Material | Steel |
| Speed Levels | Variable |
| Switch Control Type | Rotary |
| Rated Voltage | 120 |
| Country of Origin | United States |
| Rated Amps | 2.5 |
| CFM | 220 |
| Diameter | 7" Round |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 Year |
| Wattage | 300 |
| Sound Level (Sones) | 7.5 |
| Color Finish | Black |
Dimensions & Weight
| Width | 30 in. |
| Height | 6 in. |
| Length | 17.5 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 11 in. |
| Shipping Length | 22.5 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.82 ft³ |
| Dimensional Weight | 22.66 lbs. |
| Total of Cubes | 1.82 ft³ |
| Total of Dimensional Weight | 22.66 lbs. |
