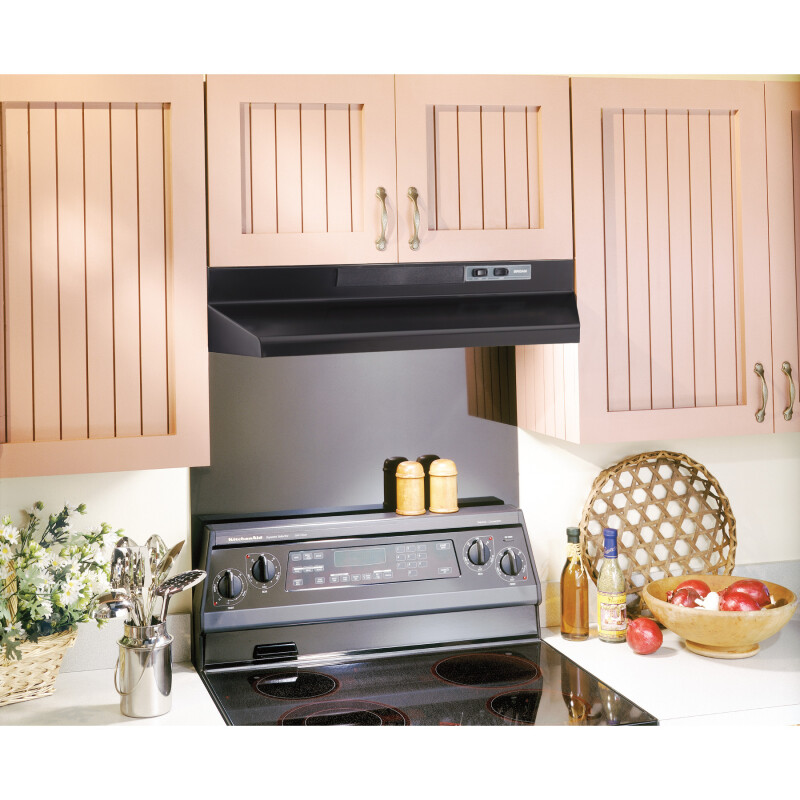

30-Inch Convertible Under-Cabinet Range Hood - 433023
30-Inch Convertible Under-Cabinet Range Hood
Model: 433023
30-Inch Convertible Under-Cabinet Range Hood
Model: 433023
Color : Black
Key Features
UL Listed
HVI Certified
Convertible range hood can be installed as ducted or ductless to fit a variety of installation needs
2-speed rocker fan switch and separate rocker light switch
220 CFM blower to quickly pull smoke and cooking odors out of the air
Removable and reusable grease filter makes cleanup a breeze
Utilizes a 75-Watt light (bulb not included) for improved cooktop visibility
Suited for under-cabinet installation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
UL Listed
HVI Certified
Convertible range hood can be installed as ducted or ductless to fit a variety of installation needs
2-speed rocker fan switch and separate rocker light switch
220 CFM blower to quickly pull smoke and cooking odors out of the air
Removable and reusable grease filter makes cleanup a breeze
Utilizes a 75-Watt light (bulb not included) for improved cooktop visibility
Suited for under-cabinet installation
This range hood can work in an ADA-compliant application
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
HVI Certified
UL Listed
Specifications
Other
| Filter Type | Aluminum w/ Light Lens |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| Sound Level (Sones) | 7 |
| Light Levels | 1 |
| Material | Steel |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 115 |
| Country of Origin | Mexico |
| Rated Amps | 1.8 |
| CFM | 220 |
| Diameter | 7" Round |
| Vent Type | Convertible |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 Year |
| Wattage | 207 |
Dimensions & Weight
| Width | 30 in. |
| Height | 6 in. |
| Length | 17.5 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 11 in. |
| Shipping Length | 22.5 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.82 ft³ |
| Dimensional Weight | 22.66 lbs. |
| Total of Cubes | 1.82 ft³ |
| Total of Dimensional Weight | 22.66 lbs. |
