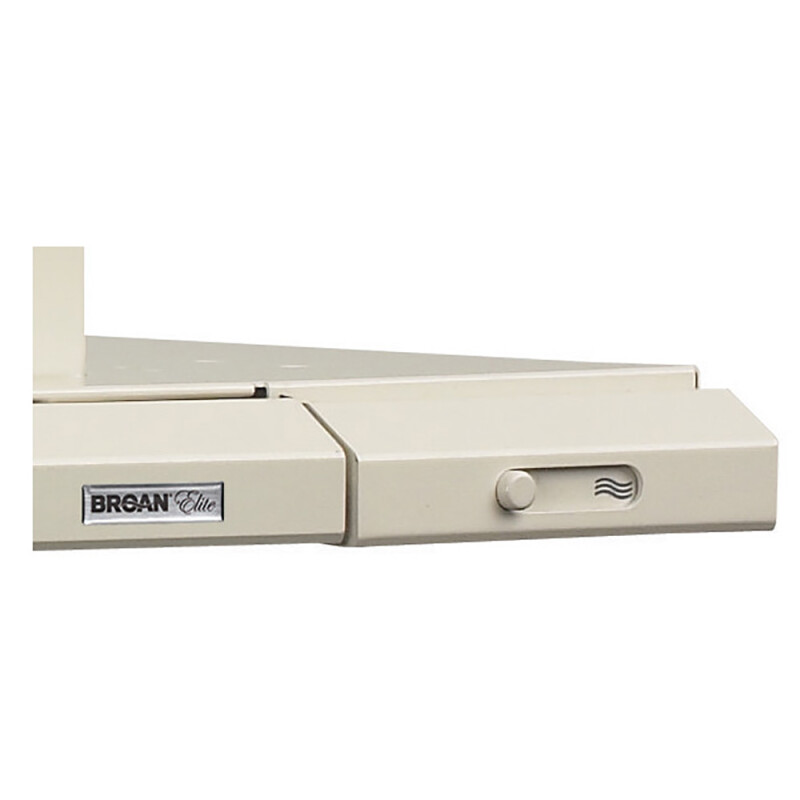

Broan Elite 36Inch UnderCabinet SlideOut Range Hood w/ Light,
Model: 153601
Color : White
Key Features
Easy to use slide control automatically recalls last setting used
Ducted vertically through 3-1/4 x 10 ductwork; Damper/duct connector included
Foam filter (included) is washable for easy maintenance
24 in. fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included)

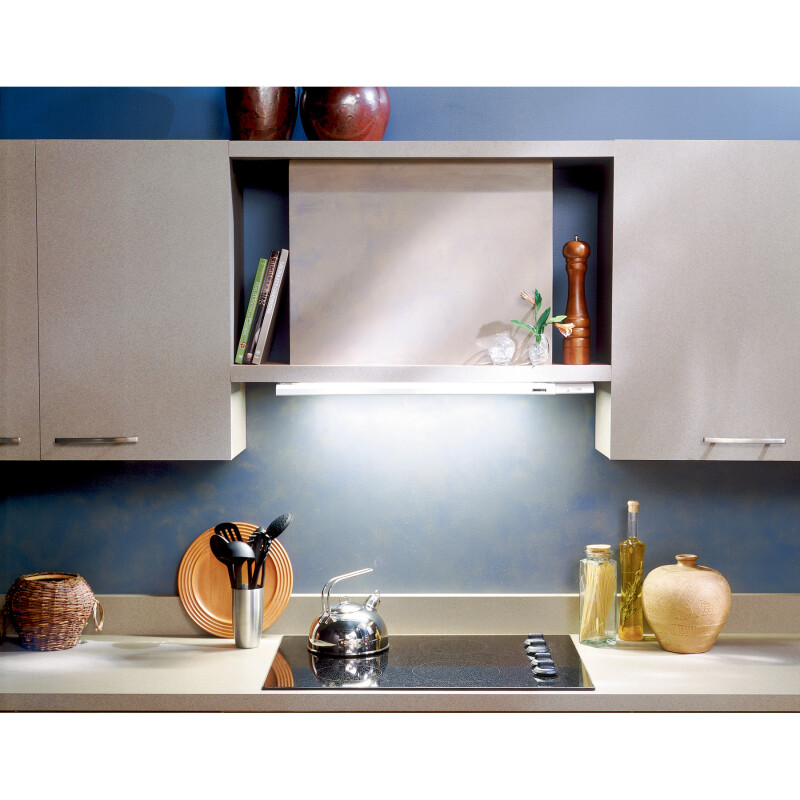

Mounts into a full sized cabinet above the cooktop with only a slim, sliding glass drawer visible
Front-mounted solid state speed control remembers last setting used; Heat Sentry® automatically turns blower on to high when excess heat is detected
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Easy to use slide control automatically recalls last setting used
Ducted vertically through 3-1/4 x 10 ductwork; Damper/duct connector included
Foam filter (included) is washable for easy maintenance
24 in. fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included)
Mounts into a full sized cabinet above the cooktop with only a slim, sliding glass drawer visible
Front-mounted solid state speed control remembers last setting used; Heat Sentry® automatically turns blower on to high when excess heat is detected
Specifications
Product Details
| Filter Type | MicroFoam |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Fluorescent |
| Sound Level (Sones) | 4.5 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | No |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | Variable |
| Rated Voltage | 120 |
| Boost Mode | No |
| Rated Amps | 3.7 |
| Product Height | 10-1/2" |
| Product Width | 36" |
| Built-In Timer | No |
| CFM | 300 |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | F20T12 Fluorescent |
| Manufacturer Warranty | 1 Year |
| Wattage | 444 |
Dimensions & Weight
| Width | 36 in. |
| Height | 10 in. |
| Length | - |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 15 in. |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
