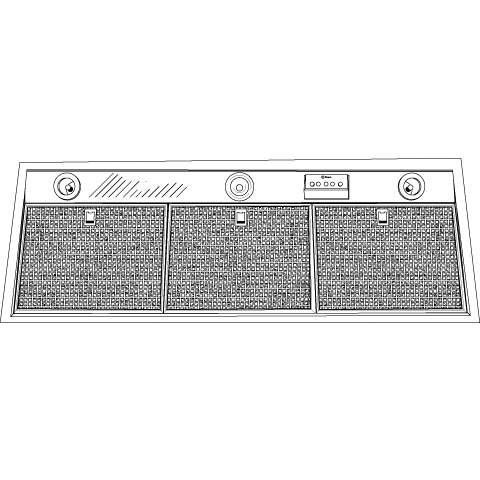

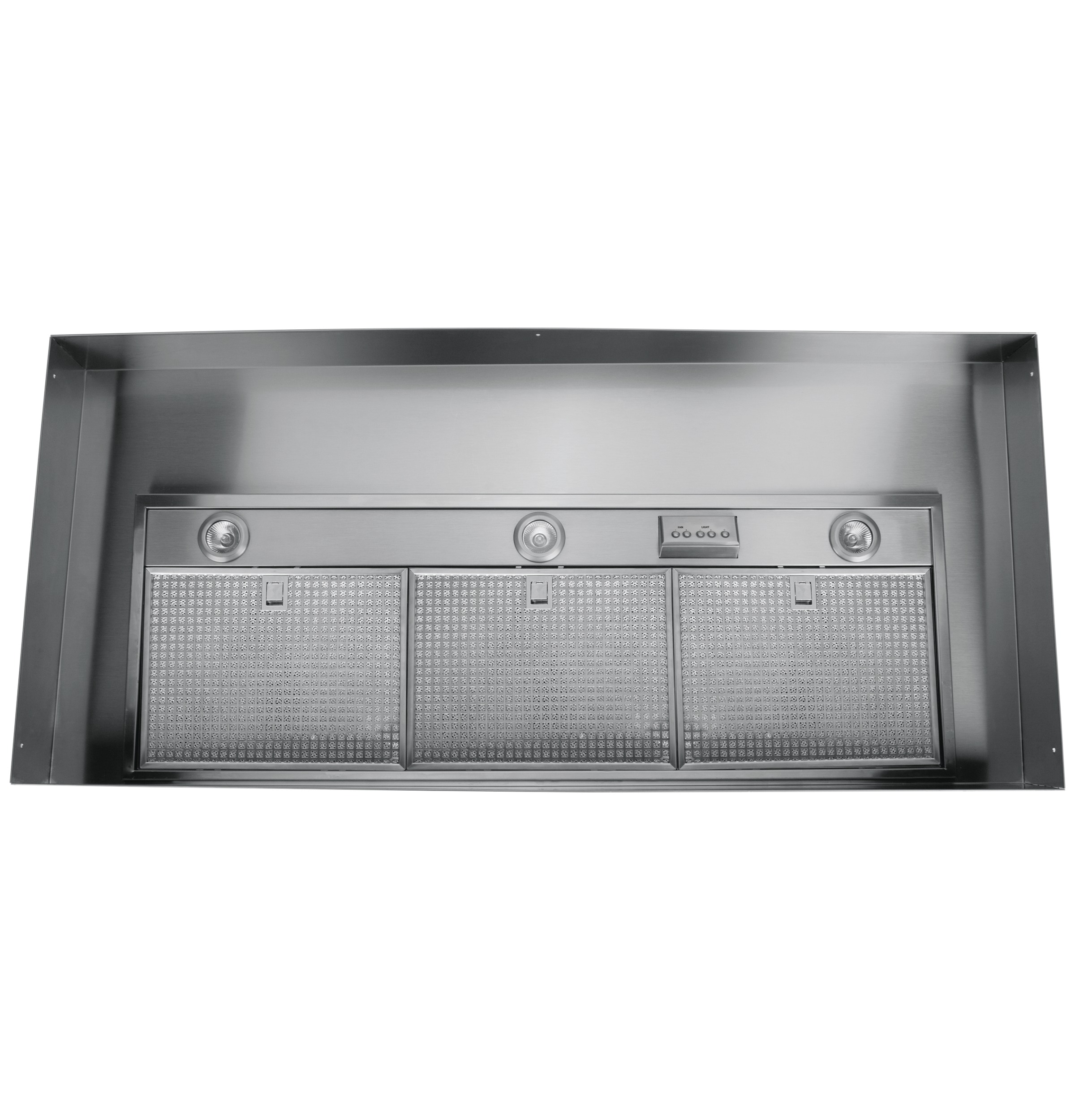

Monogram 48" Custom Hood Insert - ZVC48LSS
Monogram 48" Custom Hood Insert
Model: ZVC48LSS
Product Video
Monogram 48" Custom Hood Insert
Model: ZVC48LSS
Color : Stainless Steel
Key Features
3 Halogen Lamps
Removable Grease Trays
Control Panel with Remote-Mount Option
4 Lighting Levels
920-CFM Vertical Exhaust with Dual Blowers
Blower, liner and filters included
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features

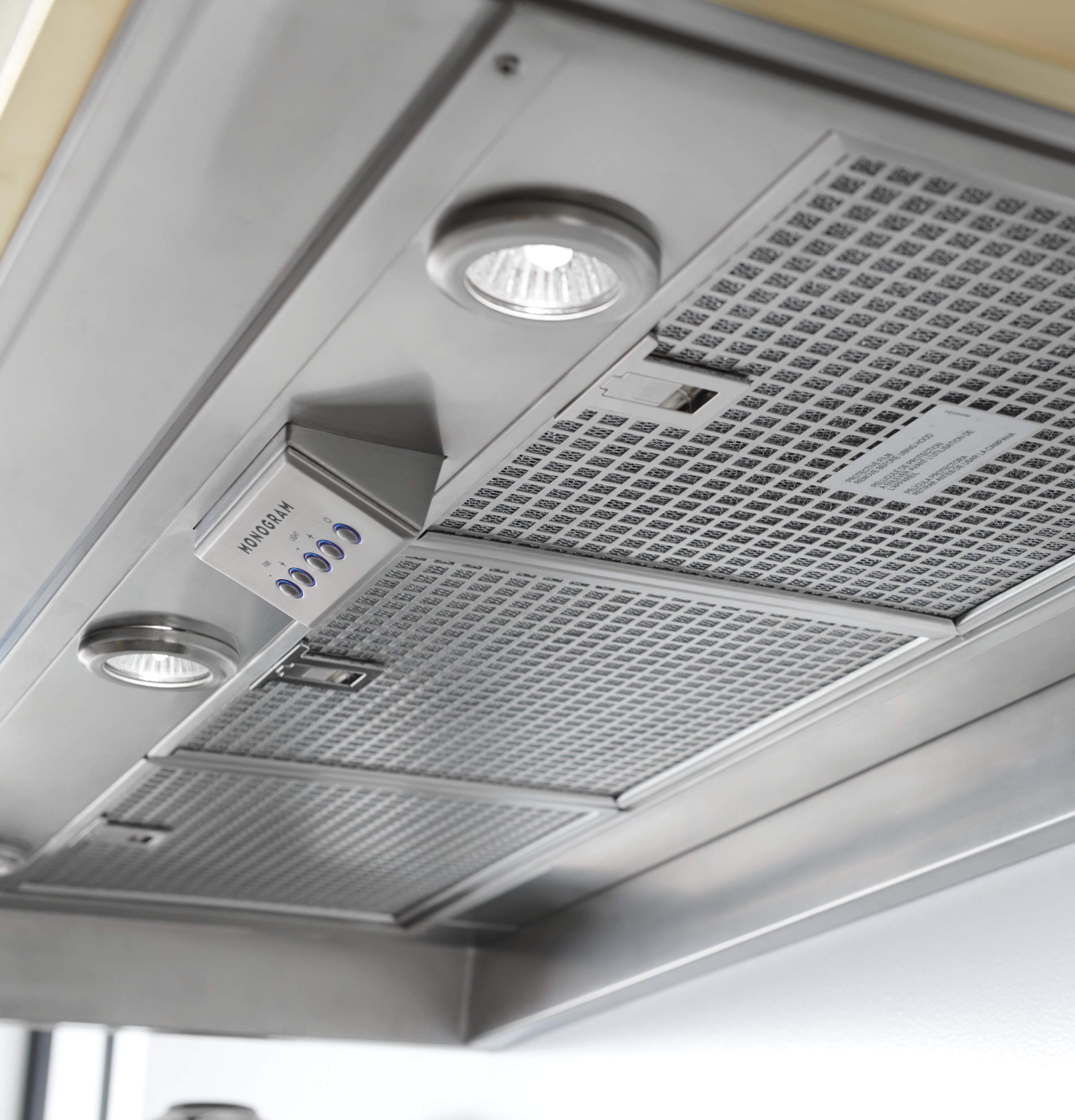

3 Halogen Lamps
Designed for maximum illumination, the three halogen lamps allow you to see your kitchen and cooking in beautifully precise detail
Removable Grease Trays
Conveniently removable for easy cleaning, Monogram hood grease trays effectively trap odor-causing, airborne particles

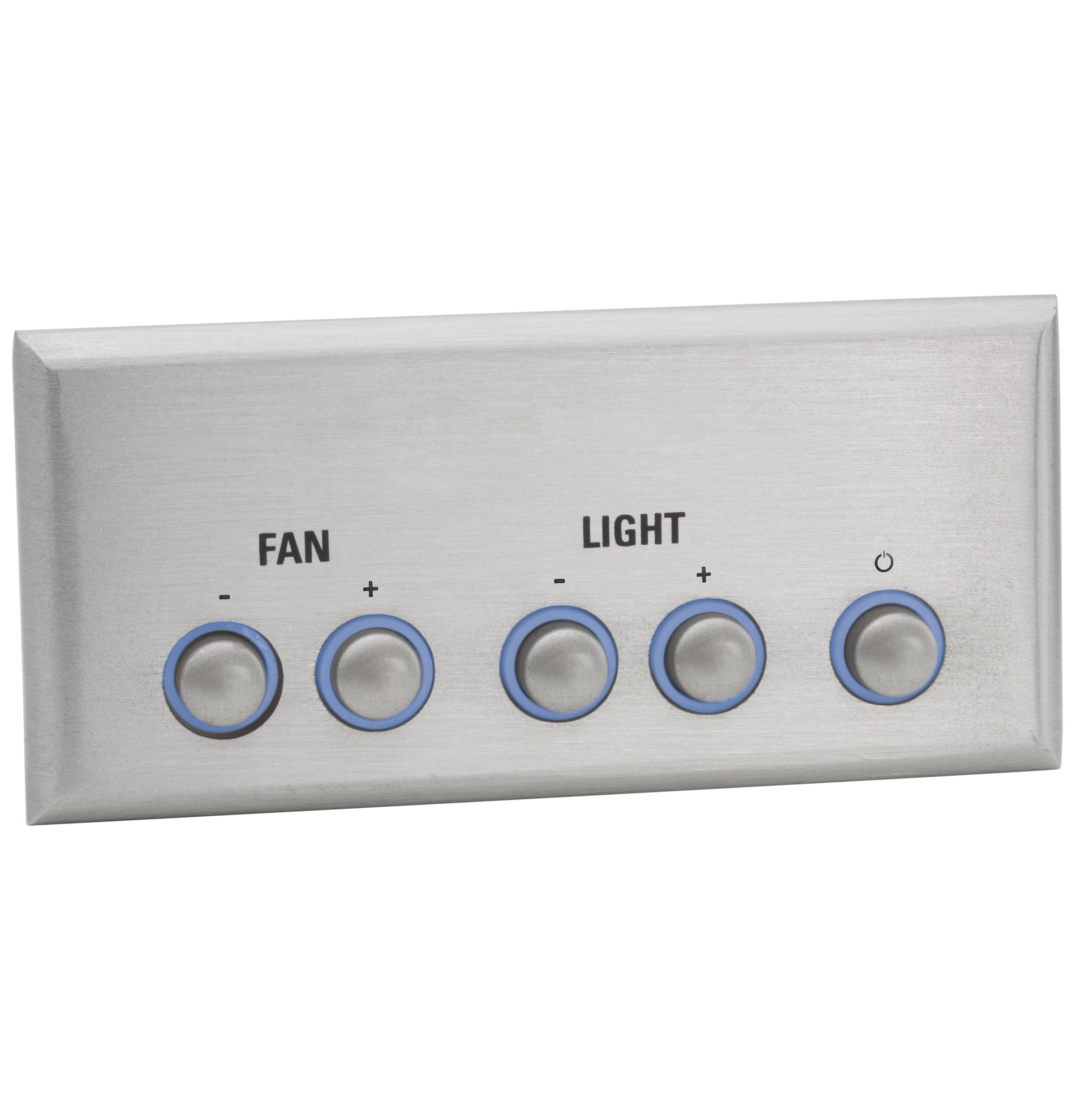

Control Panel with Remote-Mount Option
Offering design and flexibility, the control panel can be removed from the Monogram hood and installed into a wall or countertop
4 Lighting Levels
Adjust to fit your everyday needs
920-CFM Vertical Exhaust with Dual Blowers
Supremely quiet and stunningly efficient, this powerful ventilation hood keeps your kitchen fresh and free of cooking fumes and odors
Blower, liner and filters included
No additional components or accessory kits required
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

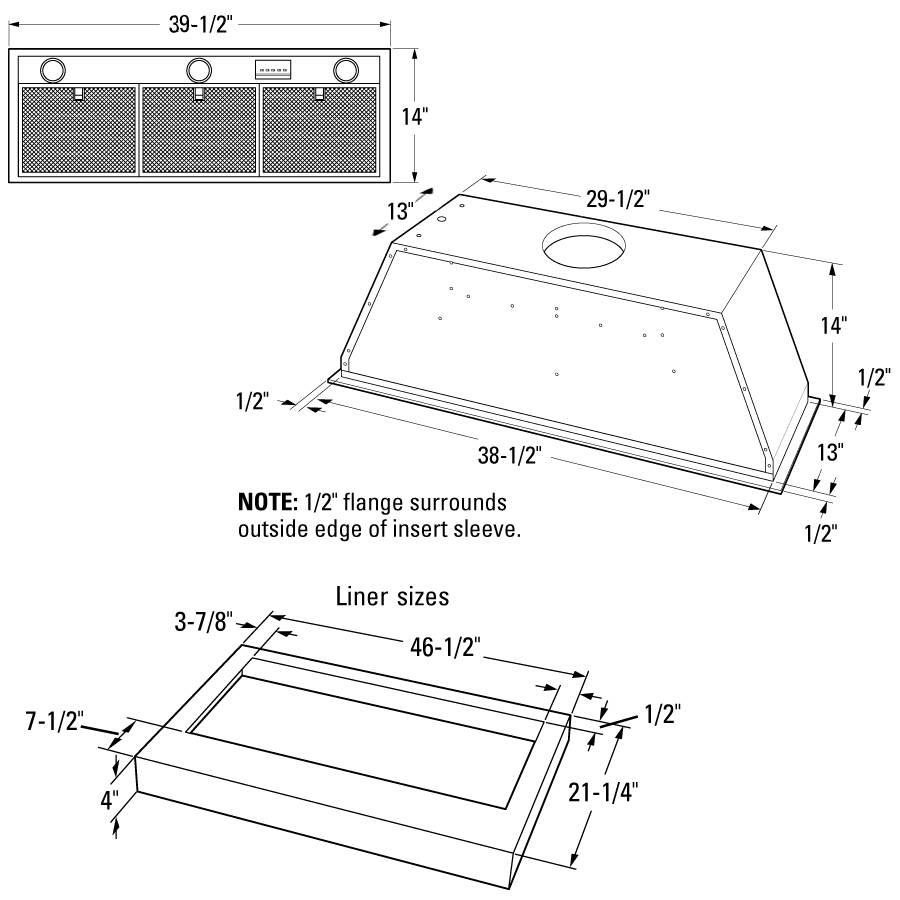

WEIGHTS & DIMENSIONS
| Net Weight | 97 lb |
| Overall Depth | 21.25 in |
| Overall Height | 18 in |
| Overall Width | 46.5 in |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 121 lb |
FEATURES
| Cooktop Lighting | Halogen |
| Max CFM | 920 |
| Required Duct Size | 8-in. Round |
| Short Description | 48" Custom Hood Insert |
| Removable Stainless Steel Filters | 3 |
| Exhaust Options | 8" Round Duct |
| Product Type | Designer Hood |
| Vertical Exhaust Blower Rating (CFM) | 920 |
| Welded / Finished Seams | Yes |
| Sones Rating : Top Exhaust-Round | 10.5 |
| Variable Speed Fan | Yes |
| Control Type | Pushbutton |
| Dual Blowers | Yes |
| Lighting Levels | 4 |
| Removable Filter | Yes |
| Indicator Lights | "ON" |
| Recirculating Capable | No |
| Blower Levels | 4 |
| CFM/ Sones Rating | 920/10.5 |
| Blower Type | Internal |
APPEARANCE
| Custom Insert | Yes |
| Design Style | Custom Panel |
| Color Appearance | Stainless Steel |
WARRANTY
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
POWER / RATINGS
| Amp Rating at 120V | 10.34 |
| Amps at 110V | 9.50 |
| Hertz | 60 |
Dimensions & Weight
| Width | 46.5 in. |
| Height | 18 in. |
| Length | 21.25 in. |
| Weight | 97 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 51.5 in. |
| Shipping Height | 23 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 137 lbs. |
| Total of Shipping Weight | 137 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.29 ft³ |
| Dimensional Weight | 127.96 lbs. |
| Total of Cubes | 10.29 ft³ |
| Total of Dimensional Weight | 127.96 lbs. |
ECONOMICAL / QUIET
| Venting Type | Externally Vented |
