Custom Hood Insert - JVC3300JSA
Custom Hood Insert
Model: JVC3300JSA
Custom Hood Insert
Model: JVC3300JSA
Color : Silver
Key Features
390-CFM venting system
Three-speed fan control
Dual incandescent lighting
Optional recirculating kit (JXN30)
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
390-CFM venting system
Helps effectively remove smoke, grease, odors and moisture
Three-speed fan control
Sliding control is easy to use
Dual incandescent lighting
Illuminates the cooktop surface
Optional recirculating kit (JXN30)
Allows the hood to be used in non-ducted application
Certifications
AHAM
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
Dimensions & Weight
| Width | 20.5 in. |
| Height | 9.63 in. |
| Length | 11.25 in. |
| Weight | 16 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25.5 in. |
| Shipping Height | 14.63 in. |
| Shipping Length | 16.25 in. |
| Shipping Weight | 56 lbs. |
| Total of Shipping Weight | 56 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.28 ft³ |
| Dimensional Weight | 15.97 lbs. |
| Total of Cubes | 1.28 ft³ |
| Total of Dimensional Weight | 15.97 lbs. |
FEATURES
| Cooktop Lighting | Incandescent |
| Required Duct Size | 6-in. Round |
| Exhaust Options | Vented to Outside |
| Vertical Exhaust Blower Rating (CFM) | 390 |
| Control Type | Sliding |
| Lighting Levels | 1 |
| Removable Filter | Yes |
| Indicator Lights | "ON" |
| Recirculating Capable | Optional Kit JXN30 |
| Blower Levels | 3 |
| Cooktop Lighting | 2 |
| Exhaust Options | Recirculating |

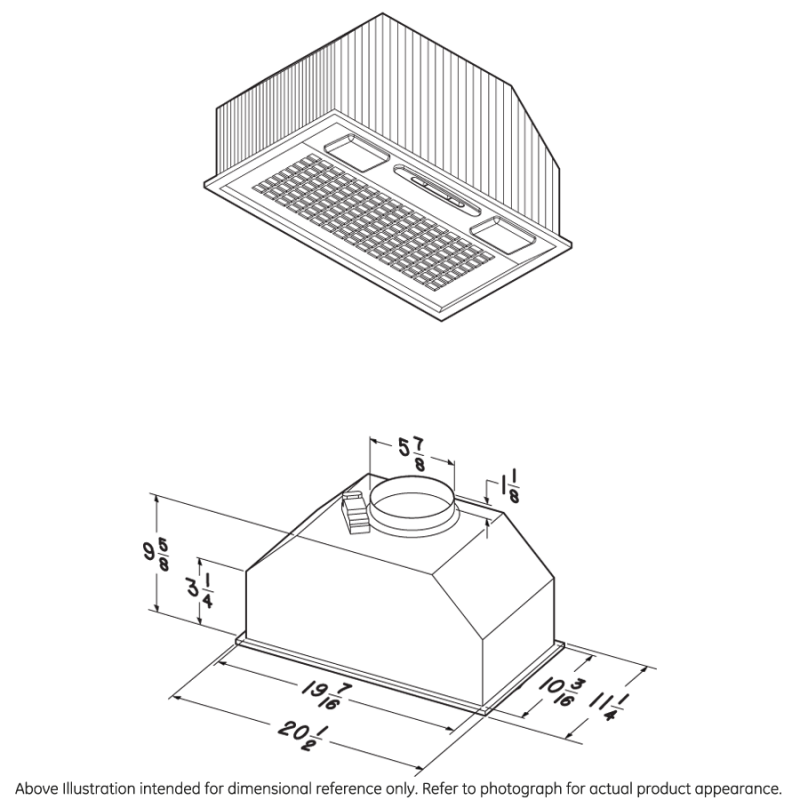

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Net Weight | 16 lb |
| Approximate Shipping Weight | 19 lb |
| Overall Depth | 11 1/4 in |
| Overall Height | 9 5/8 in |
| Overall Width | 20 1/2 in |
APPEARANCE
| Custom Insert | Yes |
| Design Style | Custom |
| Color Appearance | Silver |
POWER / RATINGS
| Amp Rating at 120V | 2.9 |
ACCESSORIES
| Optional Accessories | JXL30 - 30" Custom Liner |
| Optional Accessories | JXN30 - Recirculating Kit |
| Optional Accessories | JXCF30 - Charcoal Filter Replacement |
| Optional Accessories | JXL36 - 36" Custom Liner |
